Belle Premier XT - Yoke Assembly

Name: Belle Premier XT - Yoke Assembly
SKU: PremierXTYoke-group
Price: 0.4 GBP
Availability: InStock

Part No. PremierXTYoke-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Belle Premier XT - Yoke Assembly - Parts Diagram

	Part No.	Details
1	BE909/20200SP Available to backorder	[1] - Kit Premier 175/200 xt Gearbox 175 / 2050xt From Pm40005926	£1,245.04 £1,037.53
1	BE909/20300SP Available to backorder	[1] - Kit Premier 100/150 xt Gearbox 100 / 150xt From Pm40005926	£799.78 £666.48
1	BE909/13000SP Available to backorder	[1] - Kit Premier 175/200 xt Gearbox 175 / 2050xt Up To Pm40005925	£870.91 £725.76
1	BE909/16100SP Available to backorder	[1] - Kit Premier 100/150 xt Gearbox 100 / 150xt Up To Pm40005925	£865.15 £720.96
2	BE909/99942 Available to backorder	[2] - Pressing Uk Belt Guard	£14.29 £11.91
3	BE909/99910 Available to backorder	[3] - Bar Plunger	£22.16 £18.47
4	BE8/10001 Available to backorder	[4] - Nut	£1.69 £1.41
5	BE7/6032 Available to backorder	[5] - Screw	£0.58 £0.48
6	BE909/12200 Available to backorder	[6] - Yoke Uk 175xt/200xt Wa 175 / 2050xt	£784.51 £653.76
6	BE909/10700 Available to backorder	[6] - Yoke Uk 100xt/150xt Wa 100 / 150xt	£811.01 £675.84

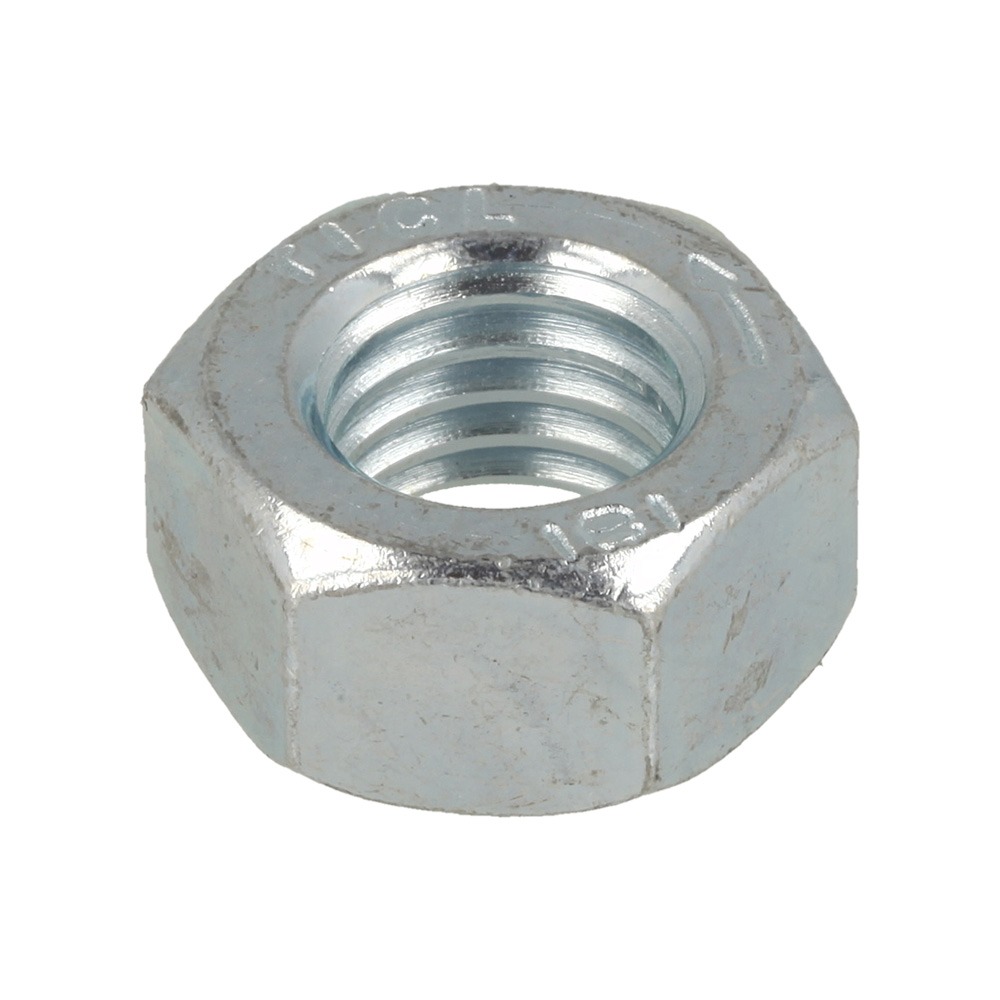

7	BE8/12003 Available to backorder	[7] - Nut	£1.94 £1.62
8	BE4/1205 Available to backorder	[8] - Washer M12	£0.48 £0.40
9	BE909/99807 Available to backorder	[9] - Pulley Gearbox Hd Belts From May '04	£56.03 £46.69
9	BE908/15700 Available to backorder	[9] - Pulley 25 Tooth 150/175/200T Up To May '04	£178.56 £148.80
10	BE500/06100 Available to backorder	[10] - Grease Nipple - M6 x 1mm Up To Jan '09	£0.48 £0.40
11	BEPS022 Available to backorder	[11] - Circlip - Internal	£1.03 £0.86
12	BE21/0163 Available to backorder	[12] - Belt 912 - 8M - Hp 21 From May '04	£53.38 £44.48

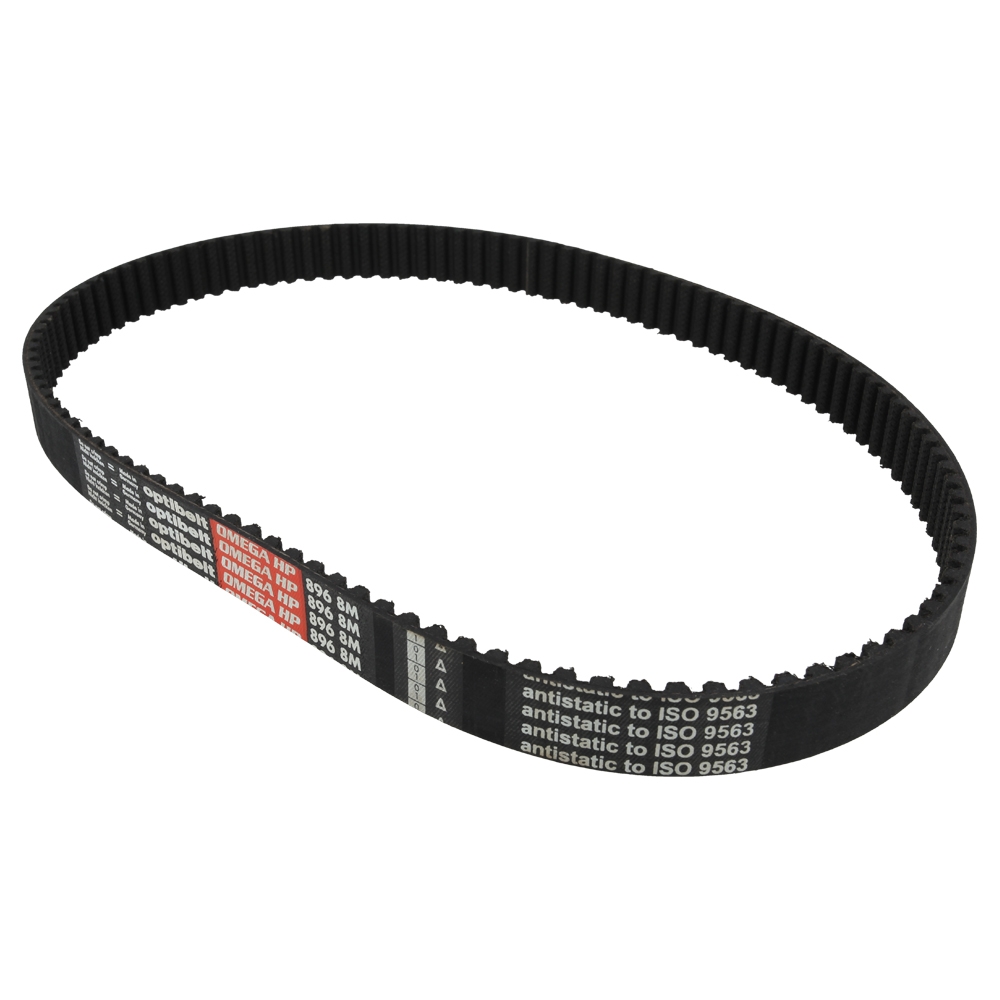

12	BE908/15500 Available to backorder	[12] - Belt Polychain 150T/ 175T/200T Up To May '04	£63.12 £52.60
13	BE909/99837 Available to backorder	[13] - Layshaft Bearing Spacer From Feb '09	£7.84 £6.53

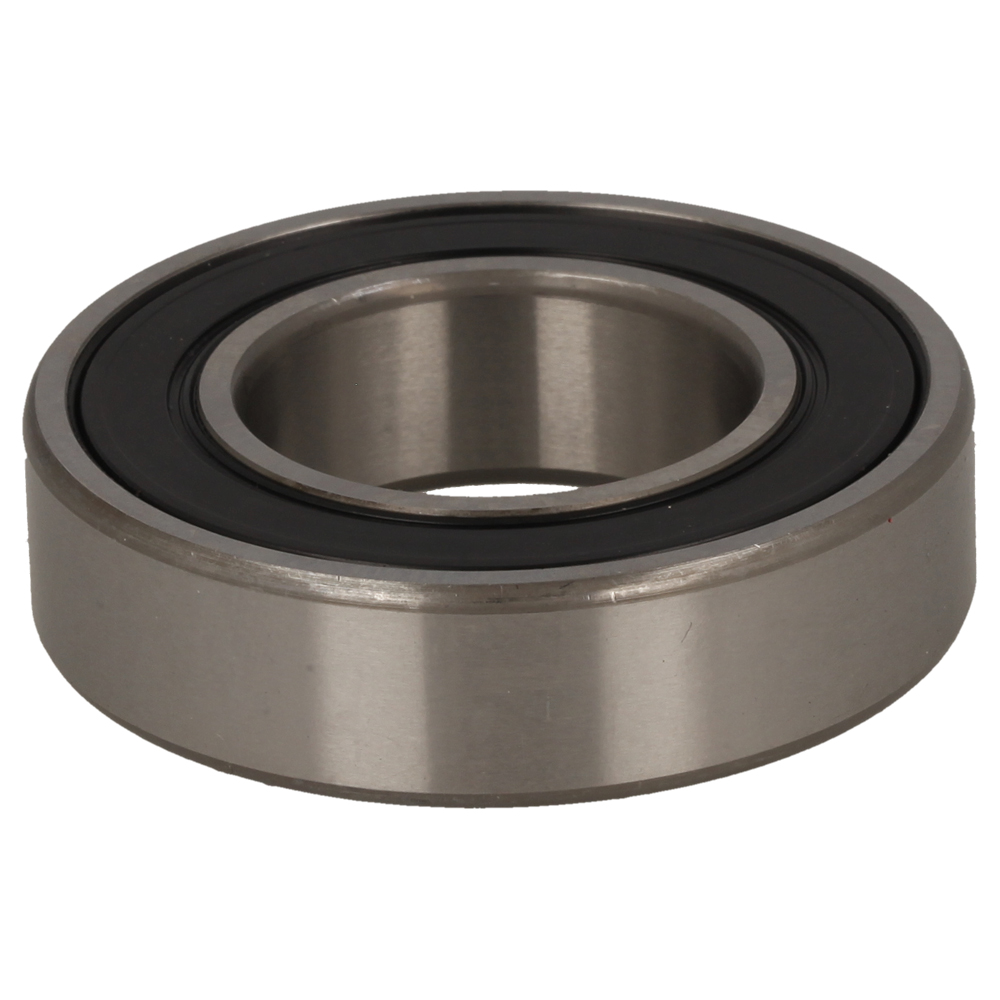

14	BE53/0071 Available to backorder	[14] - Bearing 6005-2Rsh From Feb '09	£10.91 £9.09
14	BE909/30500 Available to backorder	[14] - Spares Kit - Layshaft Up To Jan '09	£22.51 £18.76
15	BE909/30400 Available to backorder	[15] - Layshaft Wa From Feb '09	£99.12 £82.60
15	BE909/19900 Available to backorder	[15] - Layshaft W.A. Hd Belts From May '04+ Up To Jan '09	£67.80 £56.50
16	BE908/15900 Available to backorder	[16] - Coverplate Layshaft 175/200T	£69.12 £57.60
17	BE50/000016 Available to backorder	[17] - Bush 31x25x17 Lg Stab Pivot	£18.00 £15.00
18	BE908/21200 Available to backorder	[18] - Cover Yoke-Ring Gear	£17.11 £14.26
19	BE909/18500 Available to backorder	[19] - Drum Assy/Drilling 175 xt 175xt	£1,016.06 £846.72
19	BE909/18600 Available to backorder	[19] - Drum Assy/Drilling 200 xt 200xt	£1,092.10 £910.08
19	BE909/18300 Available to backorder	[19] - Drum Assy/Drilling 100 xt 100xt	£847.87 £706.56
19	BE909/18400 Available to backorder	[19] - Drum Assy/Drilling 150 xt 150xt	£885.89 £738.24
21	BE909/99810 Available to backorder	[21] - Plate xt Gearbox Spacer From Pm40005926	£15.68 £13.07
21	BE909/99995 Available to backorder	[21] - Plate Gearbox Seal Cover Up To Pm40005925	£16.14 £13.45
22	BE909/19200 Available to backorder	[22] - Parts Kit 150 xt Paddles 150xt From July '02	£156.12 £130.10
22	BE909/19400 Available to backorder	[22] - Parts Kit 200 xt Paddles 200xt From Aug '02	£109.44 £91.20
22	BE909/19300 Available to backorder	[22] - Parts Kit 175 xt Paddles 175xt From Oct '02	£156.48 £130.40
22	BE909/19100 Available to backorder	[22] - Parts Kit 100 xt Paddles 100xt From July '02	£225.96 £188.30
23	BE7/12017 Available to backorder	[23] - Screw	£0.49 £0.41
24	BE4/1201 Available to backorder	[24] - Washer M12	£0.48 £0.40
25	BE8/12001 Available to backorder	[25] - Nut	£2.54 £2.12
26	BE800/99975 Available to backorder	[26] - Transport Position Decal	£3.58 £2.98
