Belle Premier XT - Motor Assembly (Up To July 2002)

Name: Belle Premier XT - Motor Assembly (Up To July 2002)
SKU: PremierXTMotorUpToJuly2002-group
Price: 0.4 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Belle Premier XT - Motor Assembly (Up To July 2002)

Description

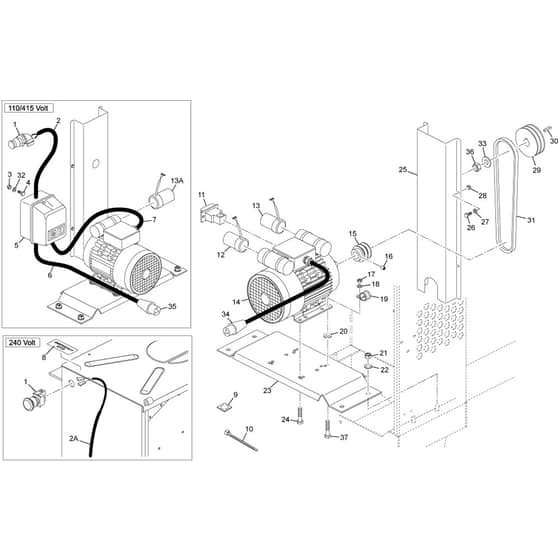

Belle Premier XT - Motor Assembly (Up To July 2002) - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
0	BE800/21513 Available to backorder	[-] - Decal Maintenance Uk Motor	£3.16 £2.63
0	BE800/21533 Available to backorder	[-] - Decal Motor Start-Up Uk	£19.58 £16.32
1	BE70/0049 Available to backorder	[1] - Button - Emergency Stop	£74.72 £62.27
2	BE71.0.172 Available to backorder	[2] - Harness 240V Brook (Es) 240V	£57.42 £47.85
2	BE71/0159 Available to backorder	[2] - Harness Brook 110V Motor 110V / 415V	£11.98 £9.98
3	BE8/4004 Available to backorder	[3] - Nut	£0.77 £0.64
4	BE9/4001 Available to backorder	[4] - Bolt	£0.48 £0.40
5	BE908/22000 Available to backorder	[5] - Starter Dl4 - 110V 110V	£583.20 £486.00
5	BE908/20000 Available to backorder	[5] - Starter - Dl1 - 3Ph 415V	£511.20 £426.00
6	BE71/0293 Available to backorder	[6] - Harness 110V - Premier 110V From Pm08205959	£144.74 £120.62
6	BE71/0160 Available to backorder	[6] - Harness Brook 110V Motor 110V Up To Pm08205958	£131.94 £109.95
7	BE71/0161 Available to backorder	[7] - Harness Brook 110V Motor 110V	£34.92 £29.10
7	BE71.0.166 Available to backorder	[7] - Harness 415V Motor To S/S Box 415V	£55.80 £46.50
8	BE800/99934 Available to backorder	[8] - Decal Emergency Stop (Gb) Now Use 800/99934	£1.96 £1.63
9	BE900/99903 Available to backorder	[9] - Cable Tie Pad	£0.56 £0.47
10	BE1/0005 Available to backorder	[10] - Tie Cable 304mmx4.8mm	£0.48 £0.40
12	BE70/0043 Available to backorder	[12] - Capacitor - Run (1.5Kw Motors) 240V	£242.40 £202.00
13	BE70/0187 Available to backorder	[13] - Capacitor 400/440V (70 Mfd) 110V	£152.16 £126.80
13	BE70/0042 Available to backorder	[13] - Capacitor - Start (1.5Kw Motor 240V	£242.88 £202.40
14	BE908/19900 Available to backorder	[14] - Motor 1.5Kw 3Ph 50Hz 415V	£625.20 £521.00
15	BE908/14800 Available to backorder	[15] - Pulley Elec Motor	£41.14 £34.28
16	BE7/8006 Available to backorder	[16] - Screw	£0.48 £0.40
17	BE8/8002 Available to backorder	[17] - Nut	£1.54 £1.28
18	BE4/8006 Available to backorder	[18] - Washer M8	£0.48 £0.40
19	BE900/10200 Available to backorder	[19] - Clip Cable No.6	£2.98 £2.48
20	BE4/8008 Available to backorder	[20] - Washer Up To July '02	£0.48 £0.40
21	BE8/12001 Available to backorder	[21] - Nut	£2.46 £2.05
22	BE4/12004 Available to backorder	[22] - Washer M12	£0.48 £0.40
23	BE909/99937 Available to backorder	[23] - Pressing Electric Deck	£131.28 £109.40
24	BE9/8008 Available to backorder	[24] - Bolt Up To July '02	£0.48 £0.40
25	BE909/99940 Available to backorder	[25] - Pressing Belt Guard Motor	£29.92 £24.93
26	BE9/6001 Available to backorder	[26] - Bolt Up To July '02	£0.48 £0.40
27	BE4/6001 Available to backorder	[27] - Washer Up To July '02 M6	£0.48 £0.40
28	BE8/6002 Available to backorder	[28] - Nut Up To July '02	£1.02 £0.85
29	BE909/99964 Available to backorder	[29] - Pulley Layshaft	£133.22 £111.02
30	BE909/99968 Available to backorder	[30] - Key 6*6 30Lg	£2.58 £2.15
31	BE21.0.109 Available to backorder	[31] - Belt V (970Mc-A37) Up To July '02	£3.76 £3.13
32	BE4/4001 Available to backorder	[32] - Washer M4	£0.48 £0.40
33	BE4/1602 Available to backorder	[33] - Washer	£2.16 £1.80
34	BE918/28500 Available to backorder	[34] - Plug 240V - Bs4343 Blue 240V	£21.92 £18.27
35	BE918/30100 Available to backorder	[35] - Plug 110V - Bs4343 32 Amp 110V	£40.36 £33.63
35	BE70/0189 Available to backorder	[35] - Plug 415V Bs4343 32Amp 415V	£42.62 £35.52
36	BE8/16002 Available to backorder	[36] - Nut	£1.48 £1.23
37	BE9/8003 Available to backorder	[37] - Bolt Up To July '02	£0.48 £0.40
38	BE909/20600 Available to backorder	[38] - Kit Premier xs Motot 230V 240V	£696.00 £580.00
38	BE909/20400 Available to backorder	[38] - Kit Prem xt Replacement Motor 110V	£640.80 £534.00
