Belle Premier XT - Motor Assembly (From April 2006)

Name: Belle Premier XT - Motor Assembly (From April 2006)
SKU: PremierXTMotorFromApril2006-group
Price: 0.33 GBP
Availability: InStock

Part No. PremierXTMotorFromApril2006-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Belle Premier XT - Motor Assembly (From April 2006)

Description

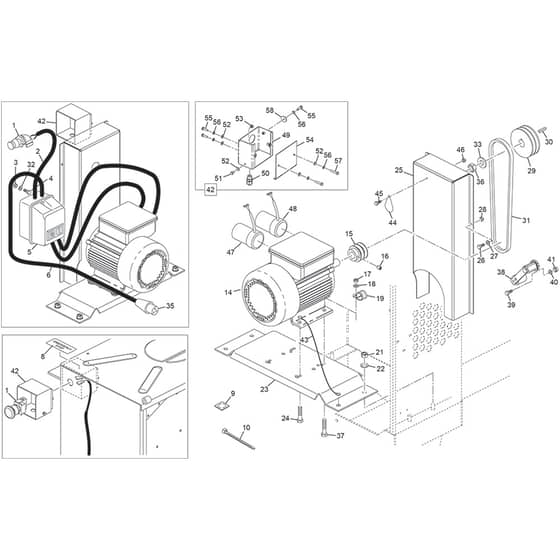

Belle Premier XT - Motor Assembly (From April 2006) - Parts Diagram

	Part No.	Details
0	BE800/21533 Available to backorder	[-] - Decal Motor Start-Up Uk	£20.26 £16.88
0	BE800/99916 Available to backorder	[-] - Decal Noise 99 Lwa	£1.24 £1.03
0	BE800/21513 Available to backorder	[-] - Decal Maintenance Uk Motor	£3.26 £2.72
1	BE70/0049 Available to backorder	[1] - Button - Emergency Stop	£71.76 £59.80
2	BE71/0251 Available to backorder	[2] - Harness E-Stop 110V/230V Prem	£36.19 £30.16
3	BE8/4004 Available to backorder	[3] - Nut	£0.80 £0.67
4	BE9/4001 Available to backorder	[4] - Bolt	£0.48 £0.40
5	BE908/20000 Available to backorder	[5] - Starter - Dl1 - 3Ph 415V	£459.67 £383.06
5	BE909/30700 Available to backorder	[5] - Kit Spares-Tripus Starter 110V 110V Up To 202794	£351.20 £292.67
5	BE70/0265 Available to backorder	[5] - Switch Starter - 110V 16-20A 110V From 202750	£354.12 £295.10
5	BE70/0263 Available to backorder	[5] - Switch Starter - 230V 6.3-10A 240V From 202750	£326.04 £271.70
5	BE909/30800 Available to backorder	[5] - Kit Spares-Tripus Starter 230V 240V Up To 202794	£352.56 £293.80
6	BE71/0293 Available to backorder	[6] - Harness 110V - Premier 110V From Pm08205959	£138.96 £115.80
6	BE71/0160 Available to backorder	[6] - Harness Brook 110V Motor 110V Up To Pm08205958	£126.72 £105.60
6	BE71/0252 Available to backorder	[6] - Harness 230V Premier 240V Up To...	£80.76 £67.30
6	BE71/0294 Available to backorder	[6] - Harness 230V - Premier 240V From...	£101.04 £84.20
8	BE800/99934 Available to backorder	[8] - Decal Emergency Stop (Gb) Now Use 800/99934	£2.03 £1.69
9	BE900/99903 Available to backorder	[9] - Cable Tie Pad	£0.54 £0.45
10	BE1/0005 Available to backorder	[10] - Tie Cable 304mmx4.8mm	£0.48 £0.40
14	BE20/0079 Available to backorder	[14] - Motor 230V 1.5Kw 50Hz 240V	£462.43 £385.36
14	BE908/19900 Available to backorder	[14] - Motor 1.5Kw 3Ph 50Hz 415V	£562.18 £468.48
14	BE20/0078 Available to backorder	[14] - Motor 110V 1.5Kw 50Hz 110V	£541.44 £451.20
15	BE908/14800 Available to backorder	[15] - Pulley Elec Motor	£42.56 £35.47
16	BE7/8006 Available to backorder	[16] - Screw	£0.40 £0.33
17	BE8/10001 Available to backorder	[17] - Nut	£1.69 £1.41
18	BE4/1005 Available to backorder	[18] - Washer M10	£0.48 £0.40
19	BE900/10200 Available to backorder	[19] - Clip Cable No.6	£3.08 £2.57
20	BE4/8008 Available to backorder	[20] - Washer	£0.48 £0.40
21	BE8/12001 Available to backorder	[21] - Nut	£2.54 £2.12
22	BE4/12004 Available to backorder	[22] - Washer M12	£0.48 £0.40
23	BE909/99937 Available to backorder	[23] - Pressing Electric Deck	£126.00 £105.00
24	BE7/10005 Available to backorder	[24] - Screw	£0.43 £0.36
25	BE909/99804 Available to backorder	[25] - Pressing Belt Guard ( Joc Ele)	£120.48 £100.40
26	BE9/6001 Available to backorder	[26] - Bolt	£0.48 £0.40
27	BE4/6001 Available to backorder	[27] - Washer M6	£0.48 £0.40
29	BE909/99964 Available to backorder	[29] - Pulley Layshaft	£127.92 £106.60
30	BE909/99968 Available to backorder	[30] - Key 6*6 30Lg	£2.66 £2.22
31	BE21/0111 Available to backorder	[31] - Belt V ( 990Mc - A38)	£5.52 £4.60
32	BE4/4001 Available to backorder	[32] - Washer M4	£0.48 £0.40
33	BE4/1602 Available to backorder	[33] - Washer	£2.23 £1.86
35	BE70/0189 Available to backorder	[35] - Plug 415V Bs4343 32Amp 415V	£44.09 £36.74
35	BE918/30100 Available to backorder	[35] - Plug 110V - Bs4343 32 Amp 110V	£41.75 £34.79
35	BE918/28500 Available to backorder	[35] - Plug 240V - Bs4343 Blue 240V	£22.68 £18.90
36	BE8/16002 Available to backorder	[36] - Nut	£1.54 £1.28
38	BE909/99999 Available to backorder	[38] - Jockey Belt Tension	£135.96 £113.30
39	BE7/5020 Available to backorder	[39] - Screw	£0.48 £0.40
40	BE8/5002 Available to backorder	[40] - Nut	£1.32 £1.10
41	BE4/5002 Available to backorder	[41] - Washer M5	£2.51 £2.09
42	BE909/20100 Available to backorder	[42] - Emergency Stop Cover Assy Elec	£44.98 £37.48
43	BE71/0249 Available to backorder	[43] - Cable Earth	£24.41 £20.34
44	BE909/99819 Available to backorder	[44] - Plate Swing From Jan '09	£3.72 £3.10
45	BE7/5002 Available to backorder	[45] - Screw From Feb '09	£0.48 £0.40
46	BE8/5003 Available to backorder	[46] - Nut	£0.48 £0.40
47	BE70/0244 Available to backorder	[47] - Capacitor Start 110V 110V	£22.88 £19.07

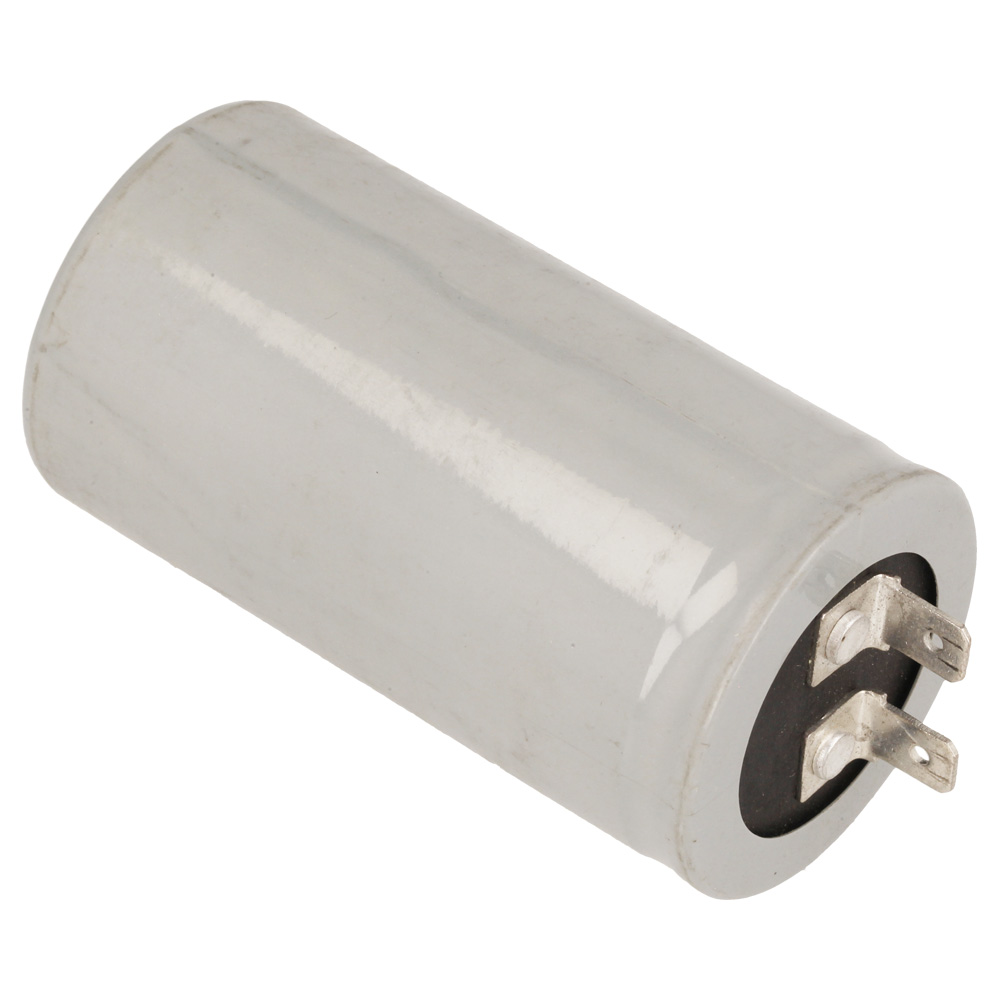

47	BE70/0242 Available to backorder	[47] - Capacitor Start 230V 240V	£18.34 £15.28
48	BE70/0245 Available to backorder	[48] - Capacitor Run 110V 110V	£40.55 £33.79

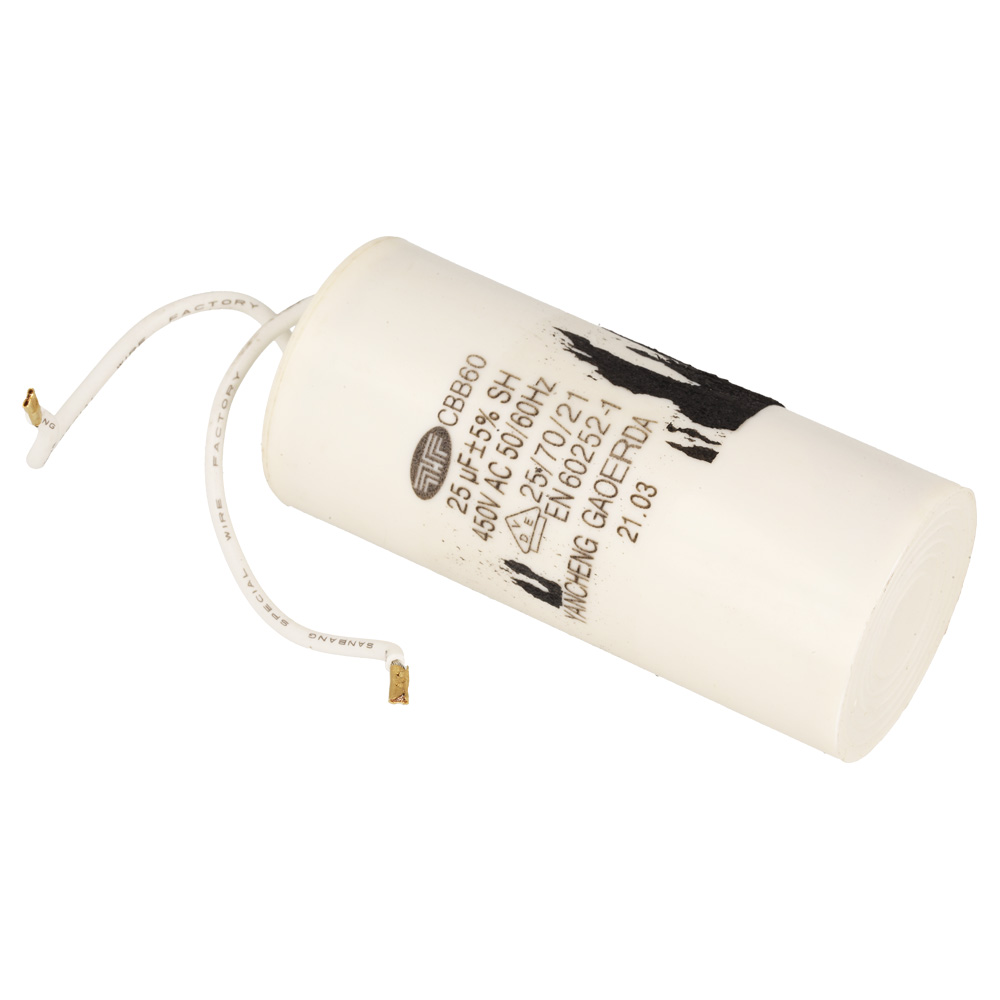

48	BE70/0243 Available to backorder	[48] - Capacitor Run 230V 240V	£20.05 £16.71
49	BE909/99808 Available to backorder	[49] - Pressing Emergency Stop Guard	£99.72 £83.10
50	BE70/0281 Available to backorder	[50] - M16 x 1.5mm Cable Gland	£2.98 £2.48
51	BE7/6001 Available to backorder	[51] - Screw	£0.48 £0.40
52	BE4/6007 Available to backorder	[52] - Washer M6	£0.48 £0.40
53	BE8/6002 Available to backorder	[53] - Nut	£1.06 £0.88
54	BE909/99809 Available to backorder	[54] - Pressing Emergency Stop Cover	£93.60 £78.00
55	BE7/6037 Available to backorder	[55] - Screw	£1.39 £1.16
56	BE4/6005 Available to backorder	[56] - Washer M6	£0.48 £0.40
57	BE7/6039 Available to backorder	[57] - Screw	£0.48 £0.40
58	BE4/6009 Available to backorder	[58] - Washer M6	£0.48 £0.40
