Belle Premier XT - Gearbox Assembly

Name: Belle Premier XT - Gearbox Assembly
SKU: PremierXTGearbox-group
Price: 0.4 GBP
Availability: InStock

Part No. PremierXTGearbox-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Belle Premier XT - Gearbox Assembly - Parts Diagram

	Part No.	Details
1	BE909/16100SP Available to backorder	[1] - Kit Premier 100/150 xt Gearbox 100/150xt Up To Pm40005925	£865.15 £720.96
1	BE909/20300SP Available to backorder	[1] - Kit Premier 100/150 xt Gearbox 100/150xt From Pm40005926	£799.78 £666.48

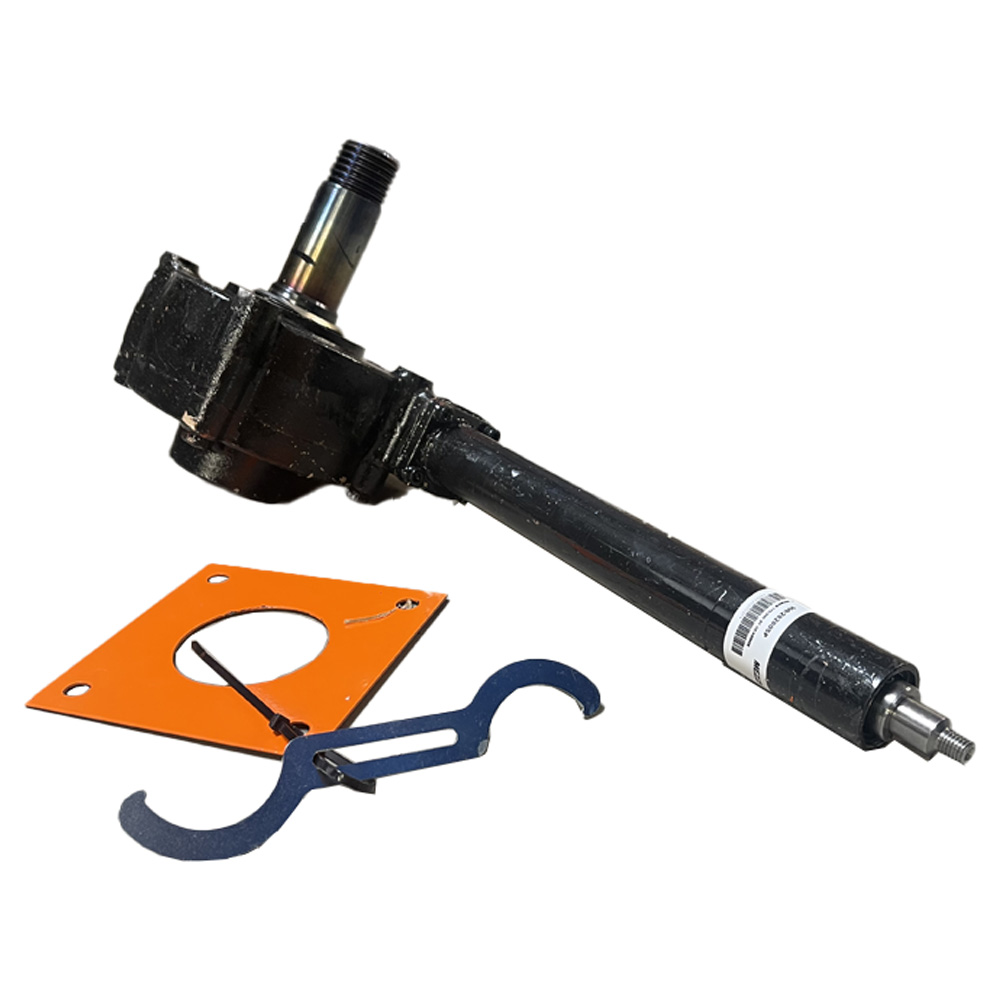

1	BE909/20200SP Available to backorder	[1] - Kit Premier 175/200 xt Gearbox 175/200xt From Pm40005926	£1,245.04 £1,037.53
1	BE909/13000SP Available to backorder	[1] - Kit Premier 175/200 xt Gearbox 175/200xt Up To Pm40005925	£870.91 £725.76
2	BE7/12014 Available to backorder	[2] - Screw	£0.62 £0.52
3	BEXS01 Available to backorder	[3] - Maxi Oil Filler Bung	£5.21 £4.34
4	BE908/14100 Available to backorder	[4] - Decal Gearbox Oil	£1.72 £1.43
5	BEPS111 Available to backorder	[5] - Cap Bearing Gearbox	£67.80 £56.50
6	BE5/0022 Available to backorder	[6] - O Ring Ref Rm1745-30	£2.33 £1.94

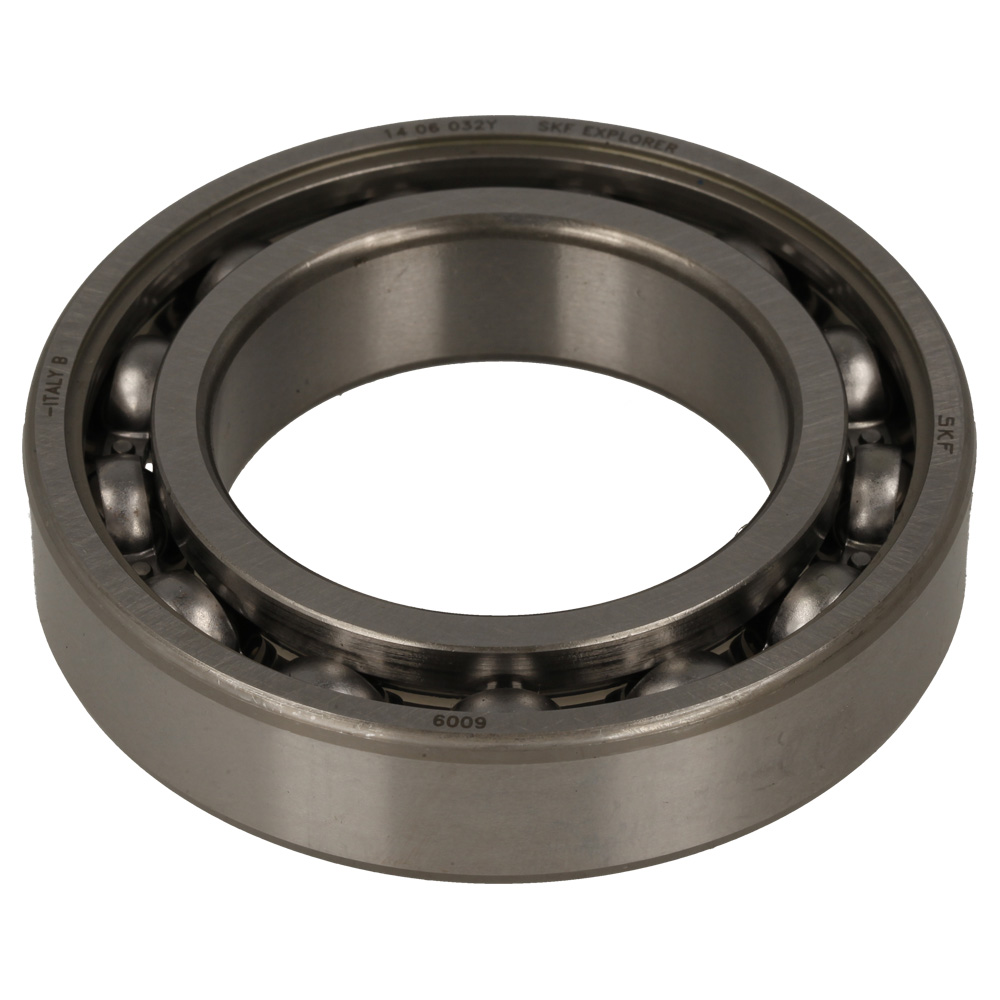

7	BEPS002 Available to backorder	[7] - Premier Ball Race 6009	£20.22 £16.85
8	BE909/17300 Available to backorder	[8] - Shaft Main Cast Machined	£461.18 £384.32

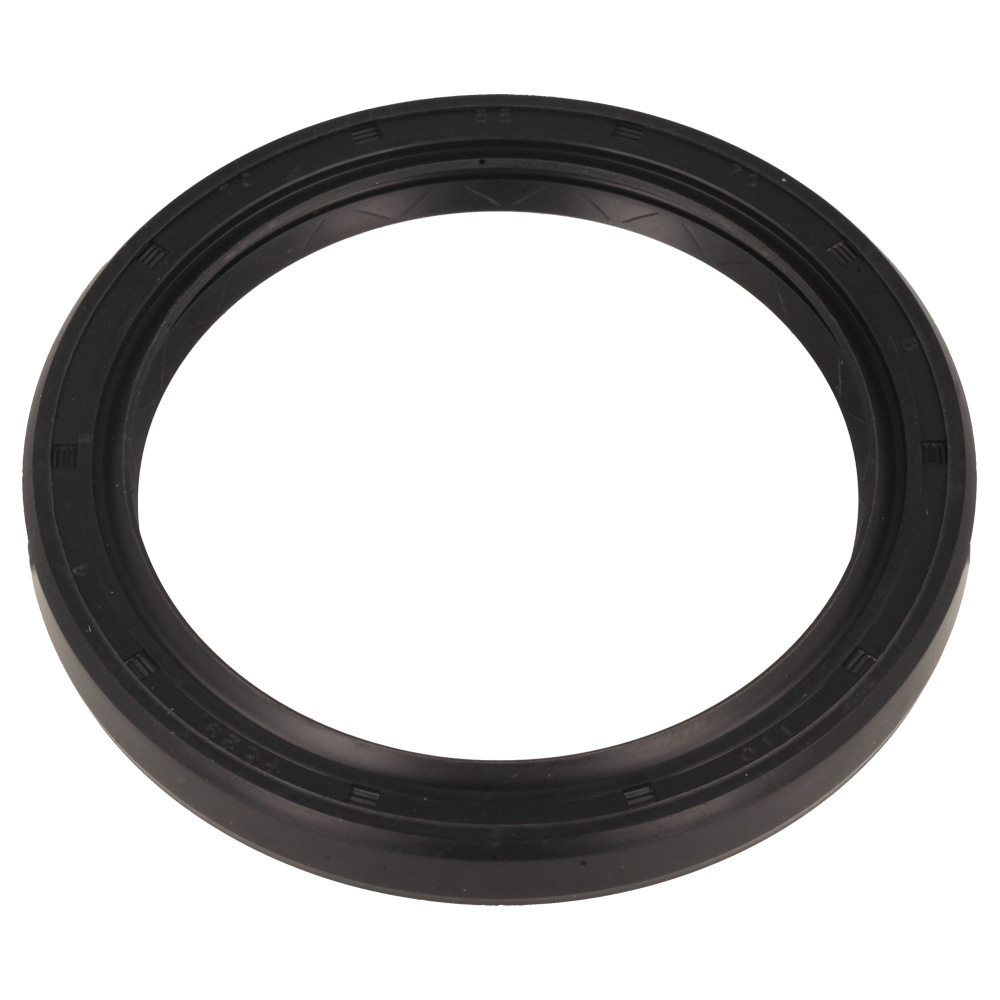

9	BE5/0044 Available to backorder	[9] - Seal Oil	£4.18 £3.48
10	BE909/13001 Available to backorder	[10] - Gearcase Machined	£152.28 £126.90
11	BE5/0043 Available to backorder	[11] - Seal Premier Wormshaft	£2.70 £2.25
12	BE909/15000 Available to backorder	[12] - Shaft Worm Assy 100xt/150xt Wa 100/150xt	£229.68 £191.40
12	BE909/12800 Available to backorder	[12] - Shaft Worm Assy 175xt/200xt Wa 175/200xt	£231.48 £192.90
13	BE908/99901 Available to backorder	[13] - Key 54 20mm Long	£3.68 £3.07
14	BE53/0010 Available to backorder	[14] - Bearing Deep Groove Ball	£14.77 £12.31
15	BE909/12900 Available to backorder	[15] - Tube Carrier 175xt/200xt Wa 175/200xt	£153.00 £127.50
15	BE909/15100 Available to backorder	[15] - Tube Carrier 100xt/150xt Wa 100/150xt	£146.76 £122.30
16	BE7/8012 Available to backorder	[16] - Screw	£0.48 £0.40
17	BEPS013 Available to backorder	[17] - Ball Race 6004	£6.77 £5.64
18	BE5/0015 Available to backorder	[18] - Ring 'O' 17 I/D x 1.8 Thk	£0.48 £0.40
19	BE909/12904 Available to backorder	[19] - Spacer Gearbox Shaft	£22.40 £18.67
20	BEPS016 Available to backorder	[20] - Premier Oilseal 30 x 42 x 7	£2.26 £1.88

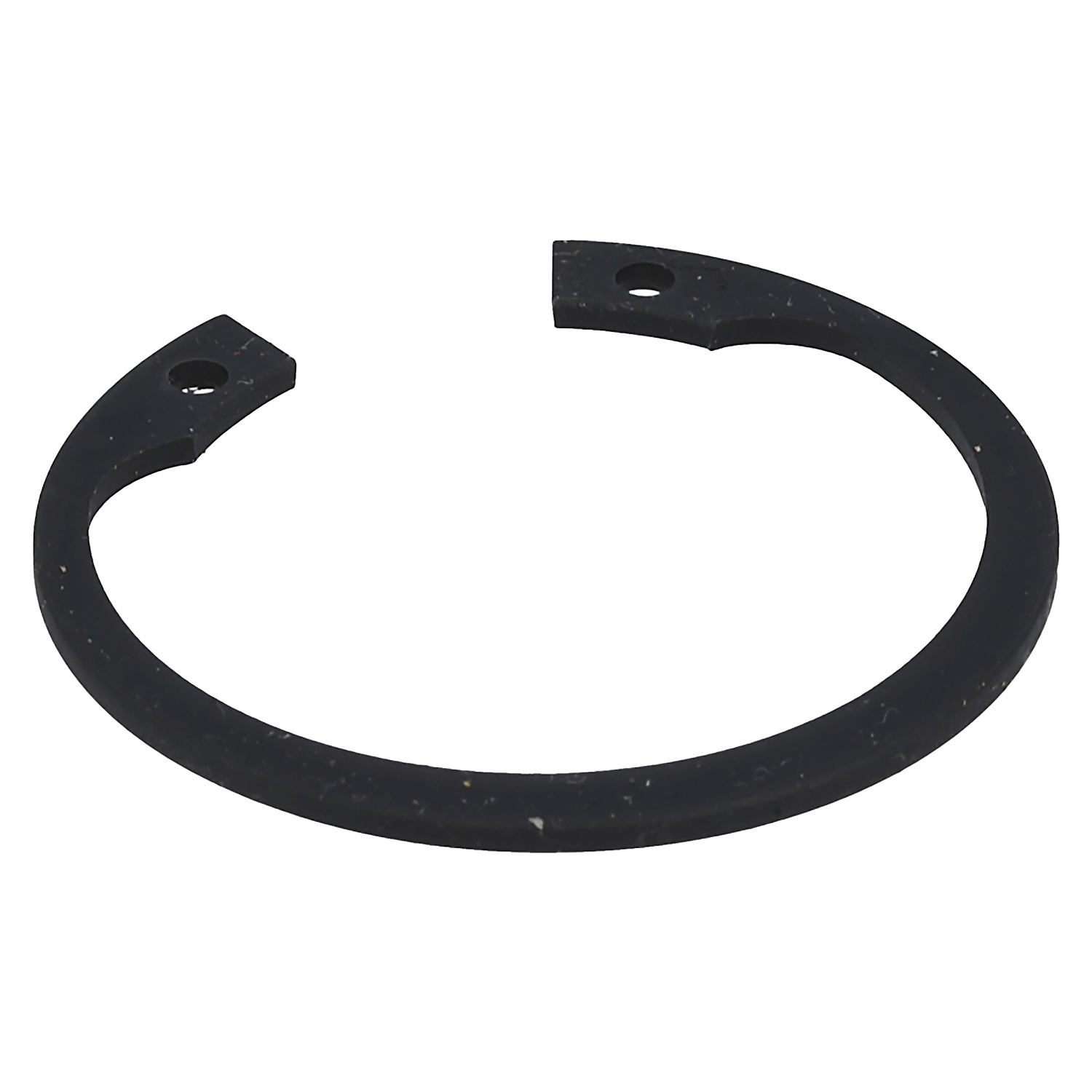

21	BEMS22 In stock	[21] - Circlip - Mini	£1.04 £0.87
22	BE1/1100 Available to backorder	[22] - Oil Total Trans 'W' 1 Litre Now Use - 1/1100	£38.24 £31.87
23	BE53/0004 Available to backorder	[23] - Bearing - 6011	£2.48 £2.07
24	BE909/12902 Available to backorder	[24] - Bush Premier Gearbox	£19.28 £16.07
25	BE7/8049 Available to backorder	[25] - Screw	£0.48 £0.40
26	BE7/12004 Available to backorder	[26] - Screw	£0.77 £0.64
27	BE8/8002 Available to backorder	[27] - Nut	£1.60 £1.33
28	BE908/16000 Available to backorder	[28] - Plate Support Gearbox	£6.79 £5.66
29	BE909/99810 Available to backorder	[29] - Plate xt Gearbox Spacer From Pm40005926	£15.68 £13.07
29	BE909/99995 Available to backorder	[29] - Plate Gearbox Seal Cover Up To Pm40005925	£16.14 £13.45
30	BE909/12903 Available to backorder	[30] - Spacer Gearbox Bearing	£3.02 £2.52
31	BE3/9003 Available to backorder	[31] - Circlip	£1.06 £0.88
32	BE5/0067 Available to backorder	[32] - Seal Gamma Type Rb	£4.76 £3.97
