Belle Premier T - Layshaft Assembly

Name: Belle Premier T - Layshaft Assembly
SKU: PremierTLayshaft-group
Price: 0.4 GBP
Availability: InStock

Part No. PremierTLayshaft-group

Description

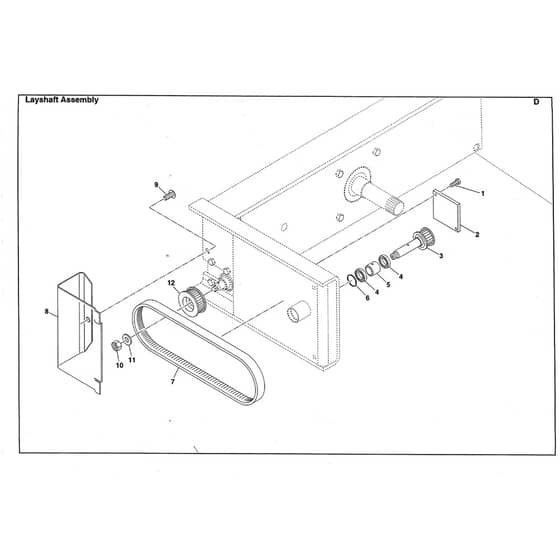

Belle Premier T - Layshaft Assembly - Parts Diagram

	Part No.	Details
1	BE7/6011 Available to backorder	[1] - Screw	£0.48 £0.40
2	BE908/15900 Available to backorder	[2] - Coverplate Layshaft 175/200T	£69.12 £57.60
3	BE908/16100 Available to backorder	[3] - Layshaft + Pulley 150/175/200T	£130.08 £108.40
4	BEPS074 Available to backorder	[4] - 6005 Z Layshaft Bearing	£6.56 £5.47
5	BEPS021 Available to backorder	[5] - Premier L/Shaft Bearing Spacer	£9.37 £7.81
6	BEPS022 Available to backorder	[6] - Circlip - Internal	£1.03 £0.86
7	BE908/15500 Available to backorder	[7] - Belt Polychain 150T/ 175T/200T	£63.12 £52.60
8	BE908/21000 Available to backorder	[8] - Cover Belt - Yoke	£18.48 £15.40
9	BE7/5011 Available to backorder	[9] - Screw	£0.48 £0.40
10	BE8/12003 Available to backorder	[10] - Nut	£1.94 £1.62
11	BE4/1201 Available to backorder	[11] - Washer M12	£0.48 £0.40
12	BE908/15700 Available to backorder	[12] - Pulley 25 Tooth 150/175/200T	£178.56 £148.80
