Belle PCX 60A - Water Tank Assembly

Name: Belle PCX 60A - Water Tank Assembly
SKU: PCX60AWaterTank-group
Price: 0.34 GBP
Availability: InStock

Part No. PCX60AWaterTank-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

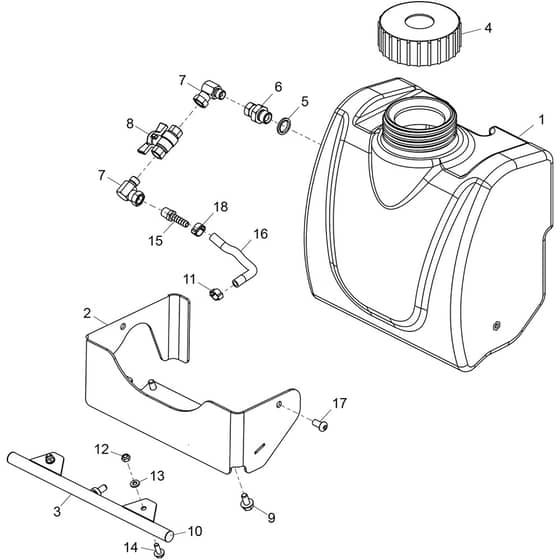

Belle PCX 60A - Water Tank Assembly - Parts Diagram

	Part No.	Details
1	BE943/99946S Available to backorder	[1] - Delta Bottle ( Orange ) Orange	£93.00 £77.50
1	BE943/99946W Available to backorder	[1] - Delta Bottle ( White ) White	£93.12 £77.60
1	BE943/99946R Available to backorder	[1] - Delta Bottle ( Red ) Red	£93.12 £77.60
1	BE943/99946G Available to backorder	[1] - Delta Bottle ( Green ) Green	£93.12 £77.60
1	BE943/99946Y Available to backorder	[1] - Delta Bottle ( Yellow ) Yellow	£93.12 £77.60
1	BE943/99946B Available to backorder	[1] - Delta Bottle ( Blue ) Blue	£93.12 £77.60
3	BE988/00900 Available to backorder	[3] - Wa Spray Bar Pcx60A	£69.12 £57.60
4	BE72/0028 Available to backorder	[4] - Water Bottle Cap + Chain Assy	£34.97 £29.14
5	BE5/0007 Available to backorder	[5] - Seal Bonded 3/8" Bsp	£0.48 £0.40
6	BE6/0146 Available to backorder	[6] - Adaptor 1/4F x 3/8M Swivel	£8.23 £6.86
7	BE6/0193 Available to backorder	[7] - Elbow Compact 1/4"M x 1/4" F	£20.69 £17.24
8	BE6/0222 Available to backorder	[8] - Tee Ball Valve 1/4" Bspp M/F	£21.25 £17.71
9	BE7/8053 Available to backorder	[9] - Screw	£0.41 £0.34
10	BE3/4040 Available to backorder	[10] - Plug - Plastic 16 Od x 11 Long	£0.62 £0.52
11	BE15.0.063 Available to backorder	[11] - Hose Clip Wade Oc 8	£1.43 £1.19
12	BE8/6007 Available to backorder	[12] - Nut	£0.48 £0.40
13	BE4/6001 Available to backorder	[13] - Washer M6	£0.48 £0.40
14	BE7/6034 Available to backorder	[14] - Screw	£0.58 £0.48
15	BE6/0266 Available to backorder	[15] - 1/4" Bspt Hose Tail - �8 Hose	£11.23 £9.36
16	BE30/0087 Available to backorder	[16] - Hose Pcx60A Water Tank	£2.11 £1.76
17	BE7/8049 Available to backorder	[17] - Screw	£0.48 £0.40
18	BE3/7063 Available to backorder	[18] - O Clip - Id 15 0C8	£2.69 £2.24
