Belle PCX 12-36 & 13-40 - Transporter Attachment

Description

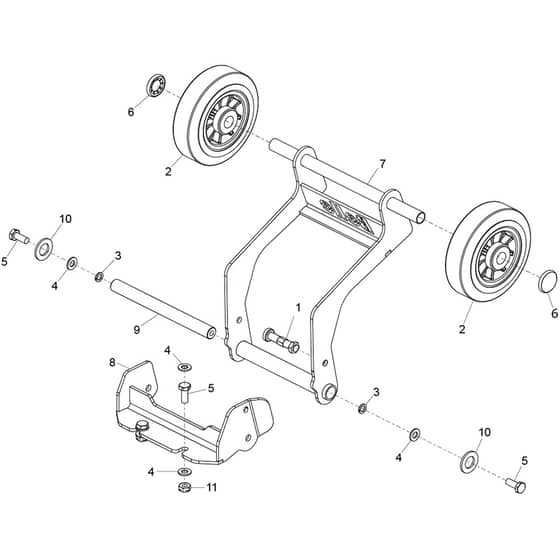

Belle PCX 12-36 & 13-40 - Transporter Attachment - Parts Diagram

	Part No.	Details
1	BE73/0049 Available to backorder	[1] - Indexing Plunger 8mm	£47.52 £39.60
2	BE19.0.603 Available to backorder	[2] - Wheel 160 Dia x 20 Bore/60 Hub	£11.57 £9.64
3	BE4/1003 Available to backorder	[3] - Washer M10	£0.48 £0.40
4	BE4/1005 Available to backorder	[4] - Washer M10	£0.48 £0.40
5	BE7/10005 Available to backorder	[5] - Screw	£0.43 £0.36
6	BE00011 In stock	[6] - Star Clip - Capped	£2.75 £2.29
7	BE960/01300GR Available to backorder	[7] - Wheel Kit Bracket Wa (Grey)	£47.74 £39.78
8	BE960/01200 Available to backorder	[8] - Pivot Bracket Pcx20A/Pcx 13/40	£35.20 £29.33
9	BE151/99974 Available to backorder	[9] - Pivot Tube	£49.24 £41.03
10	BE4/2006 Available to backorder	[10] - Washer M20	£1.39 £1.16
11	BE8/10001 Available to backorder	[11] - Nut	£1.69 £1.41
