Belle PCX 12-36 & 13-40 - Cast Baseplate Assembly

Part No. PCX12361340CastBaseplate-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Belle PCX 12-36 & 13-40 - Cast Baseplate Assembly

Belle PCX 12-36 & 13-40 - Cast Baseplate Assembly

Description

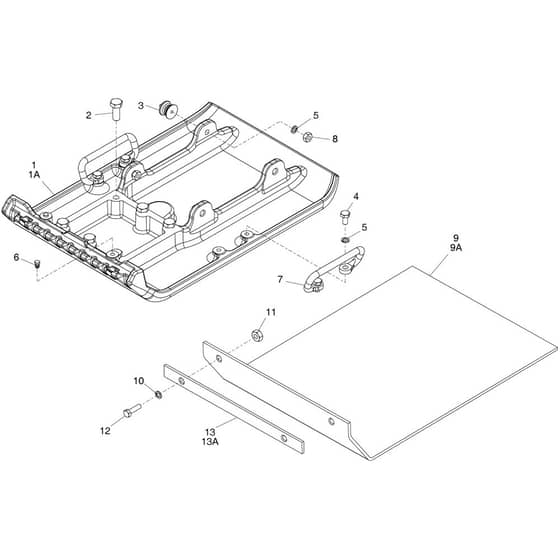

Belle PCX 12-36 & 13-40 - Cast Baseplate Assembly - Parts Diagram

Ref.		Img.	Part No.	Details
	1		BE151/99943 Available to backorder	[1] - Cast Base Pcx 1236 Pcx 12/36		£496.51 £413.76
	1		BE151/99944 Available to backorder	[1A] - Cast Base Pcx 1340 Pcx 13/40		£491.90 £409.92
	2		BE7/14011 Available to backorder	[2] - Screw		£0.48 £0.40
	3		BE21.0.292 In stock	[3] - Anti-Vib Mount		£12.70 £10.58
	4		BE7/10004 Available to backorder	[4] - Screw		£0.43 £0.36
	5		BE4/1003 Available to backorder	[5] - Washer M10		£0.48 £0.40
	6		BE3/4037 Available to backorder	[6] - Plug		£0.62 £0.52
	7		BE151/99914 Available to backorder	[7] - Lifting Handle - Side		£8.57 £7.14
	8		BE8/10003 Available to backorder	[8] - Nut		£0.48 £0.40
	9		BE151/99980 Available to backorder	[9] - Pcx1236 Paving Pad Pcx 12/36		£78.60 £65.50
	9		BE151/99981 Available to backorder	[9A] - Pcx1340 Paving Pad Pcx 13/40		£87.60 £73.00
	10		BE4/1005 Available to backorder	[10] - Washer M10		£0.48 £0.40
	11		BE8/10001 Available to backorder	[11] - Nut		£1.69 £1.41
	12		BE7/10003 Available to backorder	[12] - Screw		£0.43 £0.36
	13		BE151/99977 Available to backorder	[13A] - Pcx1340 Pave Pad Bracket Pcx 13/40		£16.60 £13.83
	13		BE151/99976 Available to backorder	[13] - Pcx1236 Pave Pad Bracket Pcx 12/36		£15.25 £12.71

Description

Belle PCX 12-36 & 13-40 - Cast Baseplate Assembly - Parts Diagram
