Belle PCLX 320 - 400 - Transporter Attachment (From Serial No. 050570)

Part No. PCLX320400TransporterAttachmentFromSerialNo050570-group
Belle PCLX 320 - 400 - Transporter Attachment (From Serial No. 050570)
Belle PCLX 320 - 400 - Transporter Attachment (From Serial No. 050570)

Description

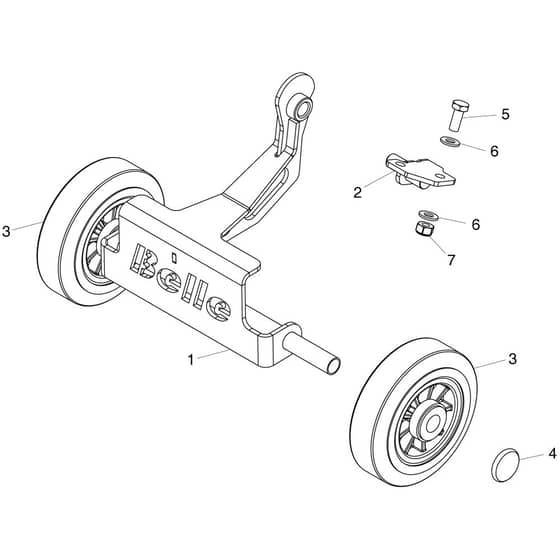

Belle PCLX 320 - 400 - Transporter Attachment (From Serial No. 050570) - Parts Diagram

Ref. Img. Part No. Details
  1 [1] - Wheel Kit Arm Assembly
[1] - Wheel Kit Arm Assembly
BE943/16000
Available to backorder
[1] - Wheel Kit Arm Assembly
£117.60 £98.00

  2 [2] - Pivot Assembly
[2] - Pivot Assembly
BE943/14700
Available to backorder
[2] - Pivot Assembly
£51.60 £43.00

  3 [3] - Wheel 160 Dia x 20 Bore/60 Hub
[3] - Wheel 160 Dia x 20 Bore/60 Hub
BE19.0.603
Available to backorder
[3] - Wheel 160 Dia x 20 Bore/60 Hub
£11.57 £9.64

  4 [4] - Star Clip - Capped
[4] - Star Clip - Capped
BE00011
In stock
[4] - Star Clip - Capped
£2.75 £2.29

  5 [5] - Screw
[5] - Screw
BE7/10005
Available to backorder
[5] - Screw
£0.43 £0.36

  6 [6] - Washer M10
[6] - Washer M10
BE4/1005
Available to backorder
[6] - Washer M10
£0.48 £0.40

  7 [7] - Nut
[7] - Nut
BE8/10006
Available to backorder
[7] - Nut
£0.48 £0.40

  8 [8] - Pclx Removable Wheel Kit
[8] - Pclx Removable Wheel Kit
BEOPP/60/DIO
Available to backorder
[8] - Pclx Removable Wheel Kit
£161.88 £134.90


Description

Belle PCLX 320 - 400 - Transporter Attachment (From Serial No. 050570) - Parts Diagram
