Belle PCLX 320 - 400 - Baseplate Assembly (PCLX 320S)

Name: Belle PCLX 320 - 400 - Baseplate Assembly (PCLX 320S)
SKU: PCLX320400BaseplatePCLX320S-group
Price: 0.34 GBP
Availability: InStock

Part No. PCLX320400BaseplatePCLX320S-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Belle PCLX 320 - 400 - Baseplate Assembly (PCLX 320S)

Description

Belle PCLX 320 - 400 - Baseplate Assembly (PCLX 320S) - Parts Diagram

	Part No.	Details
1	BE4/1015 Available to backorder	[1] - Washer	£2.21 £1.84
2	BE8/10001 Available to backorder	[2] - Nut	£1.69 £1.41
3	BE4/1005 Available to backorder	[3] - Washer M10	£0.48 £0.40
4	BE21.0.292 In stock	[4] - Anti-Vib Mount	£12.70 £10.58
5	BE4/1003 Available to backorder	[5] - Washer M10	£0.48 £0.40
6	BE8/10003 Available to backorder	[6] - Nut	£0.48 £0.40
7	BE8/8008 Available to backorder	[7] - Nut	£0.48 £0.40
8	BE943/99938 Available to backorder	[8] - Pressing - Lifting Handle	£33.43 £27.86
9	BE4/8006 Available to backorder	[9] - Washer M8	£0.48 £0.40
10	BE7/8009 Available to backorder	[10] - Screw	£0.48 £0.40

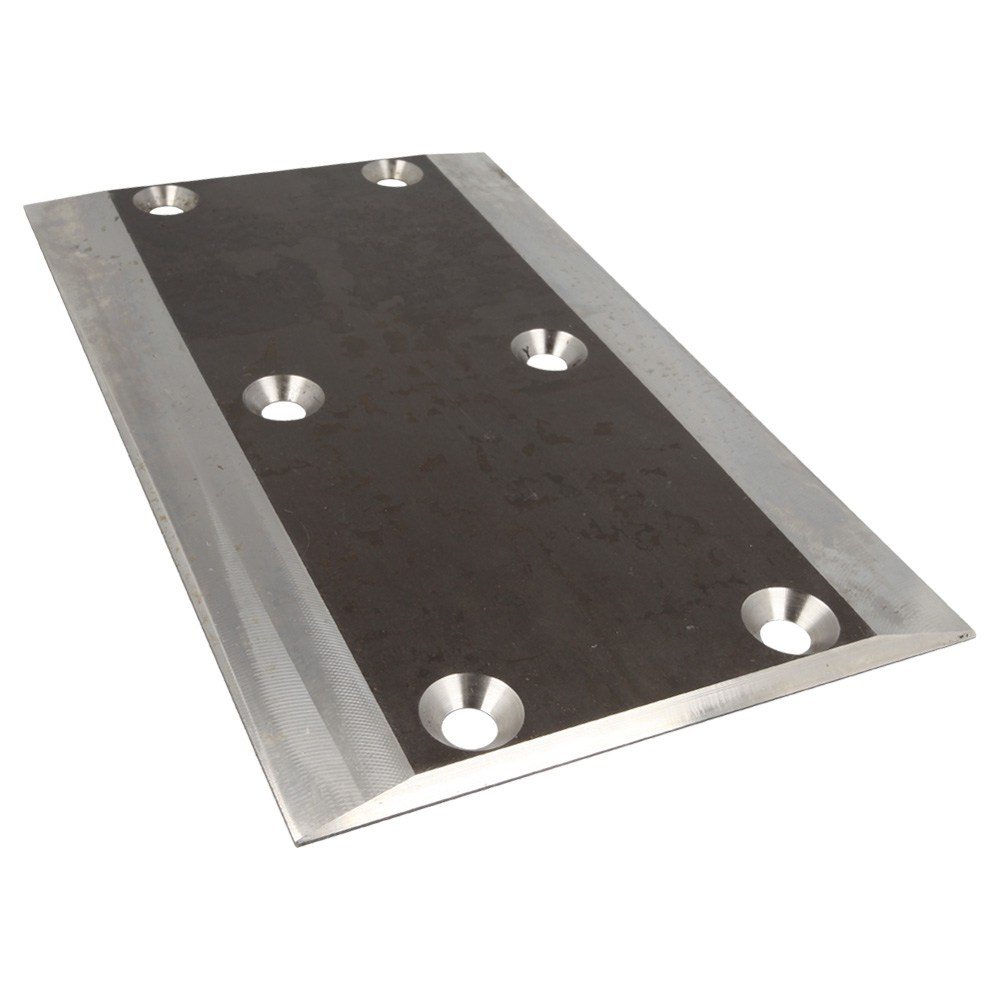

11	BE943/21000 Available to backorder	[11] - Kit - Pclx320S Wear Plate	£186.12 £155.10
12	BE71.0.063 Available to backorder	[12] - Screw	£146.52 £122.10
13	BE71.0.064 Available to backorder	[13] - Screw	£14.06 £11.72
14	BE943/20500 Available to backorder	[14] - Baseplate- Pclx320S	£386.72 £322.27
15	BE7/8007 Available to backorder	[15] - Screw	£0.48 £0.40
16	BE05.3.062 Available to backorder	[16] - Washer	£2.14 £1.78
17	BE943/99928 Available to backorder	[17] - Strap	£32.14 £26.78
18	BE943/99913 Available to backorder	[18] - Pad Paving Pcl 320S	£135.84 £113.20
19	BE943/99907 Available to backorder	[19] - Plate Clamp Paving Pad Pcl 320	£21.06 £17.55
20	BE00.0.862 Available to backorder	[20] - Coach Bolt M8 x 50 Ht Bzp	£0.41 £0.34
