Belle PCLX 32 32S & 40 - Vibrator Assembly

Belle PCLX 32 32S & 40 - Vibrator Assembly

Part No. PCLX3232S40Vibrator-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Belle PCLX 32 32S & 40 - Vibrator Assembly

Belle PCLX 32 32S & 40 - Vibrator Assembly

Description

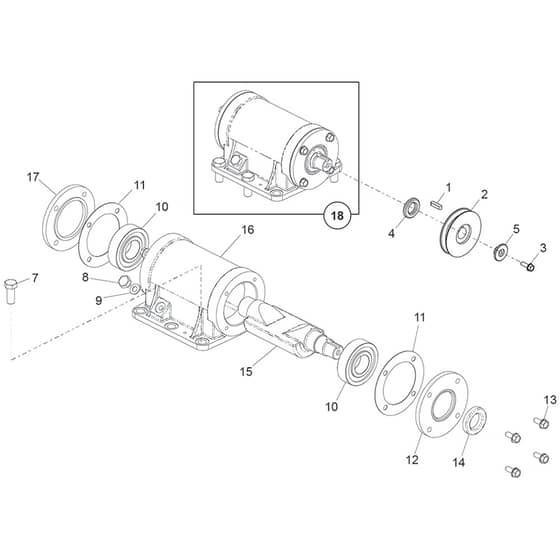

Belle PCLX 32 32S & 40 - Vibrator Assembly - Parts Diagram

Ref.		Img.	Part No.	Details
	1		BE06.3.014 Available to backorder	[1] - Key 8 x 7 x 25 One End Round		£3.72 £3.10
	2		BE151.0.221 Available to backorder	[2] - Pulley - Pc Vibrator Gx120 M/C		£64.56 £53.80
	3		BE7/8053 Available to backorder	[3] - Screw		£0.41 £0.34
	4		BE943/99979 Available to backorder	[4] - 8mm Pulley Spacer		£12.71 £10.59
	5		BE943/99980 Available to backorder	[5] - Pulley Retainer		£13.18 £10.98
	7		BE7/14011 Available to backorder	[7] - Screw Pclx 32 & 40		£0.48 £0.40
	7		BE07.9.062 Available to backorder	[7] - Setscrew - M14 x 35 W/ Nylon Pclx 32S		£2.11 £1.76
	8		BEMS12 Available to backorder	[8] - Mini Filler Bung		£2.46 £2.05
	9		BE5/0011 Available to backorder	[9] - Washer Now Use 5/0011		£1.26 £1.05
	10		BE12.1.057 Available to backorder	[10] - Bearing		£19.88 £16.57
	11		BE943/99904 Available to backorder	[11] - Gasket Pcl Baseplate		£1.22 £1.02
	12		BE77.0.015 Available to backorder	[12] - Vibrator End Cap-Pulley Side		£47.75 £39.79
	13		BE7/8037 Available to backorder	[13] - Screw		£0.48 £0.40
	14		BE15.0.196 Available to backorder	[14] - Oil Seal		£3.46 £2.88
	15		BE943/99921 Available to backorder	[15] - Vibrator Shaft Pclx		£166.08 £138.40
	15		BE942/99907 Available to backorder	[15] - Vibrator Shaft Pcx 350		£166.08 £138.40
	16		BE77.0.013 Available to backorder	[16] - Vibrator Housing		£255.00 £212.50
	17		BE77.0.016 Available to backorder	[17] - Vibrator End Cap - Blind Side		£47.80 £39.83

Description

Belle PCLX 32 32S & 40 - Vibrator Assembly - Parts Diagram
