Belle PCLX 32 32S & 40 - Bedplate Assembly

Description

Belle PCLX 32 32S & 40 - Bedplate Assembly - Parts Diagram

	Part No.	Details
1	BE943/21600 Available to backorder	[1] - Bedplate Wa Pclx	£169.20 £141.00
2	BE943/22100SSP Available to backorder	[2] - Handle Pclx Orange + Bush	£113.62 £94.68

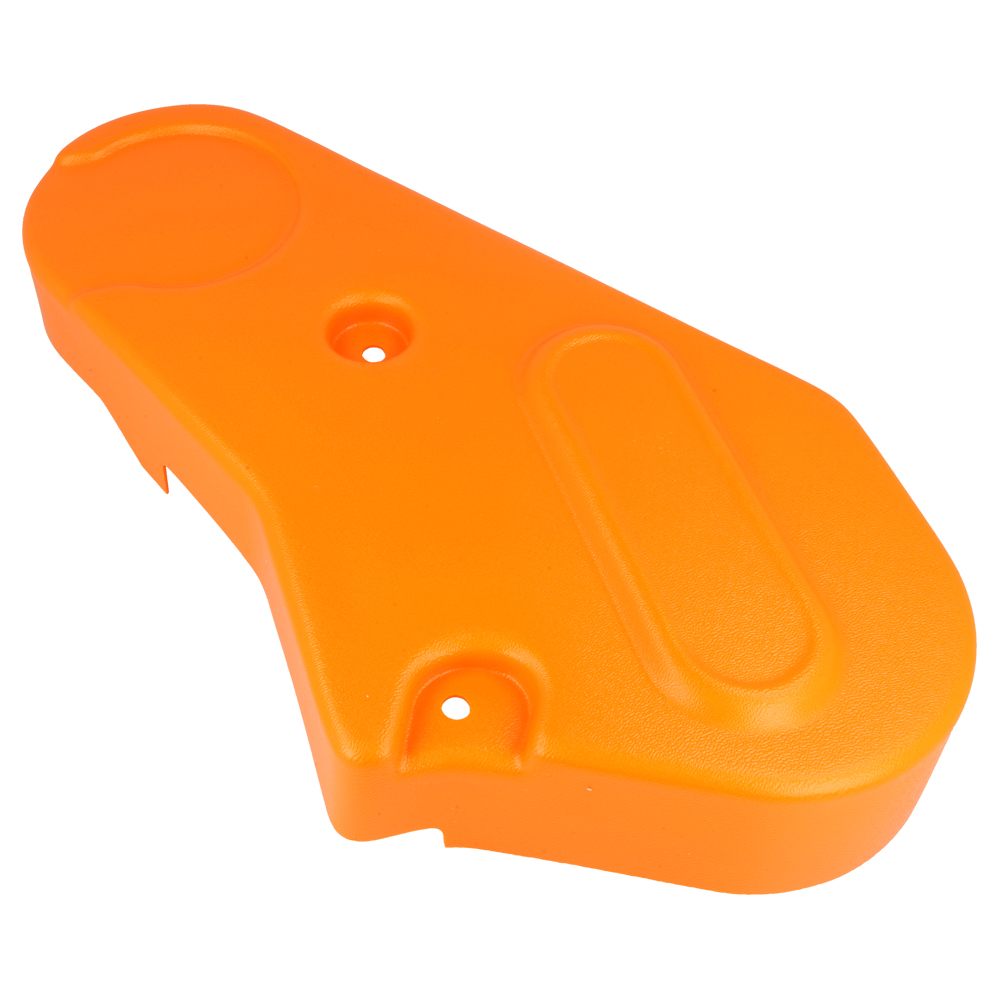

3	BE943/99917S Available to backorder	[3] - Belt Guard	£101.22 £84.35

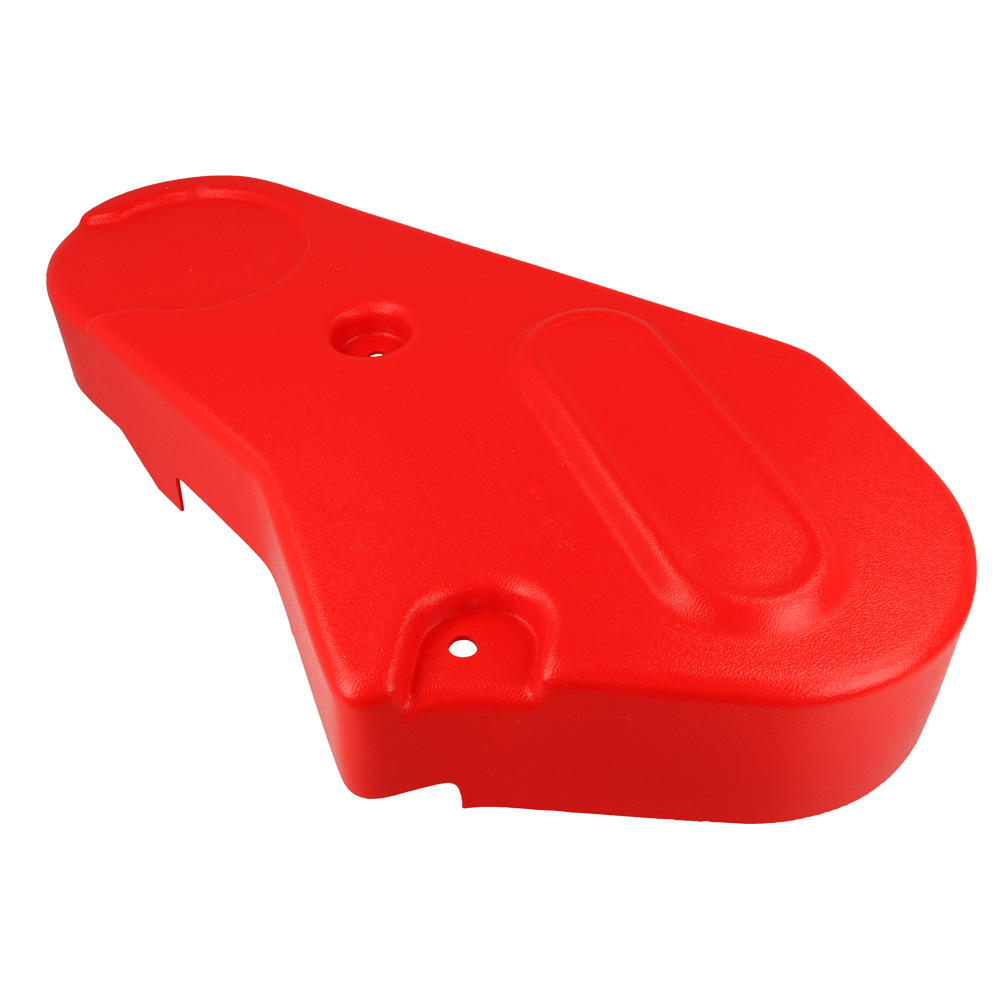

3	BE943/99917R Available to backorder	[3] - Belt Guard	£101.22 £84.35

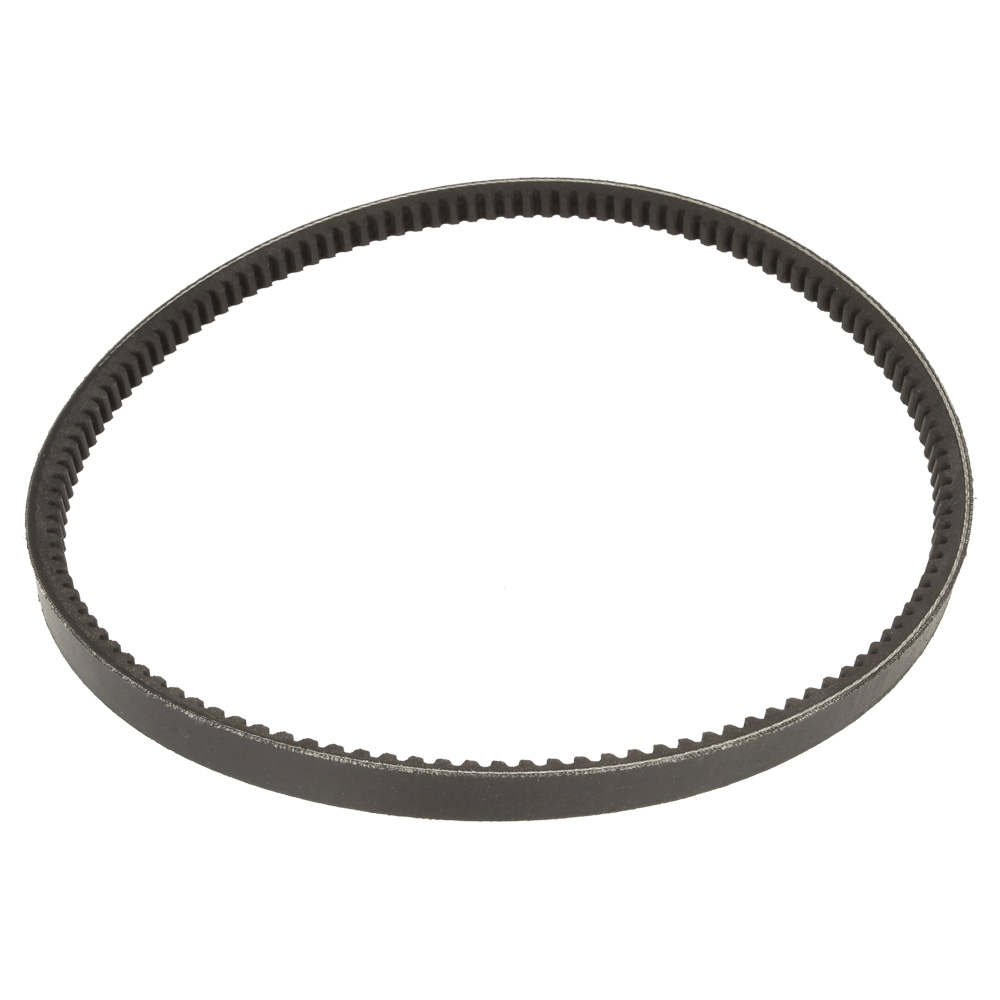

4	BE21/0480 Available to backorder	[4] - V Belt - Ax13 29.5 780Ld	£11.46 £9.55
5	BE943/99918 Available to backorder	[5] - Bar Strut	£32.66 £27.22
6	BE943/99982 Available to backorder	[6] - Plate Handle Stop Lh	£11.50 £9.58
7	BE943/99976 Available to backorder	[7] - Plate Handle Stop Rh	£11.50 £9.58
8	BE943/99978 Available to backorder	[8] - Plate - Keep Tab	£1.78 £1.48
9	BE7/8047 Available to backorder	[9] - Screw	£0.48 £0.40
11	BE7/10025 Available to backorder	[11] - Screw	£4.02 £3.35
12	BE21.0.333 Available to backorder	[12] - Handle Buffer For Rpc 25/35	£77.82 £64.85
13	BE05.3.066 Available to backorder	[13] - Washer M6	£0.74 £0.62
15	BE7/6034 Available to backorder	[15] - Screw	£0.56 £0.47
16	BE7/8008 Available to backorder	[16] - Screw	£0.48 £0.40

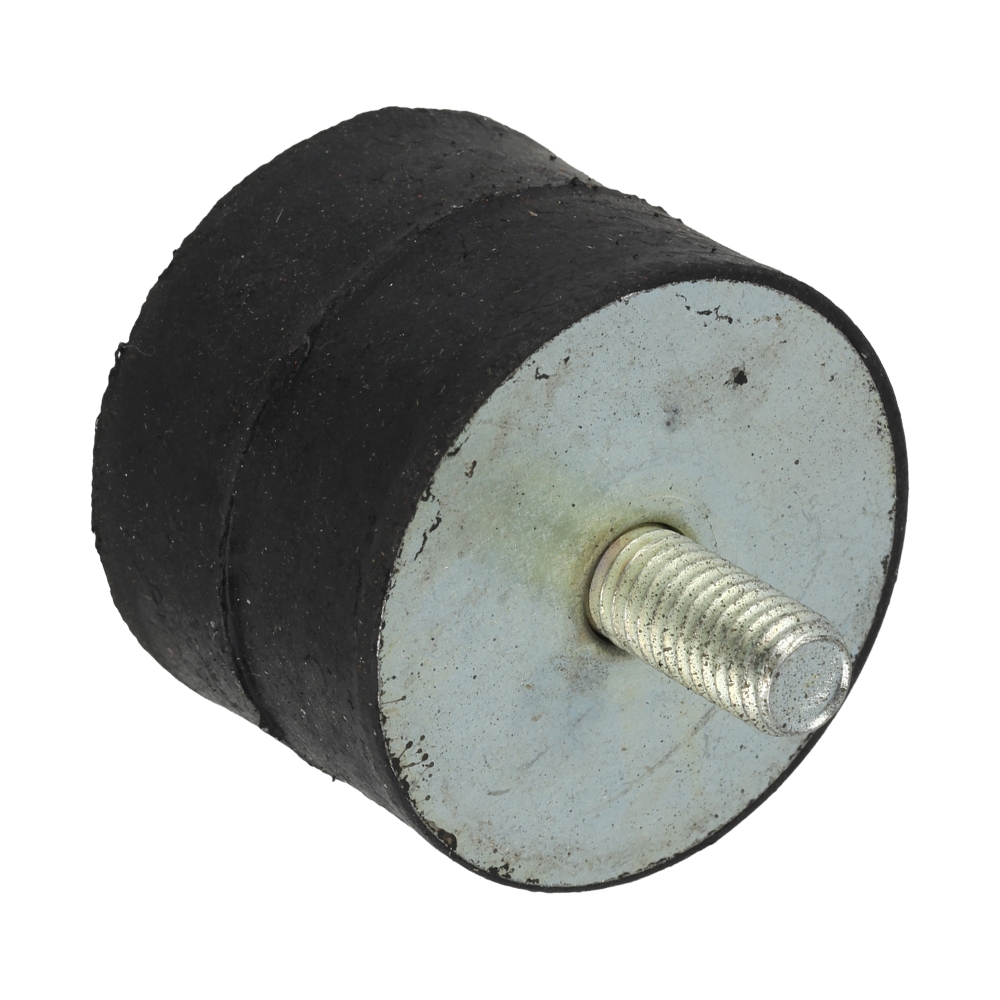

17	BE21/0157 Available to backorder	[17] - Mount Anti Vibration	£7.24 £6.03
18	BE4/8006 Available to backorder	[18] - Washer M8	£0.48 £0.40
19	BE4/8003 Available to backorder	[19] - Washer M8	£0.71 £0.59
20	BE8/8008 Available to backorder	[20] - Nut	£0.48 £0.40
21	BE943/22000 Available to backorder	[21] - Handle Limit Bar	£15.74 £13.12
22	BE151.0.019 Available to backorder	[22] - Pivot Bolt-Pc Handle	£9.28 £7.73
