Description

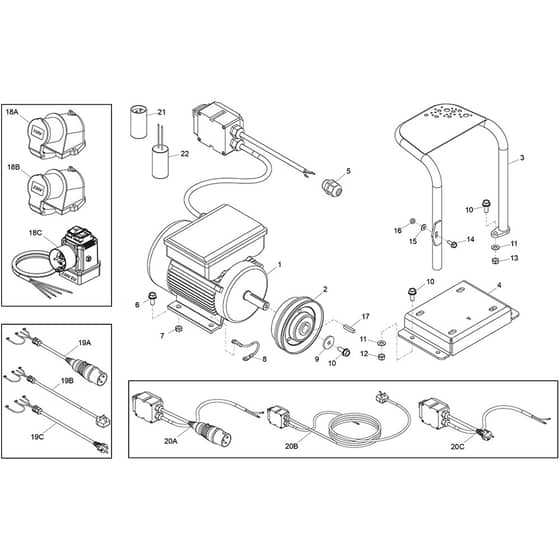

Belle PCLX 12-40E - Motor and Drive Kit - Parts Diagram

	Part No.	Details
1	BE20/0126 Available to backorder	[1] - 1.5Kw 110V Motor 110V	£327.36 £272.80
1	BE20/0124 Available to backorder	[1] - 1.5Kw 230V Motor 230V	£330.12 £275.10
2	BE21/0161 Available to backorder	[2] - Clutch	£108.96 £90.80
3	BE943/18000 Available to backorder	[3] - Motor Guard Wa - Pclx12-40	£92.76 £77.30
4	BE943/99962 Available to backorder	[4] - Motor Deck Pclx12-40	£92.76 £77.30
5	BE70/0288 Available to backorder	[5] - Cable Gland M20 x 1.5	£16.22 £13.52
6	BE7/10039 Available to backorder	[6] - Screw	£1.08 £0.90
7	BE8/10001 Available to backorder	[7] - Nut	£1.69 £1.41
9	BE4/8014 Available to backorder	[9] - Washer	£0.48 £0.40
10	BE7/8037 Available to backorder	[10] - Screw	£0.48 £0.40
11	BE4/8006 Available to backorder	[11] - Washer M8	£0.48 £0.40
12	BE8/8008 Available to backorder	[12] - Nut	£0.48 £0.40
13	BE8/8002 Available to backorder	[13] - Nut	£1.60 £1.33
14	BE7/6034 Available to backorder	[14] - Screw	£0.58 £0.48
15	BE4/6007 Available to backorder	[15] - Washer M6	£0.48 £0.40
16	BE8/6007 Available to backorder	[16] - Nut	£0.48 £0.40
17	BE21/0419 Available to backorder	[17] - Key 3/16" x 37.8mm	£4.91 £4.09
18	BE70/0286 Available to backorder	[18B] - Power Inlet 16A 230V 230V	£95.40 £79.50
18	BE70/0285 Available to backorder	[18A] - Power Inlet 16A 110V 110V	£90.24 £75.20
18	BE70/0287 Available to backorder	[18C] - Power Inlet/Switch 230V Eu 230V Eu	£96.24 £80.20
19	BE71/0288 Available to backorder	[19A] - Harness 110V - Pcel-400E 110V	£7.74 £6.45
19	BE71/0284 Available to backorder	[19B] - Harness 230V Uk - Pcel-E Rwrk 230V	£70.68 £58.90
19	BE71/0283 Available to backorder	[19C] - Harness 230V Eu - Pcel-E Rwrk 230V Eu	£37.60 £31.33
20	BE71/0292 Available to backorder	[20C] - Harness 230V Eu - Pcel-E 230V Eu	£101.28 £84.40
20	BE71/0290 Available to backorder	[20B] - Harness 230V Uk - Pcel-E 230V	£101.16 £84.30
20	BE71/0291 Available to backorder	[20A] - Harness 110V Uk - Pcel-E 110V	£80.88 £67.40
21	BE70/0428 Available to backorder	[21] - Capacitor Start 110V 110V+ 145-174Uf	£7.37 £6.14
22	BE70/0429 Available to backorder	[22] - Capacitor Run 110V 110V+ 80Uf	£23.83 £19.86
