Belle MU-50B - Main Assembly

Name: Belle MU-50B - Main Assembly
SKU: MU50BMain-group
Price: 0.4 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

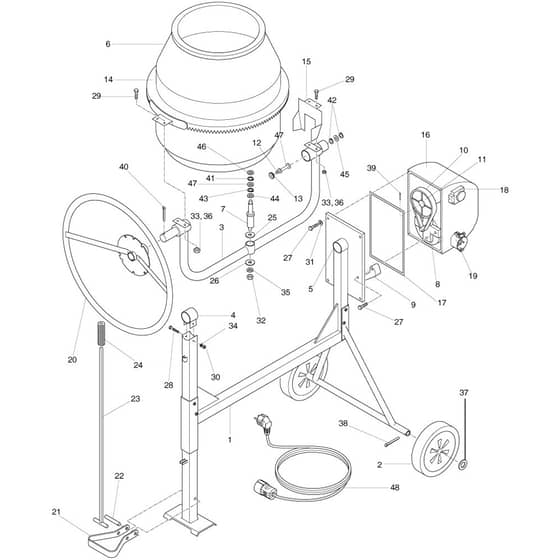

Belle MU-50B - Main Assembly - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	BE903/99523 Available to backorder	[1] - Main Frame	£430.80 £359.00
2	BE903/99501 Available to backorder	[2] - Running Wheel	£14.56 £12.13
3	BE903/99502 Available to backorder	[3] - Yolk	£98.36 £81.97
4	BE903/99503 Available to backorder	[4] - Front Yolk Mounting Pressing	£8.94 £7.45
5	BE903/99504 Available to backorder	[5] - Back Yolk Mounting Pressing	£10.04 £8.37
6	BE903/99505 Available to backorder	[6] - Drum Bwe - 80	£160.06 £133.38
7	BE903/99506 Available to backorder	[7] - Drum Pivot	£83.16 £69.30
8	BE903/99521 Available to backorder	[8] - Electric Motor Sek 106/50-2H1	£103.54 £86.28
12	BE903/99508 Available to backorder	[12] - Drive Barrel	£25.54 £21.28
14	BE903/99510 Available to backorder	[14] - Sprocket Z 132	£85.12 £70.93
15	BE903/99511 Available to backorder	[15] - Wheel Z 10 Cover	£18.28 £15.23
19	BE70/0223 Available to backorder	[19] - Socket	£34.78 £28.98
21	BE903/99515 Available to backorder	[21] - Foot Pedal	£8.06 £6.72
22	BE903/99516 Available to backorder	[22] - Pedal Bolt	£3.24 £2.70
23	BE903/99517 Available to backorder	[23] - Flexible Lock Connector	£17.86 £14.88
24	BE2/0050 Available to backorder	[24] - Press Spring	£11.08 £9.23
25	BE4/3201 Available to backorder	[25] - Washer	£3.22 £2.68
26	BE4/1702 Available to backorder	[26] - Washer	£3.22 £2.68
27	BE7/8009 Available to backorder	[27] - Screw	£0.48 £0.40
28	BE7/8032 Available to backorder	[28] - Screw	£0.48 £0.40
29	BE7/8037 Available to backorder	[29] - Screw	£0.48 £0.40
30	BE8/8004 Available to backorder	[30] - Nut	£0.48 £0.40
31	BE8/8016 Available to backorder	[31] - Nut	£1.28 £1.07
33	BE4/6005 Available to backorder	[33] - Washer M6	£0.48 £0.40
35	BE4/8003 Available to backorder	[35] - Washer M8	£0.71 £0.59
36	BE4/1609 Available to backorder	[36] - Washer M16	£0.48 £0.40
37	BE4/2802 Available to backorder	[37] - Washer	£0.86 £0.72
38	BE3/0052 Available to backorder	[38] - Split Pin 4 x 40	£2.48 £2.07
39	BE3/0054 Available to backorder	[39] - Spring Pin 8 x 25	£2.24 £1.87
40	BE3/0055 Available to backorder	[40] - Spring Peg 8 x 45	£3.32 £2.77
41	BE903/99518 Available to backorder	[41] - Ring Z25	£4.80 £4.00
42	BE903/99519 Available to backorder	[42] - Ring W32	£2.36 £1.97
43	BE903/99520 Available to backorder	[43] - Ring W52	£4.86 £4.05
44	BE5/0063 Available to backorder	[44] - Seal Ring 35 x 52 x 7	£16.78 £13.98
46	BE53/0003 Available to backorder	[46] - Bearing 6304-2Z	£5.12 £4.27
47	BE53/0027 Available to backorder	[47] - Bearing 6205	£13.04 £10.87
48	BE71/0223 Available to backorder	[48] - Wire	£74.20 £61.83
