Belle MS 500 Bench Saw - Upper Frame

Name: Belle MS 500 Bench Saw - Upper Frame
SKU: MS500BenchSawUpperFrame-group
Price: 0.31 GBP
Availability: InStock

Part No. MS500BenchSawUpperFrame-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

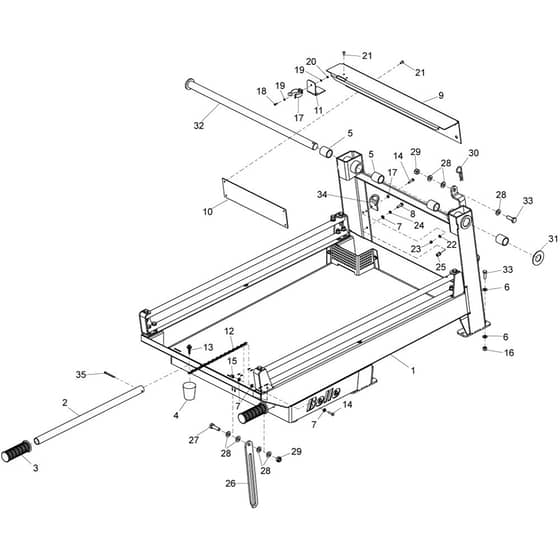

Belle MS 500 Bench Saw - Upper Frame - Parts Diagram

	Part No.	Details
1	BE948/01500 Available to backorder	[1] - Tank And Mid Frame W.A.	£941.18 £784.32
2	BE948/00300 Available to backorder	[2] - Handle Tube	£37.45 £31.21
3	BE19.0.708 Available to backorder	[3] - Hand Grip 1" I/D	£6.23 £5.19
4	BE21.0.190 Available to backorder	[4] - Rubber Bung	£37.37 £31.14
5	BE50/000031 Available to backorder	[5] - Bush Composite	£37.78 £31.48
6	BE4/8006 Available to backorder	[6] - Washer M8	£0.48 £0.40
7	BE4/6001 Available to backorder	[7] - Washer M6	£0.48 £0.40
8	BE7/6037 Available to backorder	[8] - Screw	£1.39 £1.16
9	BE948/03900 Available to backorder	[9] - Belle Tank Backplate	£100.08 £83.40
10	BE948/05000G Available to backorder	[10] - Tank Rear Back Plate - Green Green	£21.26 £17.72
10	BE948/05000R Available to backorder	[10] - Tank Rear Back Plate - Red Red	£21.26 £17.72
10	BE948/05000Y Available to backorder	[10] - Tank Rear Back Plate - Yellow Yellow	£21.26 £17.72
10	BE948/05000S Available to backorder	[10] - Tank Rear Back Plate - Orange Orange	£21.26 £17.72
10	BE948/05000B Available to backorder	[10] - Tank Rear Back Plate - Blue Blue	£21.26 £17.72
11	BE948/04000 Available to backorder	[11] - Pump Plate	£10.00 £8.33
12	BE948/04900 Available to backorder	[12] - 2.5 Single Jack Chain	£11.46 £9.55
13	BE7/6049 Available to backorder	[13] - Screw	£0.58 £0.48
14	BE9/5004 Available to backorder	[14] - Bolt	£0.48 £0.40
15	BE8/6007 Available to backorder	[15] - Nut	£0.48 £0.40
16	BE8/8008 Available to backorder	[16] - Nut	£0.48 £0.40
17	BE3/1019 Available to backorder	[17] - Terry Clip 35 Id 3.2 Dia Hole	£2.29 £1.91
18	BE7/3011 Available to backorder	[18] - Screw	£0.48 £0.40
19	BE4/3002 Available to backorder	[19] - Washer	£0.48 £0.40
20	BE8/3002 Available to backorder	[20] - Nut	£0.37 £0.31
21	BE3/0008 Available to backorder	[21] - Rivet Pop 4.8x10mm	£0.46 £0.38
22	BE4/5002 Available to backorder	[22] - Washer M5	£2.51 £2.09
23	BE8/5003 Available to backorder	[23] - Nut	£0.48 £0.40
24	BE4/6005 Available to backorder	[24] - Washer M6	£0.48 £0.40
25	BE8/6011 Available to backorder	[25] - Nut	£0.66 £0.55
26	BE110.0.022 Available to backorder	[26] - Link Bar	£25.74 £21.45
27	BE9/10004 Available to backorder	[27] - Bolt	£0.43 £0.36
28	BE4/1005 Available to backorder	[28] - Washer M10	£0.48 £0.40
29	BE8/10006 Available to backorder	[29] - Nut	£0.48 £0.40
30	BE3/2002 Available to backorder	[30] - Clip R 3.2 Bzp	£1.94 £1.62
31	BE4/0009 Available to backorder	[31] - Washer Flat 54 O/Dx26 I/Dx2mm	£1.09 £0.91
32	BE948/00400 Available to backorder	[32] - Main Pivot Bar	£115.56 £96.30
33	BE9/8004 Available to backorder	[33] - Bolt	£0.48 £0.40
34	BE948/05600 Available to backorder	[34] - Spring Attachment	£13.03 £10.86
35	BE3/0049 Available to backorder	[35] - Pin Split 4 Dia x 40Lg	£0.48 £0.40
