Belle MS 500 Bench Saw - Pulley & Belt Guard

Name: Belle MS 500 Bench Saw - Pulley & Belt Guard
SKU: MS500BenchSawPulleyBeltGuard-group
Price: 0.34 GBP
Availability: InStock

Part No. MS500BenchSawPulleyBeltGuard-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Belle MS 500 Bench Saw - Pulley & Belt Guard

Description

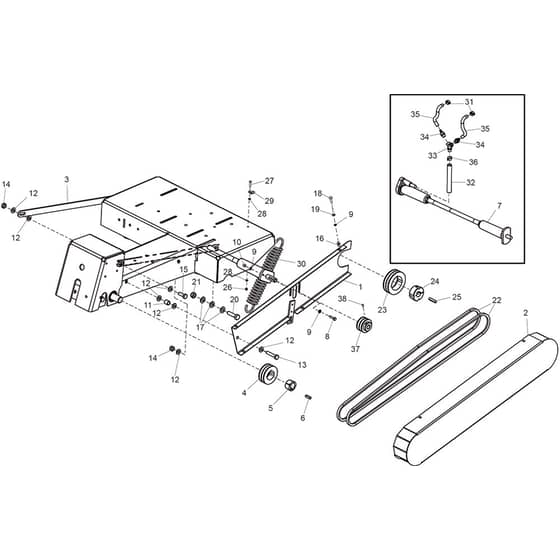

Belle MS 500 Bench Saw - Pulley & Belt Guard - Parts Diagram

	Part No.	Details
1	BE110.0.041 Available to backorder	[1] - Belt Guard Backplate Wa	£82.32 £68.60
2	BE948/00200Y Available to backorder	[2] - Outer Belt Guard Wa - Yellow Yellow	£148.44 £123.70
2	BE948/00200G Available to backorder	[2] - Outer Belt Guard Wa - Green Green	£148.44 £123.70
2	BE948/00200B Available to backorder	[2] - Outer Belt Guard Wa - Blue Blue	£148.44 £123.70
2	BE948/00200R Available to backorder	[2] - Outer Belt Guard Wa - Red Red	£148.44 £123.70
2	BE948/00200S Available to backorder	[2] - Outer Belt Guard Wa - Orange Orange	£148.44 £123.70
3	BE110.0.043 Available to backorder	[3] - Levelling Link	£59.14 £49.28
4	BE10.1.003 Available to backorder	[4] - Pulley	£44.40 £37.00
5	BE10.9.040 Available to backorder	[5] - Taperlock Bush 1108 x 1"	£14.63 £12.19
6	BE06.8.012 Available to backorder	[6] - Key 1/4"Sq x 1.1/8"Lg	£4.01 £3.34
7	BE948/06805 Available to backorder	[7a] - Flex Drive - Ms500 Pump	£235.20 £196.00
7	BE948/06801 Available to backorder	[7a] - Pump Drive End - Ms500 Pump	£201.00 £167.50
7	BE948/06804 Available to backorder	[7a] - Sieve - Ms500 Pump	£22.88 £19.07

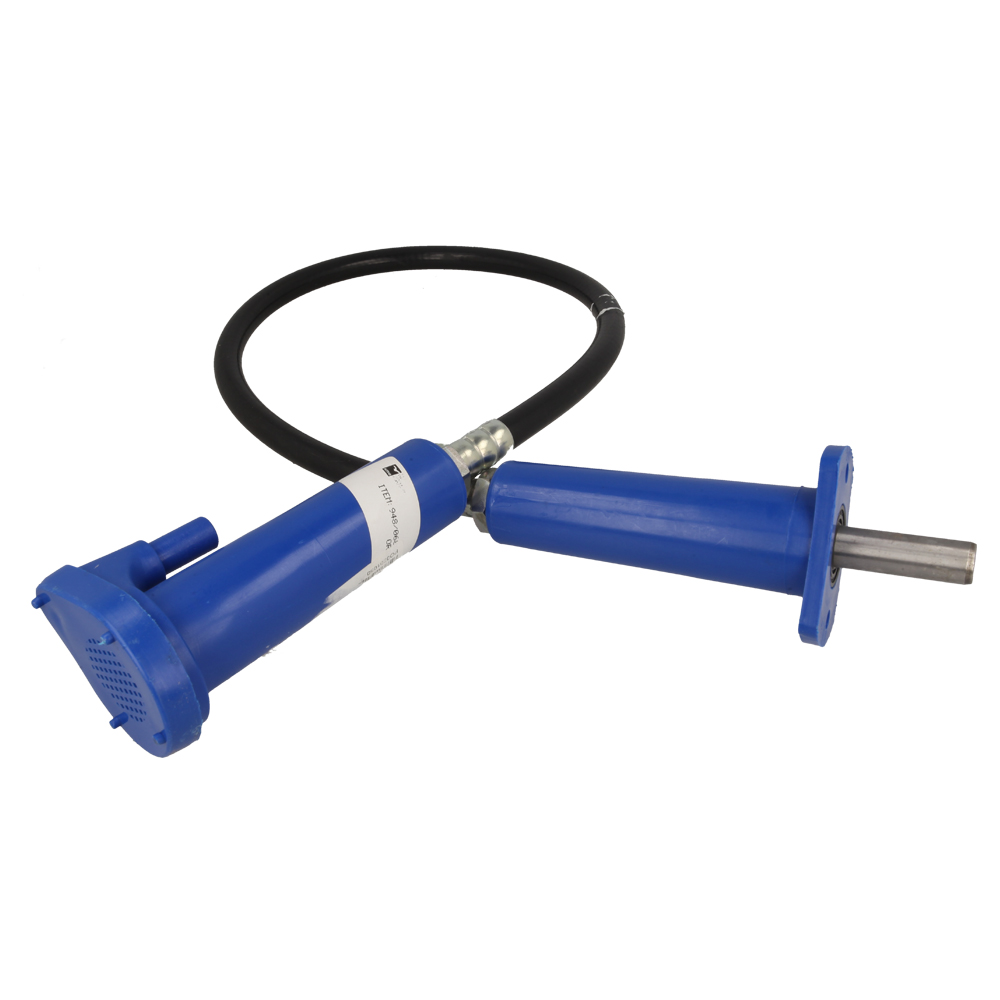

7	BE948/06800 Available to backorder	[7] - Pump Assembly - Ms500	£419.77 £349.81
7	BE948/06803 Available to backorder	[7a] - Impellor - Ms500 Pump	£21.48 £17.90
7	BE948/06802 Available to backorder	[7a] - Pump Impellor End - Ms500 Pump	£196.68 £163.90
8	BE9/6018 Available to backorder	[8] - Bolt	£0.85 £0.71
9	BE4/6001 Available to backorder	[9] - Washer M6	£0.48 £0.40
10	BE8/6007 Available to backorder	[10] - Nut	£0.48 £0.40
11	BE948/05100 Available to backorder	[11] - Belt Guard Spacer	£14.40 £12.00
12	BE4/1005 Available to backorder	[12] - Washer M10	£0.48 £0.40
13	BE9/10007 Available to backorder	[13] - Bolt	£0.62 £0.52
14	BE8/10006 Available to backorder	[14] - Nut	£0.48 £0.40
15	BE9/10001 Available to backorder	[15] - Bolt Now Use 7/10010	£0.41 £0.34
16	BE3/0008 Available to backorder	[16] - Rivet Pop 4.8x10mm	£0.46 £0.38
17	BE4/1204 Available to backorder	[17] - Washer M12	£0.48 £0.40
18	BE7/6037 Available to backorder	[18] - Screw	£1.39 £1.16
19	BE4/6005 Available to backorder	[19] - Washer M6	£0.48 £0.40
20	BE9/12021 Available to backorder	[20] - Bolt	£0.71 £0.59
21	BE8/12006 Available to backorder	[21] - Nut	£0.48 £0.40
22	BE21/0285 Available to backorder	[22] - Belt Spz 1612 Goodyear Electric	£25.82 £21.52
22	BE21/0262 Available to backorder	[22] - Pulley Belt Spz 1650 Lw Petrol	£9.29 £7.74
23	BE10.1.007 Available to backorder	[23] - Pulley Spz 2 x 90	£91.20 £76.00
24	BE10.8.156 Available to backorder	[24] - T/ Bush 1610 x 22 + 7mm Keyway	£59.36 £49.47
25	BE06.3.012 Available to backorder	[25] - Key 7 x 7 x 35mm	£10.46 £8.72
26	BE8/4005 Available to backorder	[26] - Nut	£0.48 £0.40
27	BE7/4002 Available to backorder	[27] - Screw	£0.48 £0.40
28	BE4/4001 Available to backorder	[28] - Washer M4	£0.48 £0.40
29	BE3/7042 Available to backorder	[29] - P Clip 5mm Id 5mm Hole	£4.01 £3.34
30	BE2/0051 Available to backorder	[30] - Balance Spring	£88.92 £74.10
31	BE15.0.064 Available to backorder	[31] - Haso Clip Wade Oc 10	£3.58 £2.98
32	BE14.0.846 Available to backorder	[32] - Hose Reinforced 1/2" Black Nyl	£10.40 £8.67
33	BE14.0.103 Available to backorder	[33] - Y Connector - 1/4"Bspt(Fmf)	£12.89 £10.74
34	BE14.0.619 Available to backorder	[34] - Hosetail - 1/4" Bspp (M) x 1/4	£6.23 £5.19
35	BE14.0.884 Available to backorder	[35] - Braided Clear Pvc 1/4" Od 11.2	£8.00 £6.67
36	BE3/7037 Available to backorder	[36] - Clip 13-15mm Dia 2 Eared Hose	£2.32 £1.93

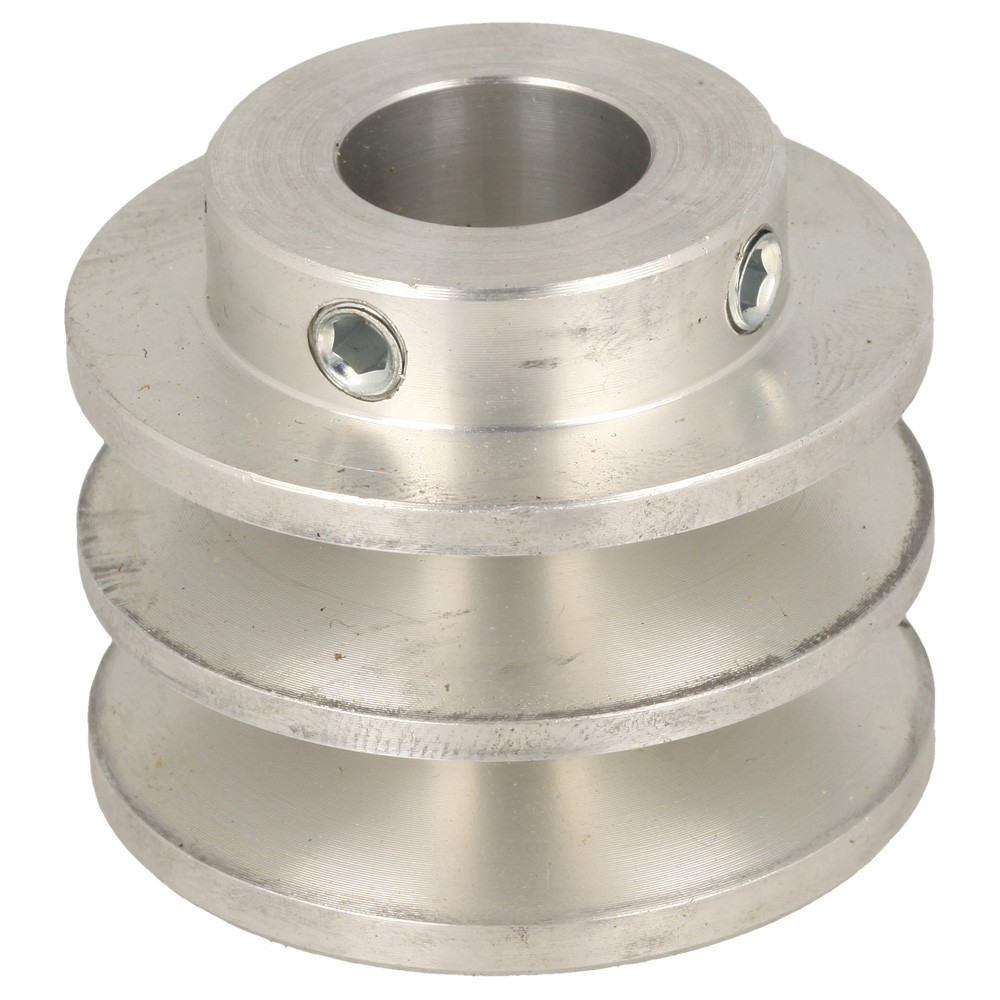

37	BE948/06806 Available to backorder	[37] - Pump Pulley - Ms500 Pump	£55.30 £46.08
38	BE7/8099 Available to backorder	[38] - Screw	£0.66 £0.55
