Belle MS 500 Bench Saw - Petrol Engine

Name: Belle MS 500 Bench Saw - Petrol Engine
SKU: MS500BenchSawPetrolEngine-group
Price: 0.38 GBP
Availability: InStock

Part No. MS500BenchSawPetrolEngine-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

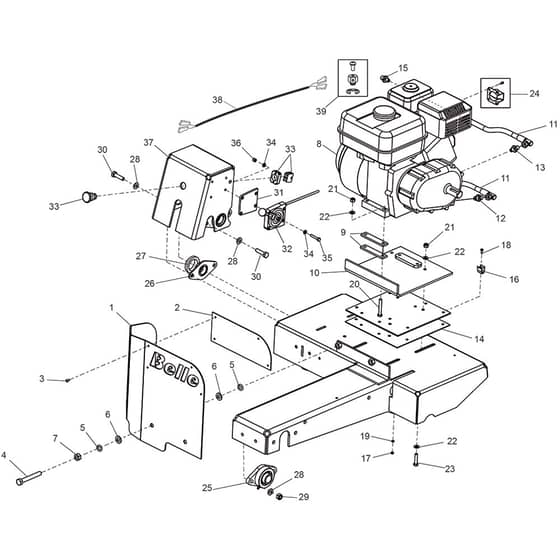

Belle MS 500 Bench Saw - Petrol Engine - Parts Diagram

	Part No.	Details
2	BE948/04400 Available to backorder	[2] - Engine Guard Backing Plate	£24.62 £20.52
3	BE3/0008 Available to backorder	[3] - Rivet Pop 4.8x10mm	£0.46 £0.38
4	BE9/12017 Available to backorder	[4] - Bolt	£1.74 £1.45
5	BE4/1202 Available to backorder	[5] - Washer M12	£0.48 £0.40
6	BE4/1204 Available to backorder	[6] - Washer M12	£0.48 £0.40
7	BE8/12002 Available to backorder	[7] - Nut	£0.48 £0.40
8	BE20/0085 Available to backorder	[8] - Honda Engine/G/Box Gx160U1Rhq4	£1,072.51 £893.76
9	BE948.0.069 Available to backorder	[9] - Engine Spacer	£12.97 £10.81
10	BE948/02000 Available to backorder	[10] - Engine Deck Wa	£190.56 £158.80
11	BE30/0081 Available to backorder	[11] - Hose Hydraulic	£42.58 £35.48
12	BE6/0218 Available to backorder	[12] - M12 To 1/4" Adaptor	£62.88 £52.40
13	BE6/0217 Available to backorder	[13] - M10 To 1/4" Adaptor	£10.80 £9.00
14	BE110.0.055 Available to backorder	[14] - Antivibration Block	£53.66 £44.72
15	BE6/2018 Available to backorder	[15] - Blanking Plug 1/4" Bsp	£13.74 £11.45
16	BE21.0.336 Available to backorder	[16] - Retainer Clip	£9.11 £7.59
17	BE8/4005 Available to backorder	[17] - Nut	£0.48 £0.40
18	BE7/4002 Available to backorder	[18] - Screw	£0.48 £0.40
19	BE4/4001 Available to backorder	[19] - Washer M4	£0.48 £0.40
20	BE9/8029 Available to backorder	[20] - Bolt	£0.46 £0.38
21	BE8/8008 Available to backorder	[21] - Nut	£0.48 £0.40
22	BE4/8006 Available to backorder	[22] - Washer M8	£0.48 £0.40
23	BE9/8003 Available to backorder	[23] - Bolt	£0.48 £0.40
24	BE21/0236 Available to backorder	[24] - Exhaust Deflector	£9.07 £7.56
25	BE12.0.334 Available to backorder	[25] - Bearing Sft 1 Fs (Fytb 1 Tf)	£45.97 £38.31
26	BE948.0.031 Available to backorder	[26] - Bush Assembly	£35.38 £29.48
27	BE948/05500 Available to backorder	[27] - Shroud Bush	£69.12 £57.60
28	BE4/1005 Available to backorder	[28] - Washer M10	£0.48 £0.40
29	BE8/10006 Available to backorder	[29] - Nut	£0.48 £0.40
30	BE9/10030 Available to backorder	[30] - Bolt	£0.71 £0.59
31	BE948/05200 Available to backorder	[31] - Lever Stop	£15.91 £13.26
32	BE948/03600 Available to backorder	[32] - Throttle Cable Assy	£171.72 £143.10
33	BE70/0246 Available to backorder	[33] - Emergency Stop Button N/Open	£56.92 £47.43
34	BE4/6001 Available to backorder	[34] - Washer M6	£0.48 £0.40
35	BE7/6010 Available to backorder	[35] - Screw	£0.48 £0.40
36	BE8/6007 Available to backorder	[36] - Nut	£0.48 £0.40
37	BE948/01200 Available to backorder	[37] - Shroud	£112.08 £93.40
38	BE948/04500 Available to backorder	[38] - Masonry Saw Wiring Harness	£49.49 £41.24
39	BE21/0243 Available to backorder	[39] - Cable Holder	£6.64 £5.53
