Belle MS 500 Bench Saw - Electric Motor

Name: Belle MS 500 Bench Saw - Electric Motor
SKU: MS500BenchSawElectricMotor-group
Price: 0.38 GBP
Availability: InStock

Part No. MS500BenchSawElectricMotor-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

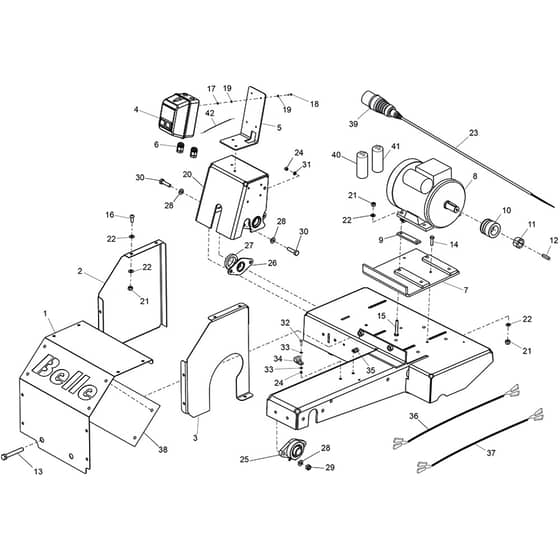

Belle MS 500 Bench Saw - Electric Motor - Parts Diagram

	Part No.	Details
1	BE948/05702 Available to backorder	[1] - Top Panel Motor Cover - Belle	£46.14 £38.45
2	BE948/05701 Available to backorder	[2] - Motor Guard Lh Side Panel	£31.45 £26.21
3	BE948/05703 Available to backorder	[3] - Motor Guard Rh Side Panel	£23.26 £19.38
4	BE948/06700 Available to backorder	[4] - Kit Switch Dol 110V From 093760 (110V) - Up To 094001	£353.11 £294.26
4	BE948/06600 Available to backorder	[4] - Kit Spares-Ms500 110V Starter 110V Up To 093759 (110V)	£416.03 £346.69
4	BE70/0262 Available to backorder	[4] - Switch Starter - 230V 10-16A 230V From 093760 (230V)	£347.64 £289.70
4	BE70/0400 Available to backorder	[4] - Switch Dol -Ol (110V 32A) 110V From 094002	£401.40 £334.50
4	BE948/06500 Available to backorder	[4] - Kit Spares-Ms500 230V Starter 230V Up To 093759 (230V)	£361.68 £301.40
5	BE948/05902 Available to backorder	[5] - 110V / 240V Motor Spacer	£10.61 £8.84
6	BE70/0148 Available to backorder	[6] - Gland Large - Id 8-13 x M20	£12.41 £10.34
7	BE948/05900 Available to backorder	[7] - 110V / 240V Motor Baseplate Wa	£172.92 £144.10
8	BE20/0102 Available to backorder	[8] - 230V Ms500 Motor 230V	£986.11 £821.76
8	BE20/0101 Available to backorder	[8] - 110V Ms00 Motor 110V	£1,062.14 £885.12
9	BE948/05802 Available to backorder	[9] - Control Box Mounting Bracket	£17.23 £14.36
10	BE21/0284 Available to backorder	[10] - Pulley Spz 2 x 56 ( Type 9 )	£63.72 £53.10
11	BE21/0269 Available to backorder	[11] - Taperlock Bush 1108 x 24mm	£13.46 £11.22
12	BE21/0286 Available to backorder	[12] - 8 x7 x 40 Lg Key	£3.46 £2.88
13	BE7/12018 Available to backorder	[13] - Screw	£1.78 £1.48
14	BE9/8003 Available to backorder	[14] - Bolt	£0.48 £0.40
15	BE9/10009 Available to backorder	[15] - Bolt	£0.64 £0.53
16	BE7/8043 Available to backorder	[16] - Screw	£0.46 £0.38
17	BE8/4005 Available to backorder	[17] - Nut	£0.48 £0.40
18	BE9/5003 Available to backorder	[18] - Bolt From 093760	£0.48 £0.40
18	BE9/4003 Available to backorder	[18] - Bolt Up To 093759	£0.48 £0.40
19	BE4/4001 Available to backorder	[19] - Washer M4	£0.48 £0.40
20	BE948/01200 Available to backorder	[20] - Shroud	£112.08 £93.40
21	BE8/8008 Available to backorder	[21] - Nut	£0.48 £0.40
22	BE4/8006 Available to backorder	[22] - Washer M8	£0.48 £0.40
23	BE71/0259 Available to backorder	[23] - 110V Ms500 Cable With Plug 110V	£99.36 £82.80
23	BE71/0262 Available to backorder	[23] - 230V Ms500 Cable With Plug 230V	£48.80 £40.67
24	BE8/6007 Available to backorder	[24] - Nut	£0.48 £0.40
25	BE12.0.334 Available to backorder	[25] - Bearing Sft 1 Fs (Fytb 1 Tf)	£45.97 £38.31
26	BE948.0.031 Available to backorder	[26] - Bush Assembly	£35.38 £29.48
27	BE948/05500 Available to backorder	[27] - Shroud Bush	£69.12 £57.60
28	BE4/1005 Available to backorder	[28] - Washer M10	£0.48 £0.40
29	BE8/10006 Available to backorder	[29] - Nut	£0.48 £0.40
30	BE9/10030 Available to backorder	[30] - Bolt	£0.71 £0.59
31	BE4/6001 Available to backorder	[31] - Washer M6	£0.48 £0.40
32	BE7/6037 Available to backorder	[32] - Screw	£1.39 £1.16
33	BE4/6003 Available to backorder	[33] - Washer M6	£0.48 £0.40
34	BE3/7012 Available to backorder	[34] - Clip P Type 016	£4.16 £3.47
35	BE900/10200 Available to backorder	[35] - Clip Cable No.6	£3.08 £2.57
36	BE71/0260 Available to backorder	[36] - Harness - Control Box To Motor	£63.60 £53.00
37	BE71/0261 Available to backorder	[37] - Harness - Overload Cable	£42.06 £35.05
38	BE948/99903B Available to backorder	[38] - Mot0R Cover Blk Plt ( Blue ) Blue	£9.68 £8.07
38	BE948/99903R Available to backorder	[38] - Mot0R Cover Blk Plt ( Red ) Red	£9.68 £8.07
38	BE948/99903G Available to backorder	[38] - Mot0R Cover Blk Plt ( Green ) Green	£9.68 £8.07
38	BE948/99903Y Available to backorder	[38] - Mot0R Cover Blk Plt ( Yellow ) Yellow	£9.68 £8.07
38	BE948/99903S Available to backorder	[38] - Mot0R Cover Blk Plt ( Orange ) Orange	£9.68 £8.07
39	BE70/0256 Available to backorder	[39] - Plug - 250V Bs4343 16 Amp 230V	£22.26 £18.55
39	BE918/28600 Available to backorder	[39] - Plug 110V - Bs4343 Yellow 110V	£15.77 £13.14
40	BE70/0259 Available to backorder	[40] - 70Uf Run Capacitor 70Uf	£168.96 £140.80
41	BE70/0260 Available to backorder	[41] - 180-225Uf Start Capacitor 180 - 225Uf	£191.40 £159.50
42	BE70/0261 Available to backorder	[42] - Se01 Electronic Switch	£331.87 £276.56
