Belle MPC 300 - Main Assembly

Name: Belle MPC 300 - Main Assembly
SKU: MPC300Main-group
Price: 0.39 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

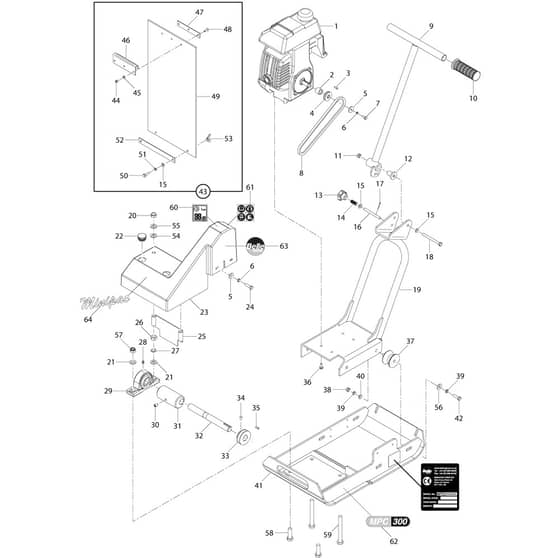

Belle MPC 300 - Main Assembly - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
2	BE900/99933 Available to backorder	[2] - Engine Spacer Honda Gxh50	£5.12 £4.27
3	BE900/99902 Available to backorder	[3] - Engine Pulley Key	£1.26 £1.05
4	BE941/99902 Available to backorder	[4] - Pulley Driver	£49.72 £41.43
5	BE4/6009 Available to backorder	[5] - Washer M6	£0.48 £0.40
6	BE4/6011 Available to backorder	[6] - Washer	£0.48 £0.40
7	BE7/6035 Available to backorder	[7] - Screw	£0.48 £0.40

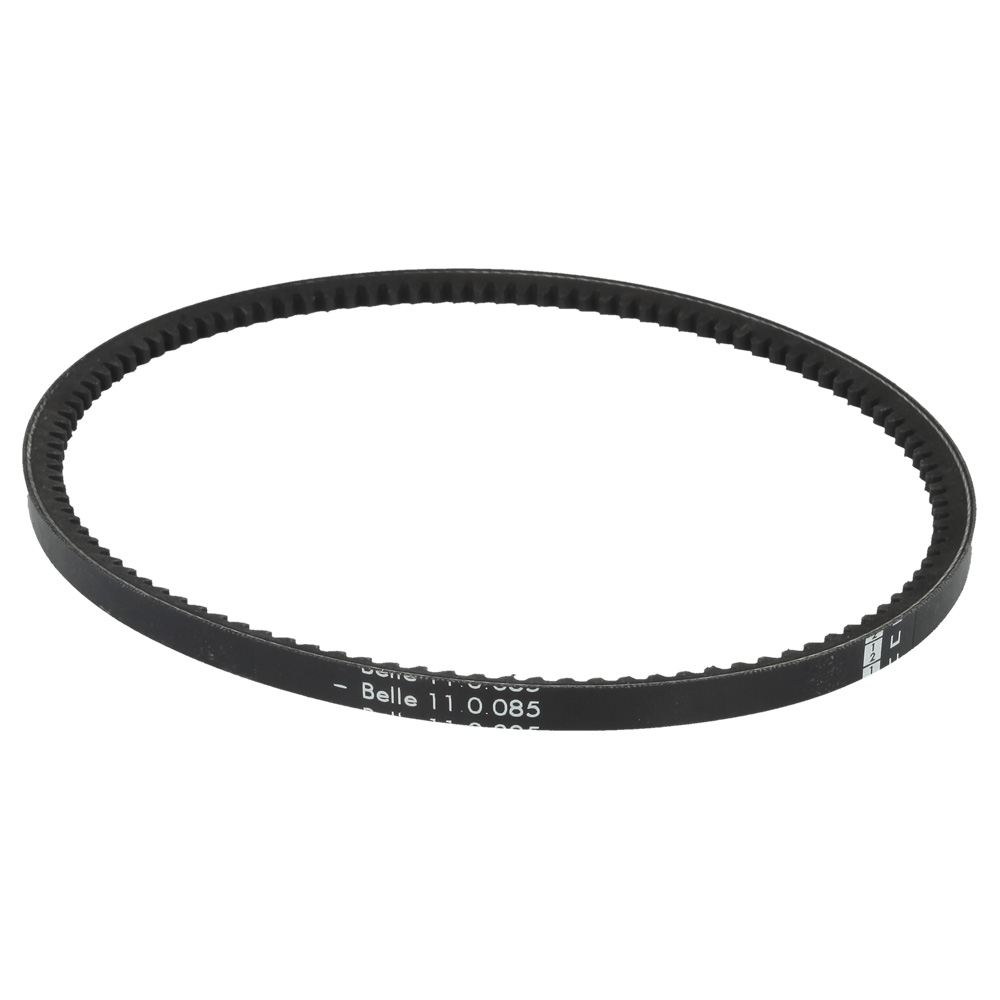

8	BE11.0.085 Available to backorder	[8] - Belt Spz 662 Cr Gates	£4.70 £3.92
9	BE941/10200 Available to backorder	[9] - Top Handle W.A.	£51.48 £42.90
10	BE19.0.708 Available to backorder	[10] - Hand Grip 1" I/D	£6.02 £5.02
11	BE8/8008 Available to backorder	[11] - Nut	£0.48 £0.40
12	BE148045 Available to backorder	[12] - Handle Bush	£18.20 £15.17
13	BE19.0.778 Available to backorder	[13] - Handknob	£10.42 £8.68
14	BE2/0041 Available to backorder	[14] - Spring Compression	£2.64 £2.20
15	BE4/8006 Available to backorder	[15] - Washer M8	£0.48 £0.40

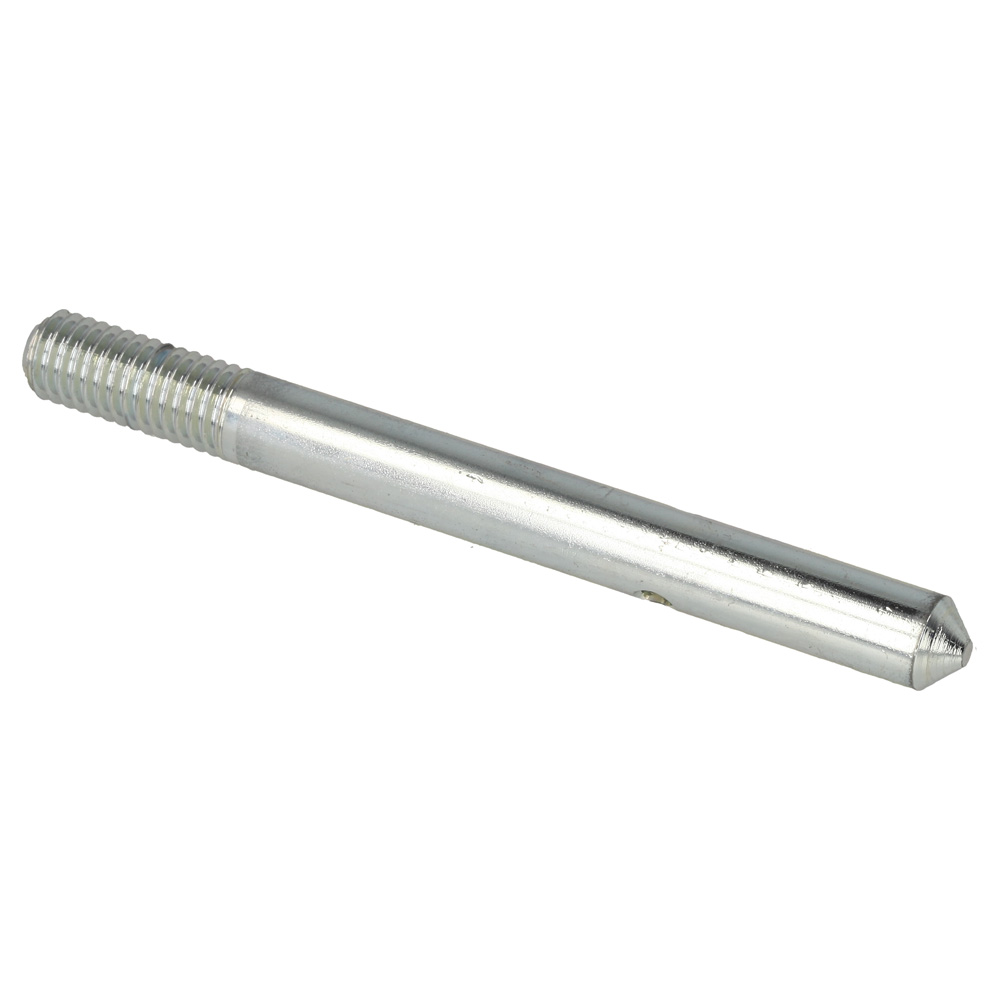

16	BE941/99903 Available to backorder	[16] - Lock Pin	£16.36 £13.63
17	BE3/0016 Available to backorder	[17] - Pin Split 3/32"x3/4" Bzp	£0.48 £0.40
18	BE9/8016 Available to backorder	[18] - Bolt	£0.62 £0.52
19	BE941/10100 Available to backorder	[19] - Bed Plate Assy W.A.	£127.38 £106.15
20	BE8/12009 Available to backorder	[20] - Nut	£1.20 £1.00
22	BE3/4026 Available to backorder	[22] - Plug Stand Front-Ref199311 Blk	£0.48 £0.40

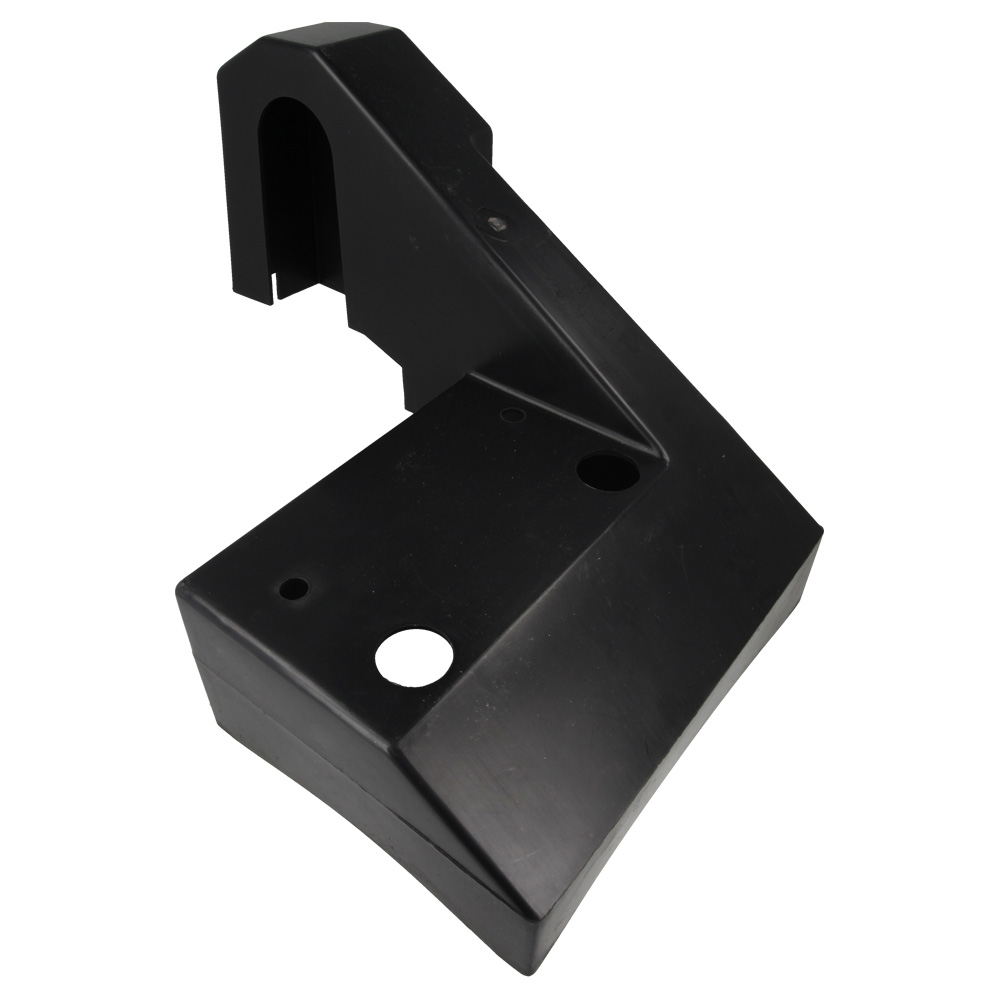

23	BE941/99904 Available to backorder	[23] - Guard Injection Moulded	£23.40 £19.50
24	BE9/6001 Available to backorder	[24] - Bolt	£0.48 £0.40
25	BE941/10300 Available to backorder	[25] - Guard And Spacer W.A.	£32.74 £27.28
26	BE8/12002 Available to backorder	[26] - Nut	£0.48 £0.40
28	BE500/06100 Available to backorder	[28] - Grease Nipple - M6 x 1mm	£0.48 £0.40
29	BE12.0.022 Available to backorder	[29] - Bearing Block	£54.40 £45.33

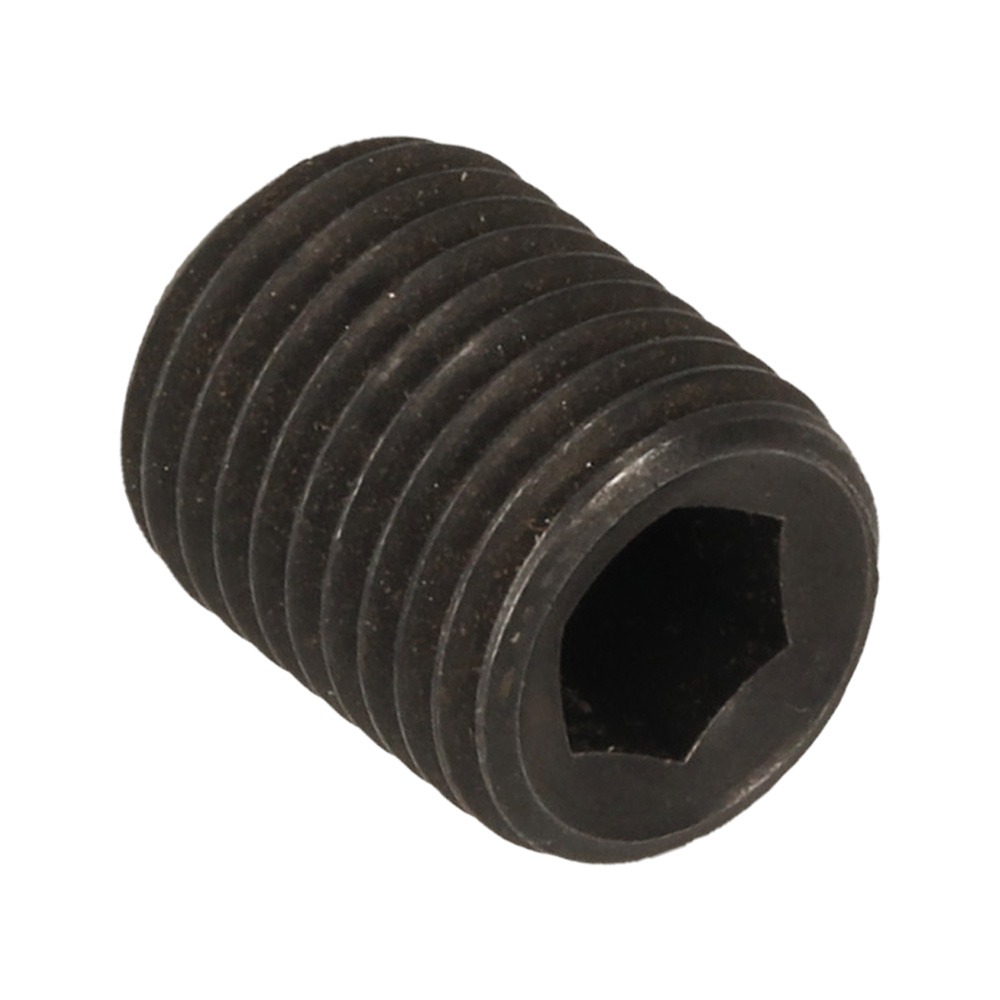

30	BE03.3.001 Available to backorder	[30] - Grubscrew	£1.76 £1.47
31	BE148062 Available to backorder	[31] - Weight	£51.00 £42.50

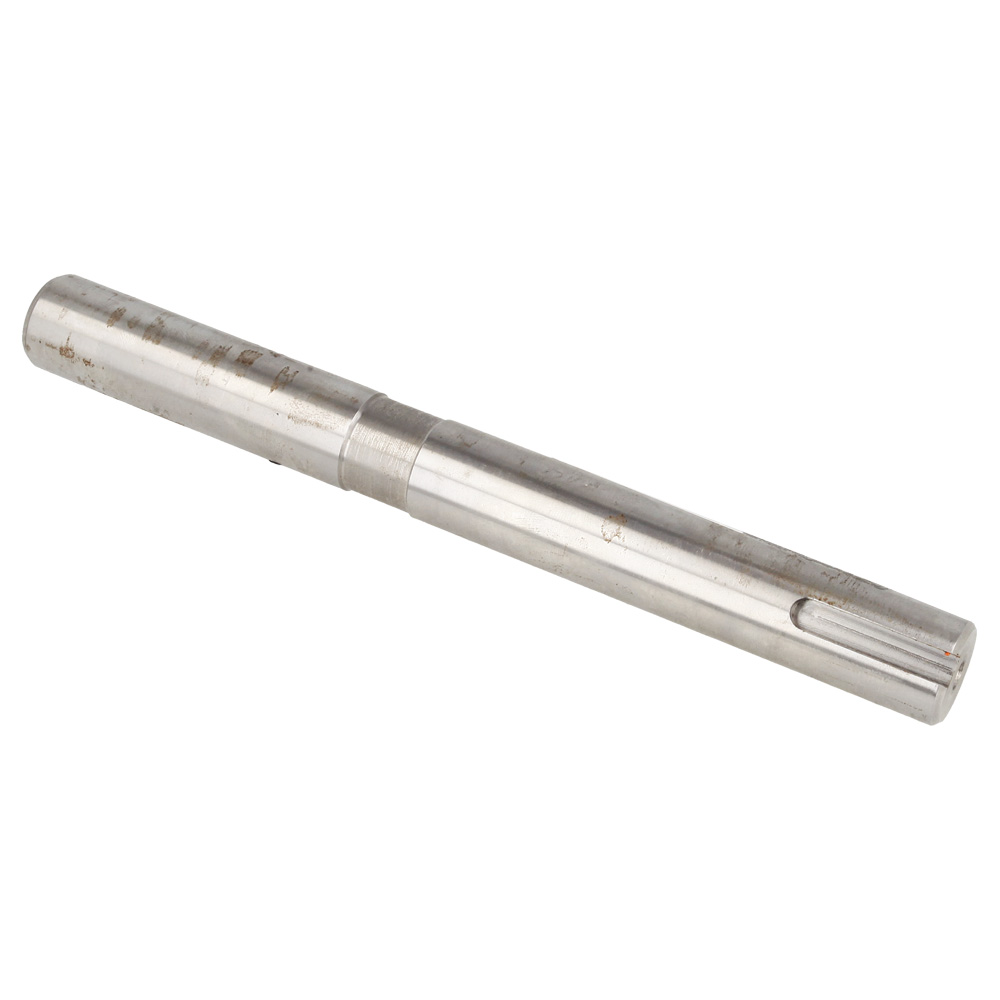

32	BE148061 Available to backorder	[32] - Shaft	£30.46 £25.38
33	BE941/99901 Available to backorder	[33] - Pulley Driven	£50.78 £42.32

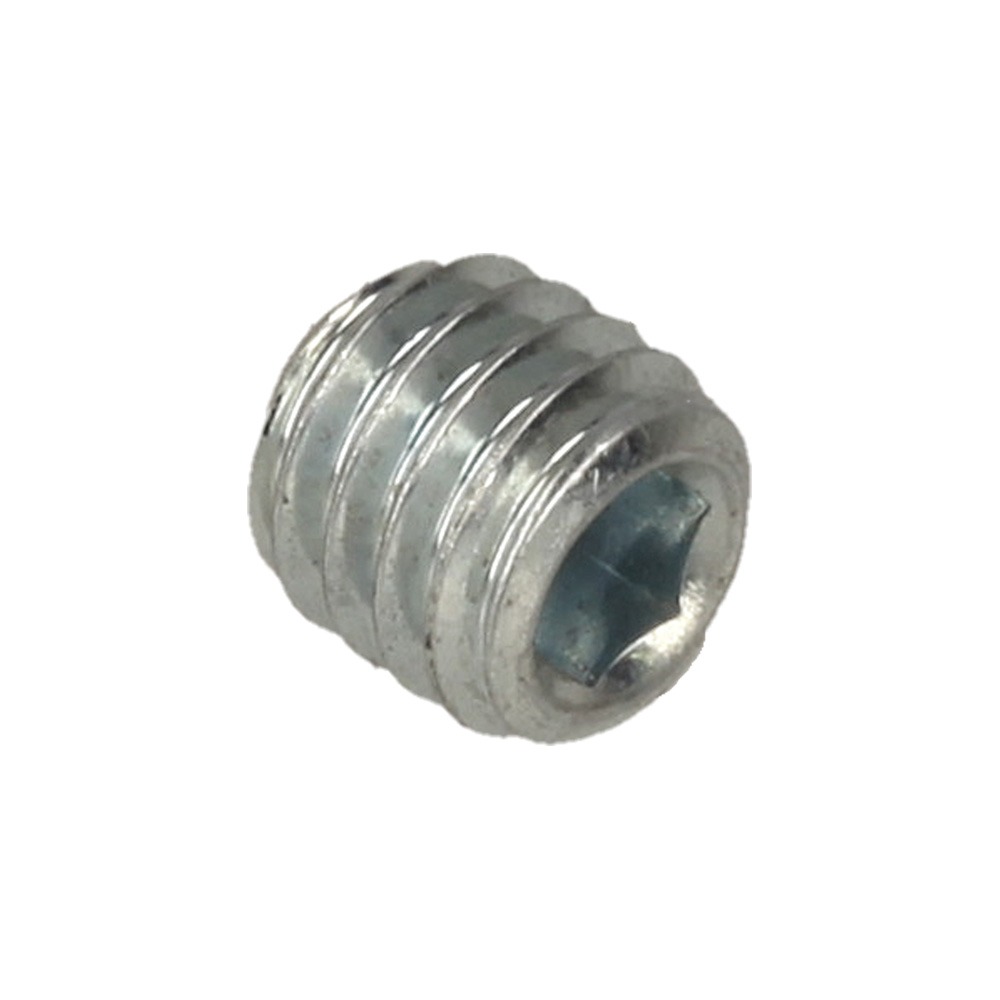

34	BE7/6029 In stock	[34] - Screw	£0.47 £0.39

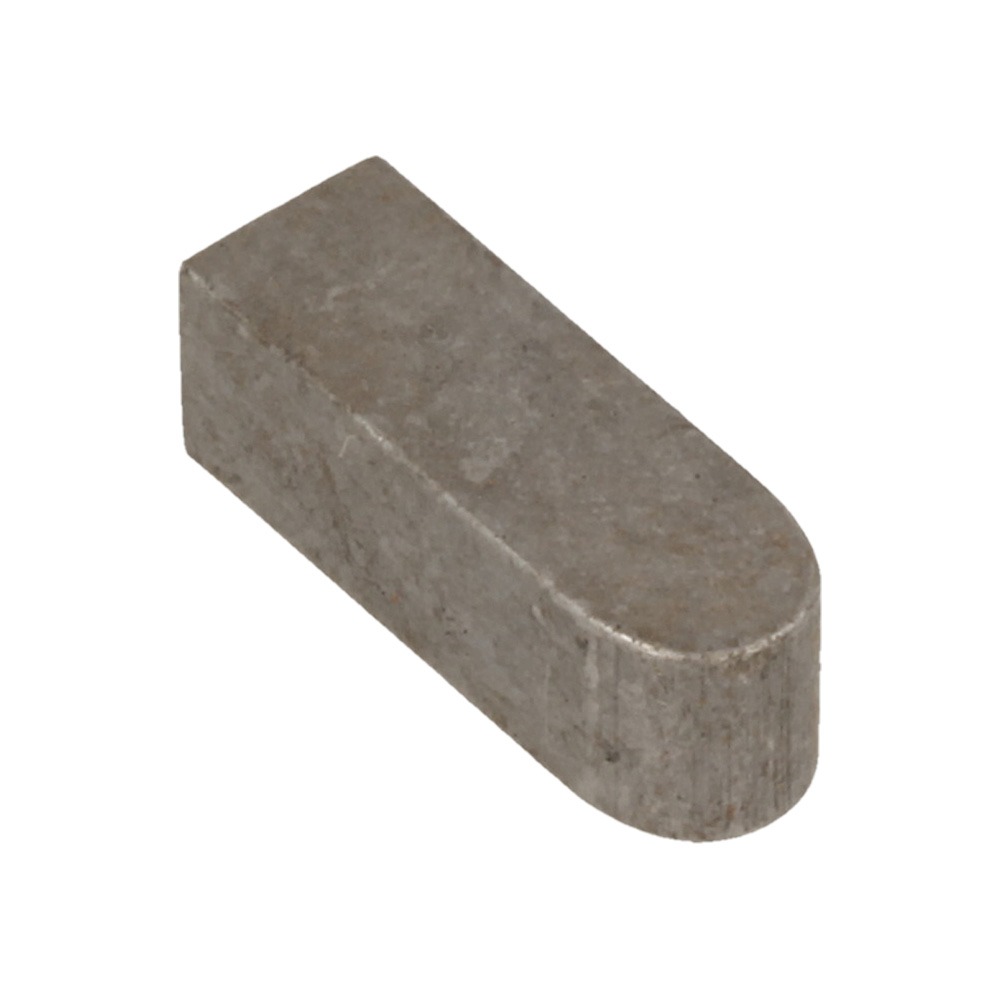

35	BE06.8.028 Available to backorder	[35] - Key 1/4"Sq x 3/4" Long Form C	£4.82 £4.02
36	BE7/6034 Available to backorder	[36] - Screw	£0.56 £0.47
37	BE21.0.292 In stock	[37] - Anti-Vib Mount	£11.96 £9.97
38	BE8/10003 Available to backorder	[38] - Nut	£0.48 £0.40
39	BE4/1003 Available to backorder	[39] - Washer M10	£0.48 £0.40
40	BE4/1005 Available to backorder	[40] - Washer M10	£0.48 £0.40
41	BE941/10500 Available to backorder	[41] - Baseplate Kit Spares	£254.52 £212.10
42	BE7/10004 Available to backorder	[42] - Screw	£0.48 £0.40
43	BEMP03 Available to backorder	[43] - Minipac Block Paving Pad	£174.46 £145.38
44	BE8/6007 Available to backorder	[44] - Nut	£0.48 £0.40
45	BE4/6001 Available to backorder	[45] - Washer M6	£0.48 £0.40
46	BE148085 Available to backorder	[46] - Locating Channel	£23.20 £19.33
47	BE148087 Available to backorder	[47] - Backing Strip	£39.86 £33.22
48	BE07.0.121 Available to backorder	[48] - Screw M6 x 20 Bzp Csk Skt	£0.48 £0.40
49	BE148084 Available to backorder	[49] - Poly Pad - Minipac 300	£104.04 £86.70
51	BE4/8003 Available to backorder	[51] - Washer M8	£0.71 £0.59
52	BE148086 Available to backorder	[52] - Clamp Strip	£16.18 £13.48
53	BE8/8012 Available to backorder	[53] - Nut	£0.48 £0.40
54	BE4/1204 Available to backorder	[54] - Washer M12	£0.48 £0.40
55	BE4/1202 Available to backorder	[55] - Washer M12	£0.48 £0.40
56	BE4/1004 Available to backorder	[56] - Washer M10	£0.48 £0.40
57	BE8/12006 Available to backorder	[57] - Nut	£0.48 £0.40
58	BE7/12019 Available to backorder	[58] - Screw	£0.48 £0.40
59	BE7/12018 Available to backorder	[59] - Screw	£1.72 £1.43
60	BE800/99916 Available to backorder	[60] - Decal Noise 99 Lwa	£1.20 £1.00
61	BE19.0.373 Available to backorder	[61] - 4 In 1 Label	£0.48 £0.40
62	BE800/99936 Available to backorder	[62] - Decal Mpc 300	£4.52 £3.77
63	BE800/00300 Available to backorder	[63] - Emblem Belle Logo 075	£0.66 £0.55
64	BE800/99940 Available to backorder	[64] - Decal Minipac	£5.46 £4.55
