Belle Minipac 300 - Main Assembly

Name: Belle Minipac 300 - Main Assembly
SKU: Minipac300Main-group
Price: 0.36 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

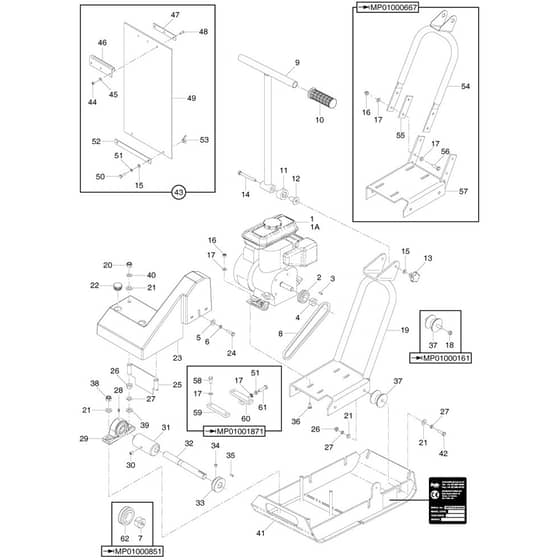

Belle Minipac 300 - Main Assembly - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	BE29.1.227 Available to backorder	[1A] - 2.2Hp Robin Engine Ey08 Du	£535.20 £446.00
1	BE29.1.171 Available to backorder	[1] - 2.5 Hp G100 K2Qe14	£457.20 £381.00

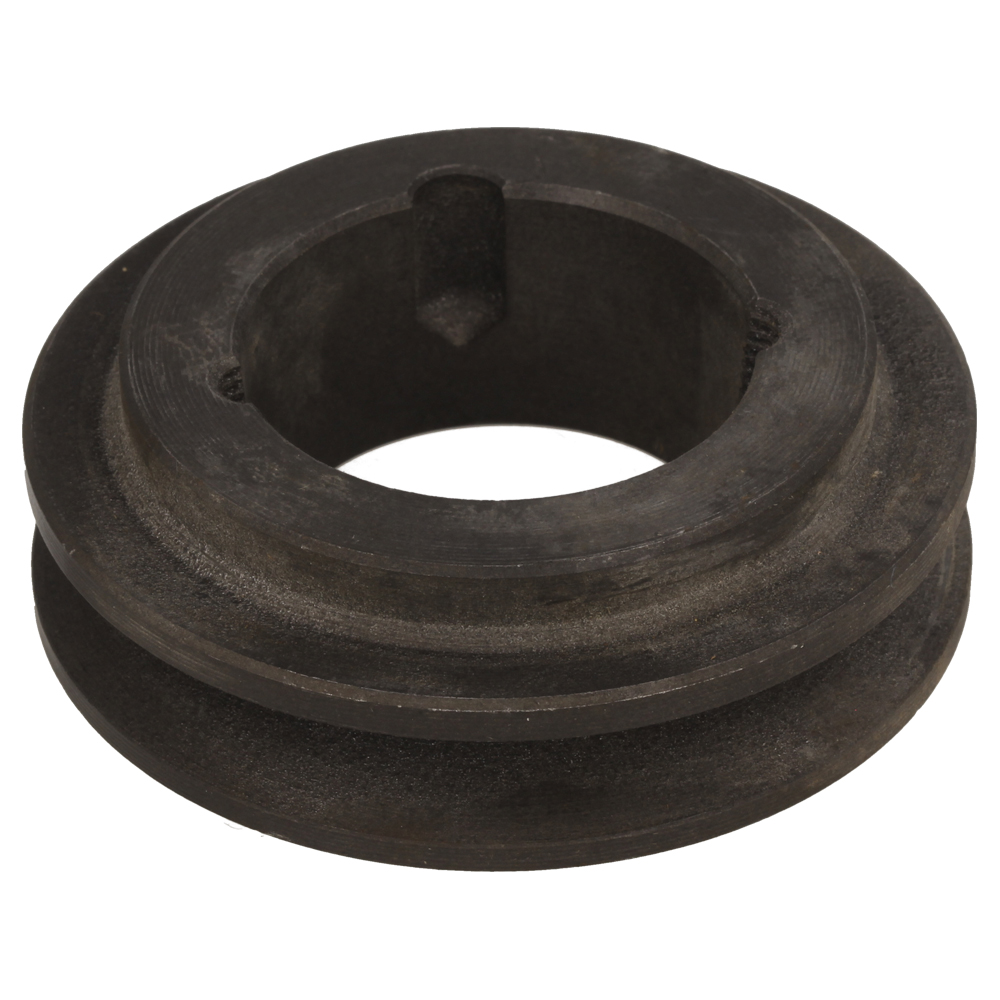

2	BE10.0.002 Available to backorder	[2] - Pulley Spz 1 x 67	£32.46 £27.05
3	BE06.8.031 Available to backorder	[3] - Key	£0.66 £0.55

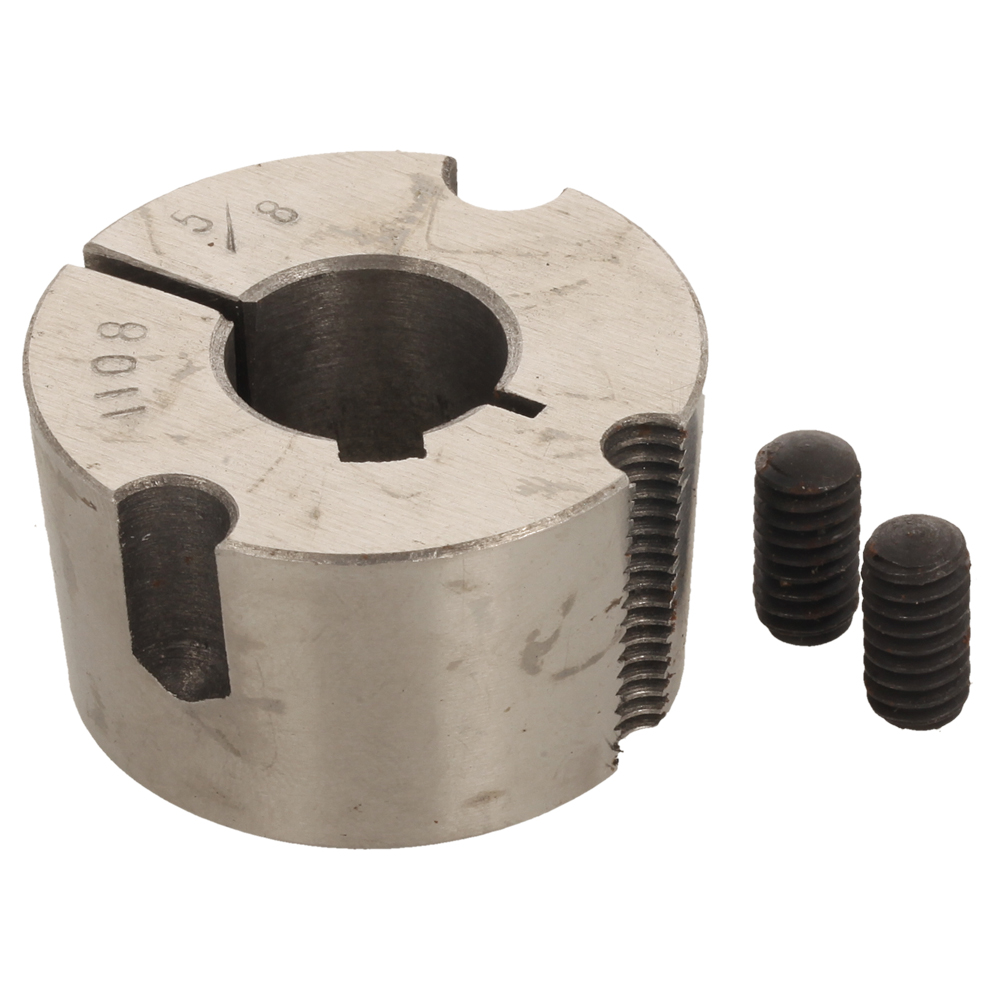

4	BE10.9.034 Available to backorder	[4] - Taperlock Bush - 102.10.273	£15.38 £12.82
4	BE10.9.036 Available to backorder	[4] - Taperlock Bush 1108 x 3/4"	£18.68 £15.57
5	BE05.3.066 Available to backorder	[5] - Washer M6	£0.74 £0.62
6	BE05.3.065 Available to backorder	[6] - Spring Washer M6 M6	£6.42 £5.35
7	BE7/6035 Available to backorder	[7] - Screw	£0.48 £0.40
9	BE148020 Available to backorder	[9] - Handle Weldment Top 67564/C	£36.74 £30.62
9	BE148079 Available to backorder	[9] - Handle Top W.A.	£57.36 £47.80
10	BE19.0.708 Available to backorder	[10] - Hand Grip 1" I/D	£6.02 £5.02
11	BE148044 Available to backorder	[11] - See 148302 Field Kit	£100.80 £84.00
12	BE148045 Available to backorder	[12] - Handle Bush	£18.20 £15.17
13	BE19.0.778 Available to backorder	[13] - Handknob	£10.42 £8.68
14	BE00.0.029 Available to backorder	[14] - Bolt M8 x 80 Now Use 9/8026	£0.43 £0.36
15	BE05.3.062 Available to backorder	[15] - Washer	£2.06 £1.72
16	BE01.0.104 Available to backorder	[16] - Nut - M8 Nyloc (155)	£0.56 £0.47
17	BE05.0.006 Available to backorder	[17] - Washer M8 (155) M8	£0.48 £0.40
19	BE148070 Available to backorder	[19] - Bedplate W.A.	£142.62 £118.85
20	BE01.0.622 Available to backorder	[20] - Dome Nut M10	£1.66 £1.38
21	BE05.0.010 Available to backorder	[21] - Washer M10 M10	£0.48 £0.40
22	BE3/4026 Available to backorder	[22] - Plug Stand Front-Ref199311 Blk	£0.48 £0.40
23	BE941/99904 Available to backorder	[23] - Guard Injection Moulded	£23.40 £19.50
24	BE9/6001 Available to backorder	[24] - Bolt	£0.48 £0.40
26	BE8/10003 Available to backorder	[26] - Nut	£0.48 £0.40
27	BE05.1.006 Available to backorder	[27] - Spring Washer M10	£0.48 £0.40
28	BE500/06100 Available to backorder	[28] - Grease Nipple - M6 x 1mm	£0.48 £0.40
29	BE12.0.022 Available to backorder	[29] - Bearing Block	£54.40 £45.33
30	BE03.3.001 Available to backorder	[30] - Grubscrew	£1.76 £1.47
31	BE148062 Available to backorder	[31] - Weight	£51.00 £42.50
32	BE148061 Available to backorder	[32] - Shaft	£30.46 £25.38

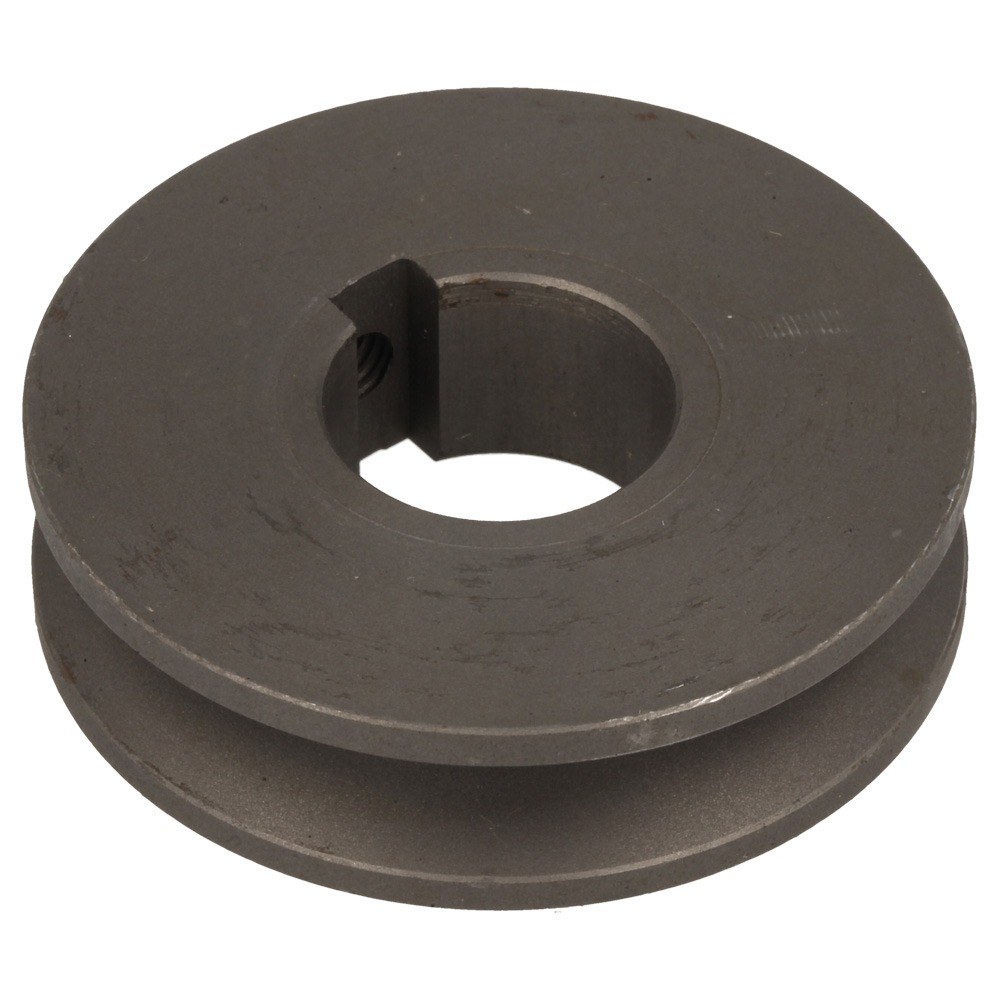

33	BE148078 Available to backorder	[33] - Driven Pulley	£50.56 £42.13
34	BE7/6029 In stock	[34] - Socket Grubscrew M6 x 6 Now Use - 7/6029	£0.47 £0.39
35	BE06.8.028 Available to backorder	[35] - Key 1/4"Sq x 3/4" Long Form C	£4.82 £4.02
36	BE00.0.869 Available to backorder	[36] - Coach Bolt M8 x 25 Lg	£0.48 £0.40
37	BE21.0.292 In stock	[37] - Anti-Vib Mount	£11.96 £9.97
37	BE21.0.004 Available to backorder	[37] - Vib Mounting - Green Spot	£10.02 £8.35
38	BE01.0.105 Available to backorder	[38] - Nut M10	£0.48 £0.40
39	BE4/1004 Available to backorder	[39] - Washer M10	£0.48 £0.40
40	BE05.2.003 Available to backorder	[40] - Shakeproof Washer M10 M10	£0.48 £0.40
41	BE148017 Available to backorder	[41] - Baseplate W.A. Now Use - 941/10400	£256.44 £213.70
41	BE941/10400 Available to backorder	[41] - Baseplate Wa	£271.08 £225.90
42	BE7/10004 Available to backorder	[42] - Screw	£0.48 £0.40
43	BEMP03 Available to backorder	[43] - Minipac Block Paving Pad	£174.46 £145.38
44	BE8/6007 Available to backorder	[44] - Nut	£0.48 £0.40
45	BE4/6001 Available to backorder	[45] - Washer M6	£0.48 £0.40
46	BE148085 Available to backorder	[46] - Locating Channel	£23.20 £19.33
47	BE148087 Available to backorder	[47] - Backing Strip	£39.86 £33.22
48	BE07.0.121 Available to backorder	[48] - Screw M6 x 20 Bzp Csk Skt	£0.48 £0.40
49	BE148084 Available to backorder	[49] - Poly Pad - Minipac 300	£104.04 £86.70
51	BE4/8003 Available to backorder	[51] - Washer M8	£0.71 £0.59
52	BE148086 Available to backorder	[52] - Clamp Strip	£16.18 £13.48
53	BE8/8012 Available to backorder	[53] - Nut	£0.48 £0.40
55	BE148015 Available to backorder	[55] - Rubber Pad	£3.08 £2.57
56	BE02.0.026 Available to backorder	[56] - Setscrew M8 x 30 Ht Bzp	£0.48 £0.40
57	BE148018 Available to backorder	[57] - Bedplate Weldment	£452.40 £377.00
58	BE02.0.025 Available to backorder	[58] - Setscrew - M8x25 Hex Hd8.8 Bzp	£0.48 £0.40
59	BE130.0.054 Available to backorder	[59] - Bar Flat (Bzp)	£35.32 £29.43
60	BE130.0.002 Available to backorder	[60] - Block Pusher W.A.	£56.52 £47.10
61	BE02.0.031 Available to backorder	[61] - Setscrew M8 x 60 Unplated	£0.48 £0.40
62	BE10.0.000 Available to backorder	[62] - Pulley	£56.58 £47.15
63	BE10.9.008 Available to backorder	[63] - Taperlock Bush	£66.14 £55.12
