Belle Minimix 150E+ - Gearbox Assembly

Description

Belle Minimix 150E+ - Gearbox Assembly - Parts Diagram

	Part No.	Details
1	BE900/37602 Available to backorder	[1] - Gearbox Case Mach'D Oct 04>	£39.38 £32.82

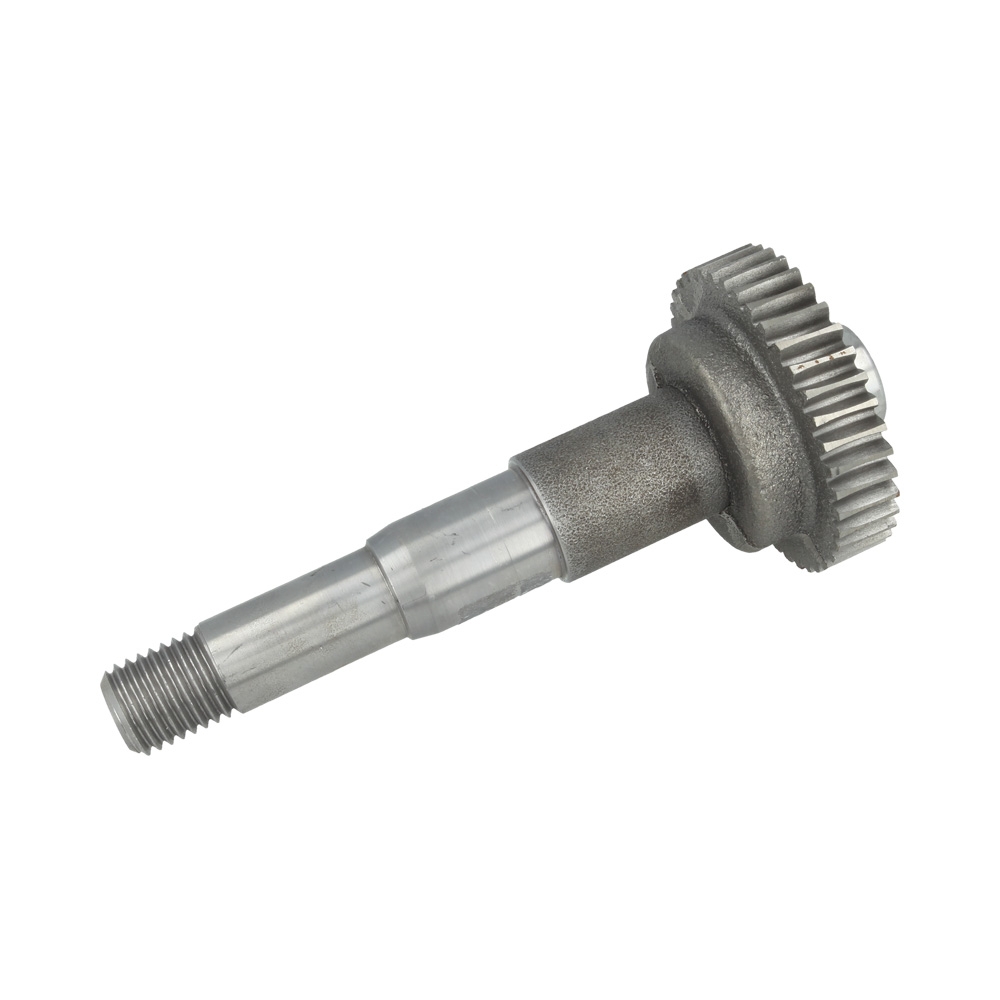

2	BEMS09 In stock	[2] - Mini Wormwheel Drumshaft	£65.44 £54.53

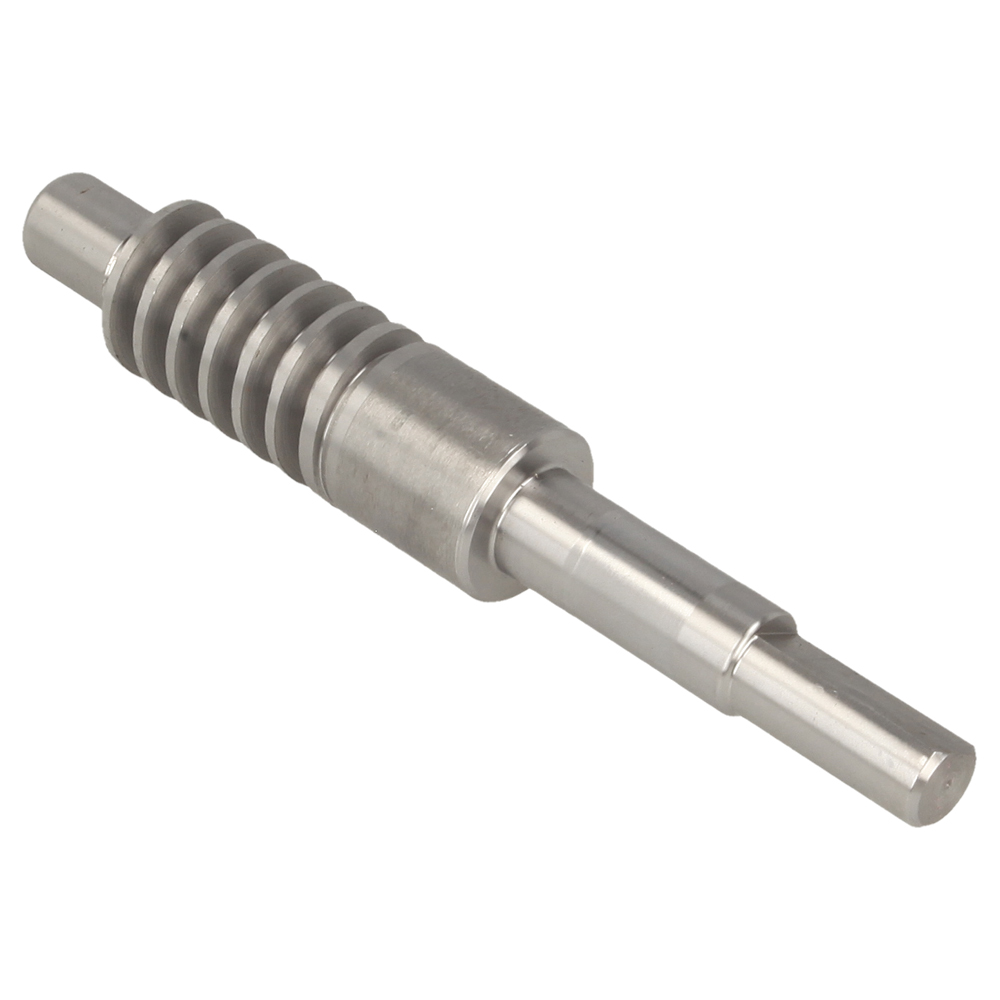

3	BE900/37601 Available to backorder	[3] - Shaft Worm Mini G'Box Oct 04>	£24.56 £20.47

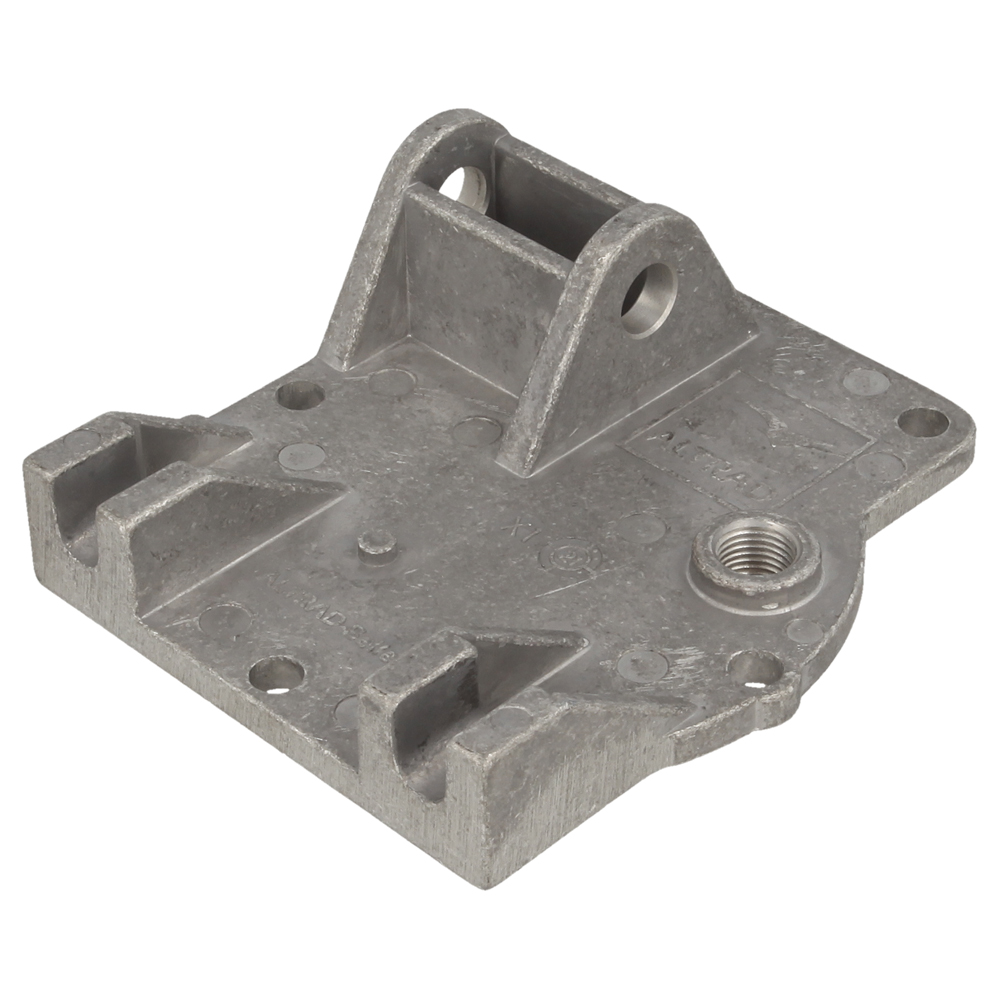

4	BEMS10 Available to backorder	[4] - Mini End Plate - Post 89	£17.80 £14.83
5	BEMS11 In stock	[5] - Mini Gasket - Post 89	£0.92 £0.77
6	BECMS10 Available to backorder	[6] - Ball Race 6006	£5.88 £4.90

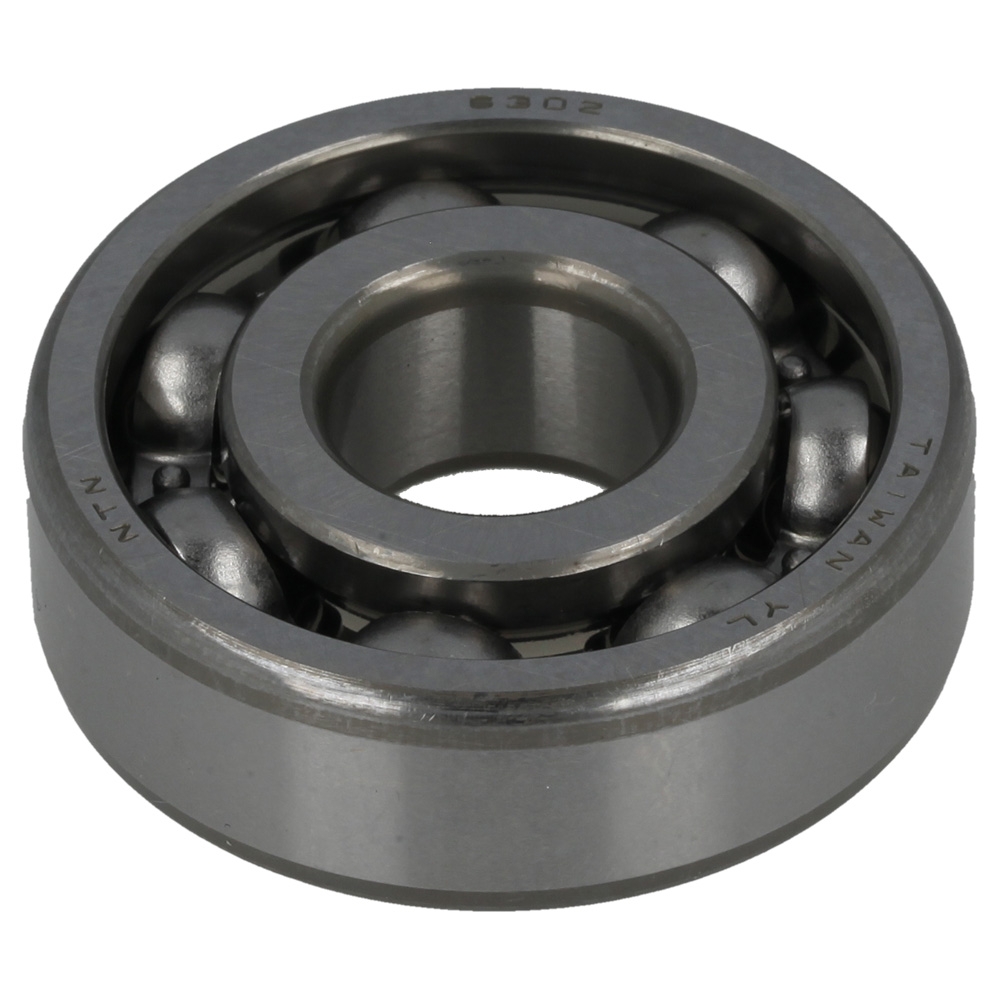

7	BE53/0032 In stock	[7] - Bearing Roller 6302	£4.10 £3.42

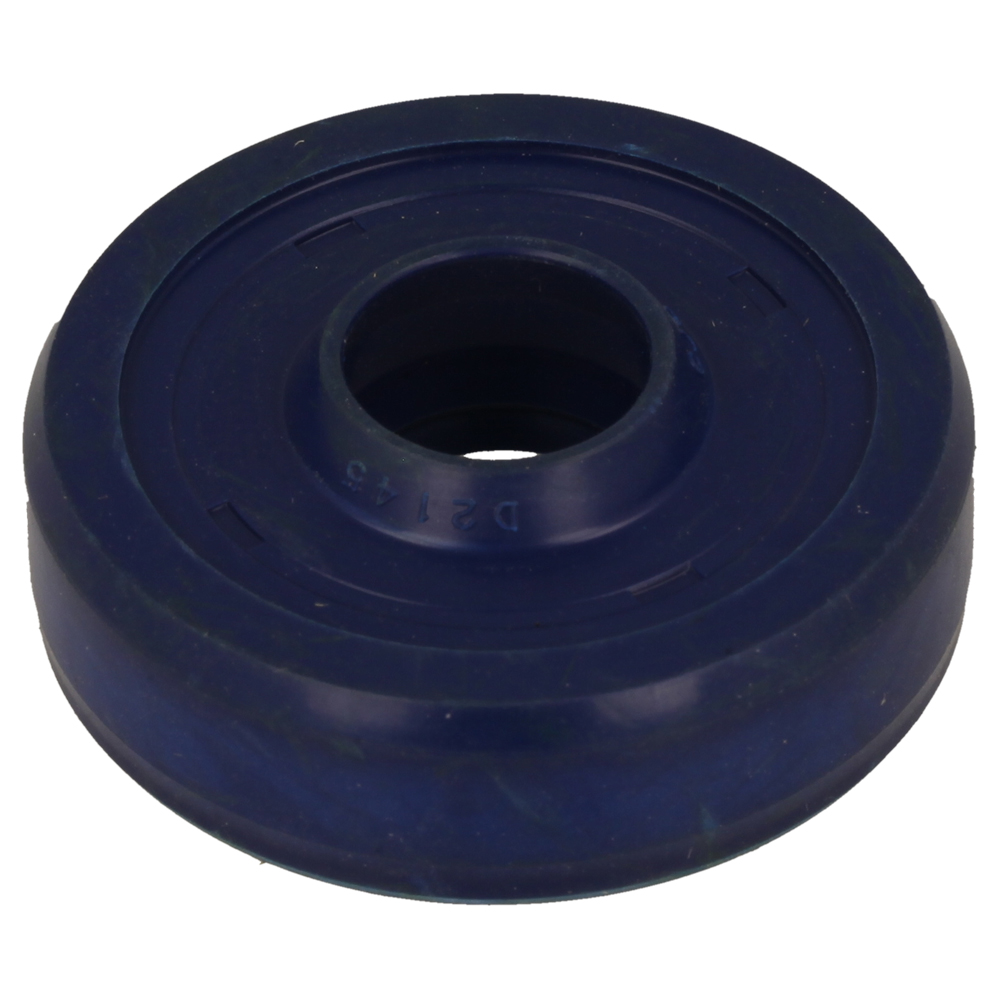

8	BE5/0052 In stock	[8] - Seal Oil 15 x 42.6 x 12/14.5	£2.22 £1.85
9	BEMS22 In stock	[9] - Circlip - Mini	£0.98 £0.82

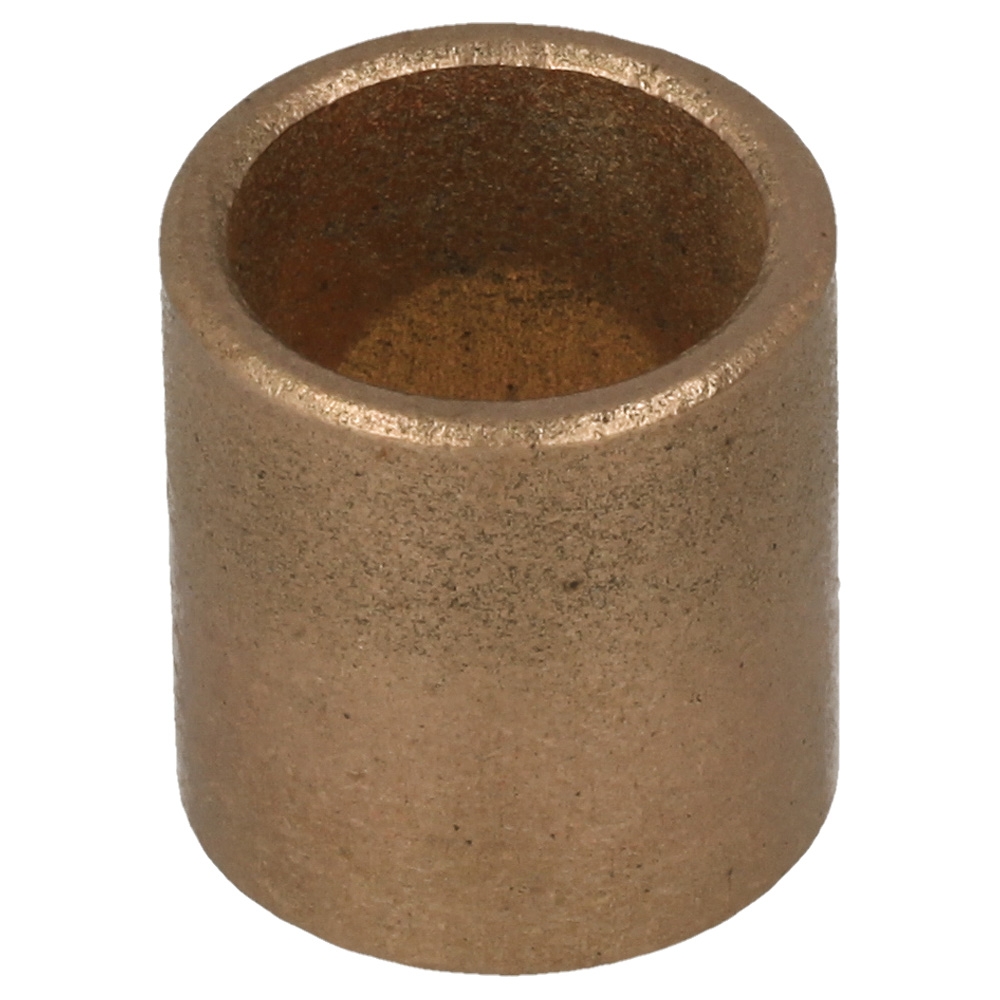

10	BEMS13 Available to backorder	[10] - Mini Oilite Bush 19 x 15 x 20	£2.00 £1.67
11	BECMS11 In stock	[11] - Oilseal - B407	£1.26 £1.05
12	BE7/8003 Available to backorder	[12] - Screw	£0.66 £0.55
13	BEMS12 Available to backorder	[13] - Mini Filler Bung	£2.50 £2.08

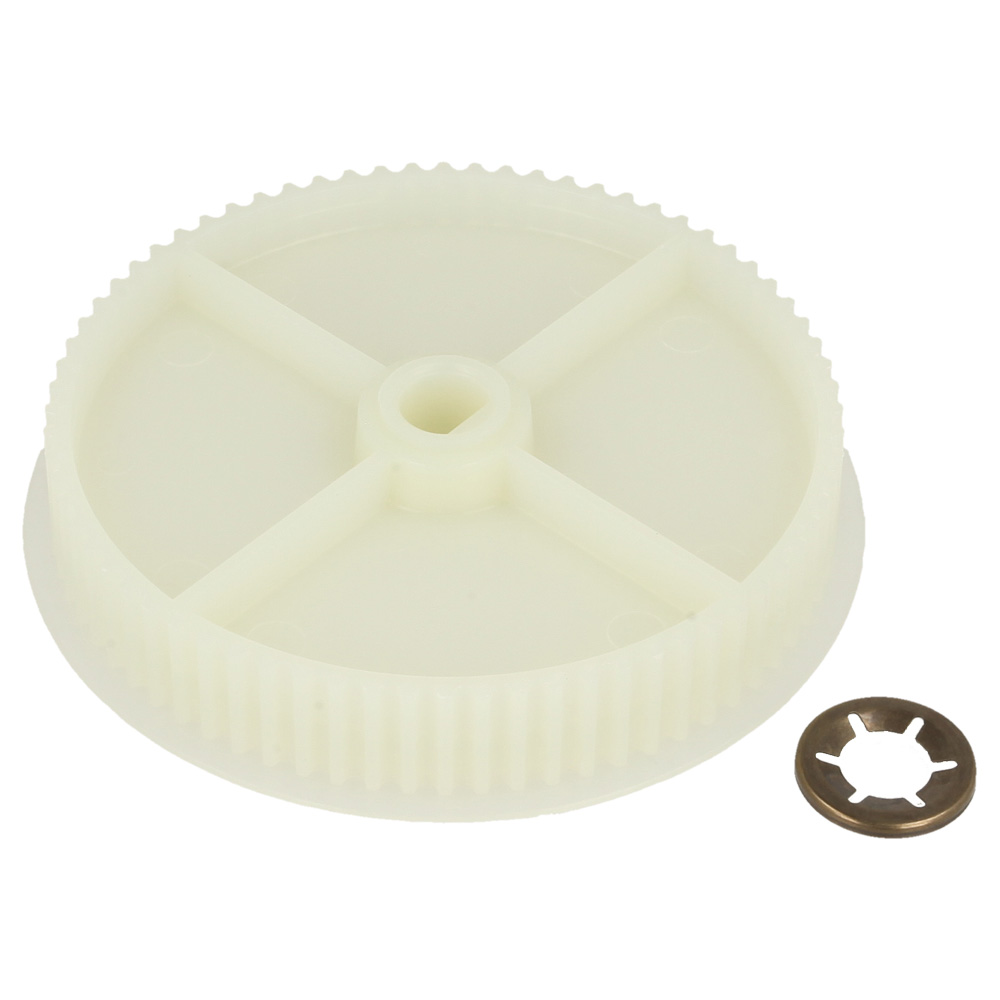

14	BE900/30000 In stock	[14] - Gearbox Pulley Kit 50 Hz	£11.36 £9.47
15	BE5/0011 Available to backorder	[15] - Seal Bonded 1/4" Bsp	£1.34 £1.12
