Belle Minimix 150E+ - Drive Assembly

Part No. Minimix150EDrive-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Belle Minimix 150E+ - Drive Assembly

Belle Minimix 150E+ - Drive Assembly

Description

Belle Minimix 150E+ - Drive Assembly - Parts Diagram

Ref.		Img.	Part No.	Details
	1		BE900/44900 Available to backorder	[1] - Motor Support W.A		£131.76 £109.80
	2		BE900/99952 Available to backorder	[2] - Screw M8 x 38 D-Lock		£24.79 £20.66

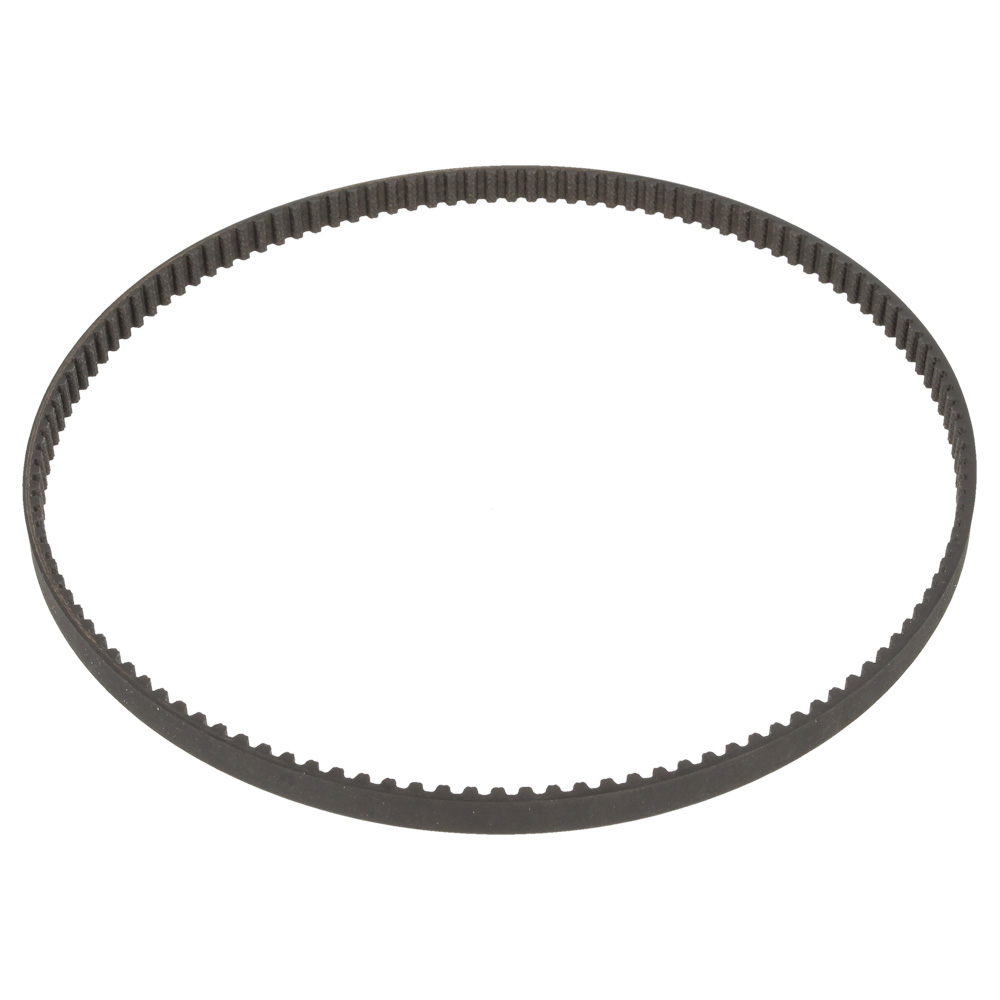

	10		BE21/0477 Available to backorder	[10] - Timing Belt 5M 630-9		£10.99 £9.16
	11		BE900/99958 Available to backorder	[11] - Belt Guard		£45.68 £38.07
	12		BE7/8053 Available to backorder	[12] - Screw		£0.41 £0.34
	13		BE7/8037 Available to backorder	[13] - Screw		£0.48 £0.40
	14		BE900/99959 Available to backorder	[14] - Case Washer		£0.91 £0.76
	15		BE8/8008 Available to backorder	[15] - Nut		£0.48 £0.40
	16		BE7/12042 Available to backorder	[16] - Screw		£3.74 £3.12
	17		BE4/1204 Available to backorder	[17] - Washer M12		£0.48 £0.40
	18		BE8/12006 Available to backorder	[18] - Nut		£0.48 £0.40
	19		BE56/0005 Available to backorder	[19] - Boss 30x17x13 Hole		£4.16 £3.47
	21		BE3/7102 Available to backorder	[21] - Clip Dia 13mm Fir Tree		£3.49 £2.91
	23		BE900/46000 Available to backorder	[23] - Switch / Harness E+ Assy		£180.36 £150.30
	24		BE7/5019 Available to backorder	[24] - Screw		£0.48 £0.40
	25		BE900/46600SP Available to backorder	[25] - Switch 82V On/Off		£82.80 £69.00
	26		BE900/46500SP Available to backorder	[26] - Switch Cover Kit		£37.99 £31.66

Description

Belle Minimix 150E+ - Drive Assembly - Parts Diagram
