Belle Minimix 140 - Main Assembly

Name: Belle Minimix 140 - Main Assembly
SKU: Minimix140Main-group
Price: 0.17 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

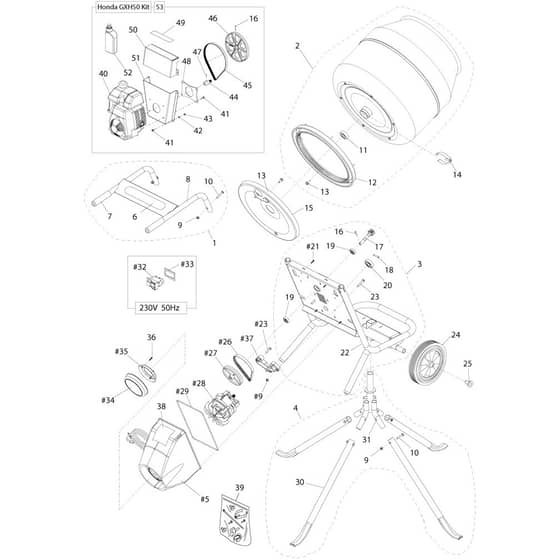

Belle Minimix 140 - Main Assembly - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	BE905/10900 Available to backorder	[1] - Kit Handle G.A.	£33.58 £27.98
2	BE905/10700 Available to backorder	[2] - Kit Drum G.A.	£303.24 £252.70
3	BE905/10600 Available to backorder	[3] - Kit Mainframe G.A.	£269.04 £224.20
4	BE905/10800 Available to backorder	[4] - Kit Stand G.A.	£147.64 £123.03
5	BE901/15400 Available to backorder	[5] - Motor Cover Uk 230V 50Hz Tp02	£72.52 £60.43
6	BE800/99810 Available to backorder	[6] - Decal Belle Project Mixer	£4.26 £3.55

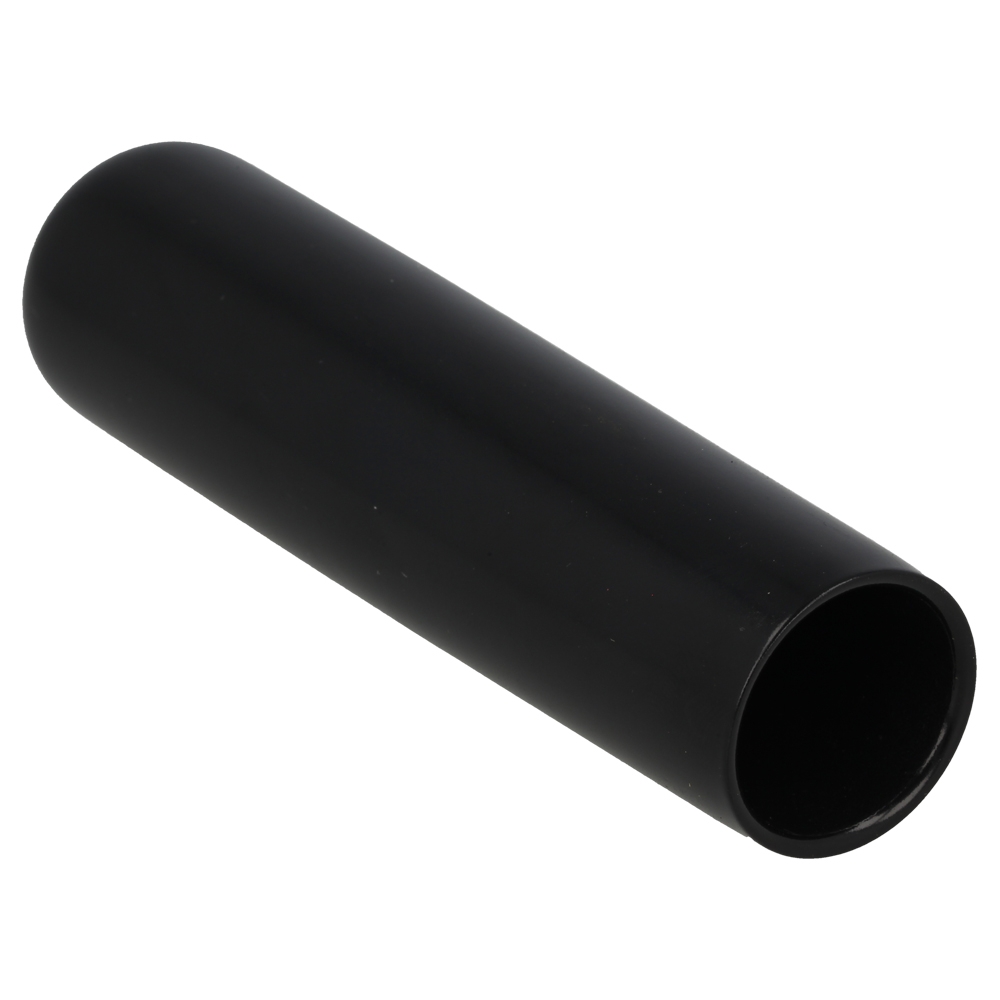

7	BE900/99906 In stock	[7] - Handle Grip	£0.86 £0.72
8	BE905/10100 Available to backorder	[8] - W.A. Handle Mini 140	£32.98 £27.48
9	BE8/8008 Available to backorder	[9] - Nut	£0.48 £0.40
10	BE9/8017 Available to backorder	[10] - Bolt	£0.48 £0.40
11	BE53/0003 Available to backorder	[11] - Bearing 6304-2Z	£5.12 £4.27
12	BE905/99901 Available to backorder	[12] - Gear Ring Mini 140	£27.20 £22.67
13	BE7/8037 Available to backorder	[13] - Screw	£0.48 £0.40
14	BE3/1009 Available to backorder	[14] - Clip Drum Assy	£6.34 £5.28
15	BE901/99906 Available to backorder	[15] - Gear Cover	£11.14 £9.28
16	BE3/0039 Available to backorder	[16] - Pin Spirol 6 x 25	£1.02 £0.85

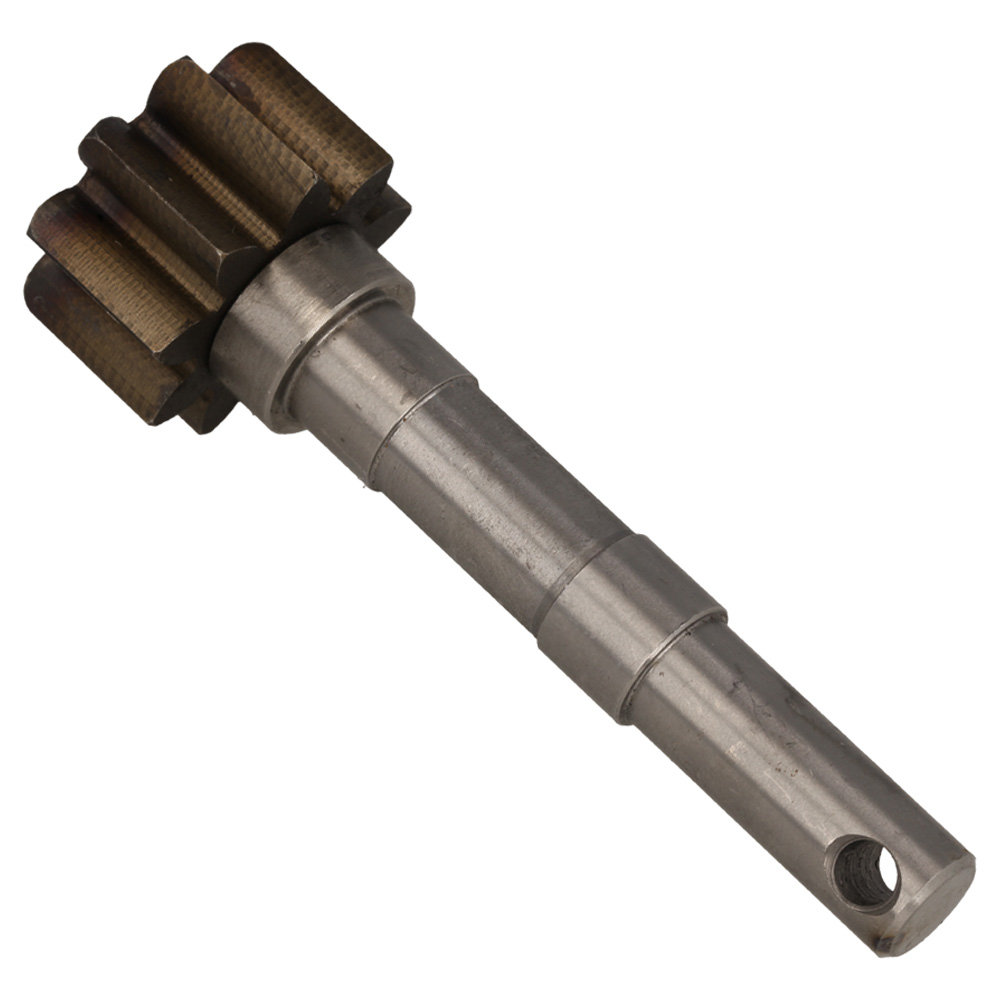

17	BE901/10800 Available to backorder	[17] - Drive - Pinion W.A	£36.46 £30.38
18	BE3/0007 Available to backorder	[18] - Pins Roll 1/4" x 1-12"	£1.22 £1.02

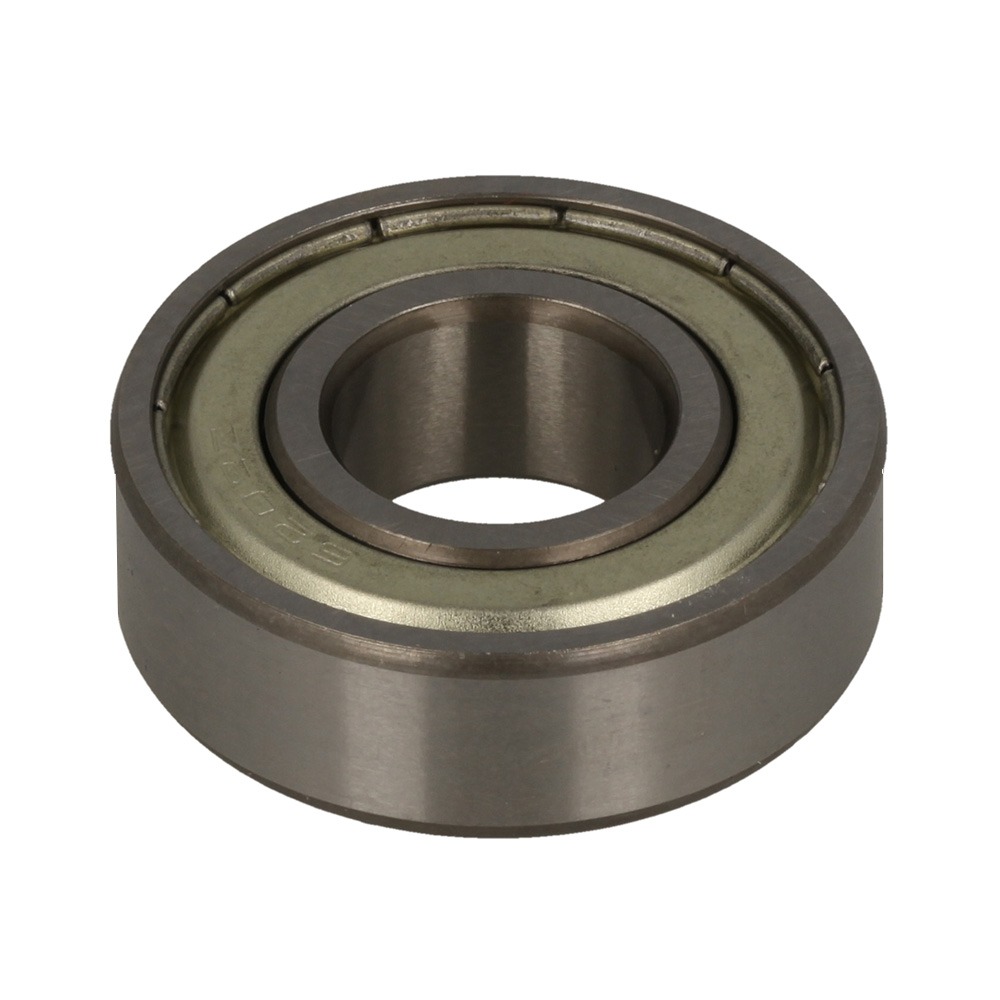

19	BE53/0002 Available to backorder	[19] - Bearing 6202-2Z	£3.06 £2.55
20	BE53/0001 Available to backorder	[20] - Bearing 6205-Zz	£4.76 £3.97
21	BE7/5019 Available to backorder	[21] - Screw	£0.20 £0.17
22	BE905/10000 Available to backorder	[22] - W.A. Mini 140 Frame	£237.36 £197.80
23	BE7/8009 Available to backorder	[23] - Screw	£0.48 £0.40
24	BE60/0435 Available to backorder	[24] - Wheel Dia 250 (25/60 Hub)	£22.00 £18.33
25	BE900/11400 In stock	[25] - Retainer Wheel	£1.40 £1.17

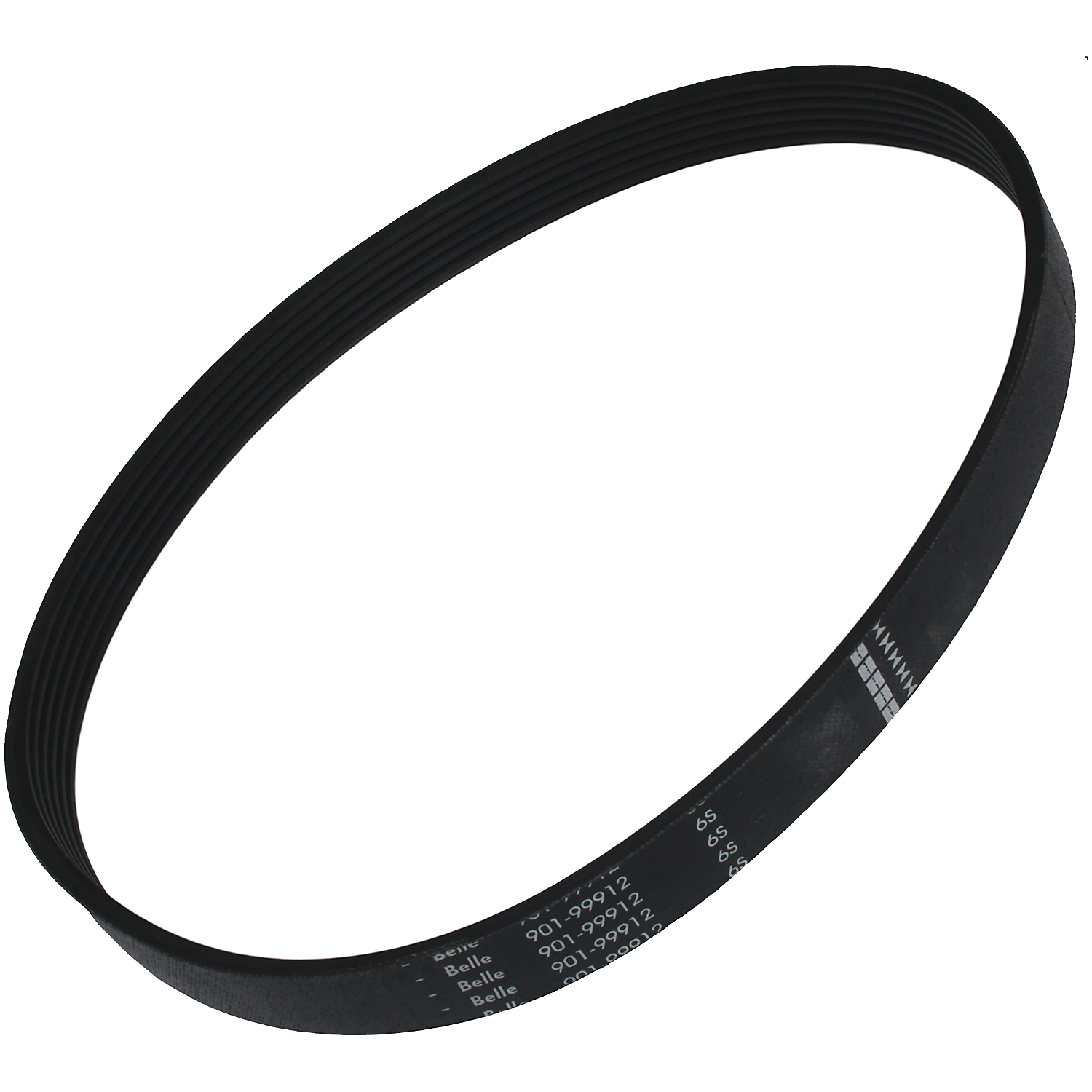

26	BE901/99912 Available to backorder	[26] - Belt Snap 6Epj503	£6.00 £5.00
27	BE901/99908 Available to backorder	[27] - Pulley Large 0130	£3.88 £3.23

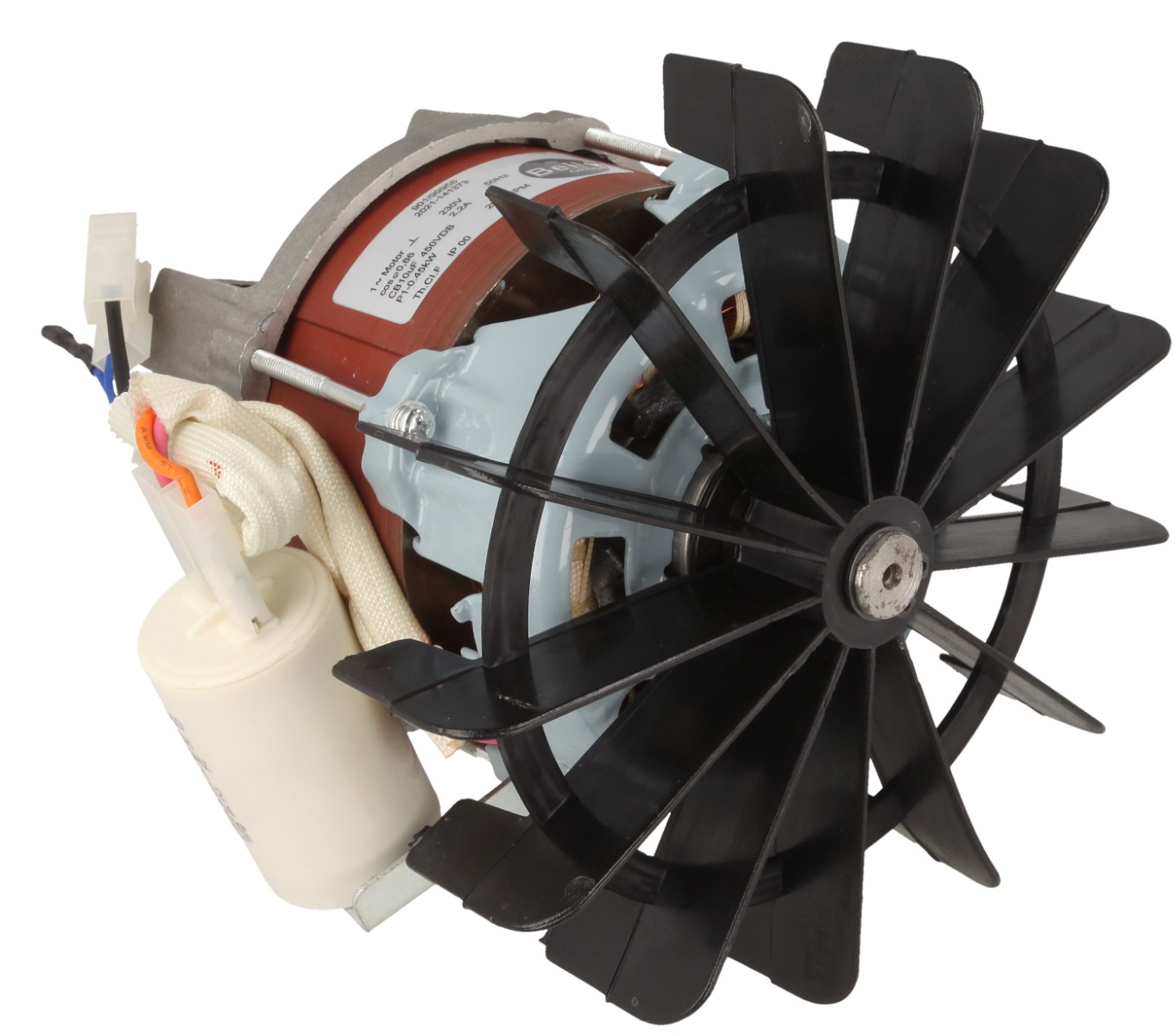

28	BE901/99958 Available to backorder	[28] - Motor Mini 130 230V 50Hz Tp02	£112.34 £93.62
29	BE901/99907 Available to backorder	[29] - Seal - Motor Cover	£2.58 £2.15
30	BE901/99901 Available to backorder	[30] - Stand Leg	£17.32 £14.43
31	BE905/10300 Available to backorder	[31] - W.A. Leg Support	£76.58 £63.82
32	BE70/0194 Available to backorder	[32] - Switch Compact 230V-50Hz Tpo2	£23.34 £19.45
33	BE70/0195 Available to backorder	[33] - Gasket Compact Switch Tpo2	£14.58 £12.15
34	BE901/99916 Available to backorder	[34] - Shield Motor Cover Outer	£21.94 £18.28
35	BE901/99915 Available to backorder	[35] - Shield Motor Cover Inner	£4.24 £3.53

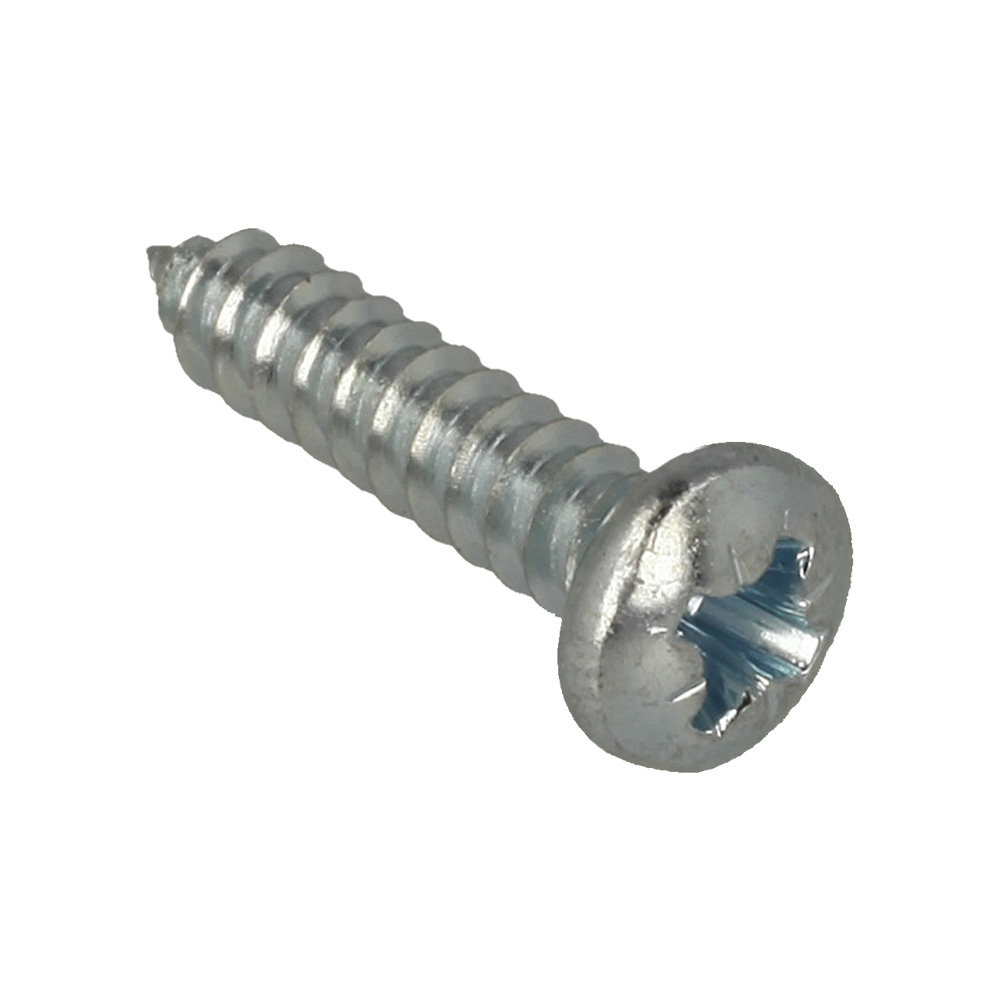

36	BE7/0008 Available to backorder	[36] - Screw 3.9 x 19 S/Tap Pozipan	£0.48 £0.40
37	BE901/99910 Available to backorder	[37] - Bracket Motor Mounting	£5.16 £4.30
38	BE800/25200 Available to backorder	[38] - Kit Decal 140 Standard	£7.02 £5.85
39	BE92/01400 Available to backorder	[39] - Kit Bag Minimix 140 Euro 1	£12.26 £10.22
40	BE905/11100 Available to backorder	[40] - Engine Mini 140 Spec	£601.20 £501.00
41	BE7/6034 Available to backorder	[41] - Screw	£0.56 £0.47
42	BE4/6003 Available to backorder	[42] - Washer M6	£0.48 £0.40
43	BE8/6007 Available to backorder	[43] - Nut	£0.48 £0.40
44	BE905/99904 Available to backorder	[44] - Shaft Extension Honda	£39.98 £33.32
45	BE21/0246 Available to backorder	[45] - Belt Multi Vee 6Epj711	£8.36 £6.97
46	BE905/99903 Available to backorder	[46] - Pulley Large 200Dia	£13.06 £10.88
47	BE7/5022 Available to backorder	[47] - Screw	£1.34 £1.12
48	BE905/99906 Available to backorder	[48] - Plate Engine Mount	£4.68 £3.90
49	BE800/21320 Available to backorder	[49] - Decal Hot Parts Euro1	£5.04 £4.20
50	BE905/99907 Available to backorder	[50] - Pressing Belt Guard	£16.26 £13.55
51	BE905/99905 Available to backorder	[51] - Pressing Engine Mount	£18.12 £15.10
