Belle Minimix 140-150 - Main Assembly

Name: Belle Minimix 140-150 - Main Assembly
SKU: Minimix140150Main-group
Price: 0.4 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Belle Minimix 140-150 - Main Assembly - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
2	BE900/14300SP Available to backorder	[2] - Stand Bottom Lh + Rh Combined Now Use 900/14300Sp	£212.64 £177.20

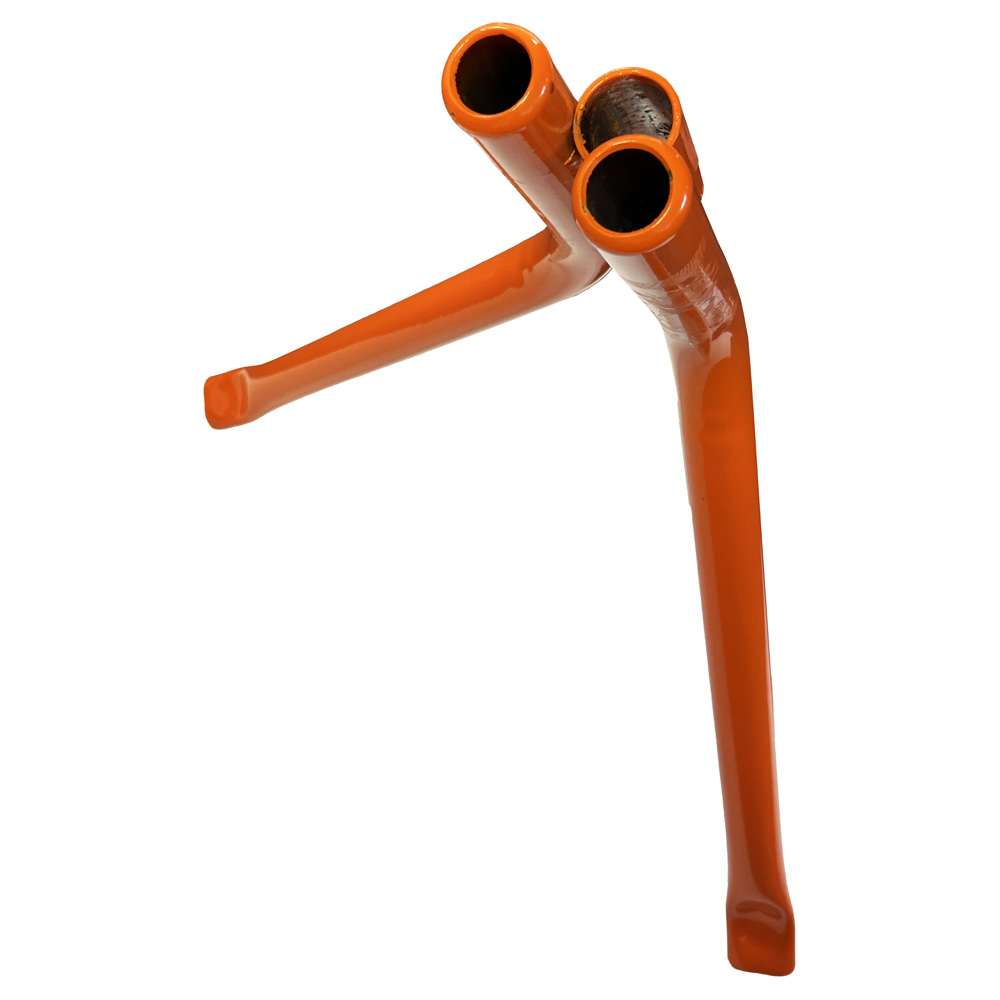

2	BE900/17100 Available to backorder	[2B] - Stand Bottom R/H W.A. (1 Boss)	£85.32 £71.10

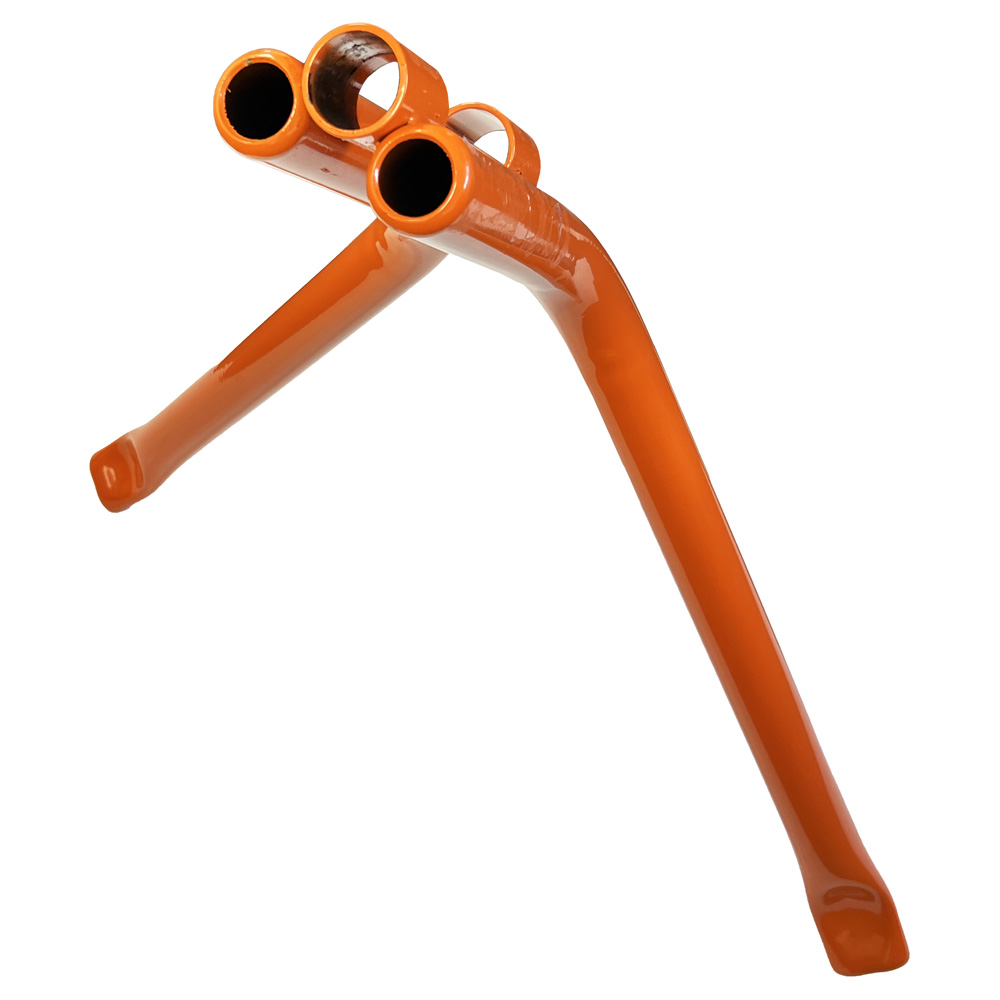

2	BE900/17000 Available to backorder	[2A] - Stand Bottom L/H W.A. (2 Boss)	£92.74 £77.28
3	BE900/11600 Available to backorder	[3] - Stand Top W.A.	£90.08 £75.07
4	BE60/0286 Available to backorder	[4] - Wheel Dia 300 (25.5/60 Hub)	£24.12 £20.10
7	BECMS12SP In stock	[7] - Drum Spares	£244.20 £203.50
9	BE7/10003 Available to backorder	[9] - Screw	£0.48 £0.40
10	BE9/12005 Available to backorder	[10] - Bolt	£1.12 £0.93
11	BE4/1205 Available to backorder	[11] - Washer M12	£0.48 £0.40
13	BE8/10003 Available to backorder	[13] - Nut	£0.48 £0.40
15	BE8/12002 Available to backorder	[15] - Nut	£0.48 £0.40

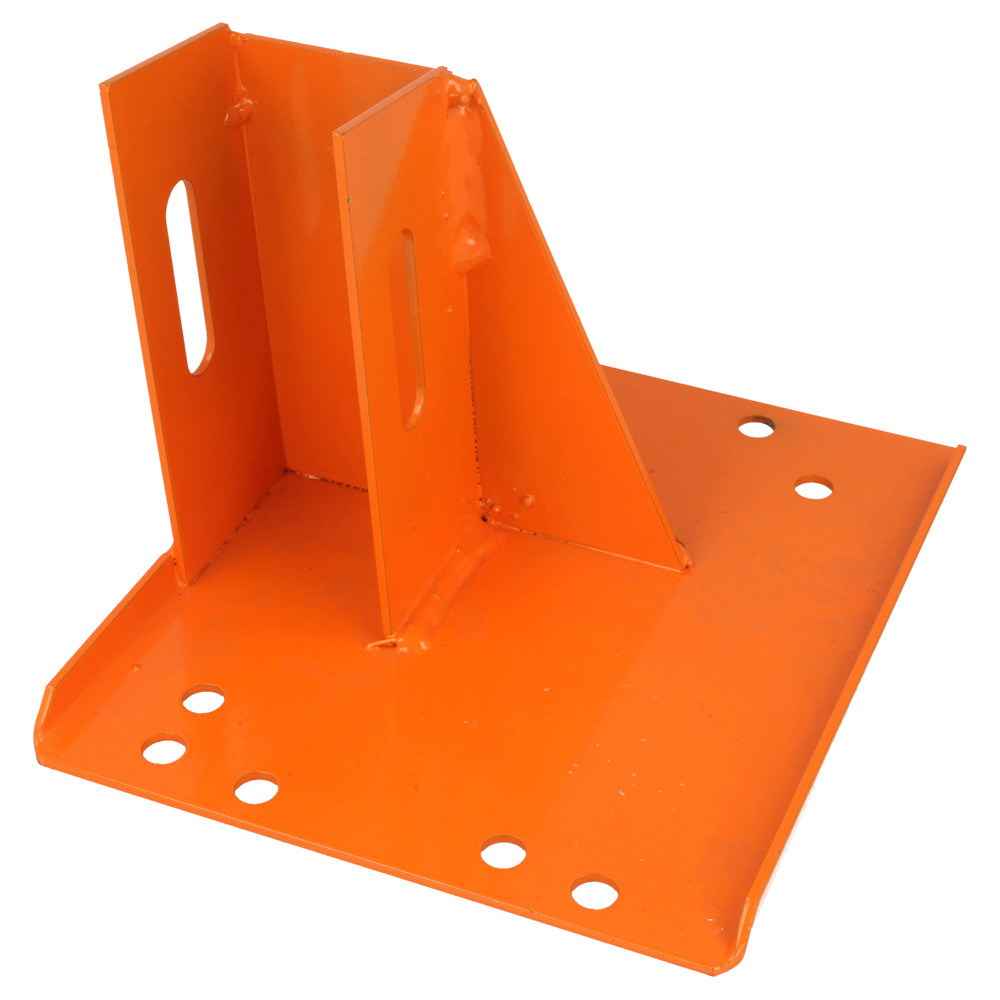

16	BE900/23400 Available to backorder	[16] - Motor Deck W.A	£24.64 £20.53
17	BE7/8011 Available to backorder	[17] - Screw	£0.48 £0.40
19	BECMS02 Available to backorder	[19] -	£394.80 £329.00
19	BECMS65 Available to backorder	[19A] - Motor 0.37Kw 110V (60Hz) (Exp)	£263.40 £219.50
21	BE7/10002 Available to backorder	[21] - Screw	£0.48 £0.40

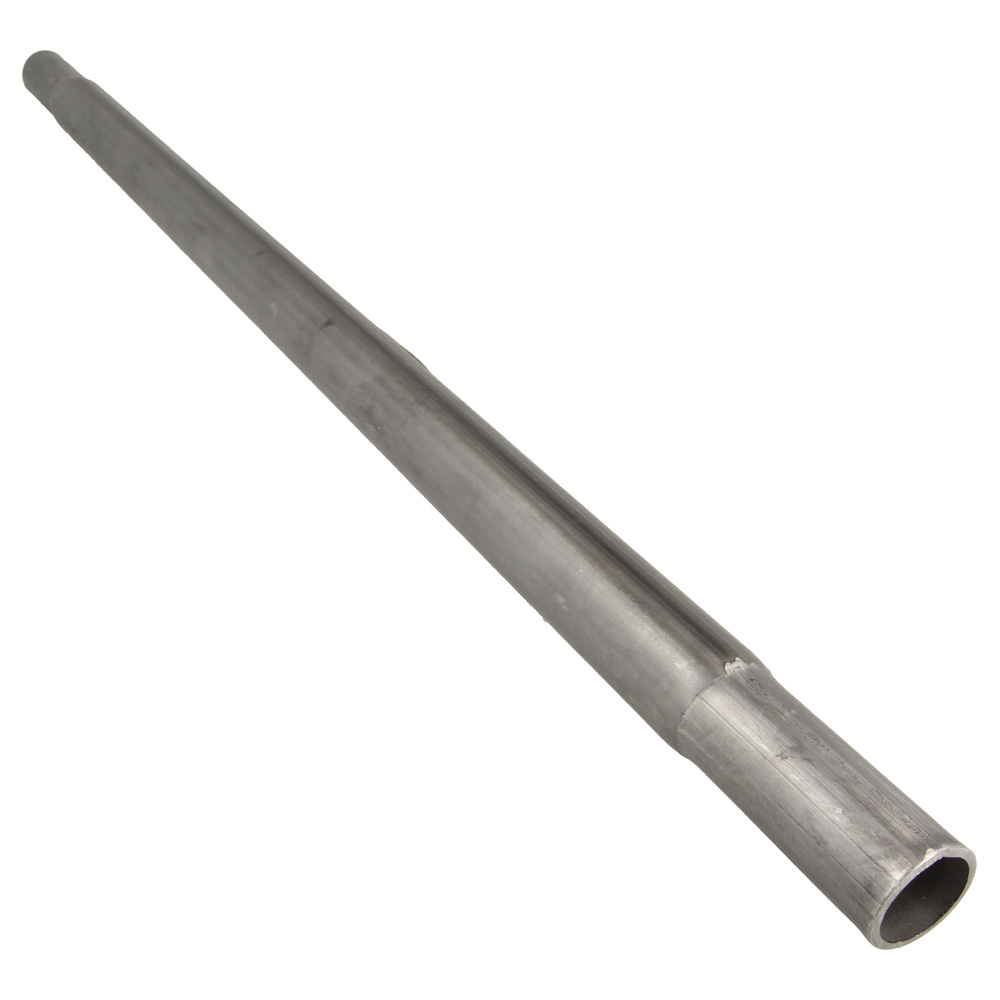

23	BE900/11503 Available to backorder	[23] - Tube Axle Mainframe (Mini 150)	£10.64 £8.87
24	BE900/12400 Available to backorder	[24] - Pulley M30 Motor (Mini)	£14.66 £12.22
25	BECMS63 Available to backorder	[25] - Box Switch 110V Nvr C/W Bs4343	£147.00 £122.50
26	BECMS36 Available to backorder	[26] - Acc Plate 110V	£39.08 £32.57
29	BECMS17 Available to backorder	[29] - Cover - 110V/240V Capacitor	£26.57 £22.14
30	BECMS29 Available to backorder	[30] - Capacitor 110V (Silver)	£57.90 £48.25
33	BECMS25 Available to backorder	[33] - 240V/110V Fan Cowl	£96.34 £80.28
40	BE900/44000 Available to backorder	[40] - Kit Ms25 Replacment	£150.00 £125.00
40	BEMS25 In stock	[40] - Mini Gearbox (Complete) Now Use 900/44000	£144.60 £120.50
44	BECMS39 In stock	[44] - Pulley - Gearbox	£7.00 £5.83
45	BE8/12003 Available to backorder	[45] - Nut	£1.88 £1.57
46	BE900/15400 Available to backorder	[46A] - Belt V A23 (Exp)	£1.70 £1.42
46	BEMS01 In stock	[46] - Belt - Mini A23.5	£5.88 £4.90
52	BEMS18 Available to backorder	[52] - Mini Engine Pulley 3/4"	£22.02 £18.35
53	BEMS32 Available to backorder	[53A] - Mini Robin Engine Pulley Kit	£20.81 £17.34
53	BE900/21300 Available to backorder	[53] - Pulley - Mini Honda	£152.46 £127.05
54	BE9/8003 Available to backorder	[54] - Bolt	£0.48 £0.40
55	BE4/8002 Available to backorder	[55A] - Washer M8	£0.48 £0.40
55	BE8/8001 Available to backorder	[55] - Nut	£0.48 £0.40
57	BECMS13 Available to backorder	[57] - Kit Mini Paddles + Brackets	£14.60 £12.17
60	BE900/20400 Available to backorder	[60] - Motor Kit 240V Nvr Spares No Longer Available	£440.40 £367.00
63	BE900/19200 Available to backorder	[63] - Adaptor Plate Motor	£1.60 £1.33
66	BE900/19100 Available to backorder	[66] - Rivet Snap Ref Sr 508513	£14.34 £11.95
69	BE4/0008 Available to backorder	[69] - Washer Starlock 5/8" Uncapped	£0.60 £0.50

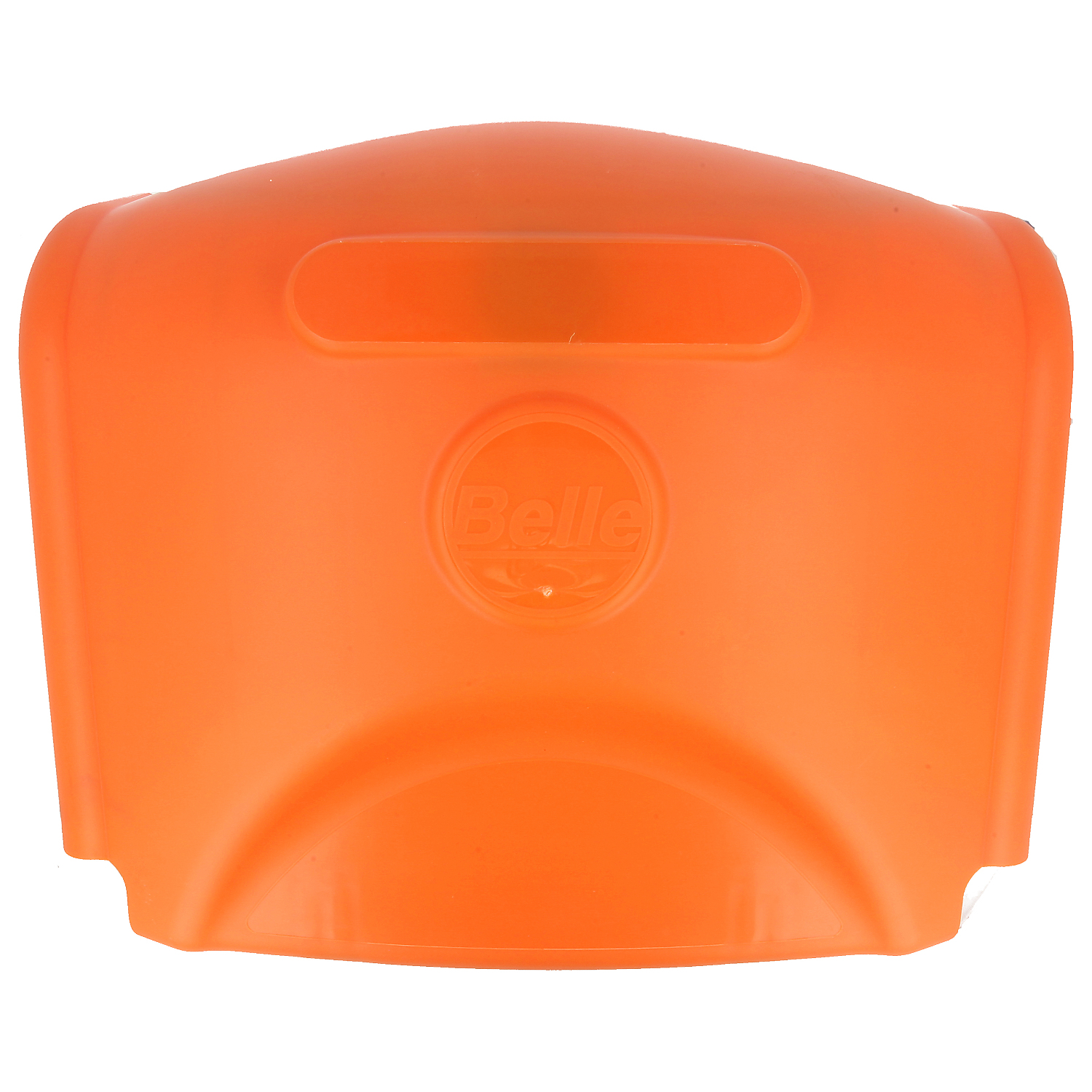

70	BE900/99914 In stock	[70] - Top Cover - Minimix 150	£22.86 £19.05
71	BE900/99918 Available to backorder	[71] - Top Cover Clamp Now Use 900/99918_Pk2	£1.20 £1.00
72	BE7/5017 Available to backorder	[72] - Screw	£0.48 £0.40

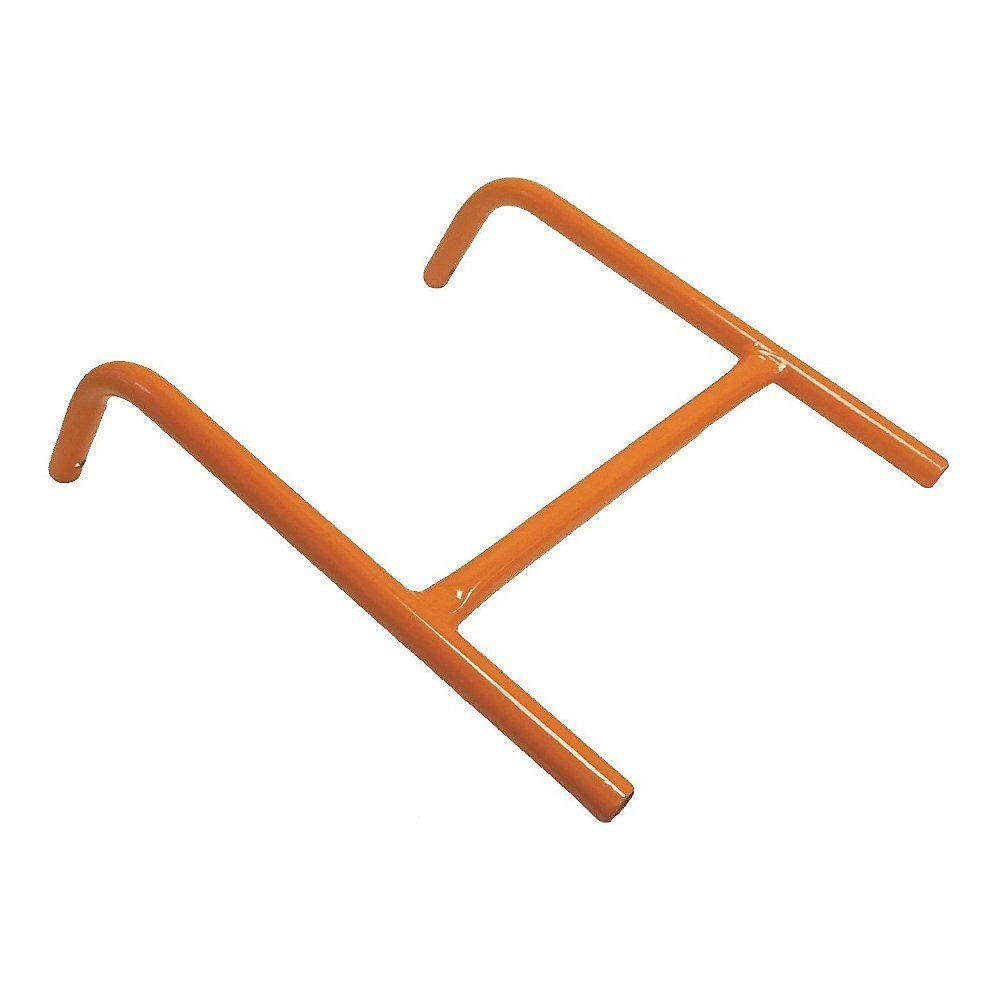

73	BE900/25000 Available to backorder	[73] - Handles W.A	£24.30 £20.25

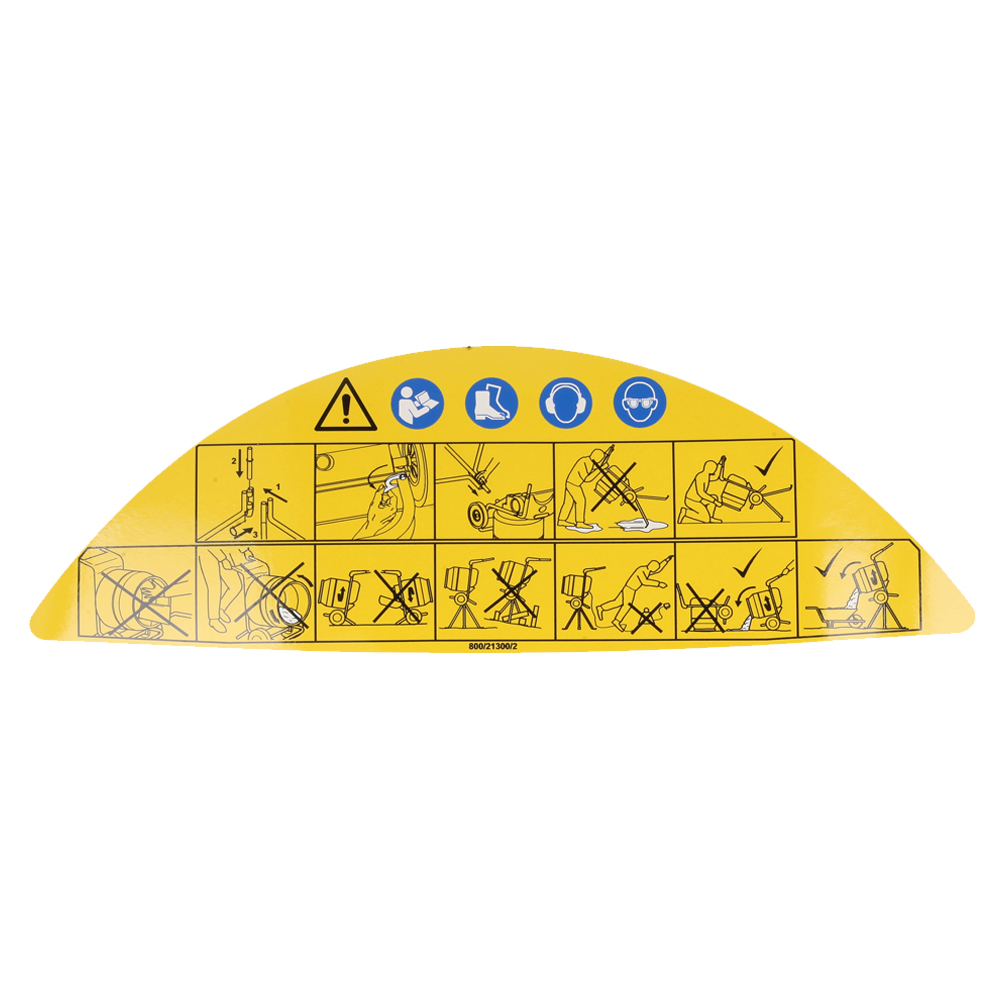

74	BE800/21300 In stock	[74] - Top Cover Decal Universal	£5.06 £4.22
75	BE9/8021 Available to backorder	[75] - Bolt	£1.08 £0.90
76	BEXS35 In stock	[76] - Handle Grip	£1.96 £1.63
77	BE900/11400 In stock	[77] - Retainer Wheel	£1.40 £1.17
78	BE7/6001 Available to backorder	[78] - Screw	£0.48 £0.40
79	BE4/6003 Available to backorder	[79] - Washer M6	£0.48 £0.40
80	BE8/6001 Available to backorder	[80] - Nut	£0.66 £0.55
83	BE8/8007 Available to backorder	[83] - Nut	£1.00 £0.83

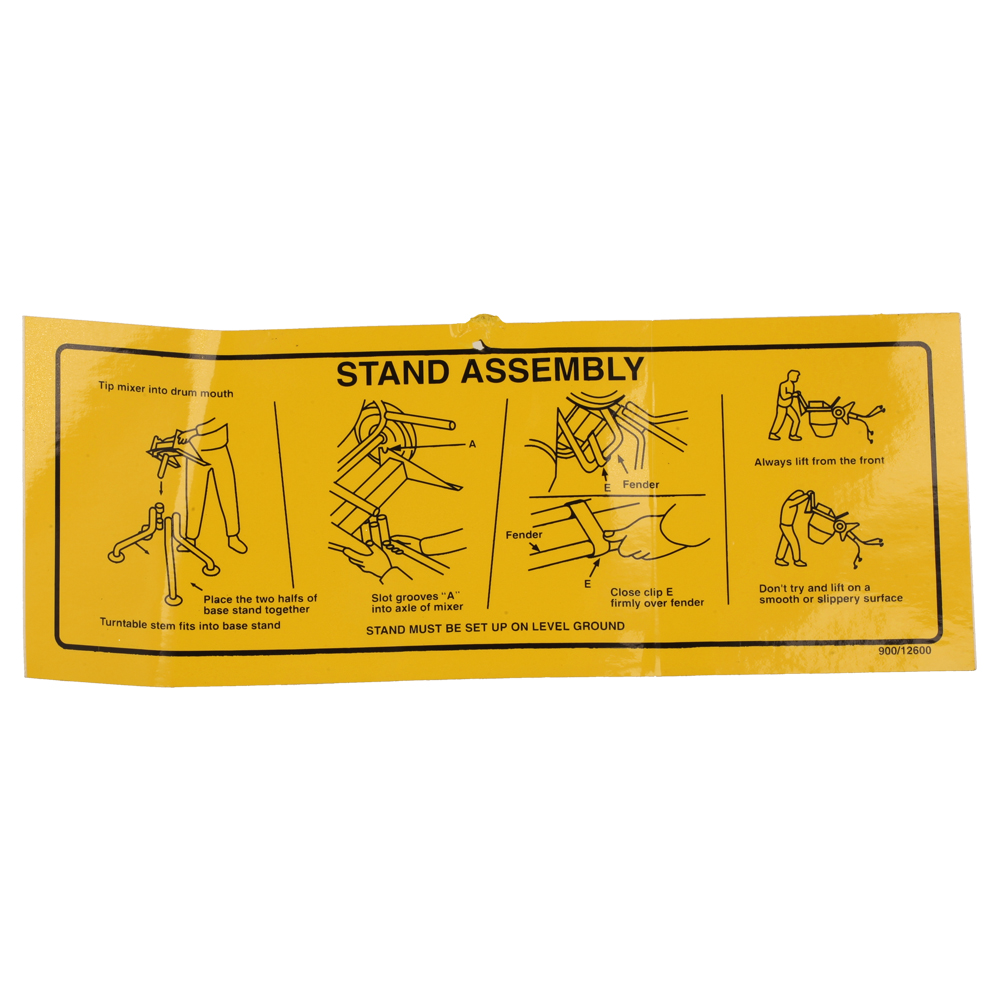

86	BE900/12600 Available to backorder	[86] - Decal Stand Assy Mini 150	£2.26 £1.88
87	BE1/0519 Available to backorder	[87] - Paint- Ltr Tin Orange Ral-2004	£64.80 £54.00
87	BE1/0507 Available to backorder	[87A] - Paint Spray Can Orange Ca35	£16.46 £13.72
89	BEMS17 In stock	[89] - Motor Pulley 5/8"	£13.94 £11.62
90	BECMS64 Available to backorder	[90] - Pulley 5/8" 45mm Od-60Hz Motor	£246.00 £205.00
91	BE7/6008 Available to backorder	[91] - Screw	£0.48 £0.40
93	BE4/8008 Available to backorder	[93] - Washer	£0.48 £0.40
94	BE900/20500 Available to backorder	[94] - Spanner M8	£47.68 £39.73
95	BE900/10200 Available to backorder	[95A] - Clip Cable No.6	£2.98 £2.48

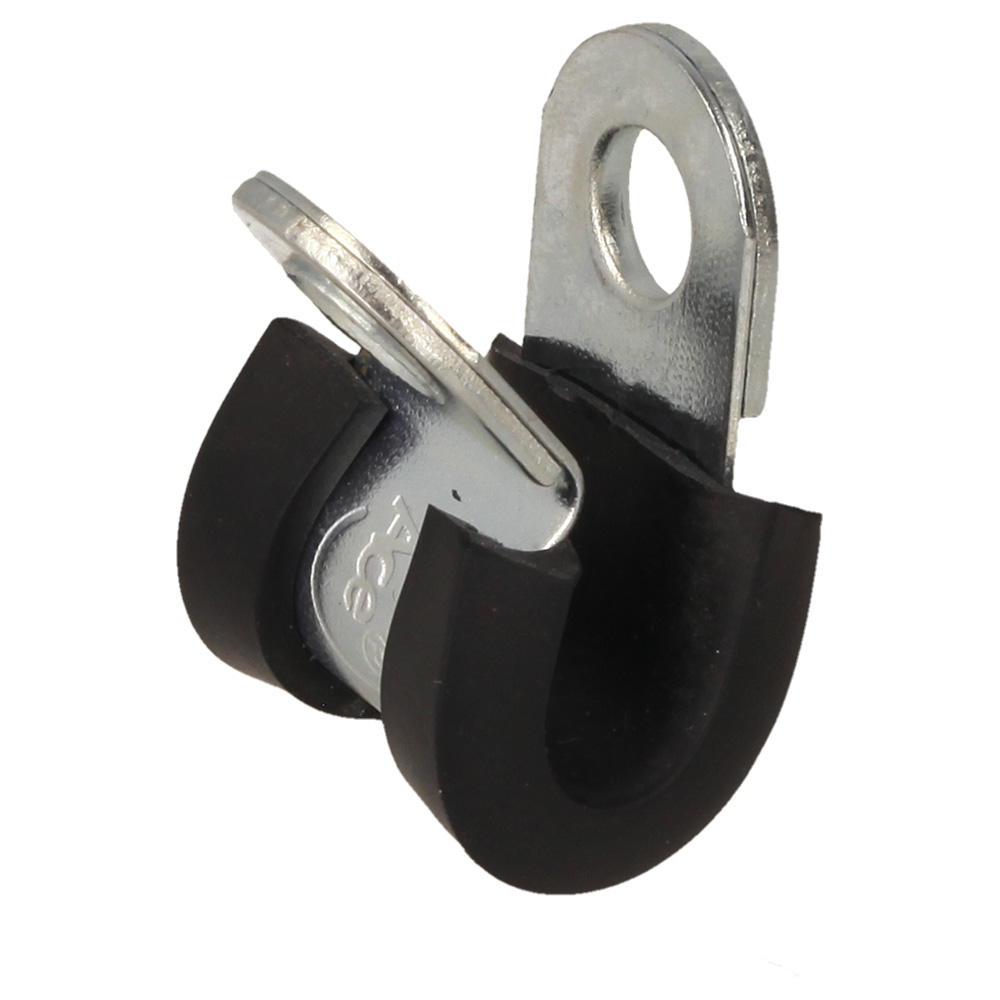

95	BE900/10100 Available to backorder	[95] - Clip Cable	£0.48 £0.40
96	BE7/8008 Available to backorder	[96] - Screw	£0.48 £0.40
98	BE900/16700 Available to backorder	[98] - Cover Motor Pulley End	£67.68 £56.40
99	BE900/16800 Available to backorder	[99] - Cover Motor Fan End	£55.12 £45.93
100	BE900/16400 Available to backorder	[100] - Casing Main Body M30 Motor No Longer Available	£135.26 £112.72
101	BE600/03150 Available to backorder	[101] - Clip E Rsm-01-20	£0.48 £0.40
102	BE900/16500 Available to backorder	[102] - Fan M30 Motor	£36.78 £30.65
108	BE900/19500 Available to backorder	[108] - Box Base 220V Cee7 Tripus	£61.26 £51.05
109	BE900/19300 Available to backorder	[109] - Lid Assy 220V/240V Nvr Tripus	£169.44 £141.20
110	BE900/19700 Available to backorder	[110] - Screw Lid Nvr Tripus	£2.22 £1.85

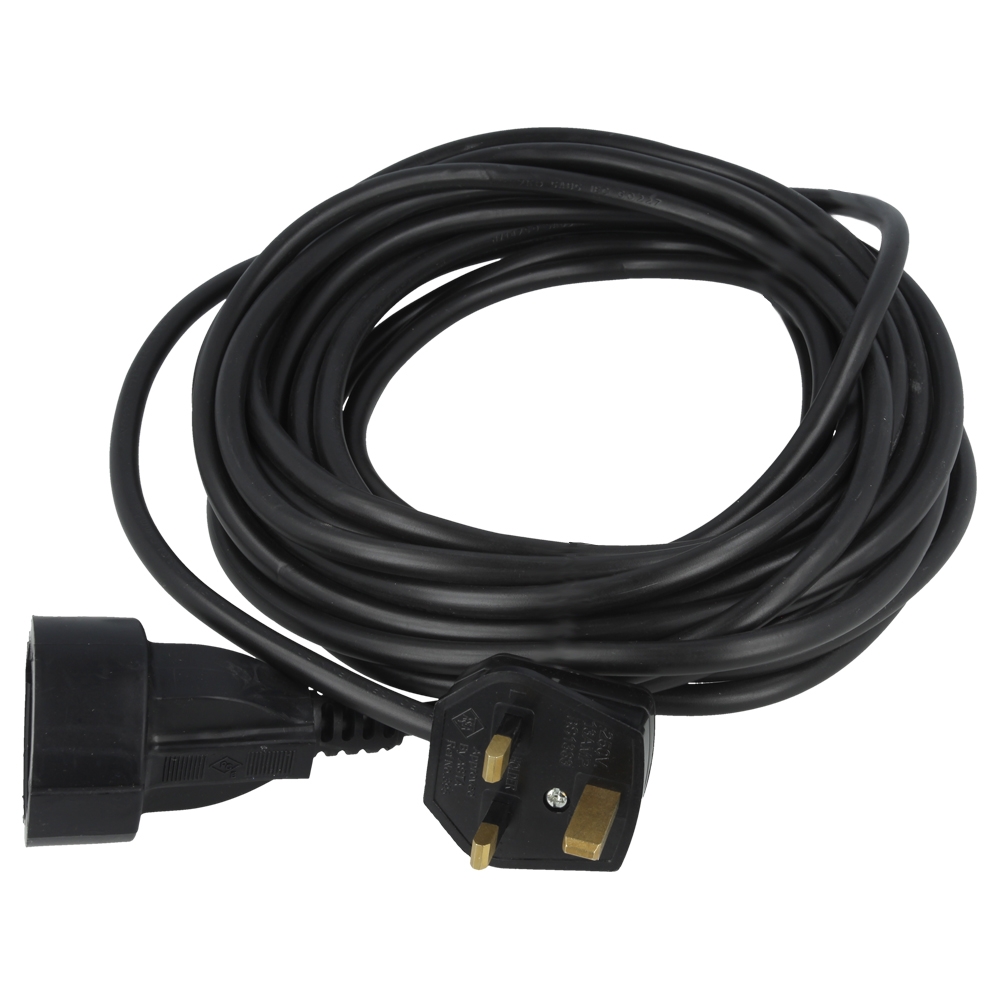

111	BE163.0.078 In stock	[111] - Plug & Cable (230V - 50Hz)	£69.06 £57.55
111	BE900/18100 Available to backorder	[111] - Cable Extension 240V Nvr	£109.16 £90.97
112	BE900/32300 Available to backorder	[112] - Kit Gearbox Deck Salvage	£6.02 £5.02
113	BE900/99931 Available to backorder	[113] - Plate G/Box Deck Support	£2.80 £2.33
114	BE9/10005 Available to backorder	[114] - Bolt	£0.60 £0.50
115	BE92/00002 Available to backorder	[115] - Oil 500Ml Bottle (10W 30)	£12.72 £10.60
116	BE900/36200 Available to backorder	[116] - Pre July 99 Honda Conversion	£750.00 £625.00
117	2731 In stock	[117] - Gearbox Pulley Kit - 60Hz 60 Hz - Usa Only	£18.24 £15.20
119	BE800/21320 Available to backorder	[119] - Decal Hot Parts Euro1	£5.04 £4.20
121	BE7/6034 Available to backorder	[121] - Screw	£0.56 £0.47
122	BE900/99934 Available to backorder	[122] - Plate Belt Guard	£6.42 £5.35

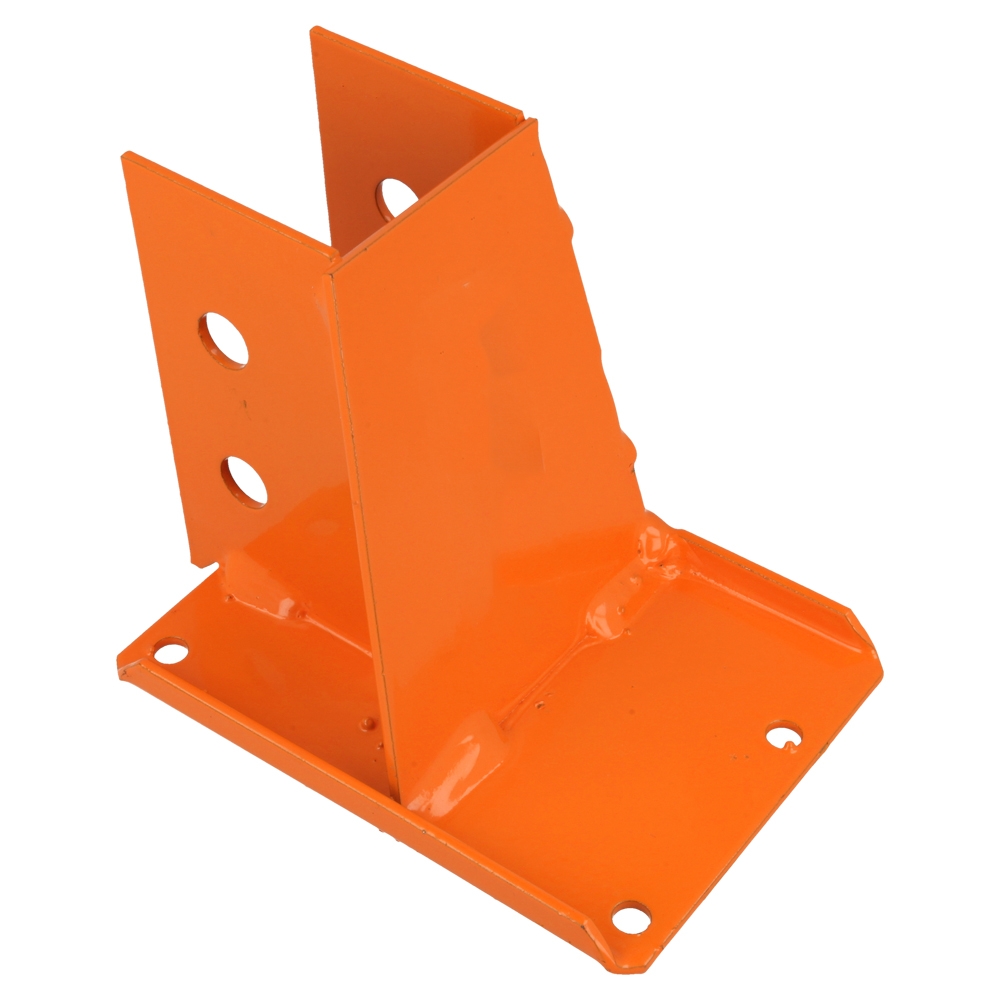

123	BE900/35300 Available to backorder	[123] - Engine Deck Wa (Honda Gxh50)	£22.46 £18.72

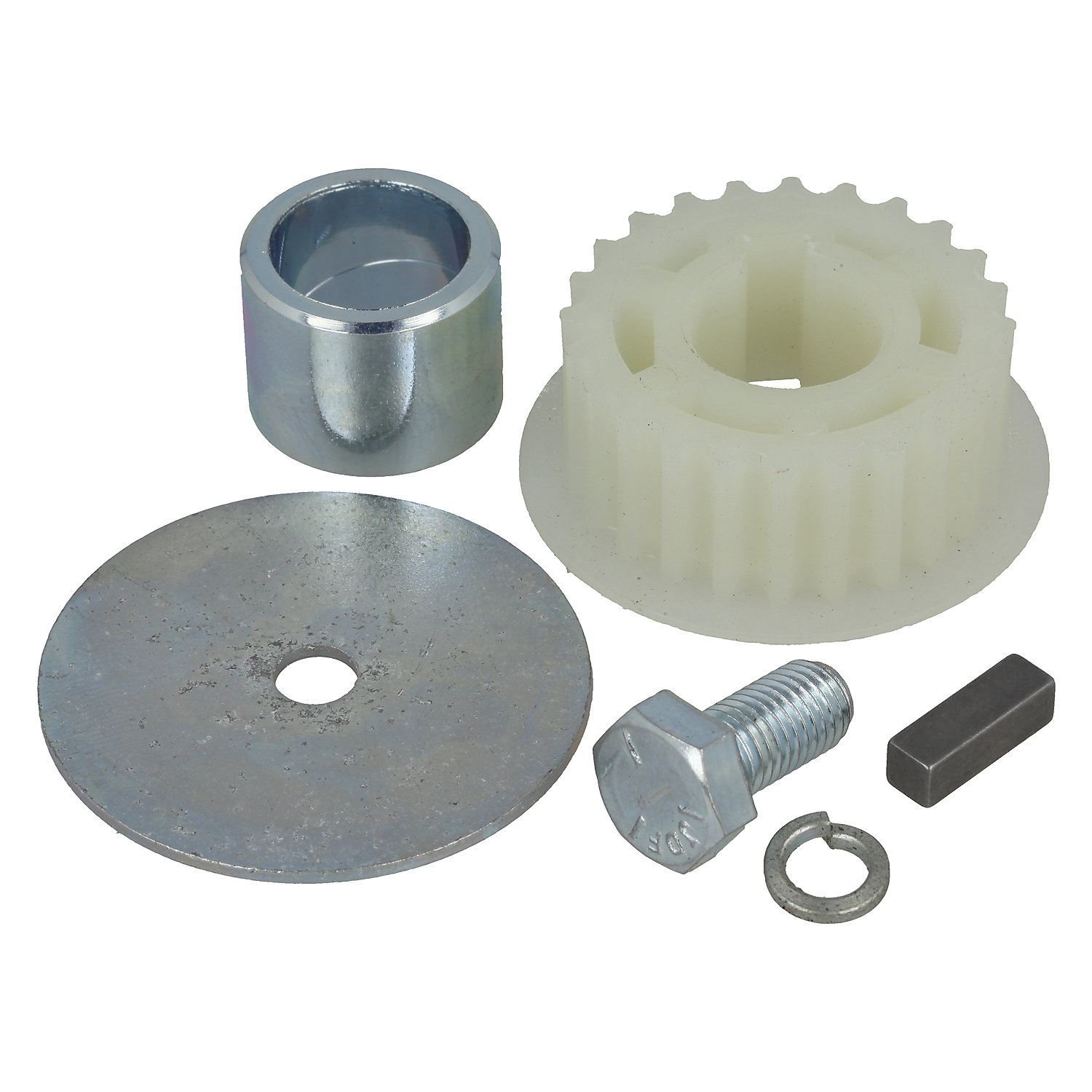

124	2935 In stock	[124] - Kit Honda Gxh50 Engine Pulley	£29.28 £24.40
