Belle Minimix 130 - Main Assembly (Up To May 2000)

Description

Belle Minimix 130 - Main Assembly (Up To May 2000) - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	BE7/8011 Available to backorder	[1] - Screw	£0.48 £0.40
2	BE4/8006 Available to backorder	[2] - Washer M8	£0.48 £0.40
3	BE901/99931 Available to backorder	[3] - Wheel Retainer	£2.50 £2.08
4	BE901/99930 Available to backorder	[4] - Spacer Wheel	£1.98 £1.65
5	BE3/7019 Available to backorder	[5] - Pipe Clip - Pc23 25mm Dia Blk	£1.88 £1.57
6	BE3/7020 Available to backorder	[6] - Push Clip - Ref 065 5737 Blk	£0.68 £0.57
7	BE7/8004 Available to backorder	[7] - Screw	£0.48 £0.40
8	BE4/8003 Available to backorder	[8] - Washer M8	£0.71 £0.59
9	BE9/8014 Available to backorder	[9] - Bolt	£0.48 £0.40
10	BE8/8008 Available to backorder	[10] - Nut	£0.48 £0.40
11	BE900/20500 Available to backorder	[11] - Spanner M8	£47.68 £39.73
16	BEXS35 In stock	[16] - Handle Grip	£1.96 £1.63
17	BE901/10100 Available to backorder	[17] - Handle Wa	£42.76 £35.63
22	BEXS05 Available to backorder	[22] - Maxi Wormshaft Circlip	£0.48 £0.40
23	BE53/0001 Available to backorder	[23] - Bearing 6205-Zz	£4.76 £3.97
24	BE901/10800 Available to backorder	[24] - Drive - Pinion W.A	£36.46 £30.38
25	BE53/0002 Available to backorder	[25] - Bearing 6202-2Z	£3.06 £2.55
26	BE3/0039 Available to backorder	[26] - Pin Spirol 6 x 25	£1.02 £0.85
27	BE3/4026 Available to backorder	[27] - Plug Stand Front-Ref199311 Blk	£0.48 £0.40
28	BE3/4025 Available to backorder	[28] - Plug Stand Top -Ref 199133 Blk	£1.80 £1.50
29	BE901/99904 Available to backorder	[29] - Wheel 8" Dia 0200 20/60mm Hub	£13.32 £11.10
30	BE901/13900 Available to backorder	[30] - Leg Support Pivot	£49.22 £41.02
31	BE901/99901 Available to backorder	[31] - Stand Leg	£17.32 £14.43
34	BE71.0.093 Available to backorder	[34] - Harness Front Door (Basic)	£285.84 £238.20

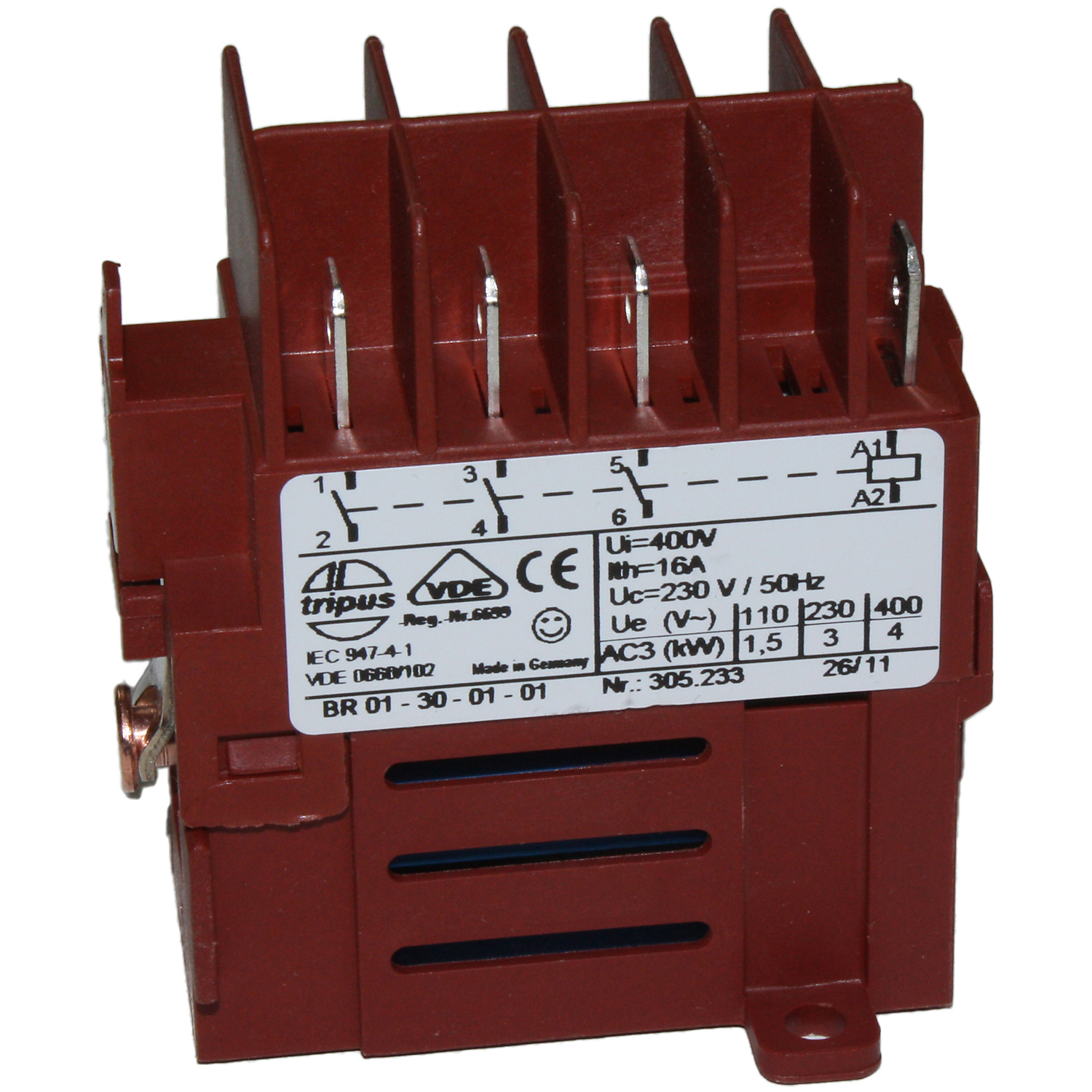

36	BE901/99921 In stock	[36] - Switch -230 Nvr	£53.90 £44.92
38	BE7/0008 Available to backorder	[38] - Screw 3.9 x 19 S/Tap Pozipan	£0.48 £0.40

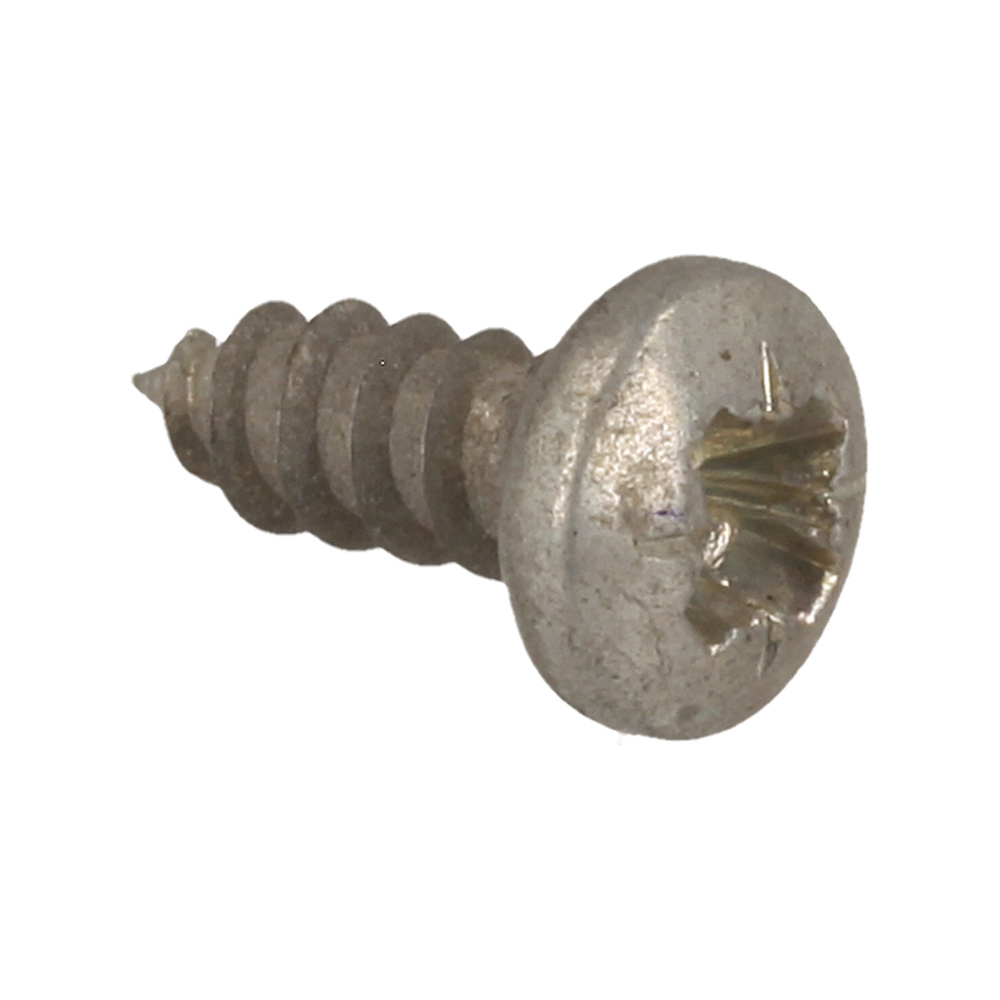

39	BE7/0009 Available to backorder	[39] - Screw 3.5 x 9.5 S/Tap Pozipan	£0.48 £0.40
40	BE901/99912 Available to backorder	[40] - Belt Snap 6Epj503	£6.00 £5.00
41	BE901/99908 Available to backorder	[41] - Pulley Large 0130	£3.88 £3.23
43	BE901/99929 Available to backorder	[43] - Switch Nvr 110V - 50Hz	£54.40 £45.33
44	BE901/99907 Available to backorder	[44] - Seal - Motor Cover	£2.58 £2.15
45	BE901/16100 Available to backorder	[45] - Kit Motor Replacement	£150.36 £125.30
46	BE901/99934 Available to backorder	[46] - Rubber - Drum Boss Protector	£2.96 £2.47
47	BE901/99910 Available to backorder	[47] - Bracket Motor Mounting	£5.16 £4.30
48	BE4/8002 Available to backorder	[48] - Washer M8	£0.48 £0.40
49	BE7/8009 Available to backorder	[49] - Screw	£0.48 £0.40
50	BE901/10400 Available to backorder	[50] - Frame - Base W.A	£152.64 £127.20
51	BE901/99916 Available to backorder	[51] - Shield Motor Cover Outer	£21.94 £18.28
52	BE901/99915 Available to backorder	[52] - Shield Motor Cover Inner	£4.24 £3.53
54	BE3/0038 Available to backorder	[54] - Rivet Steel 4.8 x 16 Now Use 3/0050	£0.48 £0.40
55	BE53/0003 Available to backorder	[55] - Bearing 6304-2Z	£5.12 £4.27

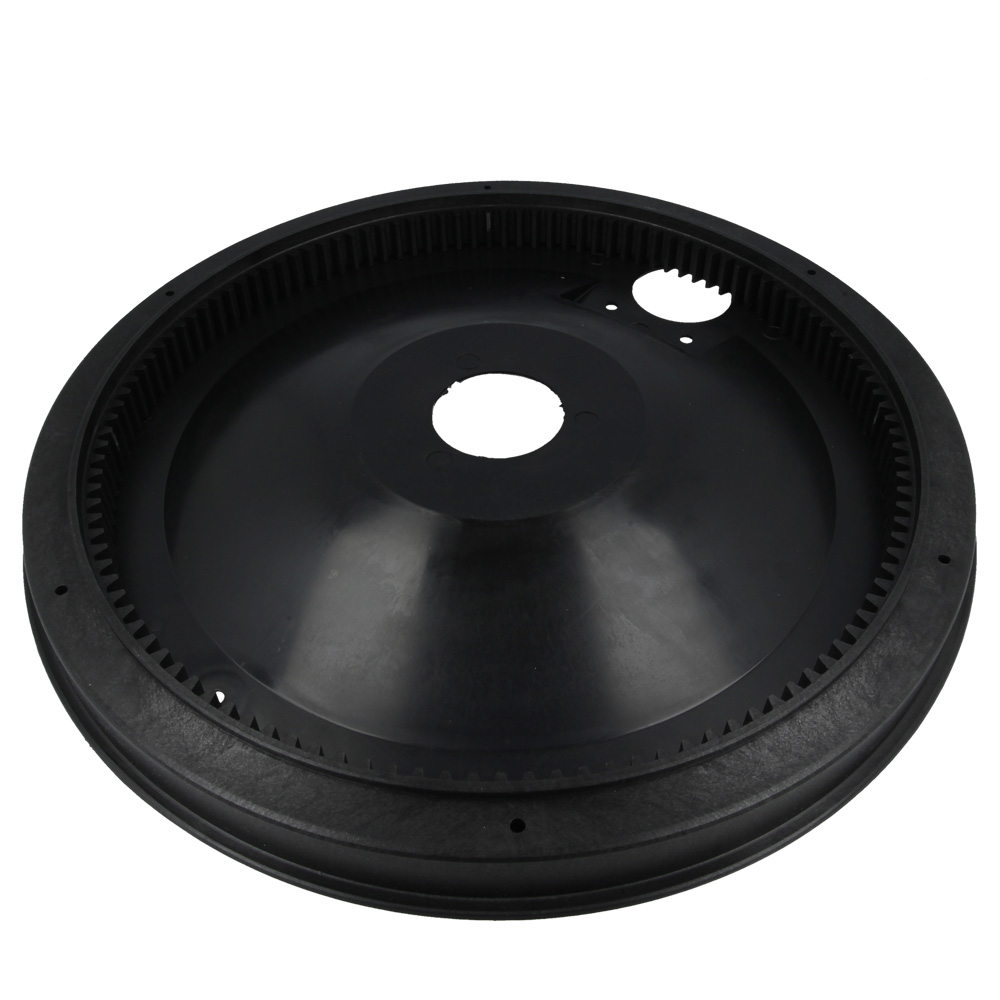

56	BE901/99956SP Available to backorder	[56] - Ring Gear & Cover Kit M130	£35.34 £29.45
57	BE901/11700 Available to backorder	[57] - Kit - Bag Mini 130 Parts Euro2	£23.22 £19.35
57	BE901/11500 Available to backorder	[57] - Kit - Bag Mini 130 Parts Euro1	£24.35 £20.29
58	BE901/11600 Available to backorder	[58] - Motor Cover Cee7 230V Euro Lead	£78.18 £65.15
59	BE901/12300 Available to backorder	[59] - Kit Decals Mini 130 Euro2	£4.24 £3.53
59	BE901/12200 Available to backorder	[59] - Kit Decals Mini 130 Euro1	£4.94 £4.12
60	BE901/99927 Available to backorder	[60] - Socket Euro (Cee7/230V/2P)	£19.82 £16.52
61	BE901/99919 Available to backorder	[61] - Gasket Euro Socket	£5.68 £4.73
62	BE901/99928 Available to backorder	[62] - Cap Euro Socket	£1.00 £0.83
