Belle Minimix 130 - Main Assembly Euro 1 (From May 2000)

Name: Belle Minimix 130 - Main Assembly Euro 1 (From May 2000)
SKU: Minimix130MainEuro1FromMay2000-group
Price: 0.17 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Belle Minimix 130 - Main Assembly Euro 1 (From May 2000)

Description

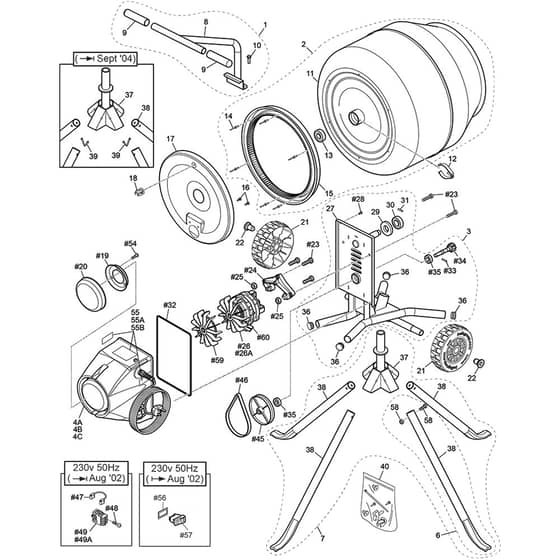

Belle Minimix 130 - Main Assembly Euro 1 (From May 2000) - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	BE901/14800 Available to backorder	[1] - Kit Handle G.A.	£29.28 £24.40
3	BE901/15000 Available to backorder	[3] - Kit Mainframe G.A.	£217.56 £181.30
4	BE901/11600 Available to backorder	[4] - Motor Cover Cee7 230V Up To Aug 2002 Euro Lead	£78.18 £65.15
4	BE901/14100 Available to backorder	[4] - Motor Cover Uk (230V 50Hz) Up To Aug 2002	£134.88 £112.40
4	BE901/13800 Available to backorder	[4] - Motor Cover (230V - 60Hz)	£180.14 £150.12
4	BE901/15400 Available to backorder	[4] - Motor Cover Uk 230V 50Hz Tp02 From Aug 2002	£72.52 £60.43
4	BE901/15500 Available to backorder	[4] - Motor Cover Cee7 230V50Hz Tp02 From Aug 2002 Euro Lead	£102.56 £85.47
5	BE901/15100 Available to backorder	[5] - Kit 60Hz Multi-Vee Pulley	£42.34 £35.28
6	BE901/14600 Available to backorder	[6] - Kit Stand Leg G.A.	£25.32 £21.10
7	BE901/14700 Available to backorder	[7] - Kit Stand G.A.	£148.82 £124.02
8	BE901/13700 Available to backorder	[8] - Handle W.A. (Mini130)	£21.86 £18.22
9	BE900/99906 In stock	[9] - Handle Grip	£0.86 £0.72
10	BE74/0002 Available to backorder	[10] - Knob M6x15 Male Wing Up To Sept 2001	£1.66 £1.38
10	BE7/8046 Available to backorder	[10] - Screw From Sept 2001	£1.64 £1.37
11	BE901/14900 Available to backorder	[11] - Kit Drum G.A.	£228.00 £190.00
12	BE3/1009 Available to backorder	[12] - Clip Drum Assy	£6.34 £5.28
13	BE53/0003 Available to backorder	[13] - Bearing 6304-2Z	£5.12 £4.27
14	BE3/0038 Available to backorder	[14] - Rivet Steel 4.8 x 16 Now Use 3/0050	£0.48 £0.40
14	BE3/0050 Available to backorder	[14] - Rivet Pop ( 4.8 x 10 Lg )	£0.48 £0.40
16	BE3/7020 Available to backorder	[16] - Push Clip - Ref 065 5737 Blk	£0.68 £0.57
17	BE901/99956SP Available to backorder	[17] - Ring Gear & Cover Kit M130	£35.34 £29.45
18	BE3/7019 Available to backorder	[18] - Pipe Clip - Pc23 25mm Dia Blk	£1.88 £1.57
19	BE901/99915 Available to backorder	[19] - Shield Motor Cover Inner	£4.24 £3.53
20	BE901/99916 Available to backorder	[20] - Shield Motor Cover Outer	£21.94 £18.28
21	BE60/0433 Available to backorder	[21] - Injection Moulded Wheel	£5.72 £4.77
22	BE900/11400 In stock	[22] - Retainer Wheel	£1.40 £1.17
23	BE7/8009 Available to backorder	[23] - Screw	£0.48 £0.40
24	BE901/99910 Available to backorder	[24] - Bracket Motor Mounting	£5.16 £4.30
25	BE8/8008 Available to backorder	[25] - Nut	£0.48 £0.40
26	BE901/99958 Available to backorder	[26] - Motor Mini 130 230V 50Hz Tp02 From Aug 2002	£112.34 £93.62
26	BE901/16100 Available to backorder	[26] - Motor Mini 130 Up To Aug 2002 Now Use 901/16100	£150.36 £125.30
27	BE901/13500 Available to backorder	[27] - Frame Mini 130 W.A. Now Use 901/15000	£127.78 £106.48
28	BE7/5019 Available to backorder	[28] - Screw	£0.20 £0.17
29	BE901/99934 Available to backorder	[29] - Rubber - Drum Boss Protector	£2.96 £2.47
30	BE53/0001 Available to backorder	[30] - Bearing 6205-Zz	£4.76 £3.97
31	BE3/0007 Available to backorder	[31] - Pins Roll 1/4" x 1-12"	£1.22 £1.02
32	BE901/99907 Available to backorder	[32] - Seal - Motor Cover	£2.58 £2.15
33	BE3/0039 Available to backorder	[33] - Pin Spirol 6 x 25	£1.02 £0.85
34	BE901/10800 Available to backorder	[34] - Drive - Pinion W.A	£36.46 £30.38
35	BE53/0002 Available to backorder	[35] - Bearing 6202-2Z	£3.06 £2.55
36	BE3/4026 Available to backorder	[36] - Plug Stand Front-Ref199311 Blk	£0.48 £0.40
37	BE901/13900 Available to backorder	[37] - Leg Support Pivot	£49.22 £41.02
38	BE929/99901 Available to backorder	[38] - Tube Mini 110 Leg	£11.60 £9.67
40	BE92/00000 Available to backorder	[40] - Kit Bag (Mc 130 Parts)	£15.92 £13.27
45	BE901/99908 Available to backorder	[45] - Pulley Large 0130	£3.88 £3.23
46	BE901/99912 Available to backorder	[46] - Belt Snap 6Epj503 230V - 50Hz	£6.00 £5.00
48	BE7/0009 Available to backorder	[48] - Screw 3.5 x 9.5 S/Tap Pozipan	£0.48 £0.40
49	BE901/99921 In stock	[49] - Switch -230 Nvr 230V - 50Hz	£53.90 £44.92
50	BE901/99928 Available to backorder	[50] - Cap Euro Socket	£1.00 £0.83
51	BE901/99919 Available to backorder	[51] - Gasket Euro Socket	£5.68 £4.73
52	BE901/99927 Available to backorder	[52] - Socket Euro (Cee7/230V/2P)	£19.82 £16.52
54	BE7/0008 Available to backorder	[54] - Screw 3.9 x 19 S/Tap Pozipan	£0.48 £0.40
55	BE800/22100 Available to backorder	[55] - Kit Decals Mini 130 (Euro1) 230V - 50Hz	£11.20 £9.33
55	BE800/22400 Available to backorder	[55] - Kit Decals Mini 130 (Doyles)	£11.40 £9.50
55	BE800/22600 Available to backorder	[55] - Kit Decals Mini 130 Euro1 Uk 230V - 50Hz	£6.28 £5.23
56	BE70/0195 Available to backorder	[56] - Gasket Compact Switch Tpo2 Up To Aug 2002	£14.58 £12.15
57	BE70/0194 Available to backorder	[57] - Switch Compact 230V-50Hz Tpo2 From Aug 2002	£23.34 £19.45
58	BE92/01300 Available to backorder	[58] - Spares Kit Bag (Mc130 Parts)	£6.78 £5.65

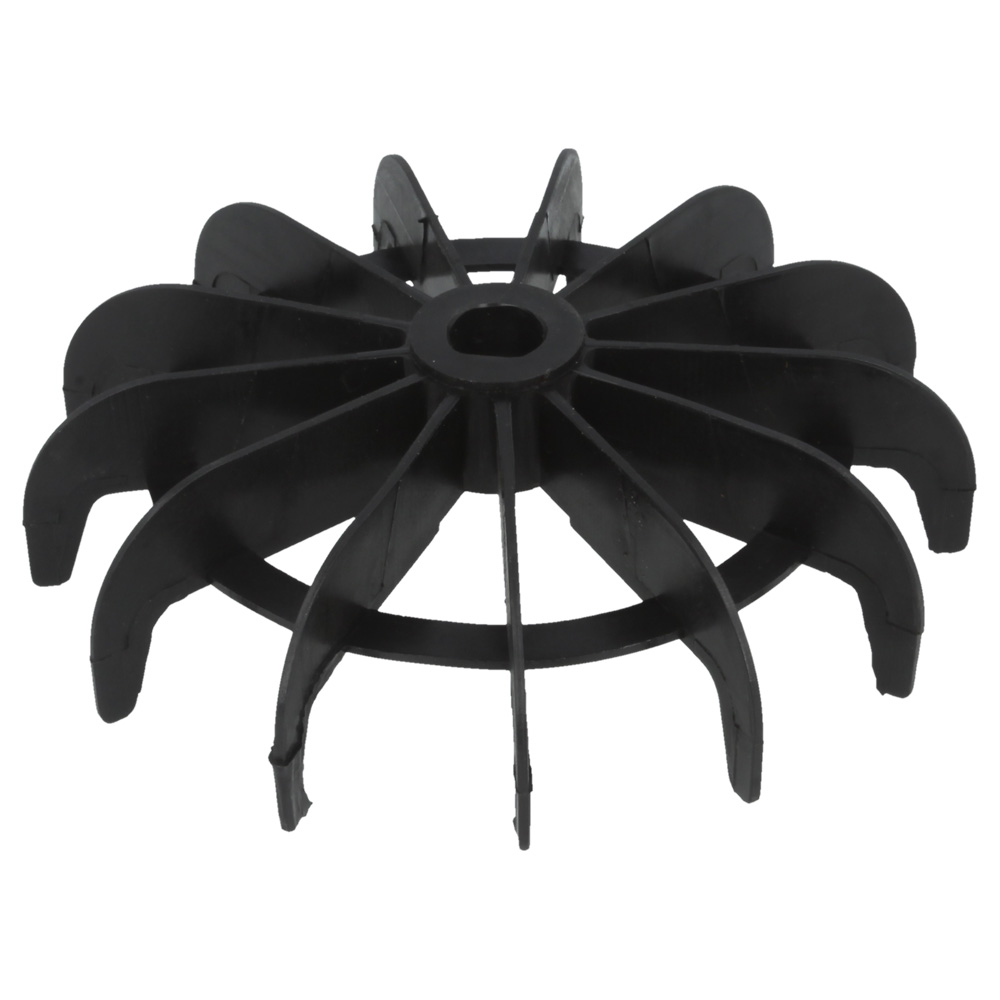

59	BE901/99964 Available to backorder	[59] - Fan Spares Mini 130 Motors	£2.56 £2.13

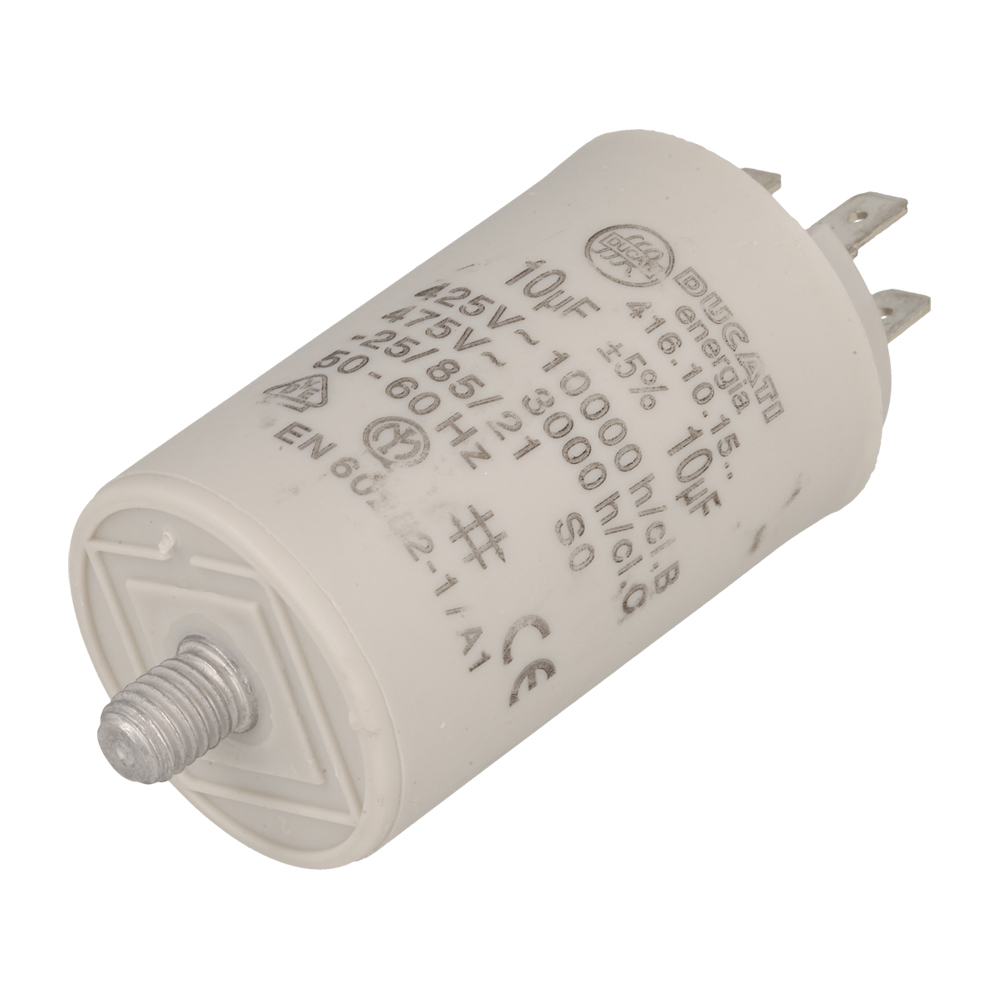

60	BE70/0137 Available to backorder	[60] - Capacitor For 230V 450W Motor 230V - 10Μf	£31.92 £26.60
