Belle Minimix 110 - Main Assembly

Name: Belle Minimix 110 - Main Assembly
SKU: Minimix110Main-group
Price: 0.17 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

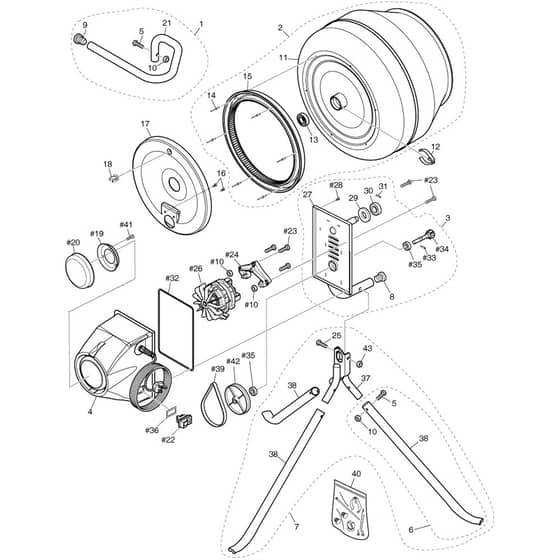

Belle Minimix 110 - Main Assembly - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	BE929/10300 Available to backorder	[1] - Kit Handle Assy Mc110	£27.38 £22.82
2	BE929/10400 Available to backorder	[2] - Kit Drum Assy Mc110	£207.00 £172.50
3	BE929/10500 Available to backorder	[3] - Kit Frame Assy Mc110	£152.40 £127.00
4	BE901/15400 Available to backorder	[4] - Motor Cover Uk 230V 50Hz Tp02	£72.52 £60.43
5	BE9/8017 Available to backorder	[5] - Bolt	£0.48 £0.40
6	BE929/10600 Available to backorder	[6] - Kit Leg Assy Mc110	£11.12 £9.27
7	BE929/10700 Available to backorder	[7] - Kit Stand Assy Mc110	£101.96 £84.97
8	BE3/4026 Available to backorder	[8] - Plug Stand Front-Ref199311 Blk	£0.48 £0.40
9	BE3/4035 Available to backorder	[9] - Plug Plastic 27 Od	£12.62 £10.52
10	BE8/8008 Available to backorder	[10] - Nut	£0.48 £0.40
11	BE929/10100 Available to backorder	[11] - W.A. Mini 110 Drum	£260.16 £216.80
12	BE3/1009 Available to backorder	[12] - Clip Drum Assy	£6.34 £5.28
13	BE53/0003 Available to backorder	[13] - Bearing 6304-2Z	£5.12 £4.27
14	BE3/0050 Available to backorder	[14] - Rivet Pop ( 4.8 x 10 Lg )	£0.48 £0.40
16	BE3/7020 Available to backorder	[16] - Push Clip - Ref 065 5737 Blk	£0.68 £0.57
17	BE901/99957SP Available to backorder	[17] - Ring Gear & Cover Kit M110	£34.32 £28.60
18	BE3/7019 Available to backorder	[18] - Pipe Clip - Pc23 25mm Dia Blk	£1.88 £1.57
19	BE901/99915 Available to backorder	[19] - Shield Motor Cover Inner	£4.24 £3.53
20	BE901/99916 Available to backorder	[20] - Shield Motor Cover Outer	£21.94 £18.28
21	BE929/99902 Available to backorder	[21] - Tube Mini 110 Handle	£14.28 £11.90
22	BE70/0194 Available to backorder	[22] - Switch Compact 230V-50Hz Tpo2	£23.34 £19.45
23	BE7/8009 Available to backorder	[23] - Screw	£0.48 £0.40
24	BE901/99910 Available to backorder	[24] - Bracket Motor Mounting	£5.16 £4.30
25	BE9/12007 Available to backorder	[25] - Bolt	£1.58 £1.32
26	BE901/99958 Available to backorder	[26] - Motor Mini 130 230V 50Hz Tp02	£112.34 £93.62
27	BE929/10000 Available to backorder	[27] - W.A.Mini 110 Frame	£102.04 £85.03
28	BE7/5019 Available to backorder	[28] - Screw	£0.20 £0.17
29	BE901/99934 Available to backorder	[29] - Rubber - Drum Boss Protector	£2.96 £2.47
30	BE53/0001 Available to backorder	[30] - Bearing 6205-Zz	£4.76 £3.97
31	BE3/0007 Available to backorder	[31] - Pins Roll 1/4" x 1-12"	£1.22 £1.02
32	BE901/99907 Available to backorder	[32] - Seal - Motor Cover	£2.58 £2.15
33	BE3/0039 Available to backorder	[33] - Pin Spirol 6 x 25	£1.02 £0.85
34	BE901/10800 Available to backorder	[34] - Drive - Pinion W.A	£36.46 £30.38
35	BE53/0002 Available to backorder	[35] - Bearing 6202-2Z	£3.06 £2.55
36	BE70/0195 Available to backorder	[36] - Gasket Compact Switch Tpo2	£14.58 £12.15
37	BE929/10200 Available to backorder	[37] - W.A. Mini 110 Stand Top	£65.60 £54.67
38	BE929/99901 Available to backorder	[38] - Tube Mini 110 Leg	£11.60 £9.67
39	BE901/99912 Available to backorder	[39] - Belt Snap 6Epj503	£6.00 £5.00
40	BE92/01200 Available to backorder	[40] - Kit Bag (Mc 110 Part)	£13.64 £11.37
41	BE7/0008 Available to backorder	[41] - Screw 3.9 x 19 S/Tap Pozipan	£0.48 £0.40
42	BE901/99908 Available to backorder	[42] - Pulley Large 0130	£3.88 £3.23
43	BE8/12006 Available to backorder	[43] - Nut	£0.48 £0.40
