Belle Megavib Poker - 25mm

Part No. MegavibPoker25mm-group
Belle Megavib Poker - 25mm
Belle Megavib Poker - 25mm

Description

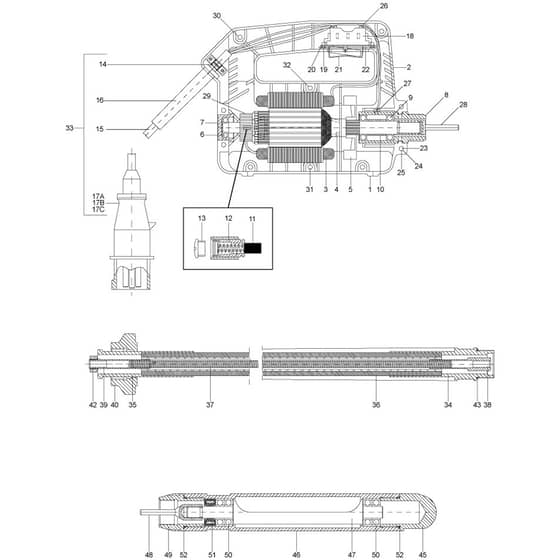

Belle Megavib Poker - 25mm - Parts Diagram

Ref. Img. Part No. Details
  1 [1] - Motor Housing
[1] - Motor Housing
BE44.2.300
Available to backorder
[1] - Motor Housing
£117.00 £97.50

  2 [2] - Deflector
[2] - Deflector
BE44.2.301
Available to backorder
[2] - Deflector
£10.55 £8.79

  3 [3] - Stator (115V)
[3] - Stator (115V)
BE44.2.332
Available to backorder
[3] - Stator (115V)
£143.52 £119.60

  5 [5] - Motor Ass. 230V Megavib
[5] - Motor Ass. 230V Megavib
BE44.3.247
Available to backorder
[5] - Motor Ass. 230V Megavib
£289.56 £241.30

  5 [5] - Rotor (115V)
[5] - Rotor (115V)
BE44.2.333
Available to backorder
[5] - Rotor (115V)
£188.40 £157.00

  6 [6] - Bearing
[6] - Bearing
BE44.2.305
Available to backorder
[6] - Bearing
£15.43 £12.86

  7 [7] - Bearing Housing Rear
[7] - Bearing Housing Rear
BE44.2.306
Available to backorder
[7] - Bearing Housing Rear
£35.65 £29.71

  8 [8] - Bearing Housing
[8] - Bearing Housing
BE44.2.307
Available to backorder
[8] - Bearing Housing
£33.19 £27.66

  9 [9] - Bearing
[9] - Bearing
BE44.2.308
Available to backorder
[9] - Bearing
£15.43 £12.86

  10 [10] - Spacer
[10] - Spacer
BE44.2.309
Available to backorder
[10] - Spacer
£10.92 £9.10

  11 [11] - Brush
[11] - Brush
BE44.2.327
Available to backorder
[11] - Brush
£20.69 £17.24

  12 [12] - Brush Holders
[12] - Brush Holders
BE44.2.328
Available to backorder
[12] - Brush Holders
£21.60 £18.00

  13 [13] - Brush Retainers
[13] - Brush Retainers
BE44.2.329
Available to backorder
[13] - Brush Retainers
£7.88 £6.57

  14 [14] - Cord Holder
[14] - Cord Holder
BE44.2.311
Available to backorder
[14] - Cord Holder
£8.20 £6.83

  15 [15] - Motor Cord
[15] - Motor Cord
BE44.2.312
Available to backorder
[15] - Motor Cord
£9.02 £7.52

  17 [17b] - Cee Form Plug (230V)
[17b] - Cee Form Plug (230V)
BE13.9.074
Available to backorder
[17b] - Cee Form Plug (230V)
£12.62 £10.52

  17 [17c] - Cee Form Plug (115V)
[17c] - Cee Form Plug (115V)
BE13.9.076
Available to backorder
[17c] - Cee Form Plug (115V)
£13.16 £10.97

  18 [18] - Switch (230V)
[18] - Switch (230V)
BE44.2.315
Available to backorder
[18] - Switch (230V)
£58.68 £48.90

  18 [18] - Cord Protector
[18] - Cord Protector
BE44.2.313
Available to backorder
[18] - Cord Protector
£13.16 £10.97

  21 [21] - Switch Cover
[21] - Switch Cover
BE44.2.330
Available to backorder
[21] - Switch Cover
£2.11 £1.76

  22 [22] - Switch Support
[22] - Switch Support
BE44.2.331
Available to backorder
[22] - Switch Support
£2.05 £1.71

  23 [23] - (M5x25) Housing Bolt
[23] - (M5x25) Housing Bolt
BE44.2.316
Available to backorder
[23] - (M5x25) Housing Bolt
£2.94 £2.45

  24 [24] - Washer M5
[24] - Washer M5
BE44.2.317
Available to backorder
[24] - Washer M5
£5.34 £4.45

  25 [25] - (M5) Housing Nut
[25] - (M5) Housing Nut
BE44.2.318
Available to backorder
[25] - (M5) Housing Nut
£2.83 £2.36

  26 [26] - Wire Ends
[26] - Wire Ends
BE44.2.319
Available to backorder
[26] - Wire Ends
£7.57 £6.31

  27 [27] - Grounding Nuts
[27] - Grounding Nuts
BE44.2.320
Available to backorder
[27] - Grounding Nuts
£3.94 £3.28

  28 [28] - Shaft Connection
[28] - Shaft Connection
BE44.2.321
Available to backorder
[28] - Shaft Connection
£20.23 £16.86

  29 [29] - Cap
[29] - Cap
BE44.2.322
Available to backorder
[29] - Cap
£2.94 £2.45

  30 [30] - (M5x40) Housing Bolt
[30] - (M5x40) Housing Bolt
BE44.2.324
Available to backorder
[30] - (M5x40) Housing Bolt
£0.41 £0.34

  31 [31] - (M5x100) Housing Bolt
[31] - (M5x100) Housing Bolt
BE44.2.326
Available to backorder
[31] - (M5x100) Housing Bolt
£4.20 £3.50

  32 [32] - (M5x80) Housing Bolt
[32] - (M5x80) Housing Bolt
BE44.2.325
Available to backorder
[32] - (M5x80) Housing Bolt
£3.19 £2.66

  33 [33] - Schuk Plug (230V)
[33] - Schuk Plug (230V)
BE13.9.073
Available to backorder
[33] - Schuk Plug (230V)
£35.51 £29.59

  34 [34] - Poker Hose Joint (25mm P/Head)
[34] - Poker Hose Joint (25mm P/Head)
BE44.2.447
Available to backorder
[34] - Poker Hose Joint (25mm P/Head)
£27.52 £22.93

  35 [35] - Motor Hose Joint (3+4M Shaft)
[35] - Motor Hose Joint (3+4M Shaft)
BE44.2.430
Available to backorder
[35] - Motor Hose Joint (3+4M Shaft)
£19.45 £16.21

  36 [36] - Flexible Hose (2M Shaft)
[36] - Flexible Hose (2M Shaft)
BE44.2.442
Available to backorder
[36] - Flexible Hose (2M Shaft)
£157.08 £130.90

  36 [36] - Flexible Hose (4M Shaft)
[36] - Flexible Hose (4M Shaft)
BE44.2.445
Available to backorder
[36] - Flexible Hose (4M Shaft)
£186.72 £155.60

  36 [36] - Flexible Hose (3M Shaft)
[36] - Flexible Hose (3M Shaft)
BE44.2.431
Available to backorder
[36] - Flexible Hose (3M Shaft)
£119.40 £99.50

  37 [37] - Megavib 4M Flexshaft 25mm Head
[37] - Megavib 4M Flexshaft 25mm Head
BE44.3.238
Available to backorder
[37] - Megavib 4M Flexshaft 25mm Head
£345.96 £288.30

  37 [37] - Megavib 3M Flexshaft 25mm Head
[37] - Megavib 3M Flexshaft 25mm Head
BE44.3.237
Available to backorder
[37] - Megavib 3M Flexshaft 25mm Head
£537.98 £448.32

  37 [37] - Megavib 2M Flexshaft 25mm Head
[37] - Megavib 2M Flexshaft 25mm Head
BE44.3.236
Available to backorder
[37] - Megavib 2M Flexshaft 25mm Head
£315.96 £263.30

  38 [38] - Poker Shaft Joint
[38] - Poker Shaft Joint
BE44.2.433
Available to backorder
[38] - Poker Shaft Joint
£28.84 £24.03

  39 [39] - Motor Shaft Joint
[39] - Motor Shaft Joint
BE44.2.434
Available to backorder
[39] - Motor Shaft Joint
£30.26 £25.22

  40 [40] - Hose Nut(25/38/48/58mm P/Head)
[40] - Hose Nut(25/38/48/58mm P/Head)
BE44.2.435
Available to backorder
[40] - Hose Nut(25/38/48/58mm P/Head)
£5.92 £4.93

  43 [43] - O Ring (25mm P/Head)
[43] - O Ring (25mm P/Head)
BE44.2.439
Available to backorder
[43] - O Ring (25mm P/Head)
£1.22 £1.02

  45 [45] - Cap (25mm P/Head)
[45] - Cap (25mm P/Head)
BE44.2.400
Available to backorder
[45] - Cap (25mm P/Head)
£23.59 £19.66

  46 [46] - Housing (25mm P/Head)
[46] - Housing (25mm P/Head)
BE44.2.404
Available to backorder
[46] - Housing (25mm P/Head)
£35.15 £29.29

  47 [47] - Eccentric (25mm P/Head)
[47] - Eccentric (25mm P/Head)
BE44.2.408
Available to backorder
[47] - Eccentric (25mm P/Head)
£72.36 £60.30

  48 [48] - Hex Driver (25/38mm P/Head)
[48] - Hex Driver (25/38mm P/Head)
BE44.2.412
Available to backorder
[48] - Hex Driver (25/38mm P/Head)
£23.03 £19.19

  49 [49] - End Cap (25/38mm P/Head)
[49] - End Cap (25/38mm P/Head)
BE44.2.414
Available to backorder
[49] - End Cap (25/38mm P/Head)
£21.34 £17.78

  50 [50] - Bearing (25mm P/Head)
[50] - Bearing (25mm P/Head)
BE44.2.417
Available to backorder
[50] - Bearing (25mm P/Head)
£13.24 £11.03

  51 [51] - Oil Seal (25mm P/Head)
[51] - Oil Seal (25mm P/Head)
BE44.2.421
Available to backorder
[51] - Oil Seal (25mm P/Head)
£14.54 £12.12

  52 [52] - O Ring (25mm P/Head)
[52] - O Ring (25mm P/Head)
BE44.2.425
Available to backorder
[52] - O Ring (25mm P/Head)
£2.11 £1.76


Description

Belle Megavib Poker - 25mm - Parts Diagram
