Belle MBX 08-120E+ - Pump Assembly

Part No. MBX08120EPump-group
Belle MBX 08-120E+ - Pump Assembly
Belle MBX 08-120E+ - Pump Assembly

Description

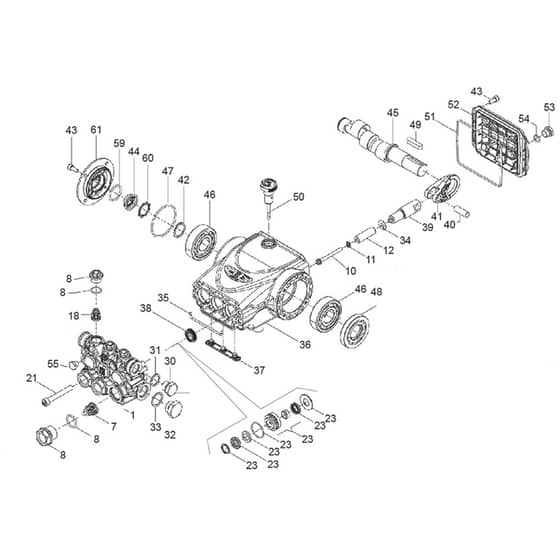

Belle MBX 08-120E+ - Pump Assembly - Parts Diagram

Ref. Img. Part No. Details
  7 [7] - Suction Valve Assy
[7] - Suction Valve Assy
BE36.7115.01
Available to backorder
[7] - Suction Valve Assy
£19.06 £15.88

  8 [8] - Seals And Plugs - Kit
[8] - Seals And Plugs - Kit
BEE2B1713 KIT 270
Available to backorder
[8] - Seals And Plugs - Kit
£288.84 £240.70

  10 [10] - Screw M5 x 55
[10] - Screw M5 x 55
BE99.1690.00
Available to backorder
[10] - Screw M5 x 55
£39.94 £33.28

  11 [11] - Washer M5
[11] - Washer M5
BE96.6905.00
Available to backorder
[11] - Washer M5
£25.40 £21.17

  18 [18] - Delivery Valve Assy
[18] - Delivery Valve Assy
BE36.7193.01
Available to backorder
[18] - Delivery Valve Assy
£17.94 £14.95

  21 [21] - Bolt M8 x 60 Uni 5931
[21] - Bolt M8 x 60 Uni 5931
BE99.3175.00
Available to backorder
[21] - Bolt M8 x 60 Uni 5931
£14.54 £12.12

  30 [30] - Blanking Plug 3/8
[30] - Blanking Plug 3/8
BE98.2100.00
Available to backorder
[30] - Blanking Plug 3/8" x 13
£41.03 £34.19

  31 [31] - Seal Washer Dia. 17.5 x 23 x 1
[31] - Seal Washer Dia. 17.5 x 23 x 1
BE96.7380.00
Available to backorder
[31] - Seal Washer Dia. 17.5 x 23 x 1
£3.62 £3.02

  32 [32] - Blanking Plug 1/2
[32] - Blanking Plug 1/2
BE98.2176.00
Available to backorder
[32] - Blanking Plug 1/2" x 10
£41.96 £34.97

  33 [33] - Seal Washer Dia. 21.5 x 27 x 1
[33] - Seal Washer Dia. 21.5 x 27 x 1
BE96.7514.00
Available to backorder
[33] - Seal Washer Dia. 21.5 x 27 x 1
£5.81 £4.84

  34 [34] - Seal Washer Dia. 7.5 x 23 x 0.
[34] - Seal Washer Dia. 7.5 x 23 x 0.
BE96.6990.00
Available to backorder
[34] - Seal Washer Dia. 7.5 x 23 x 0.
£5.81 £4.84

  35 [35] - Seal / Gasket 3 x 94
[35] - Seal / Gasket 3 x 94
BE58.2105.82
Available to backorder
[35] - Seal / Gasket 3 x 94
£17.71 £14.76

  36 [36] - Pump Housing
[36] - Pump Housing
BE58.0100.22
Available to backorder
[36] - Pump Housing
£699.60 £583.00

  37 [37] - Protection Plate
[37] - Protection Plate
BE58.2104.51
Available to backorder
[37] - Protection Plate
£11.42 £9.52

  38 [38] - Rad Ring 15 x 24 x 5/7
[38] - Rad Ring 15 x 24 x 5/7
BEE2B1713 KIT 271
Available to backorder
[38] - Rad Ring 15 x 24 x 5/7
£98.64 £82.20

  39 [39] - Guide Piston Dia. 18mm
[39] - Guide Piston Dia. 18mm
BE58.0500.66
Available to backorder
[39] - Guide Piston Dia. 18mm
£134.88 £112.40

  40 [40] - Dowel Pin 10 x 29.5
[40] - Dowel Pin 10 x 29.5
BE97.7340.00
Available to backorder
[40] - Dowel Pin 10 x 29.5
£35.89 £29.91

  41 [41] - Rod
[41] - Rod
BE58.0300.22
Available to backorder
[41] - Rod
£124.32 £103.60

  43 [43] - Screw M6 x 14 Uni 5931
[43] - Screw M6 x 14 Uni 5931
BE99.1837.00
Available to backorder
[43] - Screw M6 x 14 Uni 5931
£3.86 £3.22

  46 [46] - Ball Bearing 6305
[46] - Ball Bearing 6305
BE91.8331.00
Available to backorder
[46] - Ball Bearing 6305
£185.16 £154.30

  47 [47] - O Ring Dia. 56.82 x 2.62 (3225
[47] - O Ring Dia. 56.82 x 2.62 (3225
BE90.3898.00
Available to backorder
[47] - O Ring Dia. 56.82 x 2.62 (3225
£5.81 £4.84

  48 [48] - Rad Ring Dia. 25 x 62 x 10
[48] - Rad Ring Dia. 25 x 62 x 10
BE90.1641.00
Available to backorder
[48] - Rad Ring Dia. 25 x 62 x 10
£55.61 £46.34

  55 [55] - Plug G 1/8
[55] - Plug G 1/8
BE98.1966.00
Available to backorder
[55] - Plug G 1/8" x 8
£18.41 £15.34


Description

Belle MBX 08-120E+ - Pump Assembly - Parts Diagram
