Belle Maxi 140 - Main Assembly

Name: Belle Maxi 140 - Main Assembly
SKU: Maxi140Main-group
Price: 0.17 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Belle Maxi 140 - Main Assembly - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
0	BE902/10900 Available to backorder	[-] - Decal Running Instr Maxi 140 Now Use 800/99869	£2.22 £1.85
0	BE800/99912 Available to backorder	[-] - Decal Safety Strip (Universal)	£3.24 £2.70
0	BE800/99809 Available to backorder	[-] - Danger Zone Decal Universal	£0.48 £0.40
1	BEXS01 Available to backorder	[1] - Maxi Oil Filler Bung	£5.04 £4.20
2	BE9/8012 Available to backorder	[2] - Bolt	£0.48 £0.40
3	BE902/13702 Available to backorder	[3] - Gearbox Cover ( Machined )	£66.76 £55.63
4	BEXS27 Available to backorder	[4] - Maxi Gasket	£3.10 £2.58

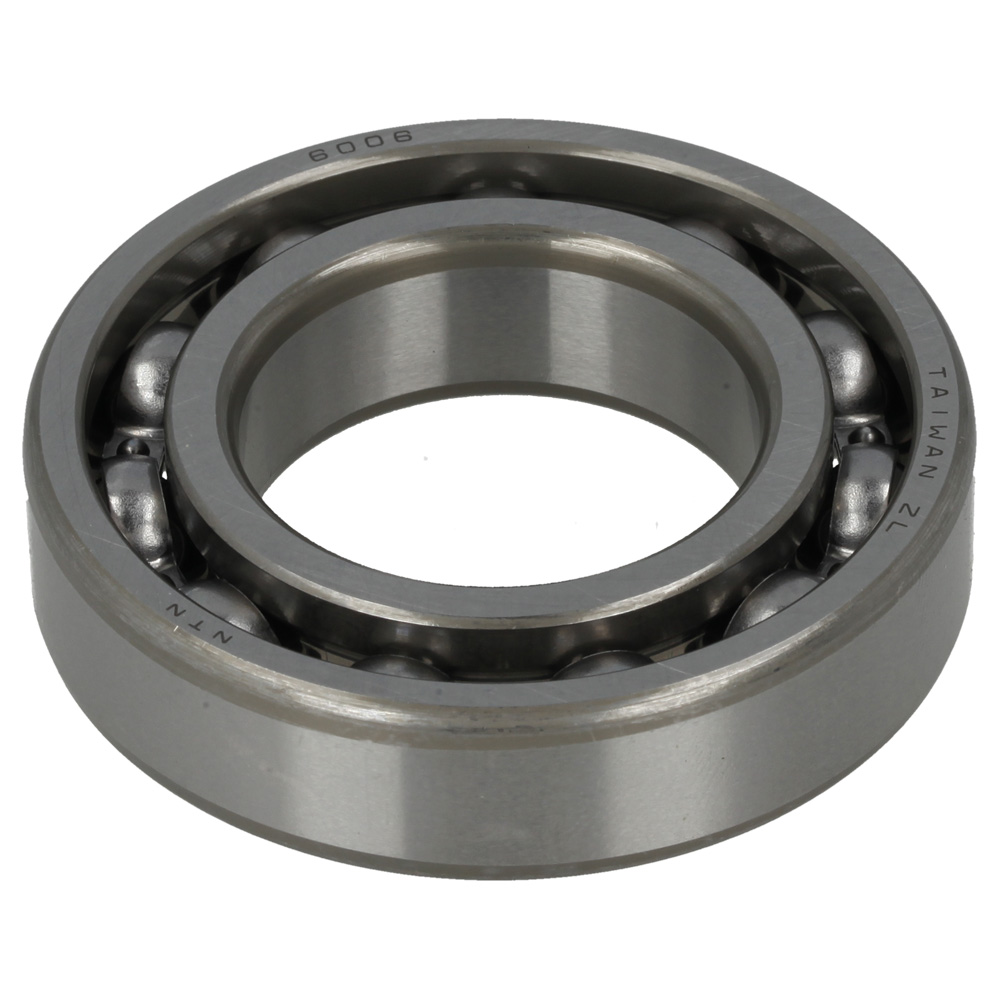

5	BECMS10 Available to backorder	[5] - Ball Race 6006	£5.88 £4.90
6	BEXS26 Available to backorder	[6B] - Maxi Wormshaft	£57.80 £48.17
6	BEXS03 Available to backorder	[6A] - Maxi Mainshaft Finished	£144.62 £120.52
6	BEXS40 Available to backorder	[6] - Maxi Worm + Drum Shaft Matched	£186.00 £155.00

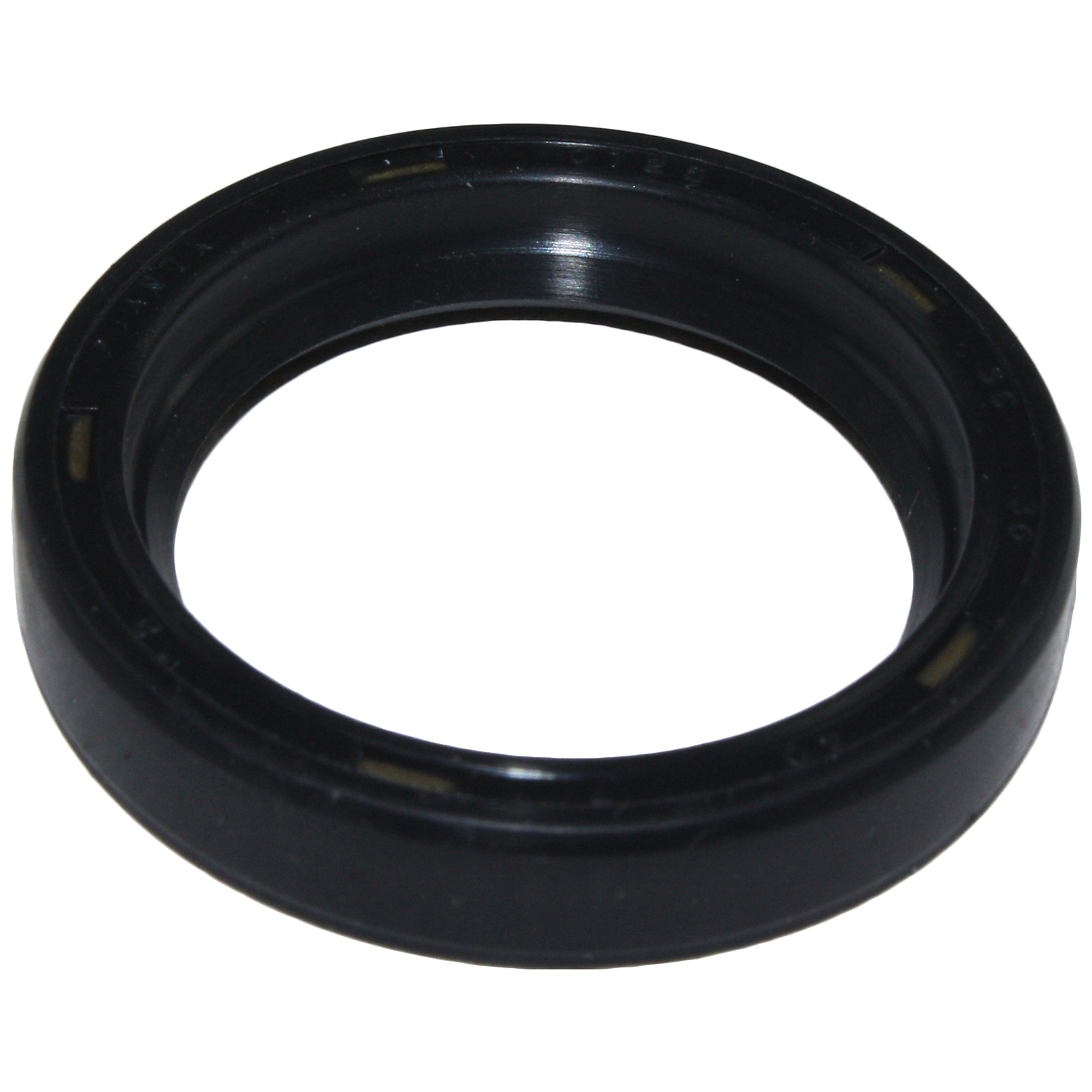

7	BECMS11 In stock	[7] - Oilseal - B407	£1.26 £1.05
10	BE7/6031 Available to backorder	[10] - Screw From 011917	£0.48 £0.40
10	BEXS04 Available to backorder	[10] - Maxi Spirol Pin 5Dia x 35 Up To 011916	£1.00 £0.83

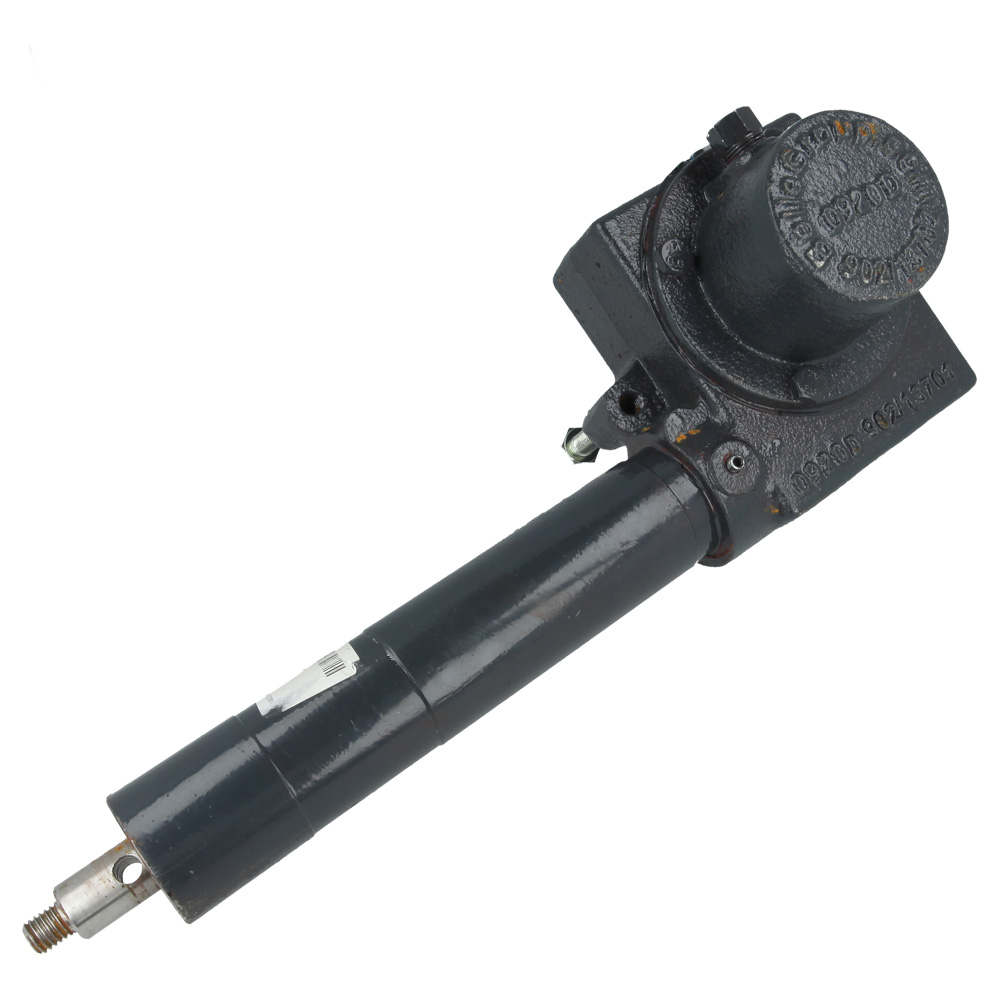

10	BE902/14100 Available to backorder	[10] - Kit Maxi Gearbox	£390.00 £325.00
10	BEXS23 Available to backorder	[10] - Maxi Wormshaft Tube	£48.80 £40.67
11	BEXS05 Available to backorder	[11] - Maxi Wormshaft Circlip	£0.48 £0.40
12	BEXS31 Available to backorder	[12] - Ball Race 6005	£7.48 £6.23

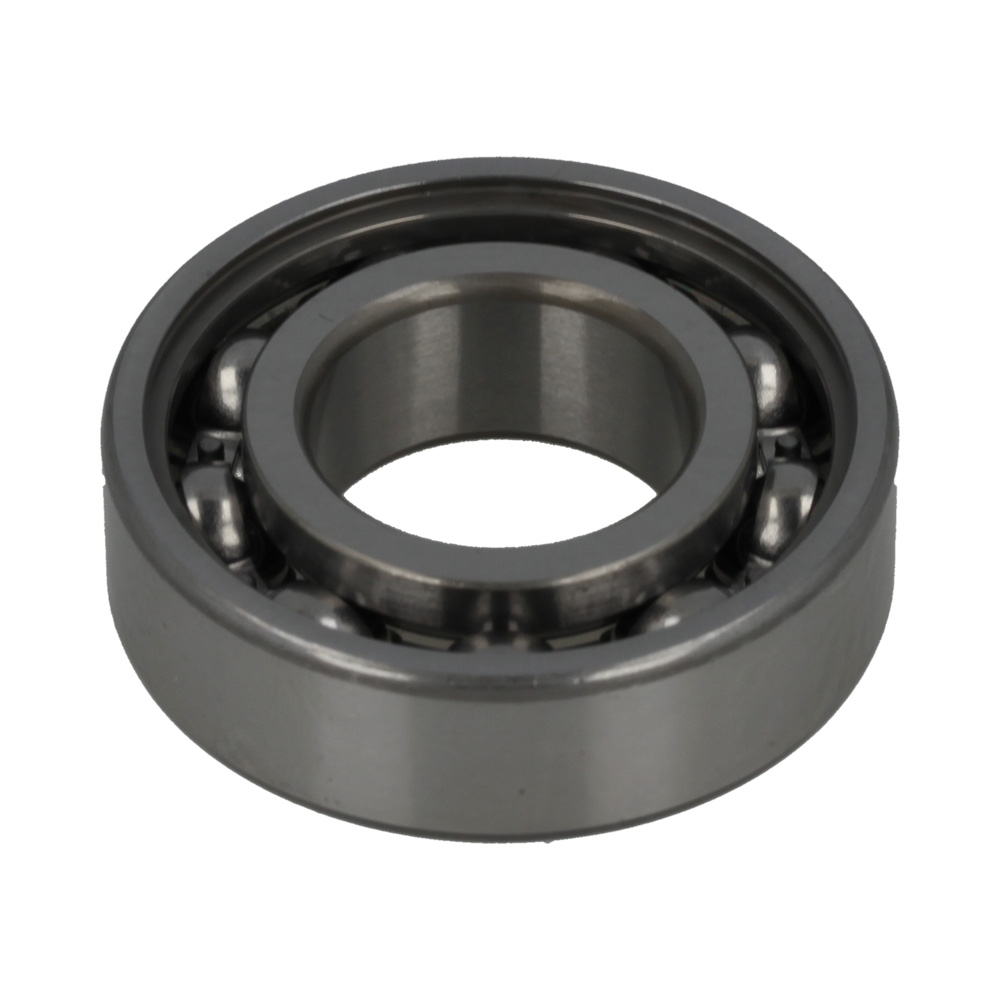

13	BEPS013 Available to backorder	[13] - Ball Race 6004	£6.72 £5.60
14	BECMS40 Available to backorder	[14] - Oilseal-20 x 42 x 10	£1.92 £1.60

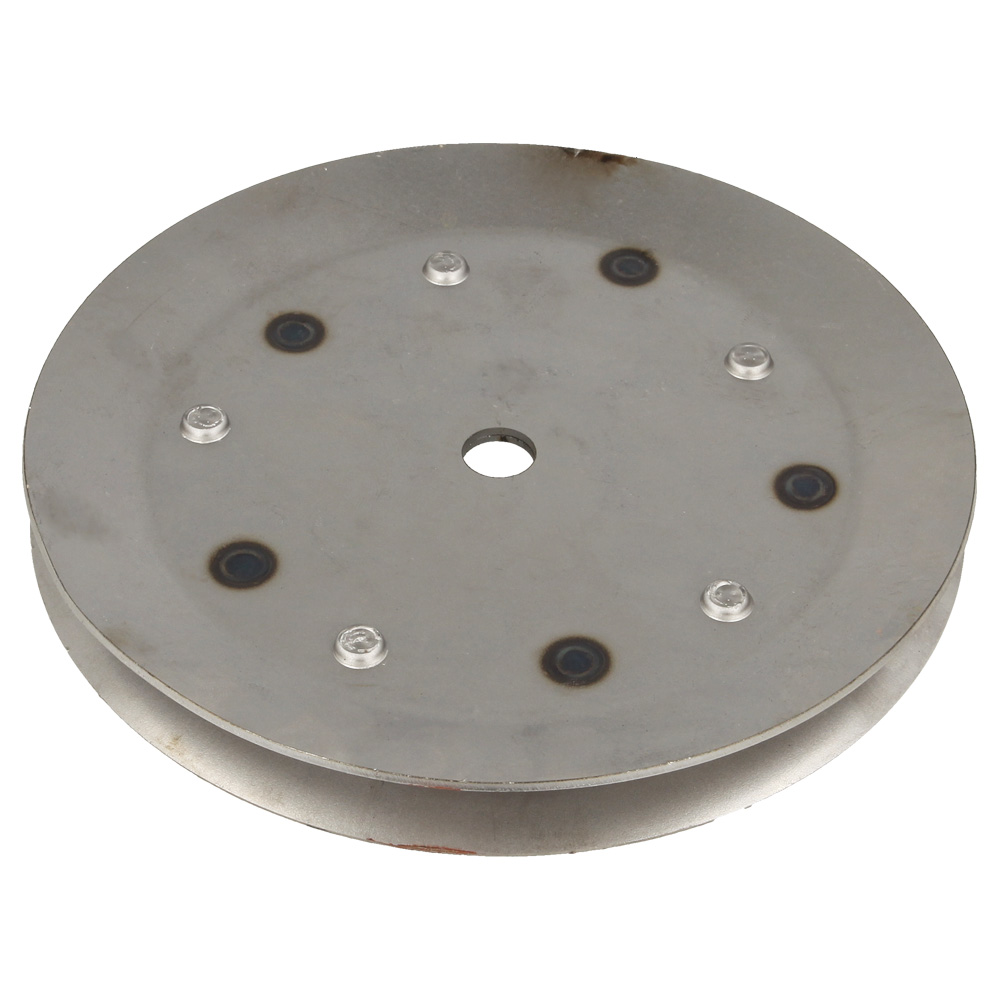

15	BECMS39 In stock	[15] - Pulley - Gearbox	£7.00 £5.83
16	BE9/12008 Available to backorder	[16] - Bolt	£0.48 £0.40

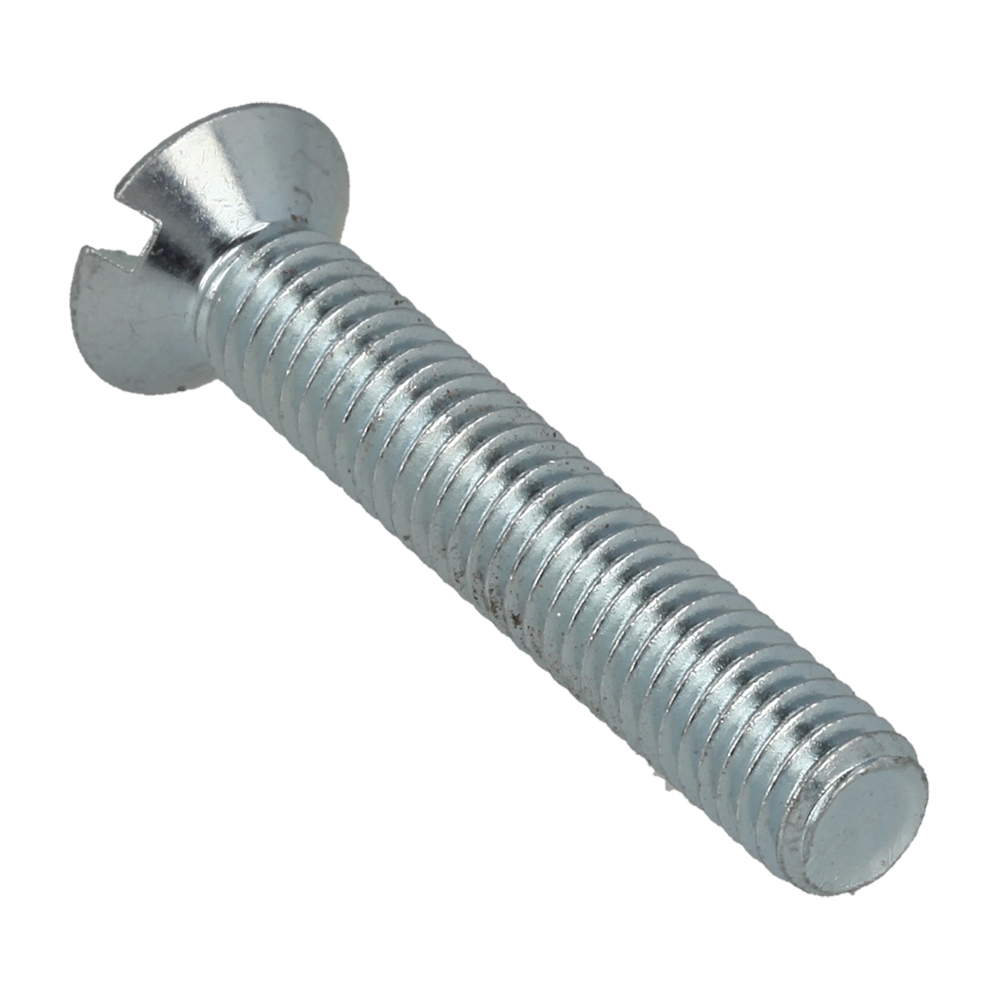

18	BE7/6010 Available to backorder	[18] - Screw	£0.48 £0.40
19	BEXS22 Available to backorder	[19] - Maxi Belt Cover	£12.04 £10.03
20	BEXS19 Available to backorder	[20] - Maxi Jockey Spring	£3.60 £3.00

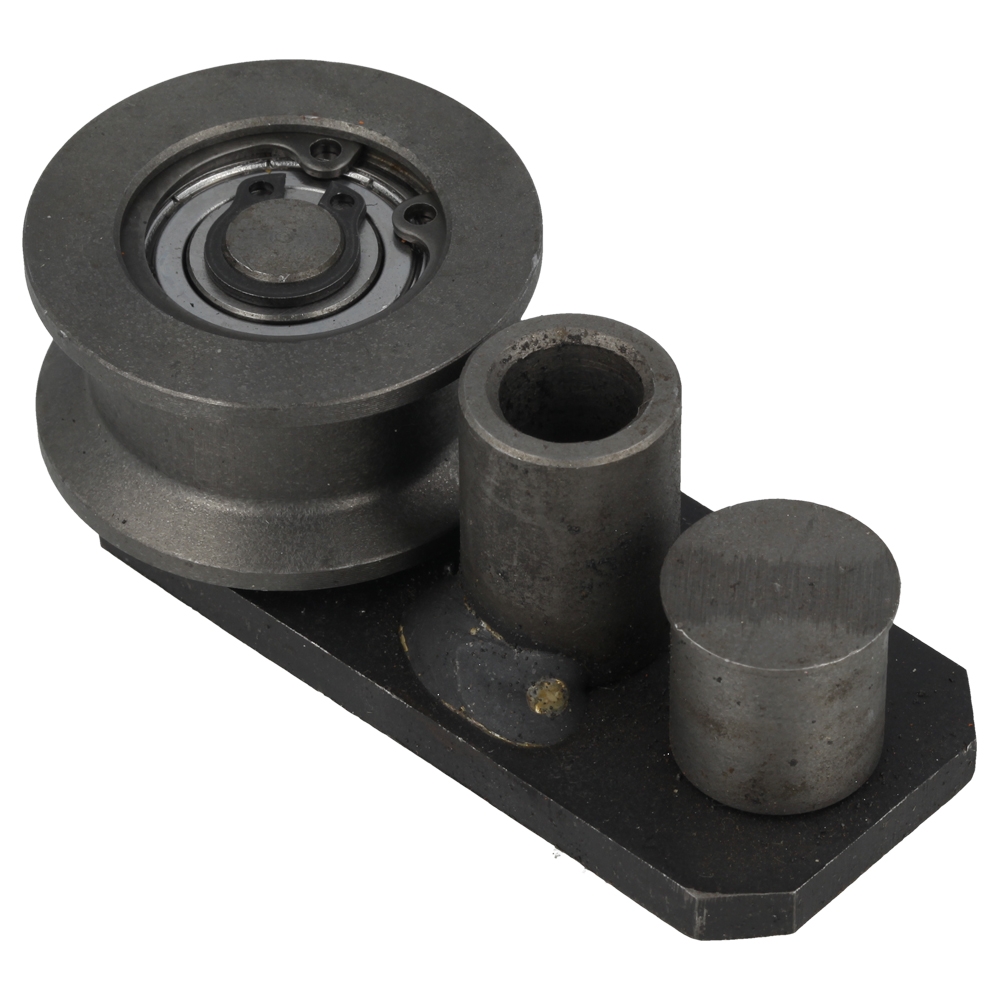

21	BE902/15600 Available to backorder	[21] - Pulley Tensioner Ga Spares Kit	£103.76 £86.47

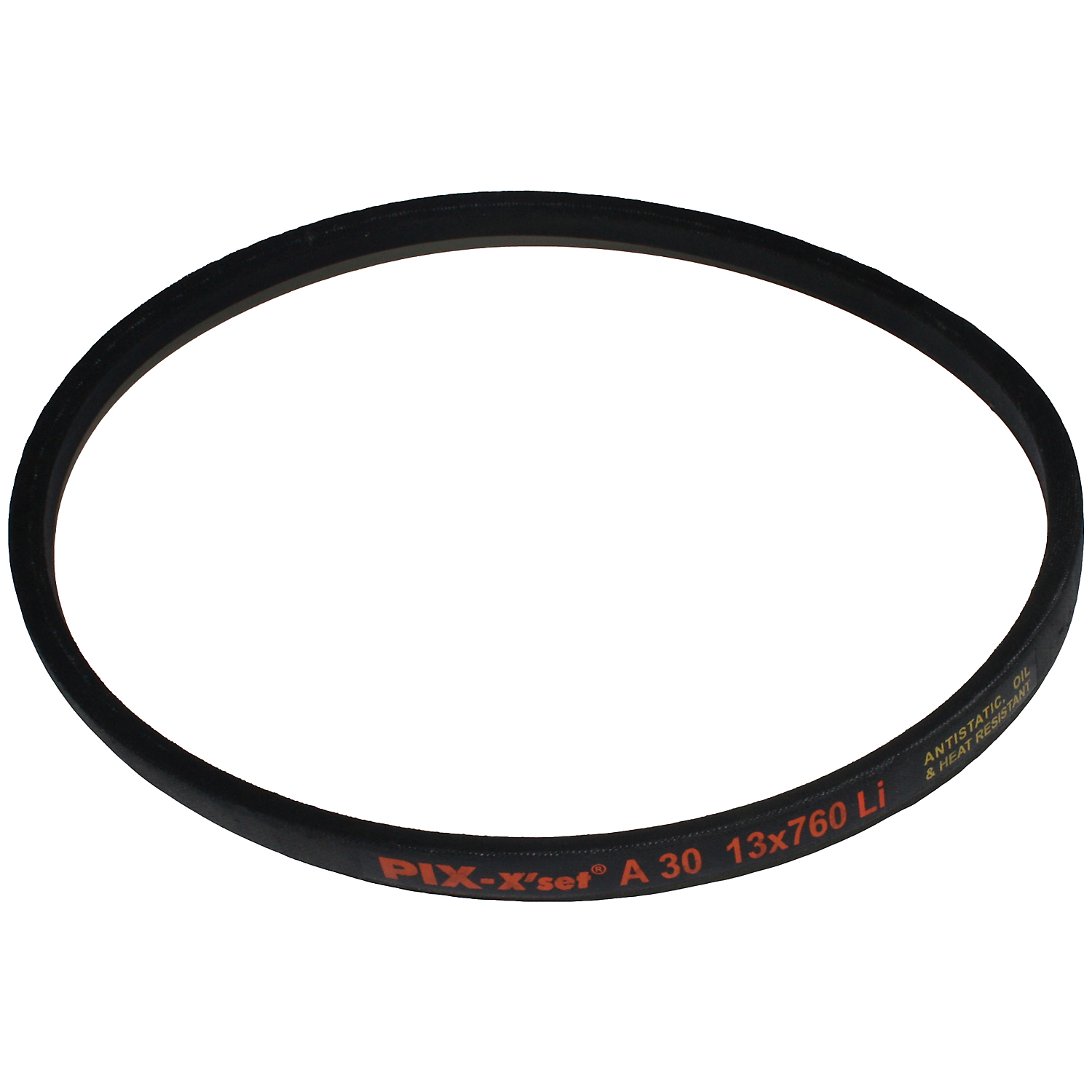

22	2970 In stock	[22] - Maxi Belt A30	£6.41 £5.34
22	BE21.0.275 Available to backorder	[22] - Belt Optibelt Vb A29.5 N. America	£2.72 £2.27
23	BEXS08 Available to backorder	[23] - Maxi Yoke Welded Assembly	£187.56 £156.30
25	BE8/10003 Available to backorder	[25] - Nut	£0.48 £0.40
26	BEXS11 Available to backorder	[26] - Maxi Gear Ring Cover	£5.82 £4.85
28	BEPS071 Available to backorder	[28] - Premier Hinge Pin Cap	£0.80 £0.67
29	BEXS36 Available to backorder	[29] - Pin - Handwheel Locking	£1.45 £1.21
30	BE902/13100 Available to backorder	[30] - Kit Handwheel Parts - Maxi	£273.84 £228.20
30	BE902/11100 Available to backorder	[30] - Handwheel Wa	£140.00 £116.67
31	BE8/12002 Available to backorder	[31] - Nut	£0.48 £0.40
32	BE4/1205 Available to backorder	[32] - Washer M12	£0.48 £0.40
33	BE7/10004 Available to backorder	[33] - Screw	£0.48 £0.40
36	BE9/10009 Available to backorder	[36] - Bolt Up To 011916	£0.62 £0.52
36	BE7/10009 Available to backorder	[36] - Screw From 011917	£0.62 £0.52
37	BE7/6011 Available to backorder	[37] - Screw	£0.48 £0.40
38	BEXS41 Available to backorder	[38] - Cover Plate	£3.24 £2.70
39	BE8/6002 Available to backorder	[39] - Nut	£1.02 £0.85
40	BE4/6001 Available to backorder	[40] - Washer M6	£0.48 £0.40
41	BE7/6001 Available to backorder	[41] - Screw	£0.48 £0.40
42	BEXS44 Available to backorder	[42] - Handle Grip	£2.96 £2.47

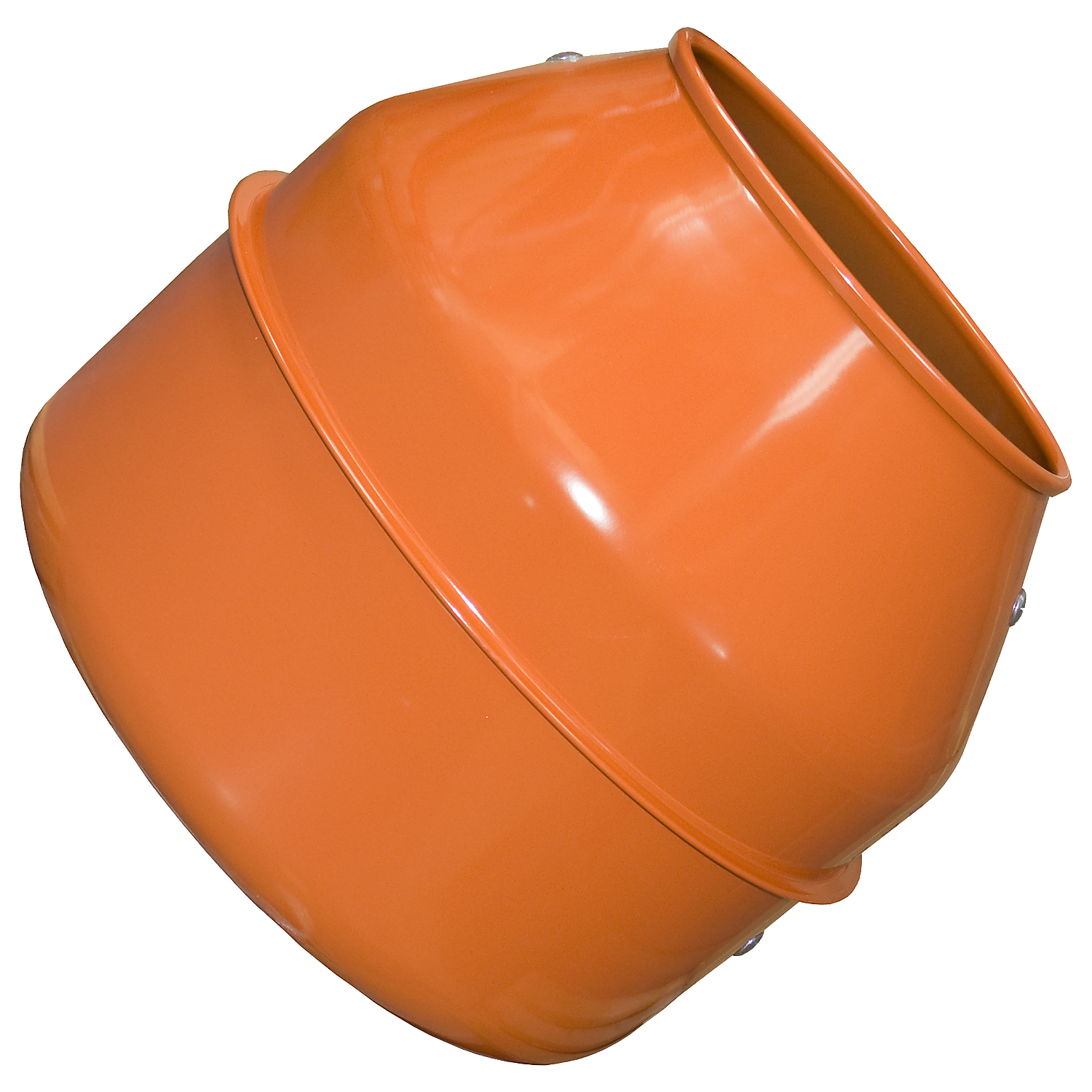

43	BECMS12SP In stock	[43] - Drum Spares	£244.20 £203.50
44	BECMS13 Available to backorder	[44] - Kit Mini Paddles + Brackets	£14.60 £12.17
45	BE902/10100 Available to backorder	[45] - Frame Maxi W.A.	£368.40 £307.00
46	BECMS16 Available to backorder	[46] - Axle Cap	£3.56 £2.97

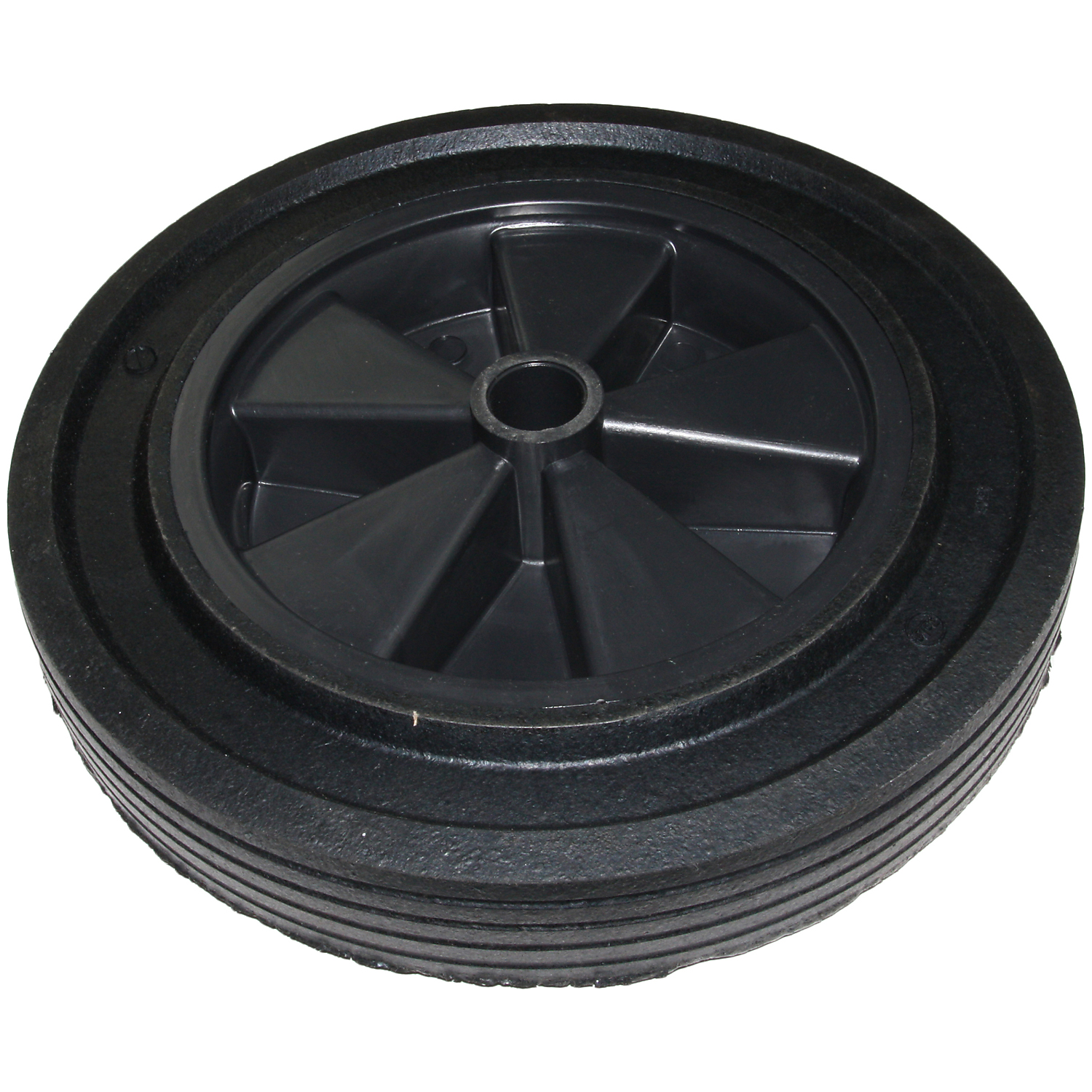

47	BE60/0286 Available to backorder	[47] - Wheel Dia 300 (25.5/60 Hub)	£24.12 £20.10
48	BE8/8001 Available to backorder	[48] - Nut	£0.48 £0.40
49	BE4/8002 Available to backorder	[49] - Washer M8	£0.48 £0.40

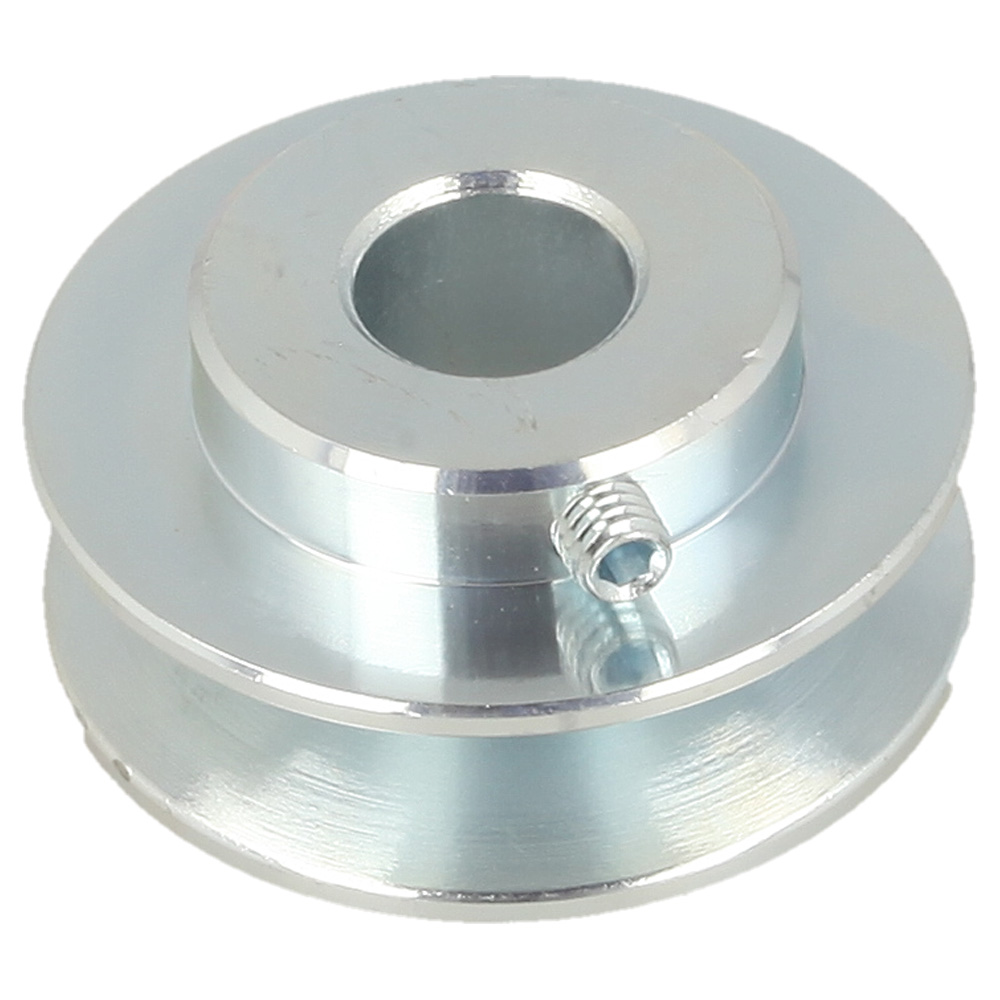

50	BEMS18 Available to backorder	[50] - Mini Engine Pulley 3/4"	£22.02 £18.35
50	BEXS16 Available to backorder	[50] - Maxi Honda Engine Pulley Comp Honda	£86.14 £71.78
52	BE9/8003 Available to backorder	[52] - Bolt	£0.48 £0.40
55	BE902/14000 Available to backorder	[55] - Exhaust Vanguard B & S Vanguard	£9.44 £7.87
55	BEXS29 Available to backorder	[55] - Maxi Exhaust Extension	£5.39 £4.49
56	BE800/03100 Available to backorder	[56] - Decal Sticker "Belle Maxi 140"	£1.98 £1.65
57	BEXS33 Available to backorder	[57] - Maxi Motor Box Lid	£59.78 £49.82
60	BECMS08 Available to backorder	[60] - Fan Cowl Clip	£0.35 £0.29
60	BECMS25 Available to backorder	[60] - 240V/110V Fan Cowl 110V & 240V	£96.34 £80.28
62	BECMS17 Available to backorder	[62] - Cover - 110V/240V Capacitor	£26.57 £22.14
63	BECMS29 Available to backorder	[63] - Capacitor 110V (Silver) 110V	£57.90 £48.25

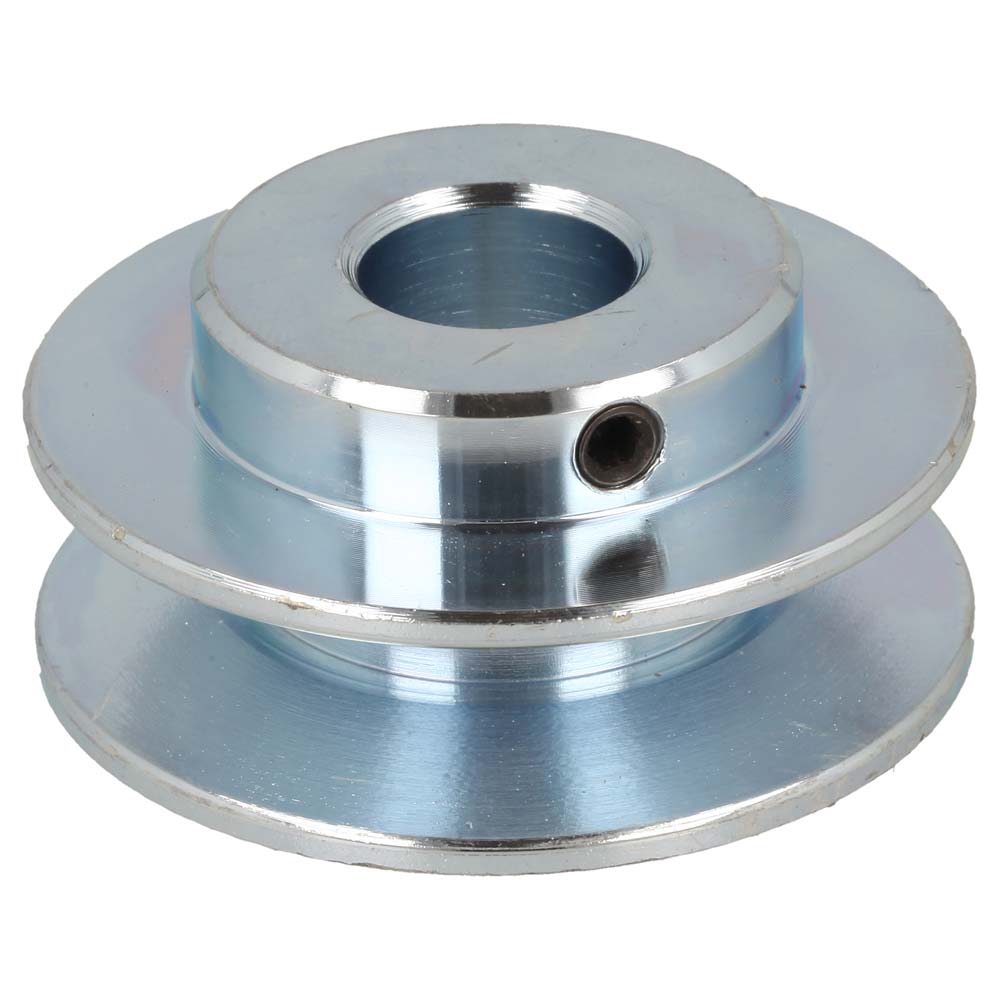

64	BEMS17 In stock	[64] - Motor Pulley 5/8"	£13.94 £11.62
64	BECMS64 Available to backorder	[64] - Pulley 5/8" 45mm Od-60Hz Motor	£246.00 £205.00
65	BE7/6008 Available to backorder	[65] - Screw	£0.48 £0.40
67	BECMS63 Available to backorder	[67] - Box Switch 110V Nvr C/W Bs4343 110V	£147.00 £122.50
68	BE902/14300 Available to backorder	[68] - Kit Spares 110V Motor	£439.20 £366.00
69	BE900/15200 Available to backorder	[69] - Coupler 110V Bs4343 16 Amp(Y) 110V	£17.88 £14.90
76	BE902/11300 Available to backorder	[76] - Pulley M30 Motor (Maxi)	£21.28 £17.73
82	BE8/8008 Available to backorder	[82] - Nut	£0.48 £0.40
84	BEXS17 Available to backorder	[84] - Maxi Motor Packers	£2.57 £2.14
89	BEXS16/2 Available to backorder	[89] - Maxi Honda Pulley Spacer Honda	£52.58 £43.82
90	BE4/8004 Available to backorder	[90] - Washer	£0.48 £0.40
91	BE9/0002 Available to backorder	[91] - Bolt - 5/16 x 5/8 Unf	£0.48 £0.40
92	BE902/10500 Available to backorder	[92] - Plunger Wa Maxi	£32.96 £27.47
93	BE902/10600 Available to backorder	[93] - Retainer-Spring-Plunger	£10.86 £9.05
95	BE2/0004 Available to backorder	[95] - Spr'G Compression-Maxi Plunger	£3.88 £3.23
96	BE50/000038 Available to backorder	[96] - Bush Composite 13x10x20mm Long	£12.88 £10.73
97	BE3/0020 Available to backorder	[97] - Pin Roll Dia 3.0mm x14mm	£3.88 £3.23
99	BE902/99902 Available to backorder	[99] - Deck Electric From 011634	£15.64 £13.03
99	BE902/11400 Available to backorder	[99] - Mounting Motor M30 - Maxi Up To 011633	£16.76 £13.97
100	BE900/17800 Available to backorder	[100] - Motor Di 220V Nvr Cee7 Tripus 220V	£423.60 £353.00
100	BE900/20400 Available to backorder	[100] - Motor Kit 240V Nvr Spares 240V No Longer Available	£440.40 £367.00
100	BE900/17500 Available to backorder	[100] - Motor Di 220V On/Off Tripus 220V	£222.36 £185.30
101	BE900/18800 Available to backorder	[101] - Cable + Plug Assy 240V Tripus 240V	£28.20 £23.50
103	BE900/19200 Available to backorder	[103] - Adaptor Plate Motor	£1.60 £1.33
107	BE7/8008 Available to backorder	[107] - Screw	£0.48 £0.40
109	BE1/0507 Available to backorder	[109] - Paint Spray Can Orange Ca35	£16.46 £13.72
109	BE1/0519 Available to backorder	[109] - Paint- Ltr Tin Orange Ral-2004	£64.80 £54.00
111	BE1/1100 Available to backorder	[111] - Oil 75W-140L	£38.24 £31.87
112	BE900/19100 Available to backorder	[112] - Rivet Snap Ref Sr 508513	£14.34 £11.95
113	BE900/19000 Available to backorder	[113] - Screw Switchbox Tripus	£0.48 £0.40
114	BECMS27 Available to backorder	[114] - White On/Off 240V Switch 240V	£14.58 £12.15
117	BE900/19300 Available to backorder	[117] - Lid Assy 220V/240V Nvr Tripus 220V & 240V	£169.44 £141.20
119	BE900/18100 Available to backorder	[119] - Cable Extension 240V Nvr 240V	£109.16 £90.97
120	BE600/03150 Available to backorder	[120] - Clip E Rsm-01-20	£0.48 £0.40
122	BE900/16500 Available to backorder	[122] - Fan M30 Motor	£36.78 £30.65
123	BE900/16800 Available to backorder	[123] - Cover Motor Fan End	£55.12 £45.93
124	BE900/16700 Available to backorder	[124] - Cover Motor Pulley End	£67.68 £56.40
125	BE902/13500 Available to backorder	[125] - Pressing Yoke Guard	£9.18 £7.65
126	BE7/5006 Available to backorder	[126] - Screw	£0.83 £0.69
127	BE71/0250 Available to backorder	[127] - Cable - Earth	£14.94 £12.45
128	BE902/14800 Available to backorder	[128A] - Kit Spares 230V Motor 230V Up To 000614	£572.40 £477.00
128	BE20/0100 Available to backorder	[128] - Motor 110V 550W Remote Switch 110V	£285.00 £237.50
128	BE20/0108 Available to backorder	[128A] - Motor 230V And Remote Switch 230V From 000615	£494.40 £412.00
129	BE902/14900 Available to backorder	[129] - Kit Switch 230V Maxi 230V	£91.54 £76.28
129	BE902/14400 Available to backorder	[129] - Kit Switch 110V Maxi 110V	£52.42 £43.68
130	BE7/8011 Available to backorder	[130] - Screw 230V	£0.48 £0.40
131	BE4/8006 Available to backorder	[131] - Washer 230V M8	£0.48 £0.40
131	BE4/8008 Available to backorder	[131] - Washer 110V	£0.48 £0.40
132	BE902/99904 Available to backorder	[132] - Pressing Remote Switch 110V	£17.12 £14.27

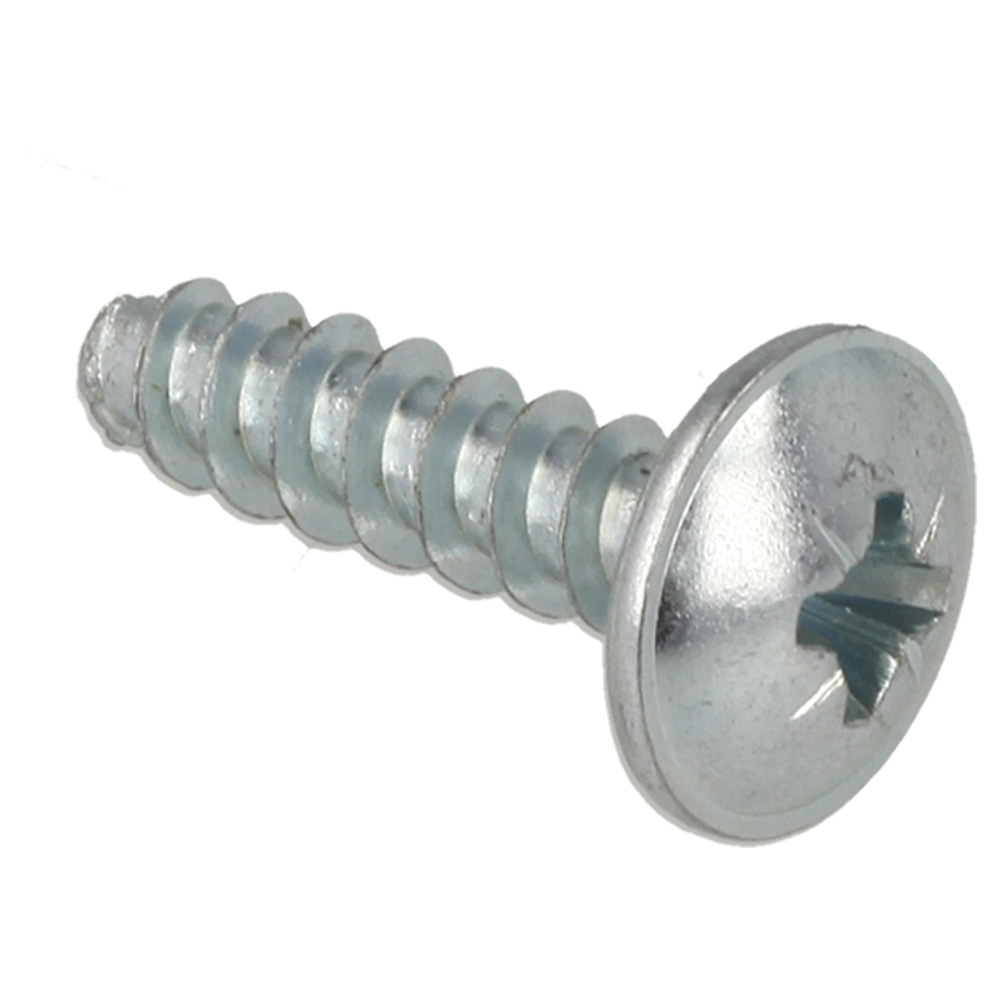

133	BE7/5019 Available to backorder	[133] - Screw	£0.20 £0.17
134	BE7/6013 Available to backorder	[134] - Screw	£0.48 £0.40
135	BEXS16/1 Available to backorder	[135] - Maxi Honda Pulley Machined	£33.28 £27.73
136	BE902/99906 Available to backorder	[136] - Fan Spares Maxi Motors	£1.94 £1.62
137	BE902/14500 Available to backorder	[137] - Kit Spares 230V Capacitor Box 230V	£5.46 £4.55
137	BE902/14600 Available to backorder	[137] - Kit Spares 110V Maxi Cap/R Box 110V	£10.32 £8.60
138	BE902/14700 Available to backorder	[138] - Capacitor Kit 110V Fits 20/0100 Motor	£21.74 £18.12

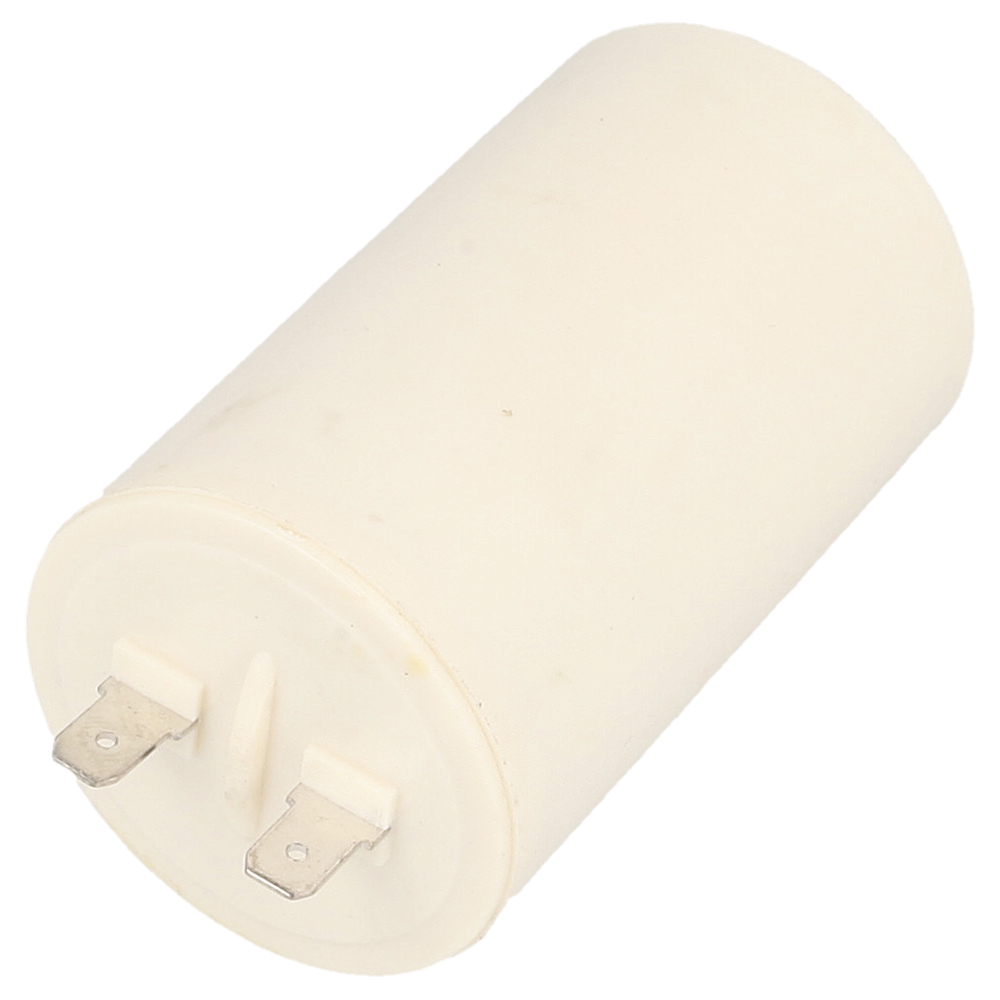

138	BE70/0135 Available to backorder	[138] - Capacitor 25Uf 230V 230Volt	£29.80 £24.83
139	BE902/14200 Available to backorder	[139] - Kit Maxi Pinion	£199.08 £165.90
140	BE70/0194 Available to backorder	[140] - Switch Compact 230V-50Hz Tpo2 240V	£23.34 £19.45
