Belle Major 30-140 (PAN) - Valve Assembly

Description

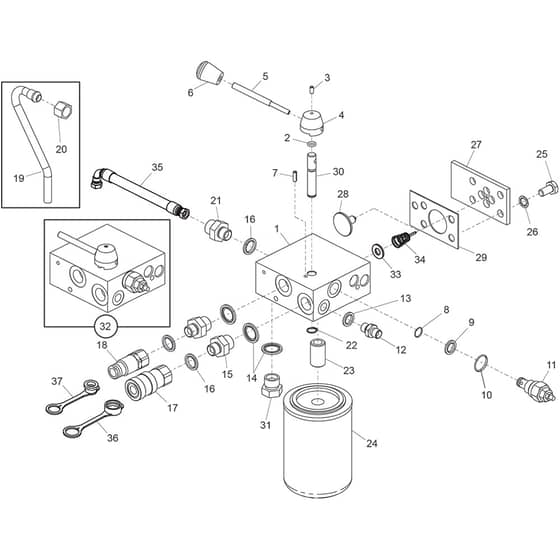

Belle Major 30-140 (PAN) - Valve Assembly - Parts Diagram

	Part No.	Details
2	BE10-202-6347 Available to backorder	[2] - O Ring 202-634-4470	£0.48 £0.40
3	BE10/360/0510 Available to backorder	[3] - Grub Screw M5 x 10 Long	£1.32 £1.10
4	BE00920/2 Available to backorder	[4] - Boss	£75.84 £63.20
5	BE00920/3 Available to backorder	[5] - Lever	£71.52 £59.60
6	BE72/0007 Available to backorder	[6] - Knob Bypy	£3.79 £3.16
7	BE10-500-0515 Available to backorder	[7] - Roll Pin M5 x 15 Location	£0.41 £0.34
8	BE01082/1 Available to backorder	[8] - O Ring	£6.04 £5.03
9	BE01082/2 Available to backorder	[9] - Washer	£10.46 £8.72
10	BE01082/3 Available to backorder	[10] - O Ring	£5.94 £4.95
11	BE01082 Available to backorder	[11] - Relief Valve	£127.08 £105.90
12	BE6/0039 Available to backorder	[12] - Adapter 1/4"x1/4" Bsp M/M	£12.79 £10.66
13	BE5/0011 Available to backorder	[13] - Seal Bonded 1/4" Bsp	£1.26 £1.05
14	BE5/0012 Available to backorder	[14] - Bonded Seal 1 1/4" Bsp	£2.98 £2.48
16	BE5/0007 Available to backorder	[16] - Seal Bonded 3/8" Bsp	£0.48 £0.40
19	BE01658 Available to backorder	[19] - H.P. Feed Pipe (1193) Up To Mar �09	£40.76 £33.97
21	BE6/0005 Available to backorder	[21] - Adaptor - 1/2 x 3/8 Bsp M/M	£6.66 £5.55
22	BE10-615-1200 Available to backorder	[22] - Circlip 12mm	£0.68 £0.57
23	BE00047 Available to backorder	[23] - Filter Spigot	£17.96 £14.97
24	BE00178B Available to backorder	[24] - Spin On Filter Can Now Use 00178	£58.72 £48.93
24	BE00178 Available to backorder	[24] - Hydraulic Filter	£61.68 £51.40
25	BE7/10004 Available to backorder	[25] - Screw	£0.43 £0.36
26	BE4/1002 Available to backorder	[26] - Washer M10	£0.48 £0.40
27	BE00729 Available to backorder	[27] - Clamping Plate	£21.83 £18.19
29	BE00803 Available to backorder	[29] - Gasket	£2.03 £1.69
30	BE01392-1SP Available to backorder	[30] - Spool For V/V Block Now Use 01392	£171.24 £142.70
31	BE10-601-0800 Available to backorder	[31] - Blanking Plug 1/2" B.S.P.	£5.46 £4.55
32	BE01392 Available to backorder	[32] - Valve Block	£489.60 £408.00
33	BE00853 Available to backorder	[33] - Washer 16 Id x 34 Od x 3 Bzp	£3.11 £2.59
34	BE00024 Available to backorder	[34] - Now Use 00024Sp	£314.52 £262.10
35	BE35/0083 Available to backorder	[35] - Power Pack Feed Pipe From Apr �09	£55.66 £46.38
