Belle Major 30-140 (PAN) - Chassis Assembly (From April 2009)

Name: Belle Major 30-140 (PAN) - Chassis Assembly (From April 2009)
SKU: Major30140PANChassisFromApril2009-group
Price: 0.33 GBP
Availability: InStock

Part No. Major30140PANChassisFromApril2009-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Belle Major 30-140 (PAN) - Chassis Assembly (From April 2009)

Description

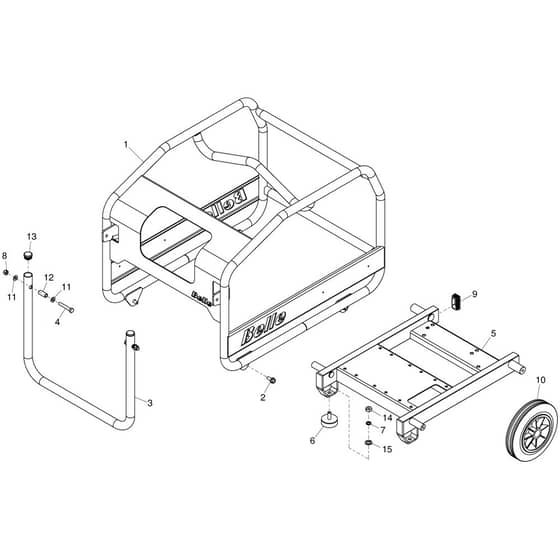

Belle Major 30-140 (PAN) - Chassis Assembly (From April 2009) - Parts Diagram

	Part No.	Details
1	BE02356R Available to backorder	[1] - Midi / Major Frame Red Red	£205.20 £171.00
2	BE7/8037 Available to backorder	[2] - Screw	£0.48 £0.40
3	BE02361SIL Available to backorder	[3] - Frame Handle Silver Silver	£43.16 £35.97
4	BE9/8014 Available to backorder	[4] - Bolt	£0.40 £0.33
5	BE02369 Available to backorder	[5] - Midi/Major Chassis Wa	£201.00 £167.50
6	BE00525-B Available to backorder	[6] - Bonded Foot Less Nut+Washer	£11.63 £9.69
7	BE4/1003 Available to backorder	[7] - Washer M10	£0.48 £0.40
8	BE8/8008 Available to backorder	[8] - Nut	£0.48 £0.40
9	BE00013 Available to backorder	[9] - Chassis Plug	£3.72 £3.10
10	BE60/0285 Available to backorder	[10] - Wheel Dia 200 (25.5/50 Hub)	£12.25 £10.21
11	BE4/8006 Available to backorder	[11] - Washer M8	£0.48 £0.40
13	BE3/4035 Available to backorder	[13] - Plug Plastic 27 Od	£13.06 £10.88
14	BE8/10003 Available to backorder	[14] - Nut	£0.48 £0.40
15	BE4/1005 Available to backorder	[15] - Washer M10	£0.48 £0.40
