Belle Major 20-140X (PAN) - Valve Assembly

Description

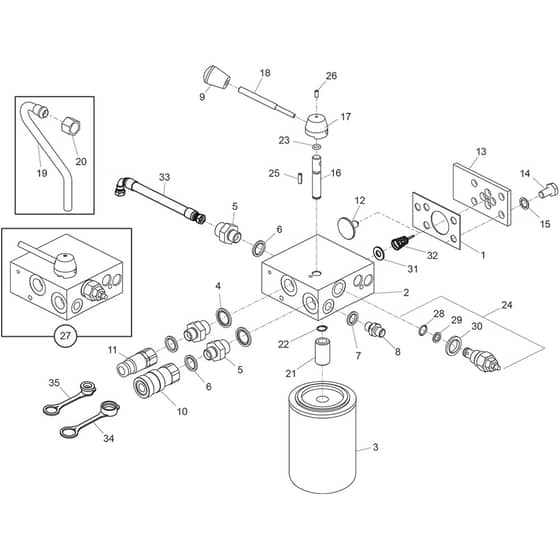

Belle Major 20-140X (PAN) - Valve Assembly - Parts Diagram

	Part No.	Details
1	BE00803 Available to backorder	[1] - Gasket	£2.03 £1.69
3	BE00178 Available to backorder	[3] - Hydraulic Filter	£61.68 £51.40
4	BE5/0002 Available to backorder	[4] - Seal Bonded 1/2" Bsp	£0.48 £0.40
5	BE6/0005 Available to backorder	[5] - Adaptor - 1/2 x 3/8 Bsp M/M	£6.66 £5.55
6	BE5/0007 Available to backorder	[6] - Seal Bonded 3/8" Bsp	£0.48 £0.40
7	BE5/0011 Available to backorder	[7] - Seal Bonded 1/4" Bsp	£1.26 £1.05
8	BE6/0039 Available to backorder	[8] - Adapter 1/4"x1/4" Bsp M/M	£12.79 £10.66
9	BE72/0007 Available to backorder	[9] - Knob Bypy	£3.79 £3.16
10	BE00546 Available to backorder	[10] - Coupling 3/8" Bsp Female	£80.76 £67.30
11	BE00545 Available to backorder	[11] - Coupling 3/8" Bsp Male	£47.15 £39.29
13	BE00729 Available to backorder	[13] - Clamping Plate	£21.83 £18.19
14	BE7/10004 Available to backorder	[14] - Screw	£0.43 £0.36
15	BE4/1002 Available to backorder	[15] - Washer M10	£0.48 £0.40
16	BE01392-1SP Available to backorder	[16] - Spool For V/V Block Now Use 01392	£171.24 £142.70
17	BE01392-2SP Available to backorder	[17] - Boss	£96.48 £80.40
18	BE01392-3 Available to backorder	[18] - Lever Now Use 00920/3	£33.83 £28.19
19	BE01477 Available to backorder	[19] - H.P Feed Pipe Up To Mar �09	£45.48 £37.90
21	BE00047 Available to backorder	[21] - Filter Spigot	£17.96 £14.97
22	BE10-615-1200 Available to backorder	[22] - Circlip 12mm	£0.68 £0.57
23	BE10-202-6347 Available to backorder	[23] - O Ring 202-634-4470	£0.48 £0.40
24	BE01082 Available to backorder	[24] - Relief Valve	£127.08 £105.90
25	BE10-500-0515 Available to backorder	[25] - Roll Pin M5 x 15 Location	£0.41 £0.34
26	BE10/360/0510 Available to backorder	[26] - Grub Screw M5 x 10 Long	£1.32 £1.10
27	BE01392 Available to backorder	[27] - Valve Block	£489.60 £408.00
28	BE01082/1 Available to backorder	[28] - O Ring	£6.04 £5.03
29	BE01082/2 Available to backorder	[29] - Washer	£10.46 £8.72
30	BE01082/3 Available to backorder	[30] - O Ring	£5.94 £4.95
31	BE00853 Available to backorder	[31] - Washer 16 Id x 34 Od x 3 Bzp	£3.11 £2.59
32	BE00024 Available to backorder	[32] - Now Use 00024Sp	£314.52 £262.10
33	BE35/0083 Available to backorder	[33] - Power Pack Feed Pipe From Apr �09	£55.66 £46.38
34	BE6/2026 Available to backorder	[34] - Dust Cap Female	£7.24 £6.03
35	BE6/2025 Available to backorder	[35] - Dust Cap Male	£7.24 £6.03
