Belle Magiktile - Magiktile 180

Part No. MagiktileMagiktile180-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Belle Magiktile - Magiktile 180

Belle Magiktile - Magiktile 180

Description

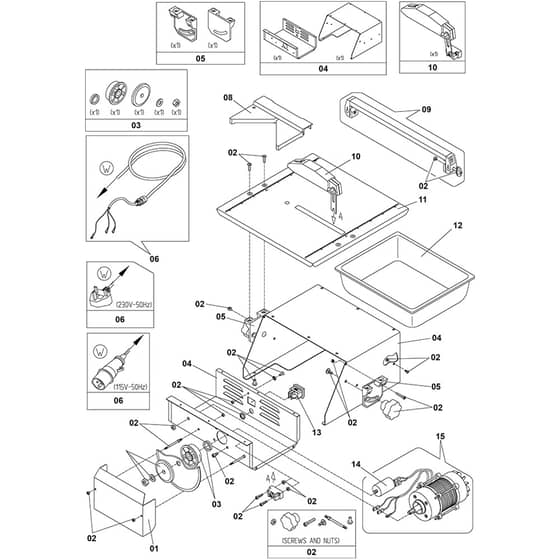

Belle Magiktile - Magiktile 180 - Parts Diagram

Ref.		Img.	Part No.	Details
	1		BE156.0.301 Available to backorder	[1] - Interior Protection Disc		£10.60 £8.83
	2		BE156.0.305 Available to backorder	[2] - Screw Kit		£34.49 £28.74
	3		BE156.0.296 Available to backorder	[3] - Plastic Flange Kit C/W Nut		£22.14 £18.45
	4		BE156.0.280 Available to backorder	[4] - Motor Cover		£137.88 £114.90
	5		BE156.0.290 Available to backorder	[5] - Tipping Bracket		£10.46 £8.72
	6		BE156.0.282 Available to backorder	[6] - Electrical Cable (230V - 50Hz) 230V - 50Hz		£61.20 £51.00
	6		BE156.0.283 Available to backorder	[6] - Plug (115V - 50Hz) 115V - 50Hz		£91.80 £76.50
	8		BE156.0.358 Available to backorder	[8] - Diagonal Fence		£8.23 £6.86
	9		BE156.0.284 Available to backorder	[9] - Cutting Line		£26.46 £22.05
	10		BE156.0.311 Available to backorder	[10] - Disc Guard		£19.63 £16.36
	11		BE156.0.281 Available to backorder	[11] - Cutting Table		£128.64 £107.20
	12		BE156.0.304 Available to backorder	[12] - Water Tank		£7.86 £6.55
	13		BE156.0.264 Available to backorder	[13] - Switch		£9.43 £7.86
	14		BE156.0.297 Available to backorder	[14] - Capacitor (115V - 50Hz) 115V - 50Hz		£18.64 £15.53
	14		BE156.0.295 Available to backorder	[14] - Capacitor (230V - 50Hz) 230V - 50Hz		£11.51 £9.59
	15		BE156.0.300 Available to backorder	[15] - Motor Assembly (115V - 50Hz) 115V - 50Hz		£253.80 £211.50
	15		BE156.0.294 Available to backorder	[15] - Motor Assembly (230V - 50Hz) 230V - 50Hz		£216.48 £180.40

Description

Belle Magiktile - Magiktile 180 - Parts Diagram
