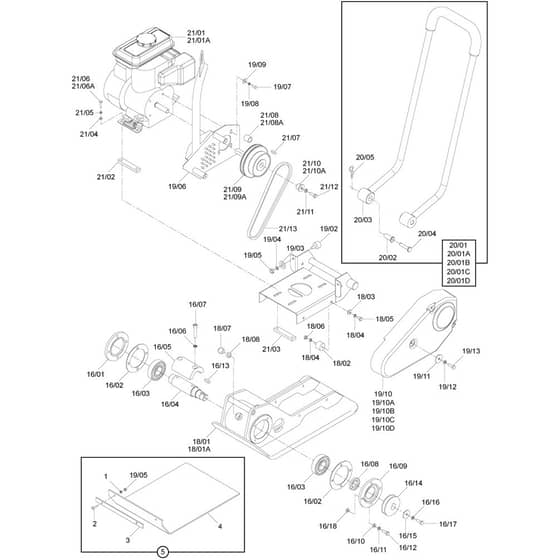

Belle LPC - Main Assembly - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	BE05.3.070 Available to backorder	[1] - Washer M8	£1.08 £0.90
0	BE21.0.334 Available to backorder	[0] - Deflector For Honda G100	£11.76 £9.80
0	BE21.0.140 Available to backorder	[0] - Screw Pan Head Pozi-Drive 5/16	£0.48 £0.40
2	BE00.0.860 Available to backorder	[2] - Coach Bolt M8 x 30 Bzp Gr 4.6	£0.48 £0.40
3	BE151.0.284 Available to backorder	[3] - Clamp Strip Pc350 Paving Pad	£55.18 £45.98
4	BE153.0.054 Available to backorder	[4] - Paving Pad - Lpc350	£66.72 £55.60
5	BE153.3.015 Available to backorder	[5] - Lpc 350 Paving Pad	£113.88 £94.90
1601	BE77.0.016 Available to backorder	[16/01] - Vibrator End Cap - Blind Side	£46.20 £38.50
1602	BE77.2.000 Available to backorder	[16/02] - Gasket - Vibrator	£0.80 £0.67
1603	BE12.1.057 Available to backorder	[16/03] - Bearing	£19.40 £16.17
1604	BE153.0.037 Available to backorder	[16/04] - Shaft - Lpc Vibrator	£87.74 £73.12
1605	BE943/99903 Available to backorder	[16/05] - Vibrator Weight	£76.84 £64.03
1606	BE05.3.067 Available to backorder	[16/06] - Washer M10	£2.54 £2.12
1607	BE7/1004 Available to backorder	[16/07] - Screw	£0.56 £0.47
1608	BE15.0.196 Available to backorder	[16/08] - Oil Seal	£3.42 £2.85
1609	BE77.0.015 Available to backorder	[16/09] - Vibrator End Cap-Pulley Side	£46.16 £38.47

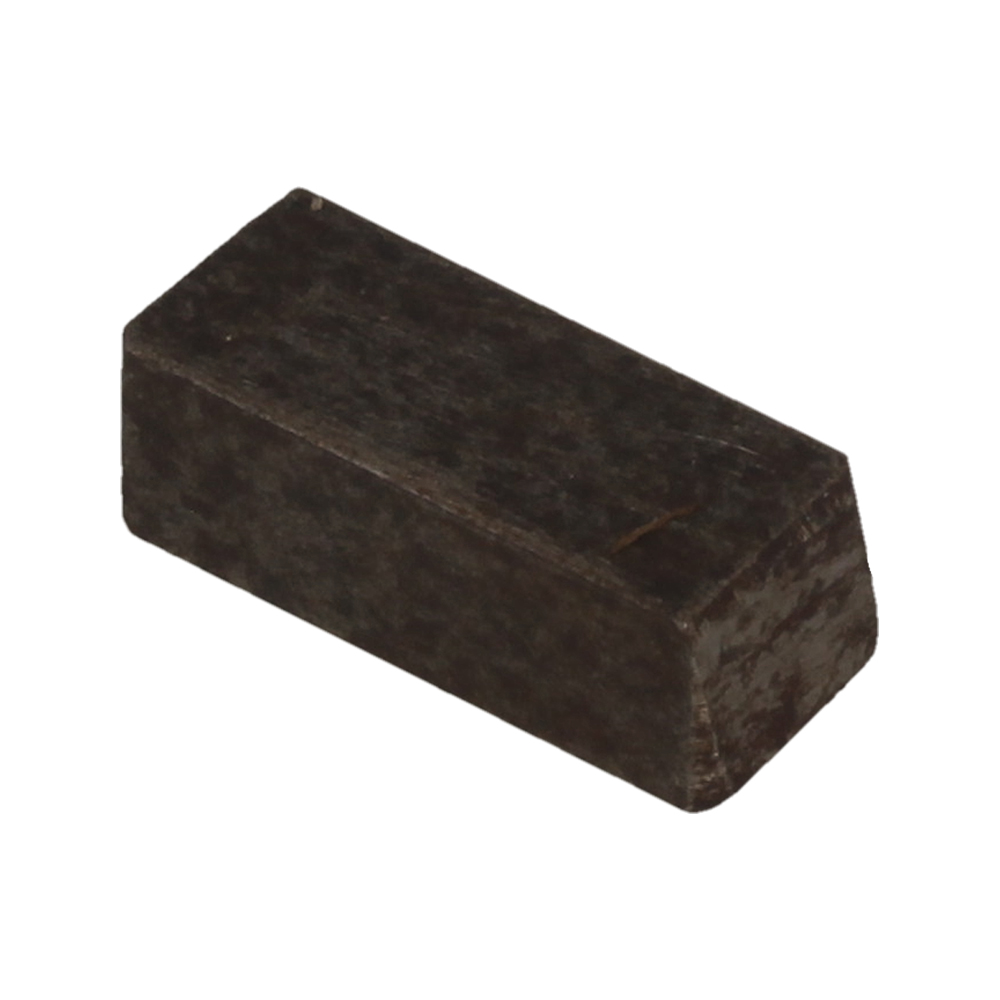

1613	BE06.3.035 Available to backorder	[16/13] - Key 8 x 7 x 21mm	£3.20 £2.67
1614	BE153.0.036 Available to backorder	[16/14] - Pulley - Lpc Vibrator	£100.38 £83.65
1615	BE77.0.142 Available to backorder	[16/15] - Washer - Vib.Pulley Retainer	£2.04 £1.70
1618	BE05.7.012 Available to backorder	[16/18] - Washer	£4.16 £3.47
1801	BE153.0.000 Available to backorder	[18/01] - Baseplate Assy - Lpc300	£577.20 £481.00
1802	BE21.0.216 Available to backorder	[18/02] - Anti Vib Mountings	£12.78 £10.65
1805	BE7/8004 Available to backorder	[18/05] - Screw	£0.48 £0.40
1806	BE8/10003 Available to backorder	[18/06] - Nut	£0.48 £0.40
1807	BE6/2003 Available to backorder	[18/07] - Adaptor - 1/2 Bsp Stop End	£5.74 £4.78
1901	BE153.0.019 Available to backorder	[19/01] - Bedplate Weldment Lpc	£90.00 £75.00
1902	BE21.0.308 Available to backorder	[19/02] - Anti-Vibration Mount	£5.20 £4.33
1905	BE8/8001 Available to backorder	[19/05] - Nut	£0.48 £0.40
1906	BE153.0.013 Available to backorder	[19/06] - Backplate Wa	£90.48 £75.40
1907	BE7/8008 Available to backorder	[19/07] - Screw	£0.48 £0.40
1910	BE153.0.045 Available to backorder	[19/10C] - Belt Guard	£67.74 £56.45
1910	BE153.0.046 Available to backorder	[19/10D] - Belt Guard	£67.74 £56.45
1910	BE153.0.043 Available to backorder	[19/10A] - Belt Guard	£57.64 £48.03
1910	BE153.0.044 Available to backorder	[19/10B] - Belt Guard	£67.74 £56.45
1911	BE05.3.066 Available to backorder	[19/11] - Washer M6	£0.74 £0.62
1912	BE05.3.051 Available to backorder	[19/12] - Washer M6	£0.48 £0.40
1913	BE9/6001 Available to backorder	[19/13] - Bolt	£0.48 £0.40
1914	BE21.0.311 Available to backorder	[19/14] - Insert - 30mm x 1.0 - 1.5G	£3.14 £2.62
2002	BE153.0.034 Available to backorder	[20/02] - Bush - Handle Pivot	£83.58 £69.65
2003	BE153.0.033 Available to backorder	[20/03] - Socket - Handle End	£104.54 £87.12
2004	BE153.0.035 Available to backorder	[20/04] - Pin - Handle Pivot	£11.22 £9.35
2005	BE06.9.008 Available to backorder	[20/05] - R Clip To Suit 3/4" Bar	£0.68 £0.57
2101	BE29.1.227 Available to backorder	[21/01A] - 2.2Hp Robin Engine Ey08 Du	£535.20 £446.00
2101	BE29.1.171 Available to backorder	[21/01] - 2.5 Hp G100 K2Qe14	£457.20 £381.00
2103	BE151.0.161 Available to backorder	[21/03] - Engine Clamp Bar Front-Honda	£16.14 £13.45
2104	BE4/8006 Available to backorder	[21/04] - Washer M8	£0.48 £0.40
2105	BE4/8003 Available to backorder	[21/05] - Washer M8	£0.71 £0.59
2106	BE7/8001 Available to backorder	[21/06] - Screw	£0.60 £0.50
2107	BE06.8.013 Available to backorder	[21/07] - Key 1/4" Sq 1"	£3.46 £2.88
2108	BE153.0.040 Available to backorder	[21/08] - Spacer -Lpc Honda Clutch	£8.46 £7.05
2108	BE153.0.041 Available to backorder	[21/08A] - Spacer - Lpc Robin Clutch	£9.38 £7.82
2109	BE21/0161 Available to backorder	[21/09] - Clutch	£106.32 £88.60
2109	BE10.7.255 In stock	[21/09A] - 3/4" Clutch	£120.48 £100.40
2110	BE118.0.044 Available to backorder	[21/10A] - Top Hat	£36.60 £30.50
2111	BE4/6011 Available to backorder	[21/11] - Washer	£0.48 £0.40
2112	BE02.3.007 Available to backorder	[21/12] - Setscrew 1/4" x 1/4" Unf	£0.43 £0.36

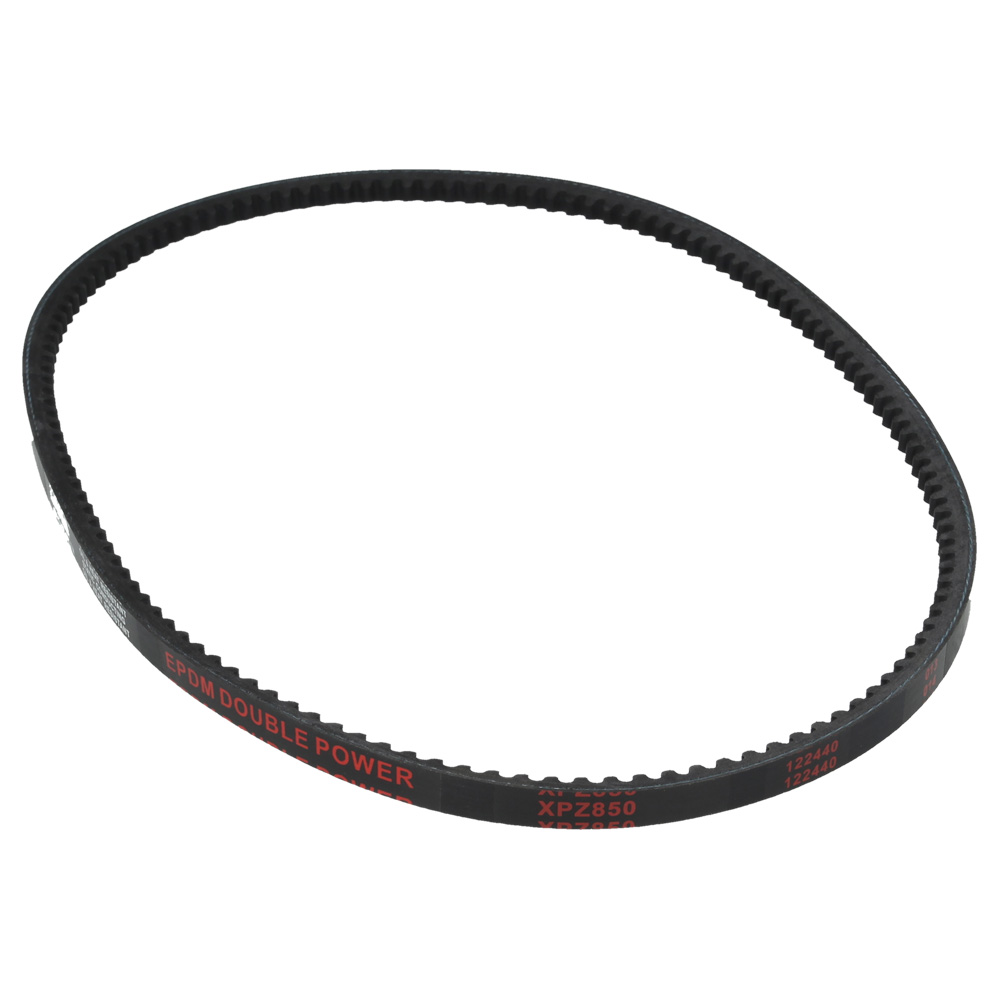

2113	BE11.0.059 Available to backorder	[21/13] - Belt Spz850 Cr	£5.84 £4.87
21110	BE153.0.039 Available to backorder	[21/110] - Top Hat - Lpc Honda Clutch	£16.02 £13.35
