Belle Lightweight Pro - Pro Tilt Trowels - Gearbox Assembly

Part No. LightweightProProTiltTrowelsGearbox-group
Belle Lightweight Pro - Pro Tilt Trowels - Gearbox Assembly
Belle Lightweight Pro - Pro Tilt Trowels - Gearbox Assembly

Description

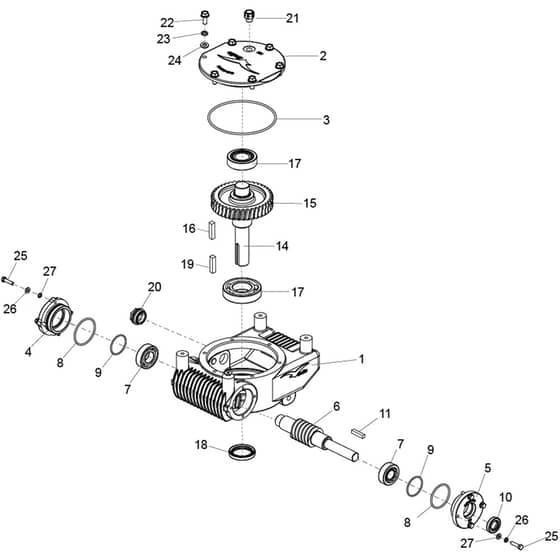

Belle Lightweight Pro - Pro Tilt Trowels - Gearbox Assembly - Parts Diagram

Ref. Img. Part No. Details
  1 [1] - Gearbox Housing
[1] - Gearbox Housing
BE947/01901
Available to backorder
[1] - Gearbox Housing
£372.58 £310.48

  2 [2] - Cover
[2] - Cover
BE947/01902
Available to backorder
[2] - Cover
£40.34 £33.62

  3 [3] - Cover Seal
[3] - Cover Seal
BE947/01903
Available to backorder
[3] - Cover Seal
£1.26 £1.05

  4 [4] - Close Cover
[4] - Close Cover
BE947/01904
Available to backorder
[4] - Close Cover
£24.40 £20.33

  5 [5] - Cover
[5] - Cover
BE947/01905
Available to backorder
[5] - Cover
£17.75 £14.79

  6 [6] - Worm Shaft
[6] - Worm Shaft
BE947/01906
Available to backorder
[6] - Worm Shaft
£345.48 £287.90

  7 [7] - Bearing
[7] - Bearing
BE947/01907
Available to backorder
[7] - Bearing
£35.17 £29.31

  8 [8] - Worm Seal
[8] - Worm Seal
BE947/01908
Available to backorder
[8] - Worm Seal
£1.09 £0.91

  9 [9] - Oil Seal Ring 2.65 x 53
[9] - Oil Seal Ring 2.65 x 53
BE947/01909
Available to backorder
[9] - Oil Seal Ring 2.65 x 53
£0.64 £0.53

  10 [10] - Oil Seal 20 x 40 x 8
[10] - Oil Seal 20 x 40 x 8
BE947/01910
Available to backorder
[10] - Oil Seal 20 x 40 x 8
£8.75 £7.29

  11 [11] - Key 5 x 5 x 32
[11] - Key 5 x 5 x 32
BE947/01911
Available to backorder
[11] - Key 5 x 5 x 32
£0.43 £0.36

  14 [14] - Worm Gear Shaft
[14] - Worm Gear Shaft
BE947/01913
Available to backorder
[14] - Worm Gear Shaft
£186.48 £155.40

  15 [15] - 900 Worm Gear
[15] - 900 Worm Gear
BE947/01914
Available to backorder
[15] - 900 Worm Gear
£364.45 £303.71

  16 [16] - Key 8 x 7 x 40mm
[16] - Key 8 x 7 x 40mm
BE06.3.034
Available to backorder
[16] - Key 8 x 7 x 40mm
£1.60 £1.33

  17 [17] - Bearing
[17] - Bearing
BE947/01915
Available to backorder
[17] - Bearing
£59.04 £49.20

  18 [18] - Oil Seal 30 x 45 x 8
[18] - Oil Seal 30 x 45 x 8
BE947/01916
Available to backorder
[18] - Oil Seal 30 x 45 x 8
£6.25 £5.21

  19 [19] - 8 x 7 x 45 Pro Trowel G/B Key
[19] - 8 x 7 x 45 Pro Trowel G/B Key
BE21/0251
Available to backorder
[19] - 8 x 7 x 45 Pro Trowel G/B Key
£5.77 £4.81

  20 [20] - Oil Gauge
[20] - Oil Gauge
BE947/01917
Available to backorder
[20] - Oil Gauge
£11.80 £9.83

  21 [21] - Breather Plug M10 x 1
[21] - Breather Plug M10 x 1
BE947/01918
Available to backorder
[21] - Breather Plug M10 x 1
£15.72 £13.10

  23 [23] - Washer M8
[23] - Washer M8
BE4/8003
Available to backorder
[23] - Washer M8
£0.71 £0.59

  24 [24] - Washer M8
[24] - Washer M8
BE4/8006
Available to backorder
[24] - Washer M8
£0.48 £0.40

  25 [25] - Screw
[25] - Screw
BE7/6051
Available to backorder
[25] - Screw
£0.48 £0.40

  26 [26] - Washer M6
[26] - Washer M6
BE4/6005
Available to backorder
[26] - Washer M6
£0.48 £0.40

  27 [27] - Washer M6
[27] - Washer M6
BE4/6001
Available to backorder
[27] - Washer M6
£0.48 £0.40


Description

Belle Lightweight Pro - Pro Tilt Trowels - Gearbox Assembly - Parts Diagram
