Belle Hydraulic Cut-Off Saw - Main Assembly

Name: Belle Hydraulic Cut-Off Saw - Main Assembly
SKU: HydraulicCutOffSawMain-group
Price: 0.4 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Belle Hydraulic Cut-Off Saw - Main Assembly

Description

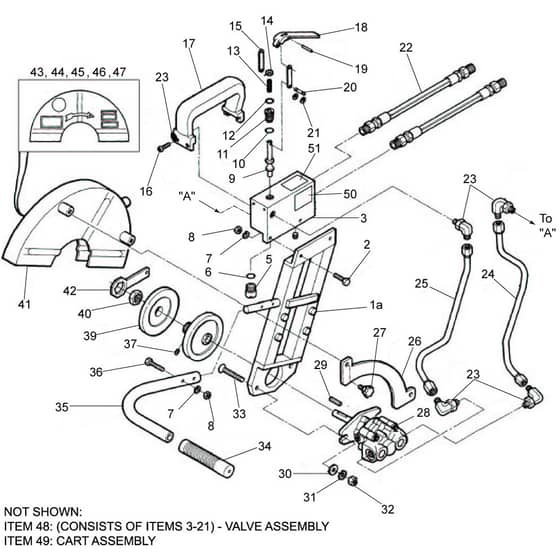

Belle Hydraulic Cut-Off Saw - Main Assembly - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	BE183/99501 Available to backorder	[1a] - Saw Frame	£645.60 £538.00
2	BE183/99502 Available to backorder	[2] - 1/4" x 1" Cap Screw	£0.66 £0.55
3	BE183/99503 Available to backorder	[3] - Valve Body	£577.20 £481.00
4	BE183/99504 Available to backorder	[4] - 1/16" Pipe Plug	£3.04 £2.53
5	BE183/99505 Available to backorder	[5] - Plug	£90.56 £75.47
6	BE183/99506 Available to backorder	[6] - O-Ring	£0.66 £0.55
7	BE183/99507 Available to backorder	[7] - 1/4" Lock Washer	£0.48 £0.40
8	BE183/99508 Available to backorder	[8] - 1/4" Nut	£0.48 £0.40
9	BE183/99509 Available to backorder	[9] - Spool	£188.28 £156.90
10	BE183/99510 Available to backorder	[10] - O-Ring	£0.48 £0.40
11	BE183/99511 Available to backorder	[11] - Valve Housing Plug	£127.02 £105.85
12	BE183/99512 Available to backorder	[12] - O-Ring	£0.48 £0.40
13	BE183/99513 Available to backorder	[13] - Compression Plug	£11.96 £9.97
14	BE183/99514 Available to backorder	[14] - Washer	£1.08 £0.90
15	BE183/99515 Available to backorder	[15] - Connecting Link	£56.98 £47.48
16	BE183/99516 Available to backorder	[16] - Buton Head Screw	£1.28 £1.07
17	BE183/99517 Available to backorder	[17] - Handle	£202.92 £169.10
18	BE183/99518 Available to backorder	[18] - Trigger	£150.78 £125.65
19	BE183/99519 Available to backorder	[19] - Pin	£23.62 £19.68
20	BE183/99520 Available to backorder	[20] - Pin	£42.56 £35.47
21	BE183/99521 Available to backorder	[21] - E-Ring	£0.66 £0.55
22	BE183/99522 Available to backorder	[22] - Whip Hose Kit	£106.38 £88.65
23	BE183/99523 Available to backorder	[23] - Tube Fitting	£106.86 £89.05
24	BE183/99524 Available to backorder	[24] - Tube	£200.88 £167.40
25	BE183/99525 Available to backorder	[25] - Tube	£182.16 £151.80
26	BE183/99526 Available to backorder	[26] - Slide	£29.62 £24.68
27	BE183/99527 Available to backorder	[27] - Knob	£17.02 £14.18
28	BE183/99528 Available to backorder	[28] - Hydraulic Motor	£680.40 £567.00
29	BE183/99529 Available to backorder	[29] - Key	£11.66 £9.72
30	BE183/99530 Available to backorder	[30] - Washer	£0.92 £0.77
31	BE183/99531 Available to backorder	[31] - 3/8" Lock Washer	£0.48 £0.40
32	BE183/99532 Available to backorder	[32] - 3/8" Nut	£0.77 £0.64
33	BE183/99533 Available to backorder	[33] - 3/8" x 1" Screw	£3.36 £2.80
34	BE183/99534 Available to backorder	[34] - Grip	£25.74 £21.45
35	BE183/99535 Available to backorder	[35] - Handle	£143.00 £119.17
36	BE183/99536 Available to backorder	[36] - 1/4" x 1 1/4" Cap Screw	£1.38 £1.15
37	BE183/99537 Available to backorder	[37] - 1/4" x 3/16" Set Screw	£0.77 £0.64
38	BE183/99538 Available to backorder	[38] - Adapter	£476.40 £397.00
39	BE183/99539 Available to backorder	[39] - Disc	£213.72 £178.10
40	BE183/99540 Available to backorder	[40] - Nut L/H	£193.16 £160.97
41	BE183/99541 Available to backorder	[41] - Guard 14"	£501.60 £418.00
42	BE183/99542 Available to backorder	[42] - Wrench	£182.16 £151.80
48	BE183/99548 Available to backorder	[48] - Valve Assembly(Items3 To21)	£1,501.20 £1,251.00
