Belle HydraCutter-150 - Main Assembly

Name: Belle HydraCutter-150 - Main Assembly
SKU: HydraCutter150Main-group
Price: 0.4 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

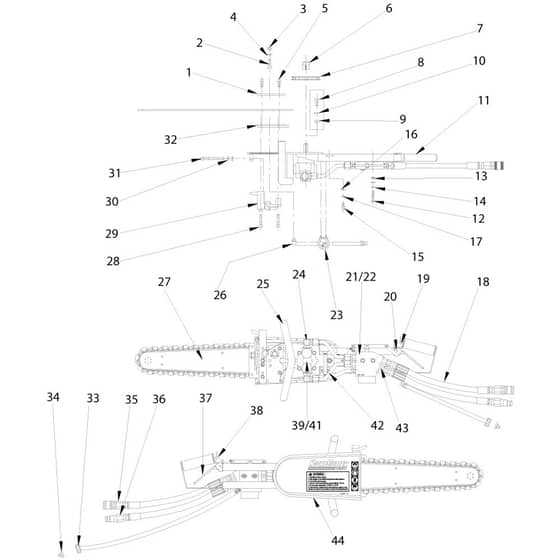

Belle HydraCutter-150 - Main Assembly - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
0	BE174-99548 Available to backorder	[-] - Wrench Allen "T"	£37.52 £31.27
0	BE174-99546 Available to backorder	[-] - Decal	£145.86 £121.55
0	BE174-99547 Available to backorder	[-] - Wrench+ Allen 1/4 Std	£13.48 £11.23
0	BE174-00600 Available to backorder	[-] - Chain 20" - 50 cm Bar (Sl20)	£1,724.40 £1,437.00
0	BE174-99552 Available to backorder	[-] - C-150 Sl/Ac Chain Repair Kit	£181.98 £151.65
0	BE174-99550 Available to backorder	[-] - Spanner Wrench	£131.92 £109.93
0	BE174-00300 Available to backorder	[-] - Pressure Boost Block	£1,052.40 £877.00
0	BE174-00900 Available to backorder	[-] - Chain 20" - 50 cm Bar (Sl40)	£1,420.80 £1,184.00
0	BE174-00800 Available to backorder	[-] - Chain 15" - 38 cm Bar (Sl40)	£1,598.40 £1,332.00
0	BE174-00200 Available to backorder	[-] - Chain 15" - 38 cm Bar (Sl20)	£2,665.20 £2,221.00
0	BE174-99549 Available to backorder	[-] - Tip Cleaner	£10.86 £9.05
0	BE174-99553 Available to backorder	[-] - C-150 Sl/Ac Preset Connecting	£29.06 £24.22
0	BE174-00100 Available to backorder	[-] - Chain 15" - 38 cm Bar (Sl05)	£1,659.60 £1,383.00
0	BE174-00500 Available to backorder	[-] - Chain 20"/ 50cm Bar ( Sl05 )	£1,638.00 £1,365.00
0	BE174-99551 Available to backorder	[-] - C-150 Operation Video Tape	£73.22 £61.02
1	BE174-99501 Available to backorder	[1] - Bar Clamp	£183.38 £152.82
2	BE174-99502 Available to backorder	[2] - Screw 3/8-16 x 1	£3.76 £3.13
3	BE174-99503 Available to backorder	[3] - Nut Hex 3/8-16	£0.48 £0.40
4	BE174-99504 Available to backorder	[4] - Washer	£0.48 £0.40
5	BE174-99505 Available to backorder	[5] - Screw 5/16- 18 x 3/4	£5.38 £4.48
6	BE174-99506 Available to backorder	[6] - Trantorque	£242.52 £202.10
7	BE174-99507 Available to backorder	[7] - Drive Sprocket	£722.40 £602.00
8	BE174-99508 Available to backorder	[8] - Screw 3/8 - 16 x 1	£3.76 £3.13
9	BE174-99509 Available to backorder	[9] - Locknut 3/8 - 16	£1.76 £1.47
10	BE174-99510 Available to backorder	[10] - Washer	£0.48 £0.40
11	BE174-99511 Available to backorder	[11] - C150 Saw Frame	£1,902.00 £1,585.00
12	BE174-99512 Available to backorder	[12] - Hhc 1/4 - 20 x 1- 1/2	£0.68 £0.57
13	BE174-99513 Available to backorder	[13] - Lock Nut 1/4 - 20	£3.46 £2.88
14	BE174-99514 Available to backorder	[14] - Washer	£0.77 £0.64
15	BE174-99515 Available to backorder	[15] - Screw Socket Head	£4.28 £3.57
16	BE174-99516 Available to backorder	[16] - Washer	£0.48 £0.40
17	BE174-99517 Available to backorder	[17] - Washer	£0.48 £0.40
18	BE174-99518 Available to backorder	[18] - 12" Hose Assembly	£203.04 £169.20
19	BE174-99519 Available to backorder	[19] - Clevis Pin 1/4 x 1-3/4	£3.88 £3.23
20	BE174-99520 Available to backorder	[20] - Clevis Pin 1/4 x 1- 1/2	£4.16 £3.47
21	BE174-99521 Available to backorder	[21] - Valve 3 Port	£1,303.20 £1,086.00
22	BE174-99522 Available to backorder	[22] - Valve Rebuild Kit	£103.40 £86.17
23	BE174-99523 Available to backorder	[23] - Water Gage Only	£170.98 £142.48
24	BE174-99524 Available to backorder	[24] - Fitting	£44.02 £36.68
25	BE174-99525 Available to backorder	[25] - Foam Grip	£33.76 £28.13
26	BE174-99526 Available to backorder	[26] - Water Guage Kit	£265.20 £221.00
27	BE174-99527 Available to backorder	[27] - 15" - 38cm Bar	£1,352.40 £1,127.00
27	BE174-99528 Available to backorder	[27] - 20" - 50cm Bar	£1,422.00 £1,185.00
28	BE174-99529 Available to backorder	[28] - Screw 5/16 x 1- 1/4	£10.42 £8.68
29	BE174-99530 Available to backorder	[29] - Wall Walker	£1,222.80 £1,019.00
30	BE174-99531 Available to backorder	[30] - Nut Jam	£2.00 £1.67
31	BE174-99532 Available to backorder	[31] - Screw 5/16 - 18 x 3	£33.24 £27.70
32	BE174-99533 Available to backorder	[32] - Bar Adaptor	£268.20 £223.50
33	BE174-99534 Available to backorder	[33] - Washer	£20.28 £16.90
34	BE174-99535 Available to backorder	[34] - Fitting	£57.92 £48.27
35	BE174-99536 Available to backorder	[35] - Coupling 1/2" Female	£172.40 £143.67
36	BE174-99537 Available to backorder	[36] - Coupling 1/2" Male	£102.12 £85.10
37	BE174-99538 Available to backorder	[37] - Trigger Assembly	£141.48 £117.90
38	BE174-99539 Available to backorder	[38] - Saw Trigger Lockout	£95.52 £79.60
39	BE174-99540 Available to backorder	[39] - Hydraulic Motor C-150	£594.00 £495.00
40	BE174-99541 Available to backorder	[40] - Felt Gasket For Motor Shaft	£9.34 £7.78
41	BE174-99542 Available to backorder	[41] - Hydraulic Motor Seal Kit	£255.84 £213.20
42	BE174-99543 Available to backorder	[42] - Hydraulic Tube	£122.14 £101.78
43	BE174-99544 Available to backorder	[43] - Adaptor Fitting	£38.80 £32.33
44	BE174-99545 Available to backorder	[44] - Guard With Decal	£226.20 £188.50
