Belle Guardian 350 & 400 - Chassis Assembly

Name: Belle Guardian 350 & 400 - Chassis Assembly
SKU: Guardian350400Chassis-group
Price: 0.4 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Belle Guardian 350 & 400 - Chassis Assembly

Description

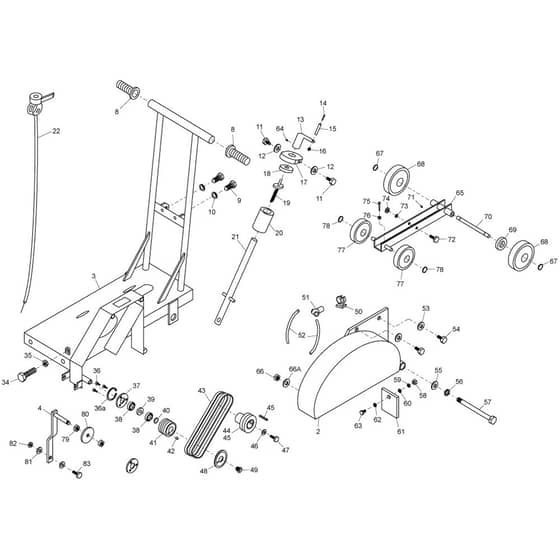

Belle Guardian 350 & 400 - Chassis Assembly - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
2	BE974/00200 Available to backorder	[2] - Blade Guard	£151.86 £126.55
3	BE974/00300 Available to backorder	[3] - Bedplate	£464.40 £387.00
4	BE974/00400 Available to backorder	[4] - Pointer Guide	£20.74 £17.28
8	BE974/99902 Available to backorder	[8] - Hand Grip	£5.54 £4.62
9	BE7/8053 Available to backorder	[9] - Screw	£0.48 £0.40
10	BE4/8006 Available to backorder	[10] - Washer M8	£0.48 £0.40
11	BE9/12008 Available to backorder	[11] - Bolt	£0.48 £0.40
13	BE974/99903 Available to backorder	[13] - Handle	£34.54 £28.78
14	BE974/99940 Available to backorder	[14] - Bolt	£16.62 £13.85
15	BE974/99904 Available to backorder	[15] - Hand Grip	£1.38 £1.15
17	BE974/99905 Available to backorder	[17] - Collar	£110.46 £92.05
18	BE974/99906 Available to backorder	[18] - Bearing	£6.94 £5.78
19	BE974/99907 Available to backorder	[19] - Threaded Tub	£110.46 £92.05
20	BE974/99908 Available to backorder	[20] - Tube	£1.38 £1.15
21	BE974/00600 Available to backorder	[21] - Pipe	£131.18 £109.32
22	BE974/99909 Available to backorder	[22] - Throttle Lever Assy	£23.54 £19.62
34	BE9/10014 Available to backorder	[34] - Bolt	£0.83 £0.69
36	BE974/99943 Available to backorder	[36a] - Circlip 52W	£5.82 £4.85
36	BE7/6001 Available to backorder	[36] - Screw	£0.48 £0.40
37	BE974/99910 Available to backorder	[37] - Cover	£55.24 £46.03
38	BE974/99911 Available to backorder	[38] - Bearing	£27.64 £23.03
39	BE974/99912 Available to backorder	[39] - Plate	£6.94 £5.78
40	BE974/99913 Available to backorder	[40] - Retaining Ring	£0.48 £0.40
41	BE974/99914 Available to backorder	[41] - Pulley	£191.16 £159.30
42	BE974/99915 Available to backorder	[42] - Stud	£6.94 £5.78
43	BE974/99916 Available to backorder	[43] - Belt	£23.54 £19.62
44	BE974/99917 Available to backorder	[44] - Pulley Engine	£82.84 £69.03
45	BE974/99936 Available to backorder	[45] - Key	£13.82 £11.52
46	BE4/1204 Available to backorder	[46] - Washer M12	£0.48 £0.40
47	BE974/99941 Available to backorder	[47] - Screw	£2.78 £2.32
48	BE974/99918 Available to backorder	[48] - Clamp Plate	£89.76 £74.80
49	BE974/99919 Available to backorder	[49] - Screw	£34.54 £28.78
50	BE974/99920 Available to backorder	[50] - Holder	£1.38 £1.15
51	BE974/99921 Available to backorder	[51] - Adaptor	£12.42 £10.35
52	BE974/99922 Available to backorder	[52] - Hose	£1.38 £1.15
54	BE9/10023 Available to backorder	[54] - Bolt	£2.32 £1.93
57	BE944/99110 Available to backorder	[57] - Bolt M10 x 110	£1.88 £1.57
58	BE8/6001 Available to backorder	[58] - Nut	£0.66 £0.55
59	BE4/6005 Available to backorder	[59] - Washer M6	£0.48 £0.40
61	BE974/99923 Available to backorder	[61] - Guard	£6.94 £5.78
62	BE4/6001 Available to backorder	[62] - Washer M6	£0.48 £0.40
63	BE7/6037 Available to backorder	[63] - Screw	£1.34 £1.12
64	BE9/10002 Available to backorder	[64] - Bolt	£2.16 £1.80
65	BE974/99924 Available to backorder	[65] - Bracket	£96.66 £80.55
66	BE4/1001 Available to backorder	[66A] - Washer M10	£0.48 £0.40
67	BE974/99933 Available to backorder	[67] - Retaining Wheel	£0.48 £0.40
68	BE974/99925 Available to backorder	[68] - Rear Wheel	£41.44 £34.53
69	BE974/99926 Available to backorder	[69] - Bush	£6.94 £5.78
70	BE974/99927 Available to backorder	[70] - Axle	£82.84 £69.03
71	BE7/8004 Available to backorder	[71] - Screw	£0.48 £0.40
72	BE974/99939 Available to backorder	[72] - Screw	£0.48 £0.40
73	BE4/1601 Available to backorder	[73] - Washer M16	£0.48 £0.40
75	BE9/12018 Available to backorder	[75] - Bolt	£1.02 £0.85
76	BE8/12002 Available to backorder	[76] - Nut	£0.48 £0.40
77	BE974/99928 Available to backorder	[77] - Front Wheel	£34.54 £28.78
78	BE974/99929 Available to backorder	[78] - Retaining Ring	£0.48 £0.40
80	BE974/99930 Available to backorder	[80] - Plate	£6.94 £5.78
81	BE4/1004 Available to backorder	[81] - Washer M10	£0.48 £0.40
82	BE8/10003 Available to backorder	[82] - Nut	£0.48 £0.40
83	BE7/10010 Available to backorder	[83] - Screw	£0.48 £0.40
90	BE8/8001 Available to backorder	[90] - Nut	£0.48 £0.40
