Belle GPX Range - Main Assembly (GPX 5000)

Name: Belle GPX Range - Main Assembly (GPX 5000)
SKU: GPXRangeMainGPX5000-group
Price: 0.36 GBP
Availability: InStock

Part No. GPXRangeMainGPX5000-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Belle GPX Range - Main Assembly (GPX 5000)

Description

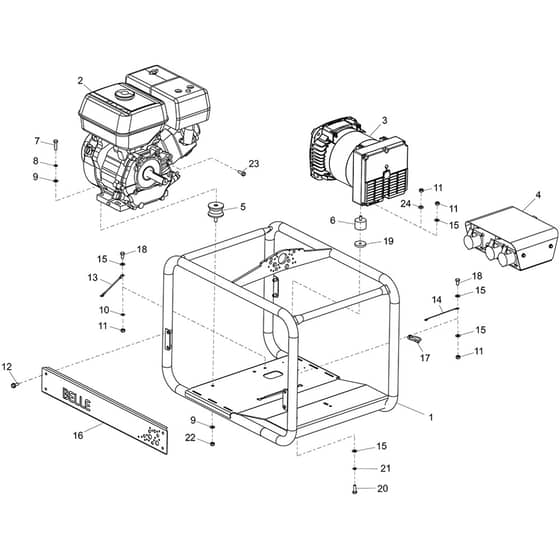

Belle GPX Range - Main Assembly (GPX 5000) - Parts Diagram

	Part No.	Details
0	BEGTB01S Available to backorder	[-] - Gen Gpx Test Box Analogue	£564.00 £470.00
1	BE996/00600SP Available to backorder	[1] - Gpx5000 Frame Assy	£305.40 £254.50
2	BE20/0133 Available to backorder	[2] - Engine Honda Gx270Ut2 Vsd7	£966.53 £805.44
5	BE21.0.292 In stock	[5] - Anti-Vib Mount	£12.70 £10.58
6	BE21/0157 Available to backorder	[6] - Mount Anti Vibration	£7.31 £6.09
7	BE7/10010 Available to backorder	[7] - Screw	£0.43 £0.36
8	BE4/1003 Available to backorder	[8] - Washer M10	£0.48 £0.40
9	BE4/1005 Available to backorder	[9] - Washer M10	£0.48 £0.40
10	BE4/8002 Available to backorder	[10] - Washer M8	£0.48 £0.40
11	BE8/8008 Available to backorder	[11] - Nut	£0.48 £0.40
12	BE7/8037 Available to backorder	[12] - Screw	£0.48 £0.40
13	BE71/0317 Available to backorder	[13] - Earth Cable	£6.64 £5.53
14	BE914/25303 Available to backorder	[14] - Cable Retaining	£22.84 £19.03
15	BE4/8006 Available to backorder	[15] - Washer M8	£0.48 £0.40
16	BE996/99907Y Available to backorder	[16] - Side Guard - Large Yellow	£25.00 £20.83
16	BE996/99907W Available to backorder	[16] - Side Guard - Large White	£25.08 £20.90
16	BE996/99907S Available to backorder	[16] - Side Guard - Large Orange	£25.09 £20.91
16	BE996/99907G Available to backorder	[16] - Side Guard - Large Green	£25.49 £21.24
18	BE7/8008 Available to backorder	[18] - Screw	£0.48 £0.40
19	BE4/8023 Available to backorder	[19] - Washer	£2.98 £2.48
20	BE7/8012 Available to backorder	[20] - Screw	£0.48 £0.40
21	BE4/8003 Available to backorder	[21] - Washer M8	£0.71 £0.59
22	BE8/10006 Available to backorder	[22] - Nut	£0.48 £0.40
23	BE10-342-0616P Available to backorder	[23] - Set Screw 3/8"Unc x 1" Pl	£0.79 £0.66
24	BE4/8014 Available to backorder	[24] - Washer	£0.48 £0.40
