Belle GPX Range - Main Assembly (GPX 2700 & GPX 3400)

Description

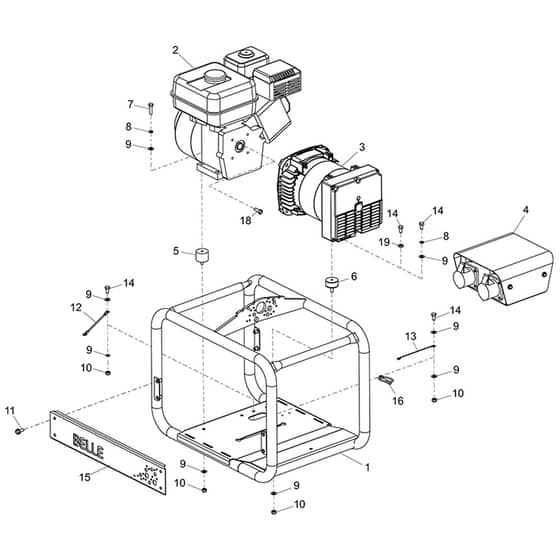

Belle GPX Range - Main Assembly (GPX 2700 & GPX 3400) - Parts Diagram

	Part No.	Details
0	BEGTB01S Available to backorder	[-] - Gen Gpx Test Box Analogue	£564.00 £470.00
1	BE996/00400SP Available to backorder	[1] - Gpx2700/3400 Frame Assy	£280.32 £233.60
2	BE20/0132 Available to backorder	[2] - Engine Honda Gx200Ut2 Vsd9	£580.61 £483.84
5	BE21/0157 Available to backorder	[5] - Mount Anti Vibration	£7.31 £6.09
6	BE21/0436 Available to backorder	[6] - Mount Anti-Vibration	£4.32 £3.60
7	BE7/8009 Available to backorder	[7] - Screw	£0.48 £0.40
8	BE4/8003 Available to backorder	[8] - Washer M8	£0.71 £0.59
9	BE4/8006 Available to backorder	[9] - Washer M8	£0.48 £0.40
10	BE8/8008 Available to backorder	[10] - Nut	£0.48 £0.40
11	BE7/8037 Available to backorder	[11] - Screw	£0.48 £0.40
13	BE914/25303 Available to backorder	[13] - Cable Retaining	£22.84 £19.03
14	BE7/8008 Available to backorder	[14] - Screw	£0.48 £0.40
15	BE996/99906G Available to backorder	[15] - Side Guard Green	£24.25 £20.21
15	BE996/99906Y Available to backorder	[15] - Side Guard Yellow	£23.75 £19.79
15	BE996/99906S Available to backorder	[15] - Side Guard Orange	£23.83 £19.86
17	BE71/0316 Available to backorder	[17] - Earth Cable	£6.29 £5.24
18	BE9/0005 Available to backorder	[18] - Screw Set 5/16 Unf x 7/8 Long	£0.48 £0.40
19	BE4/8014 Available to backorder	[19] - Washer	£0.48 £0.40
