Belle GPX Range - Control Box Assembly (GPX 2700)

Name: Belle GPX Range - Control Box Assembly (GPX 2700)
SKU: GPXRangeControlBoxGPX2700-group
Price: 0.4 GBP
Availability: InStock

Part No. GPXRangeControlBoxGPX2700-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Belle GPX Range - Control Box Assembly (GPX 2700)

Description

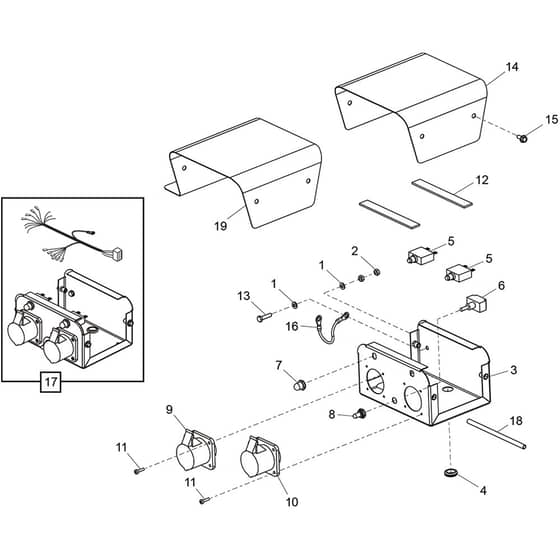

Belle GPX Range - Control Box Assembly (GPX 2700) - Parts Diagram

	Part No.	Details
1	BE4/6001 Available to backorder	[1] - Washer M6	£0.48 £0.40
2	BE8/6001 Available to backorder	[2] - Nut	£0.68 £0.57
3	BE996/00301SP Available to backorder	[3] - Pressing Control Box Gpx2700	£63.72 £53.10
4	BE3/4019 Available to backorder	[4] - Grommet - Open 020 - Pv73M	£1.49 £1.24
5	BE918/40100 Available to backorder	[5] - Circuit Breaker 20Amp Thermal	£6.23 £5.19
6	BE918/13000 Available to backorder	[6] - Switch 2 Pole C/Over 1.5/2.2	£41.88 £34.90
7	BE70/0314 Available to backorder	[7] - Breaker Switch Cover	£2.80 £2.33
8	BE70/0313 Available to backorder	[8] - Pole Switch Cover	£10.94 £9.12
9	BE922/02100 Available to backorder	[9] - Socket 240 Volt 230V - 16 Amp	£20.92 £17.43
10	BE922/02000 Available to backorder	[10] - Socket 110 Volt 110V - 16 Amp	£16.46 £13.72
11	BE7/4003 Available to backorder	[11] - Screw	£0.62 £0.52
12	BE1/0817 Available to backorder	[12] - Draught Excluder (Per Mtr)	£2.69 £2.24
13	BE7/6051 Available to backorder	[13] - Screw	£0.48 £0.40
14	BE996/99902G Available to backorder	[14] - Pressing Top Cover Green	£24.35 £20.29
14	BE996/99902S Available to backorder	[14] - Pressing Top Cover Orange	£24.25 £20.21
14	BE996/99902Y Available to backorder	[14] - Pressing Top Cover Yellow	£24.25 £20.21
14	BE996/99902R1 Available to backorder	[14] - Pressing Top Cover Red	£24.35 £20.29
14	BE996/99902B1 Available to backorder	[14] - Pressing Top Cover Blue	£24.35 £20.29
15	BE7/6034 Available to backorder	[15] - Screw	£0.58 £0.48
16	BE71/0315 Available to backorder	[16] - Earth Cable	£5.92 £4.93
17	BE996/01000SP Available to backorder	[17] - Control Box Gpx2700	£153.00 £127.50
19	BE996/99920R1 Available to backorder	[19] - Top Cover - Maccalte Red Red	£21.72 £18.10
19	BE996/99920Y Available to backorder	[19] - Top Cover - Maccalte Yellow Yellow	£21.66 £18.05
19	BE996/99920B1 Available to backorder	[19] - Top Cover - Maccalte Blue Blue	£21.72 £18.10
19	BE996/99920S Available to backorder	[19] - Top Cover - Maccalte Orange Orange	£21.66 £18.05
19	BE996/99920G Available to backorder	[19] - Top Cover - Maccalte Green Green	£21.79 £18.16
19	BE996/99920W1 Available to backorder	[19] - Top Cover - Maccalte Matt Whit White	£21.66 £18.05
20	BE7/5023 Available to backorder	[20] - Screw	£1.74 £1.45
21	BE4/5002 Available to backorder	[21] - Washer M5	£2.51 £2.09
22	BE8/5006 Available to backorder	[22] - Nut	£0.48 £0.40
