Belle Easy Screed Pro - Main Assembly (Up To December 2004)

Name: Belle Easy Screed Pro - Main Assembly (Up To December 2004)
SKU: EasyScreedProMainUpToDecember2004-group
Price: 0.31 GBP
Availability: InStock

Part No. EasyScreedProMainUpToDecember2004-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Belle Easy Screed Pro - Main Assembly (Up To December 2004)

Description

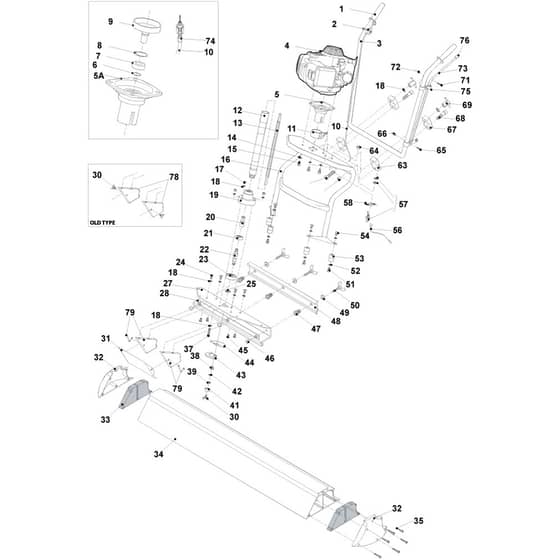

Belle Easy Screed Pro - Main Assembly (Up To December 2004) - Parts Diagram

	Part No.	Details
1	BE19.0.708 Available to backorder	[1] - Hand Grip 1" I/D	£6.23 £5.19
2	BE157.0.016 Available to backorder	[2] - Throttle Handle	£124.08 £103.40
3	BE157.0.017 Available to backorder	[3] - Upper Operating Handle	£234.60 £195.50
4	BE157.0.233 Available to backorder	[4] - Engine Honda Gx35	£1,170.43 £975.36
5	BE157.0.019 Available to backorder	[5] - Cent.Clutch Hsg With Alu. Ring	£208.92 £174.10
5	BE157.0.018 Available to backorder	[5] - Clutch Housing Complete	£387.74 £323.12
7	BE157.0.020 Available to backorder	[7] - Bearing In Centrifugal Housing	£20.66 £17.22
8	BE157.0.052 Available to backorder	[8] - Retaining Ring (Big) Now Use 157.0.018	£4.51 £3.76
9	BE157.0.021 Available to backorder	[9] - Centrifugal Drum	£79.20 £66.00
10	BE157.0.022 Available to backorder	[10] - Throttle Asm.Caable 100cm	£39.43 £32.86
11	BE157.3.033 Available to backorder	[11] - Housing Clamp	£62.64 £52.20
12	BE157.0.024 Available to backorder	[12] - Rubber Hose With Connectors	£350.28 £291.90
13	BE157.0.025 Available to backorder	[13] - Flexible Shaft	£88.80 £74.00
14	BE4/6005 Available to backorder	[14] - Washer M6	£0.48 £0.40
15	BE07.0.027 Available to backorder	[15] - Socket Head Capscrew M6 x 25 H	£0.48 £0.40
16	BE157.0.026 Available to backorder	[16] - Lower Operating Handle	£532.22 £443.52
17	BE157.0.161 Available to backorder	[17] - Self Locking Nut M8	£0.66 £0.55
18	BE157.0.332 Available to backorder	[18] - Washer	£0.37 £0.31
19	BE157.3.023 Available to backorder	[19] - Excentric Housing Complete	£357.36 £297.80
19	BE157.0.023 Available to backorder	[19] - Excentric Housing	£359.40 £299.50
20	BE157.0.028 Available to backorder	[20] - Coupling Drive Pin	£104.64 £87.20
21	BE157.0.029 Available to backorder	[21] - Bearing (Small)	£4.80 £4.00
22	BE157.0.030 Available to backorder	[22] - Excentric Shaft	£96.72 £80.60
23	BE157.0.031 Available to backorder	[23] - Excentric Bearing	£76.92 £64.10
24	BE157.0.324 Available to backorder	[24] - Bolt M8	£3.08 £2.57
25	BE157.0.051 Available to backorder	[25] - Retaining Ring In Centrif. Hsg	£0.85 £0.71
27	BE157.0.032 Available to backorder	[27] - Excentric Assembly Plate	£331.66 £276.38
28	BE157.0.033 Available to backorder	[28] - Strip Nuts For Alu Clamp 400mm	£82.68 £68.90
31	BE157.0.034 Available to backorder	[31] - Cover Of Excentive	£69.60 £58.00
32	BE157.0.035 Available to backorder	[32] - Set Of End Caps	£97.56 £81.30
33	BE157.0.036 Available to backorder	[33] - Set Of Seals (One Side)	£20.44 £17.03
34	BE157.0.040 Available to backorder	[34] - 3.0 Mtr - 10Ft Beam Profile 3M / 10 Ft	£898.56 £748.80
34	BE157.0.037 Available to backorder	[34] - 1.5 Mtr - 5Ft Beam Profile 1.5M / 5Ft	£592.13 £493.44
34	BE157.0.042 Available to backorder	[34] - 4.25 Mtr - 14Ft Beam Profile 4.25M / 14Ft	£1,391.62 £1,159.68
34	BE157.0.043 Available to backorder	[34] - 5 Mtr - 16Ft Beam Profile 5M / 16Ft	£1,601.28 £1,334.40
34	BE157.0.044 Available to backorder	[34] - 5.5 Mtr - 18Ft Beam Profile 5.5 M / 18Ft	£1,844.35 £1,536.96
34	BE157.0.038 Available to backorder	[34] - 1.9 Mtr - 6Ft Beam Profile 1.9M / 6Ft	£661.25 £551.04
34	BE157.0.039 Available to backorder	[34] - 2.5 Mtr - 8Ft Beam Profile 2.5M / 8Ft	£869.76 £724.80
34	BE157.0.041 Available to backorder	[34] - 3.75 Mtr - 12Ft Beam Profile 3.75M / 12 Ft	£1,217.66 £1,014.72
34	BE157.0.045 Available to backorder	[34] - 6 Mtr - 20Ft Beam Profile 6M / 20Ft	£2,157.70 £1,798.08
35	BE07.9.015 Available to backorder	[35] - Self Tapping Screw M5 x 20	£1.32 £1.10
37	BE9/8019 Available to backorder	[37] - Bolt	£0.48 £0.40
38	BE157.0.046 Available to backorder	[38] - Hinge Bushing For Excentric	£19.18 £15.98
39	BE157.0.235 Available to backorder	[39] - Half Nut M12 (Fine)	£3.08 £2.57
41	BE157.0.047 Available to backorder	[41] - Clamping Bush For Excentric	£42.54 £35.45
42	BE157.0.000 Available to backorder	[42] - Retaining Ring - M12	£1.82 £1.52
43	BE157.0.001 Available to backorder	[43] - Excentric Plate (Small)	£30.85 £25.71
44	BE157.0.002 Available to backorder	[44] - Excentric Plate (Big)	£51.58 £42.98
45	BE07.0.106 Available to backorder	[45] - Skt Hd Countersunk M8 x 20 Bzp	£3.68 £3.07
46	BE157.0.236 Available to backorder	[46] - Plastic Protection Cap M12	£1.63 £1.36
47	BE157.0.003 Available to backorder	[47] - Compression Spring	£20.00 £16.67
48	BE157.0.004 Available to backorder	[48] - Aluminium Clamping Strip	£114.36 £95.30
49	BE157.0.237 Available to backorder	[49] - Washer M12 x 6	£4.82 £4.02
50	BE157.0.005 Available to backorder	[50] - Clamp For Claiming Strip	£34.92 £29.10
52	BE157.0.310 Available to backorder	[52] - Retaining Ring	£0.80 £0.67
53	BE157.0.048 Available to backorder	[53] - Rubber Buffer 30x30 Mb	£38.40 £32.00
54	BE157.0.168 Available to backorder	[54] - Bolt M8 x 10	£1.24 £1.03
56	BE157.0.246 Available to backorder	[56] - Earth Cable	£4.91 £4.09
57	BE157.0.008 Available to backorder	[57] - Stop Switch	£68.40 £57.00
58	BE157.0.009 Available to backorder	[58] - On-Off Indication Plate	£78.60 £65.50
59	BE00.0.862 Available to backorder	[59] - Coach Bolt M8 x 50 Ht Bzp	£0.41 £0.34
60	BE157.0.240 Available to backorder	[60] - Self Locking Flange Nut M6	£1.06 £0.88
63	BE157.0.010 Available to backorder	[63] - Lower Aluminium Clamp	£29.05 £24.21
65	BE02.0.014 Available to backorder	[65] - Setscrew M6 x 20 Ht Bzp	£0.48 £0.40
66	BE01.0.103 Available to backorder	[66] - Nut - M6 Hex Nyloc Bzp	£0.48 £0.40
67	BE157.0.012 Available to backorder	[67] - Upper Aluminium Clamp	£33.64 £28.03
68	BE157.0.241 Available to backorder	[68] - Socket Head Bolt M6 x 40	£1.63 £1.36
69	BE157.0.013 Available to backorder	[69] - Clamp For Height Adjustment	£33.02 £27.52
71	BE157.0.354 Available to backorder	[71] - Screw	£1.99 £1.66
72	BE157.0.355 Available to backorder	[72] - Self Locking Nut	£0.80 £0.67
73	BE157.0.014 Available to backorder	[73] - Supporting Leg	£108.48 £90.40
74	BE157.0.049 Available to backorder	[74] - Gasthrottle Adjustment Bolt	£18.56 £15.47
75	BE157.0.015 Available to backorder	[75] - Clamp For Supporting Leg	£19.31 £16.09
76	BE157.0.050 Available to backorder	[76] - Rubber Protection Cap	£3.12 £2.60
77	BE157.0.247 Available to backorder	[77] - Washer	£0.43 £0.36
78	BE157.0.242 Available to backorder	[78] - Plastic Block (Wing Nut)	£124.08 £103.40
79	BE157.0.243 Available to backorder	[79] - Plastic Block (Clip)	£196.08 £163.40
