Belle DUX E+ - Main Assembly

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Belle DUX E+ - Main Assembly

Belle DUX E+ - Main Assembly

Description

Belle DUX E+ - Main Assembly - Parts Diagram

Be the first to review this product

0 product questions

Ref.		Img.	Part No.	Details
	3		BE165.3.029 Available to backorder	[3] - Ppu Kit - Sleeve And Drive Dog		£143.76 £119.80

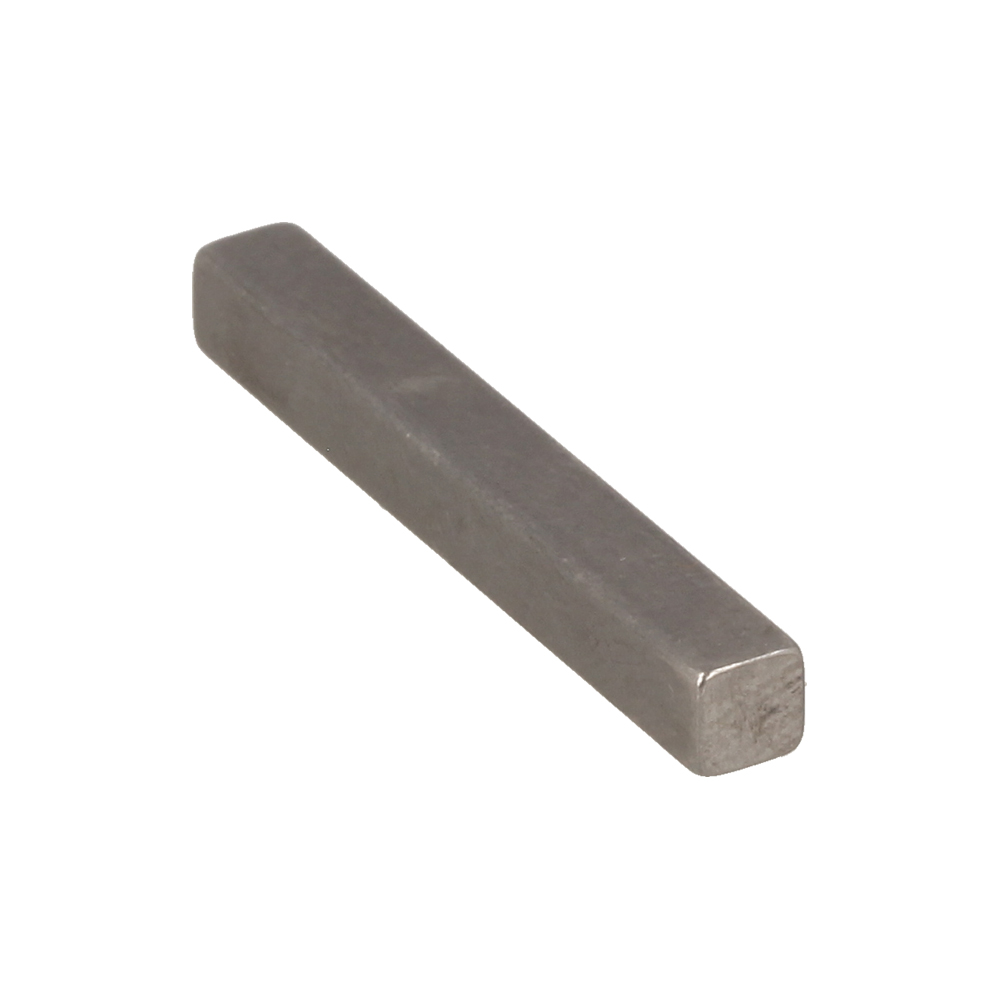

	9		BE06.8.001 Available to backorder	[9] - Key - 3/16" Sq x 1.25" Long		£4.92 £4.10
	11		BE4/8022 Available to backorder	[11] - Washer		£1.12 £0.93
	12		BE7/8047 Available to backorder	[12] - Screw		£0.48 £0.40
	13		BE4/8006 Available to backorder	[13] - Washer M8		£0.48 £0.40
	14		BE7/8053 Available to backorder	[14] - Screw		£0.48 £0.40
	15		BE7/8037 Available to backorder	[15] - Screw		£0.48 £0.40
	16		BE7/8049 Available to backorder	[16] - Screw		£0.48 £0.40
	17		BE8/8008 Available to backorder	[17] - Nut		£0.48 £0.40
	19		BE914/25303 Available to backorder	[19] - Cable Retaining		£22.08 £18.40

Description

Belle DUX E+ - Main Assembly - Parts Diagram
