Belle Duo 350X - Handle Assembly

Name: Belle Duo 350X - Handle Assembly
SKU: Duo350XHandle-group
Price: 0.4 GBP
Availability: InStock

Part No. Duo350XHandle-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

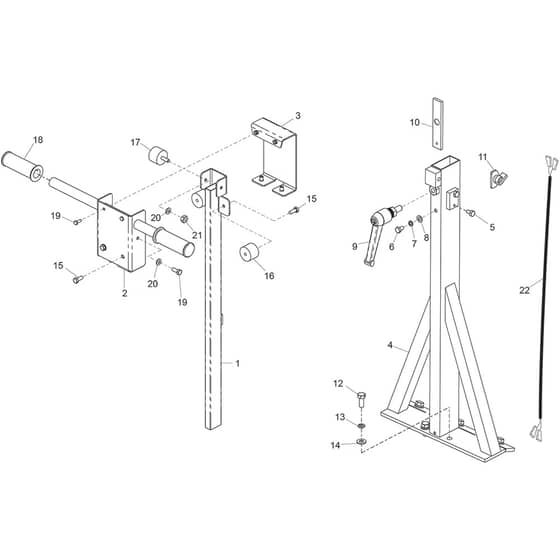

Belle Duo 350X - Handle Assembly - Parts Diagram

	Part No.	Details
1	BE135/01000R Available to backorder	[1] - Upper Handle Bracket - Red Red	£55.22 £46.02
1	BE135/01000B Available to backorder	[1] - Upper Handle Bracket - Blue Blue	£55.28 £46.07
1	BE135/01000Y Available to backorder	[1] - Upper Handle Bracket - Yellow Yellow	£55.28 £46.07
1	BE135/01000G Available to backorder	[1] - Upper Handle Bracket - Green Green	£55.22 £46.02
1	BE135/01000S Available to backorder	[1] - Upper Handle Bracket - Orange Orange	£55.22 £46.02
2	BE135/00900R Available to backorder	[2] - Handle Sub Assembly - Red Red	£49.99 £41.66
2	BE135/00900S Available to backorder	[2] - Handle Sub Assembly - Orange Orange	£50.03 £41.69
2	BE135/00900B Available to backorder	[2] - Handle Sub Assembly - Blue Blue	£50.03 £41.69
2	BE135/00900G Available to backorder	[2] - Handle Sub Assembly - Green Green	£50.03 £41.69
2	BE135/00900Y Available to backorder	[2] - Handle Sub Assembly - Yellow Yellow	£50.03 £41.69
3	BE135/00801S Available to backorder	[3] - Handle Cover Pressing - Orange Orange	£18.40 £15.33
3	BE135/00801B Available to backorder	[3] - Handle Cover Pressing - Blue Blue	£18.40 £15.33
3	BE135/00801G Available to backorder	[3] - Handle Cover Pressing - Green Green	£18.40 £15.33
3	BE135/00801Y Available to backorder	[3] - Handle Cover Pressing - Yellow Yellow	£18.40 £15.33
3	BE135/00801R Available to backorder	[3] - Handle Cover Pressing - Red Red	£18.40 £15.33
4	BE135/00700 Available to backorder	[4] - Lower Handle Wa	£329.78 £274.82
5	BE21.0.195 Available to backorder	[5] - Screw M4 x 8 Pozi Pan M/C Bzp	£3.04 £2.53
6	BE7/6011 Available to backorder	[6] - Screw	£0.48 £0.40
7	BE4/6005 Available to backorder	[7] - Washer M6	£0.48 £0.40
8	BE4/6001 Available to backorder	[8] - Washer M6	£0.48 £0.40
9	BE19.0.830 Available to backorder	[9] - Locking Handle	£20.28 £16.90
10	BE135.0.009 Available to backorder	[10] - Clamp Foot	£72.60 £60.50
11	BE70/0233 Available to backorder	[11] - On/Off Switch	£3.89 £3.24
12	BE7/8008 Available to backorder	[12] - Screw	£0.48 £0.40
14	BE4/8006 Available to backorder	[14] - Washer M8	£0.48 £0.40
15	BE7/8045 Available to backorder	[15] - Screw	£0.85 £0.71
16	BE21.0.234 Available to backorder	[16] - Anti Vib Mount M8 F/F	£4.80 £4.00
17	BE21.0.216 Available to backorder	[17] - Anti Vib Mountings	£13.22 £11.02
18	BE19.0.708 Available to backorder	[18] - Hand Grip 1" I/D	£6.23 £5.19
19	BE7/6034 Available to backorder	[19] - Screw	£0.58 £0.48
20	BE4/8003 Available to backorder	[20] - Washer M8	£0.71 £0.59
21	BE8/8008 Available to backorder	[21] - Nut	£0.48 £0.40
22	BE71/0228 Available to backorder	[22] - Harness Compact Saw	£52.32 £43.60
