Belle Duo 350X - Blade Guard Assembly

Description

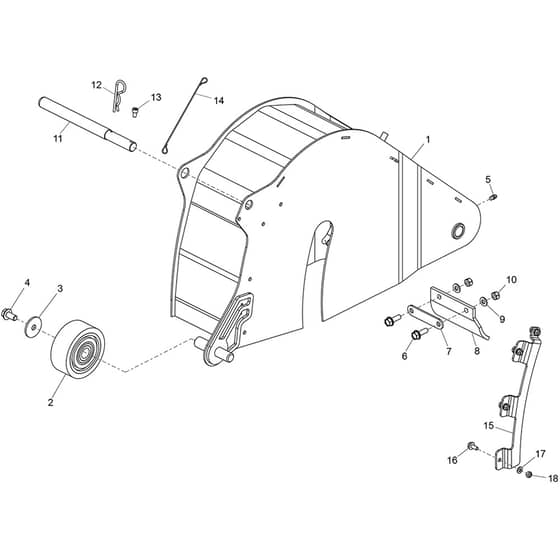

Belle Duo 350X - Blade Guard Assembly - Parts Diagram

	Part No.	Details
1	BE135/02600R Available to backorder	[1] - Double Blade Guard Red Red	£338.40 £282.00
1	BE135/02600S Available to backorder	[1] - Double Blade Guard Orange Orange	£338.40 £282.00
2	BE19.0.581 Available to backorder	[2] - Wheel 100mm	£129.00 £107.50
3	BE4/1009 Available to backorder	[3] - Washer	£9.28 £7.73
4	BE7/10039 Available to backorder	[4] - Screw	£1.04 £0.87
5	BE500/06100 Available to backorder	[5] - Grease Nipple - M6 x 1mm	£0.48 £0.40
6	BE7/8095 Available to backorder	[6] - Screw	£0.86 £0.72
7	BE135/99909 Available to backorder	[7] - Plate Dust Flap Clamp	£3.98 £3.32
8	BE135/99908 Available to backorder	[8] - Dust Suppresion Flap	£56.24 £46.87
9	BE4/8006 Available to backorder	[9] - Washer M8	£0.48 £0.40
10	BE8/8008 Available to backorder	[10] - Nut	£0.48 £0.40
11	BE135/99916 Available to backorder	[11] - Bar Handle	£27.20 £22.67
12	BE3/2004 Available to backorder	[12] - R Clip	£0.48 £0.40
13	BE7/6045 Available to backorder	[13] - Screw	£1.38 £1.15
14	BE914/25303 Available to backorder	[14] - Cable Retaining	£22.08 £18.40
15	BE135/99914 Available to backorder	[15] - Pressing Guard Guide	£19.84 £16.53
16	BE7/6034 Available to backorder	[16] - Screw	£0.56 £0.47
17	BE4/6001 Available to backorder	[17] - Washer M6	£0.48 £0.40
18	BE8/6007 Available to backorder	[18] - Nut	£0.48 £0.40
