Belle Duo 350X - Bedplate Assembly

Name: Belle Duo 350X - Bedplate Assembly
SKU: Duo350XBedplate-group
Price: 0.4 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

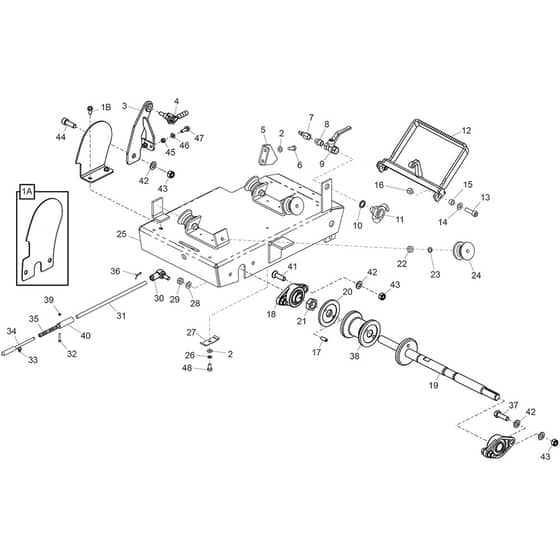

Belle Duo 350X - Bedplate Assembly - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	BE135/99913 Available to backorder	[1B] - Rear Blade Guard From Serial No. 183696	£10.42 £8.68
4	BE74/0033 Available to backorder	[4] - P100 Brauer Toggle Clamp	£121.96 £101.63
5	BE135.0.036 Available to backorder	[5] - Tilt Stop	£26.14 £21.78
6	BE7/8012 Available to backorder	[6] - Screw	£0.48 £0.40
7	BE6/0005 Available to backorder	[7] - Adaptor - 1/2 x 3/8 Bsp M/M	£6.44 £5.37
8	BE14.0.503 Available to backorder	[8] - Brass Nipple 3/8" To 1/4" M/M	£13.34 £11.12
9	BE15.0.027 Available to backorder	[9] - Ball Valve 3/8"Bsp F/F - Lever	£42.14 £35.12
10	BE5/0007 Available to backorder	[10] - Seal Bonded 3/8" Bsp	£0.48 £0.40
11	BE19.1.019 Available to backorder	[11] - Coupling 3/8" Bsp Male Qdl	£23.22 £19.35
12	BE135/02500 Available to backorder	[12] - Foot Treadle	£133.38 £111.15
13	BE7/1004 Available to backorder	[13] - Screw	£0.56 £0.47
15	BE135/01600 Available to backorder	[15] - Foot Treadle Bush	£27.02 £22.52
16	BE8/10006 Available to backorder	[16] - Nut	£0.48 £0.40
17	BE71.0.088 Available to backorder	[17] - Blade Pin	£16.82 £14.02
18	BE53/0093 Available to backorder	[18] - Flanged Mount Bearing �30	£25.52 £21.27
19	BE135.0.146 Available to backorder	[19] - Arbor Shaft Assy	£141.42 £117.85
20	BE109.0.026 Available to backorder	[20] - Clamping Plate	£41.12 £34.27
21	BE01.5.019 Available to backorder	[21] - Arbor Nut 1"Unf L/H	£16.72 £13.93
22	BE8/10003 Available to backorder	[22] - Nut	£0.48 £0.40
23	BE4/1003 Available to backorder	[23] - Washer M10	£0.48 £0.40
24	BE21.0.298 Available to backorder	[24] - Anti Vib Mount (Yellow Spot)	£11.96 £9.97
25	BE135/02400 Available to backorder	[25] - Main Frame	£676.80 £564.00
26	BE4/8003 Available to backorder	[26] - Washer M8	£0.71 £0.59
27	BE135.0.017 Available to backorder	[27] - Spring Clamp (Top)	£16.58 £13.82
28	BE4/1005 Available to backorder	[28] - Washer M10	£0.48 £0.40
29	BE8/6001 Available to backorder	[29] - Nut	£0.66 £0.55
30	BE3/5047 Available to backorder	[30] - Ball Joint Rod End	£22.68 £18.90
31	BE135/01700 Available to backorder	[31] - Connecting Rod	£43.72 £36.43
32	BE00.0.163 Available to backorder	[32] - Bolt M4 x 25 Ht Bzp	£0.48 £0.40
33	BE500/06100 Available to backorder	[33] - Grease Nipple - M6 x 1mm	£0.48 £0.40
34	BE135.0.023 Available to backorder	[34] - Plunger	£27.64 £23.03
35	BE19.0.079 Available to backorder	[35] - Spring - Entex 83	£12.72 £10.60
36	BE06.5.001 Available to backorder	[36] - Split Pin 1/8" x 3/4"	£0.85 £0.71
37	BE7/14023 Available to backorder	[37] - Screw	£5.26 £4.38
38	BE135/99905 Available to backorder	[38] - Double Blade Spacer Bobbin	£104.64 £87.20
39	BE8/4005 Available to backorder	[39] - Nut	£0.48 £0.40
40	BE135.0.040 Available to backorder	[40] - Adjusting Bar-Painted	£31.18 £25.98
41	BE7/14020 Available to backorder	[41] - Screw	£5.24 £4.37
42	BE4/1403 Available to backorder	[42] - Washer	£0.48 £0.40
43	BE8/14006 Available to backorder	[43] - Nut	£0.56 £0.47
44	BE7/14015 Available to backorder	[44] - Screw	£2.58 £2.15
45	BE8/8008 Available to backorder	[45] - Nut	£0.48 £0.40
46	BE4/8006 Available to backorder	[46] - Washer M8	£0.48 £0.40
47	BE7/8095 Available to backorder	[47] - Screw	£0.86 £0.72
48	BE7/8008 Available to backorder	[48] - Screw	£0.48 £0.40
49	BE7/8037 Available to backorder	[49] - Screw	£0.48 £0.40
