Belle Disc Cutter - Main Assembly

Name: Belle Disc Cutter - Main Assembly
SKU: DiscCutterMain-group
Price: 3.23 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

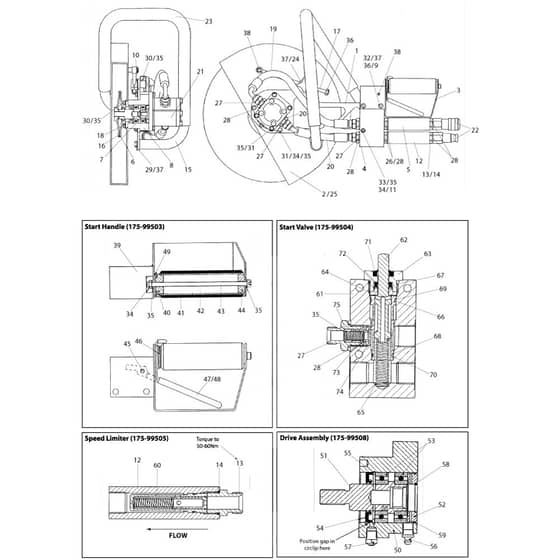

Belle Disc Cutter - Main Assembly - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
3	BE175-99503 Available to backorder	[3] - Start Handle	£320.40 £267.00
4	BE175-99504 Available to backorder	[4] - Start Valve	£648.00 £540.00
5	BE175-99505 Available to backorder	[5] - Speed Limited	£546.00 £455.00
6	BE175-99506 Available to backorder	[6] - Bush Assembly	£534.00 £445.00
7	BE175-99507 Available to backorder	[7] - Nut Assembly	£496.80 £414.00
8	BE175-99508 Available to backorder	[8] - Drive Assembly	£1,212.00 £1,010.00
9	BE175-99509 Available to backorder	[9] - M8 Protection Cap	£13.82 £11.52
10	BE175-99510 Available to backorder	[10] - Clamp	£216.48 £180.40
11	BE175-99511 Available to backorder	[11] - M6 Protection Clamp	£13.82 £11.52
12	BE175-99512 Available to backorder	[12] - Housing	£309.36 £257.80
13	BE175-99513 Available to backorder	[13] - Adapter	£297.36 £247.80
14	BE175-99514 Available to backorder	[14] - O-Ring Seal	£10.06 £8.38
15	BE175-99515 Available to backorder	[15] - Handle	£336.00 £280.00
16	BE175-99516 Available to backorder	[16] - Hub	£278.04 £231.70
17	BE175-99517 Available to backorder	[17] - Adjust Bar	£307.08 £255.90
18	BE175-99518 Available to backorder	[18] - Guard Retainer	£198.84 £165.70
20	BE175-99520 Available to backorder	[20] - Hose	£148.74 £123.95
21	BE175-99521 Available to backorder	[21] - Gear Motor	£1,130.40 £942.00
22	BE175-99522 Available to backorder	[22] - Flat Faced Coupling	£306.84 £255.70
23	BE175-99523 Available to backorder	[23] - Front Grip	£184.02 £153.35
24	BE175-99524 Available to backorder	[24] - Hand Wheel	£126.80 £105.67
25	BE175-99525 Available to backorder	[25] - D.C Transfer	£87.44 £72.87
26	BE175-99526 Available to backorder	[26] - Equal Union	£51.82 £43.18
27	BE175-99527 Available to backorder	[27] - Unequal Union	£51.82 £43.18
28	BE175-99528 Available to backorder	[28] - 1/2" Bonded Seal	£10.60 £8.83
29	BE175-99529 Available to backorder	[29] - M8 x 25 Hex Head Screw	£15.64 £13.03
30	BE175-99530 Available to backorder	[30] - M6 x 16 Hex Head Screw	£14.46 £12.05
31	BE175-99531 Available to backorder	[31] - M6 x 25 Hex Head Screw	£15.64 £13.03
32	BE175-99532 Available to backorder	[32] - M8 x 60 Btn Head Screw	£18.76 £15.63
33	BE175-99533 Available to backorder	[33] - M6 x 50 Cap Head Screw	£18.76 £15.63
34	BE175-99534 Available to backorder	[34] - M6 Nyloc Nut	£22.58 £18.82
35	BE175-99535 Available to backorder	[35] - Washer M6	£13.82 £11.52
36	BE175-99536 Available to backorder	[36] - M8 Nyloc Nut	£25.04 £20.87
37	BE175-99537 Available to backorder	[37] - Washer M8	£13.82 £11.52
38	BE175-99538 Available to backorder	[38] - Circlip	£3.88 £3.23
39	BE175-99539 Available to backorder	[39] - Hand Guard	£619.20 £516.00
40	BE175-99540 Available to backorder	[40] - Bush	£68.26 £56.88
41	BE175-99541 Available to backorder	[41] - Grip	£122.14 £101.78
42	BE175-99542 Available to backorder	[42] - Handle	£131.32 £109.43
43	BE175-99543 Available to backorder	[43] - Screw	£29.06 £24.22
44	BE175-99544 Available to backorder	[44] - Retainer	£82.42 £68.68
45	BE175-99545 Available to backorder	[45] - Spirol Pin	£21.84 £18.20
75	BE175-99575 Available to backorder	[75] - Spring	£25.40 £21.17
