Belle Cub 20-90 (PAN) - Valve Assembly

Part No. Cub2090PANValve-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Belle Cub 20-90 (PAN) - Valve Assembly

Belle Cub 20-90 (PAN) - Valve Assembly

Description

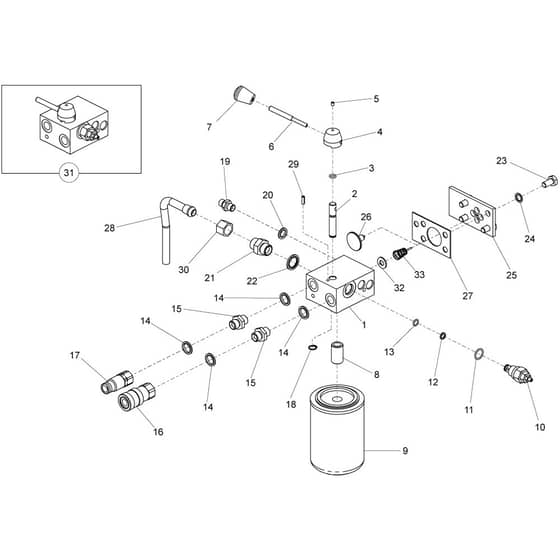

Belle Cub 20-90 (PAN) - Valve Assembly - Parts Diagram

Ref.		Img.	Part No.	Details
	1		BE01055 Available to backorder	[1] - Valve Block Assy Cub		£361.50 £301.25
	2		BE01392-1SP Available to backorder	[2] - Spool For V/V Block Now Use 01392		£171.24 £142.70
	3		BE10-202-6347 Available to backorder	[3] - O Ring 202-634-4470		£0.48 £0.40
	4		BE01392-2SP Available to backorder	[4] - Boss		£96.48 £80.40
	5		BE10-360-0506 Available to backorder	[5] - Grub Screw M5x6		£0.68 £0.57
	6		BE01055/3 Available to backorder	[6] - Lever		£14.80 £12.33
	7		BE72/0007 Available to backorder	[7] - Knob Bypy		£3.79 £3.16
	8		BE00047 Available to backorder	[8] - Filter Spigot		£17.96 £14.97
	9		BE00178 Available to backorder	[9] - Hydraulic Filter		£61.68 £51.40
	11		BE01082/1 Available to backorder	[11] - O Ring		£6.04 £5.03
	12		BE01082/2 Available to backorder	[12] - Washer		£10.46 £8.72
	13		BE01082/3 Available to backorder	[13] - O Ring		£5.94 £4.95
	14		BE6/0005 Available to backorder	[14] - Adaptor - 1/2 x 3/8 Bsp M/M		£6.66 £5.55
	15		BE6/0011 Available to backorder	[15] - Adaptor - 3/8 x 3/8 Bsp M/M		£5.32 £4.43
	16		BE00546 Available to backorder	[16] - Coupling 3/8" Bsp Female		£80.76 £67.30
	17		BE00545 Available to backorder	[17] - Coupling 3/8" Bsp Male		£47.15 £39.29
	18		BE10-615-1200 Available to backorder	[18] - Circlip 12mm		£0.68 £0.57
	19		BE6/0039 Available to backorder	[19] - Adapter 1/4"x1/4" Bsp M/M		£12.79 £10.66
	20		BE10/100/0511 Available to backorder	[20] - Bonded Seal		£1.31 £1.09
	33		BE00024 Available to backorder	[33] - Now Use 00024Sp		£314.52 £262.10

Description

Belle Cub 20-90 (PAN) - Valve Assembly - Parts Diagram
