Belle Cub 20-90 (PAN) - Pump & Motor Assembly

Belle Cub 20-90 (PAN) - Pump & Motor Assembly
Belle Cub 20-90 (PAN) - Pump & Motor Assembly

Description

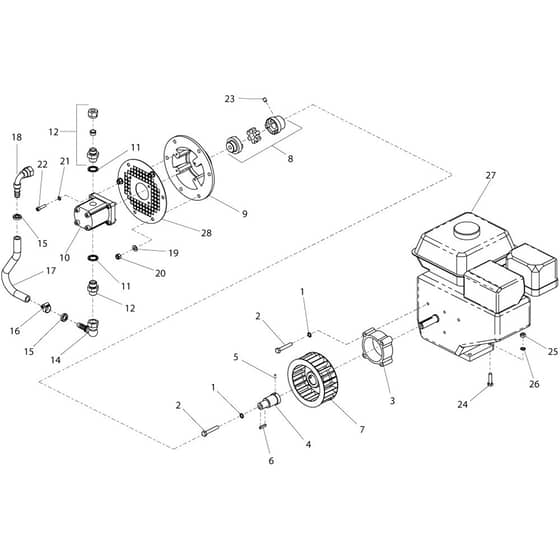

Belle Cub 20-90 (PAN) - Pump & Motor Assembly - Parts Diagram

Ref. Img. Part No. Details
  1 [1] - Washer M8
[1] - Washer M8
BE4/8002
Available to backorder
[1] - Washer M8
£0.48 £0.40

  2 [2] - Bolt 5/16 Unf x 2
[2] - Bolt 5/16 Unf x 2
BE01068
Available to backorder
[2] - Bolt 5/16 Unf x 2" Long
£0.92 £0.77

  3 [3] - Engine Spacer
[3] - Engine Spacer
BE01066
Available to backorder
[3] - Engine Spacer
£118.68 £98.90

  4 [4] - Extension Shaft.
[4] - Extension Shaft.
BE01062
Available to backorder
[4] - Extension Shaft.
£115.34 £96.12

  5 [5] - Grub Screw M5 x 10 Long
[5] - Grub Screw M5 x 10 Long
BE10/360/0510
Available to backorder
[5] - Grub Screw M5 x 10 Long
£1.28 £1.07

  6 [6] - Key 3/16
[6] - Key 3/16
BE06.8.004
Available to backorder
[6] - Key 3/16" x 3/16" x 1"
£3.96 £3.30

  7 [7] - Fan 140 Dia.x50 x 28 Bore
[7] - Fan 140 Dia.x50 x 28 Bore
BE01083
Available to backorder
[7] - Fan 140 Dia.x50 x 28 Bore
£265.44 £221.20

  9 [9] - Pump Plate
[9] - Pump Plate
BE00490
Available to backorder
[9] - Pump Plate
£165.04 £137.53

  10 [10] - Pump
[10] - Pump
BE01069
Available to backorder
[10] - Pump
£279.72 £233.10

  11 [11] - Seal Bonded 1/2
[11] - Seal Bonded 1/2
BE5/0002
Available to backorder
[11] - Seal Bonded 1/2" Bsp
£0.48 £0.40

  12 [12] - Stud Coupling
[12] - Stud Coupling
BE01034
Available to backorder
[12] - Stud Coupling
£36.83 £30.69

  13 [13] - Adaptor Male/Male 1/2
[13] - Adaptor Male/Male 1/2
BE10-600-0808
Available to backorder
[13] - Adaptor Male/Male 1/2" x 1/2"
£12.56 £10.47

  14 [14] - Compact Elbow 1/2
[14] - Compact Elbow 1/2
BE00562
Available to backorder
[14] - Compact Elbow 1/2"
£7.10 £5.92

  15 [15] - Plastic Back Up Ring 1/2
[15] - Plastic Back Up Ring 1/2
BE00057
Available to backorder
[15] - Plastic Back Up Ring 1/2"
£0.97 £0.81

  16 [16] - Jubilee Clip 16-22mm
[16] - Jubilee Clip 16-22mm
BE10-501-1622
Available to backorder
[16] - Jubilee Clip 16-22mm
£1.64 £1.37

  17 [17] - Suction Hose 1/2
[17] - Suction Hose 1/2
BE01084
Available to backorder
[17] - Suction Hose 1/2" Bore
£9.25 £7.71

  18 [18] - Swept Push In Elbow
[18] - Swept Push In Elbow
BE00056
Available to backorder
[18] - Swept Push In Elbow
£17.26 £14.38

  19 [19] - Washer M8
[19] - Washer M8
BE10/400/0800
Available to backorder
[19] - Washer M8
£1.28 £1.07

  20 [20] - Nylock Nut M8
[20] - Nylock Nut M8
BE10/301/0800
Available to backorder
[20] - Nylock Nut M8
£1.28 £1.07

  21 [21] - Washer Shakeproof M6 M6
[21] - Washer Shakeproof M6 M6
BE10/405/0600
Available to backorder
[21] - Washer Shakeproof M6 M6
£1.28 £1.07

  22 [22] - Capscrew M6 x 25 Lg
[22] - Capscrew M6 x 25 Lg
BE10-330-0625
Available to backorder
[22] - Capscrew M6 x 25 Lg
£0.48 £0.40

  23 [23] - Grub Screw M8 x 10 Long
[23] - Grub Screw M8 x 10 Long
BE10-360-0810
Available to backorder
[23] - Grub Screw M8 x 10 Long
£0.48 £0.40

  24 [24] - Screw
[24] - Screw
BE7/8009
Available to backorder
[24] - Screw
£0.48 £0.40

  25 [25] - Nut M8
[25] - Nut M8
BE10-300-0800
Available to backorder
[25] - Nut M8
£0.48 £0.40

  26 [26] - Washer Shakeproof M8 M8
[26] - Washer Shakeproof M8 M8
BE10/405/0800
Available to backorder
[26] - Washer Shakeproof M8 M8
£1.28 £1.07

  28 [28] - Fan Guard
[28] - Fan Guard
BE02291
Available to backorder
[28] - Fan Guard
£60.08 £50.07
